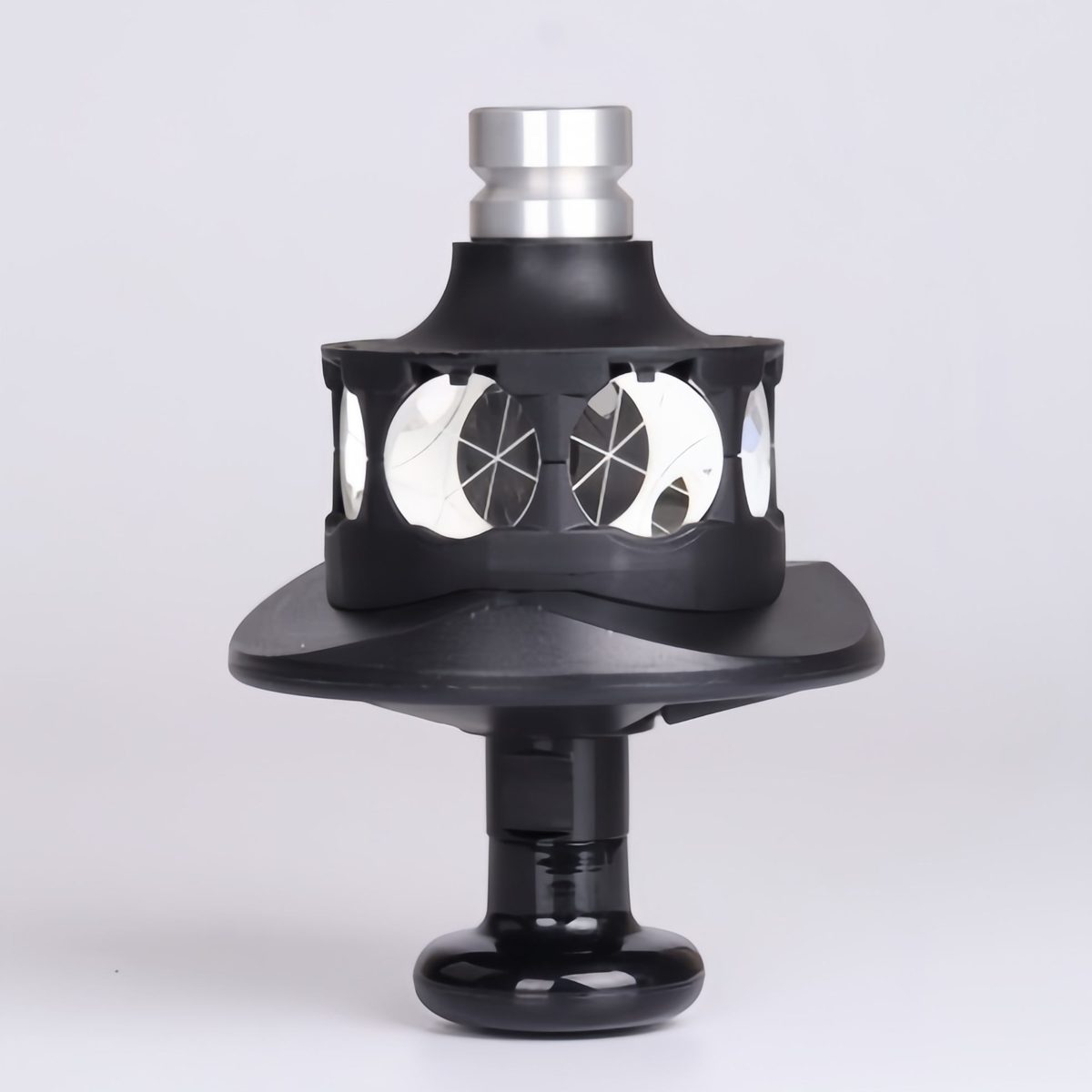

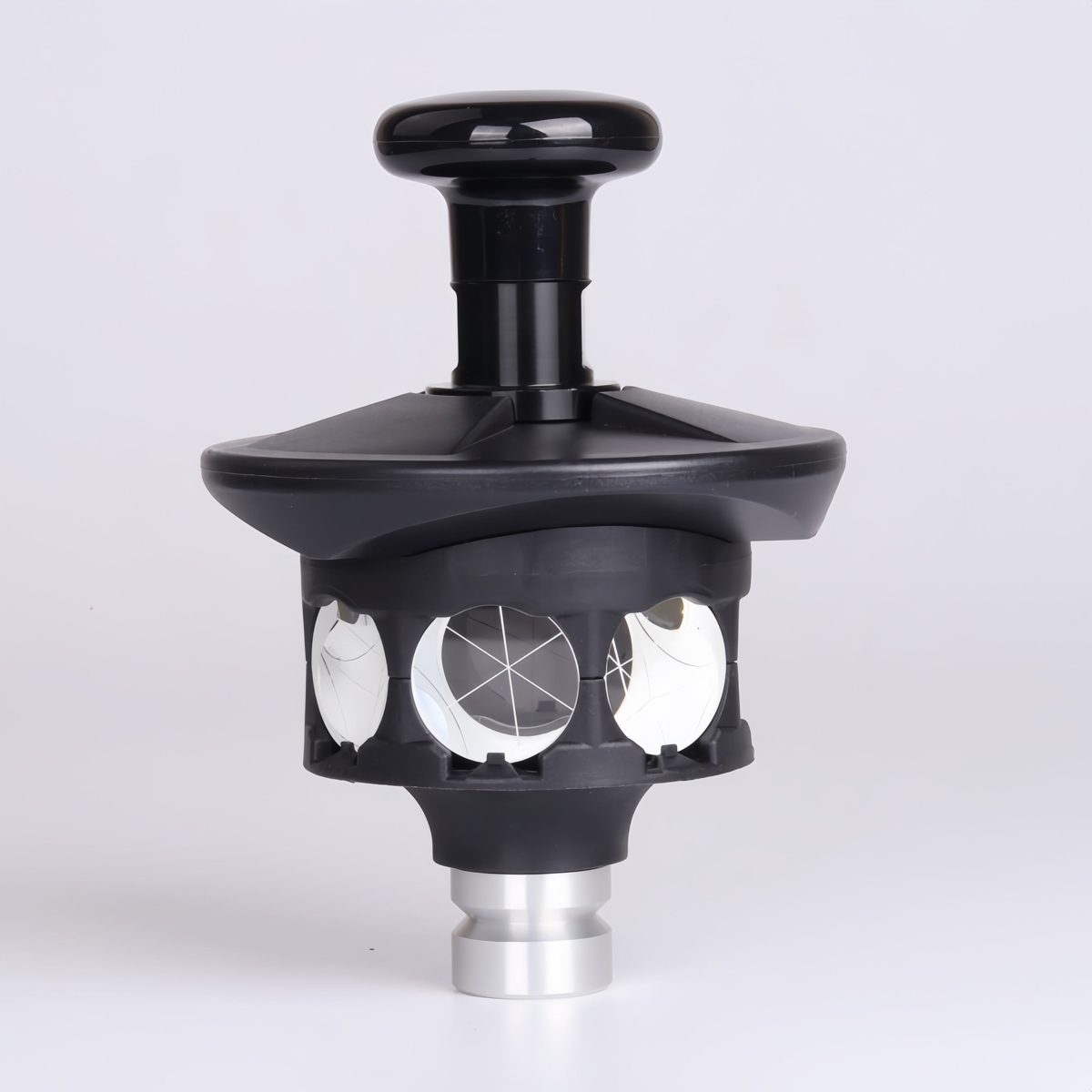

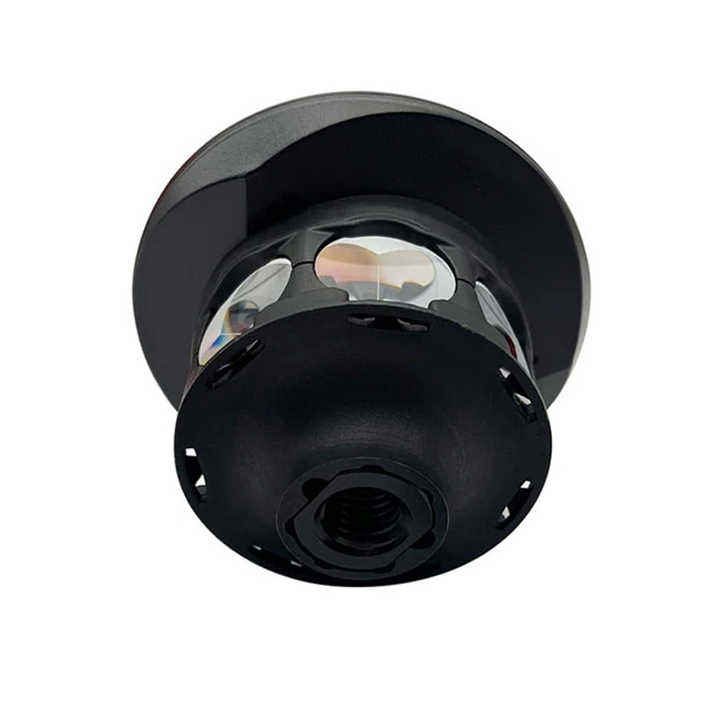

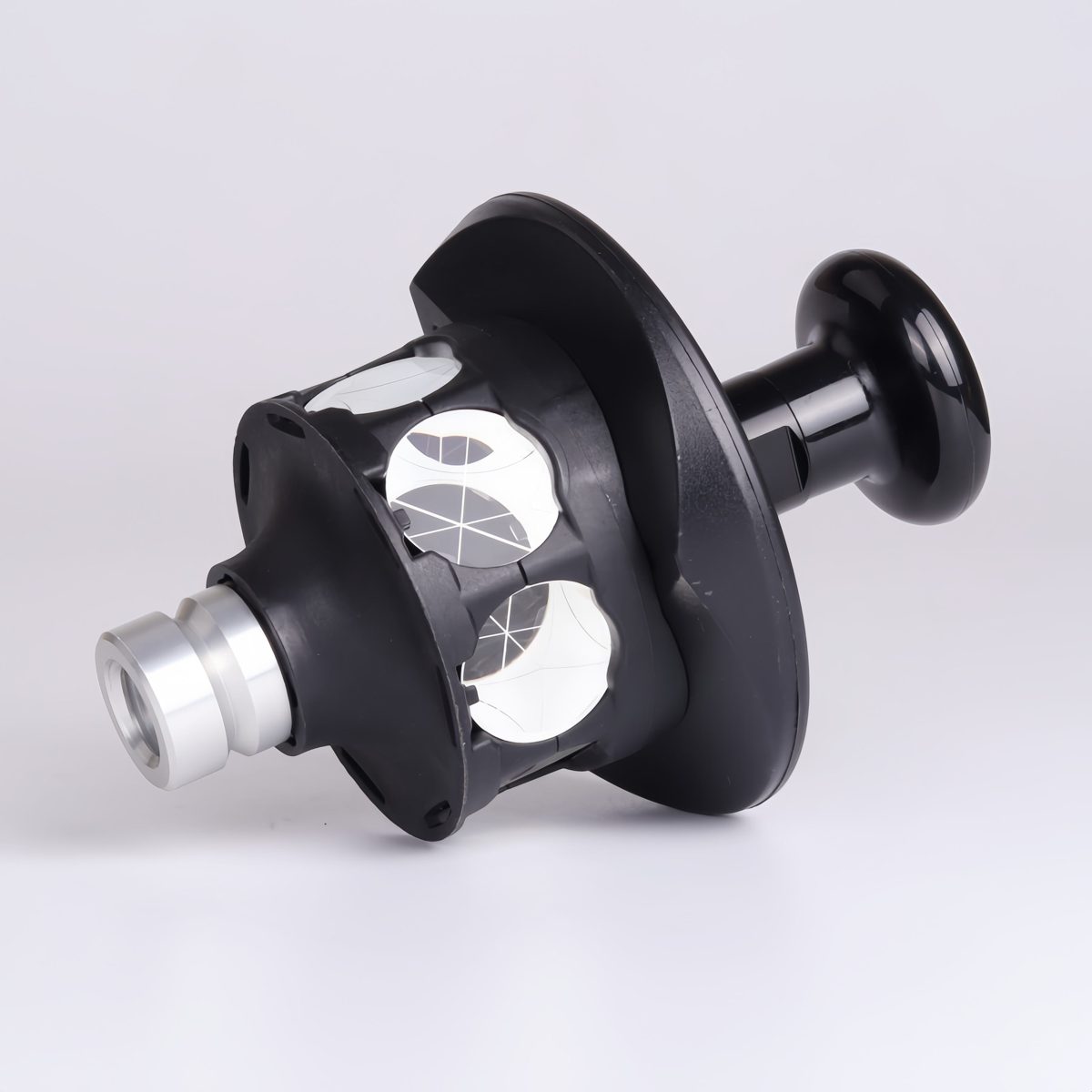

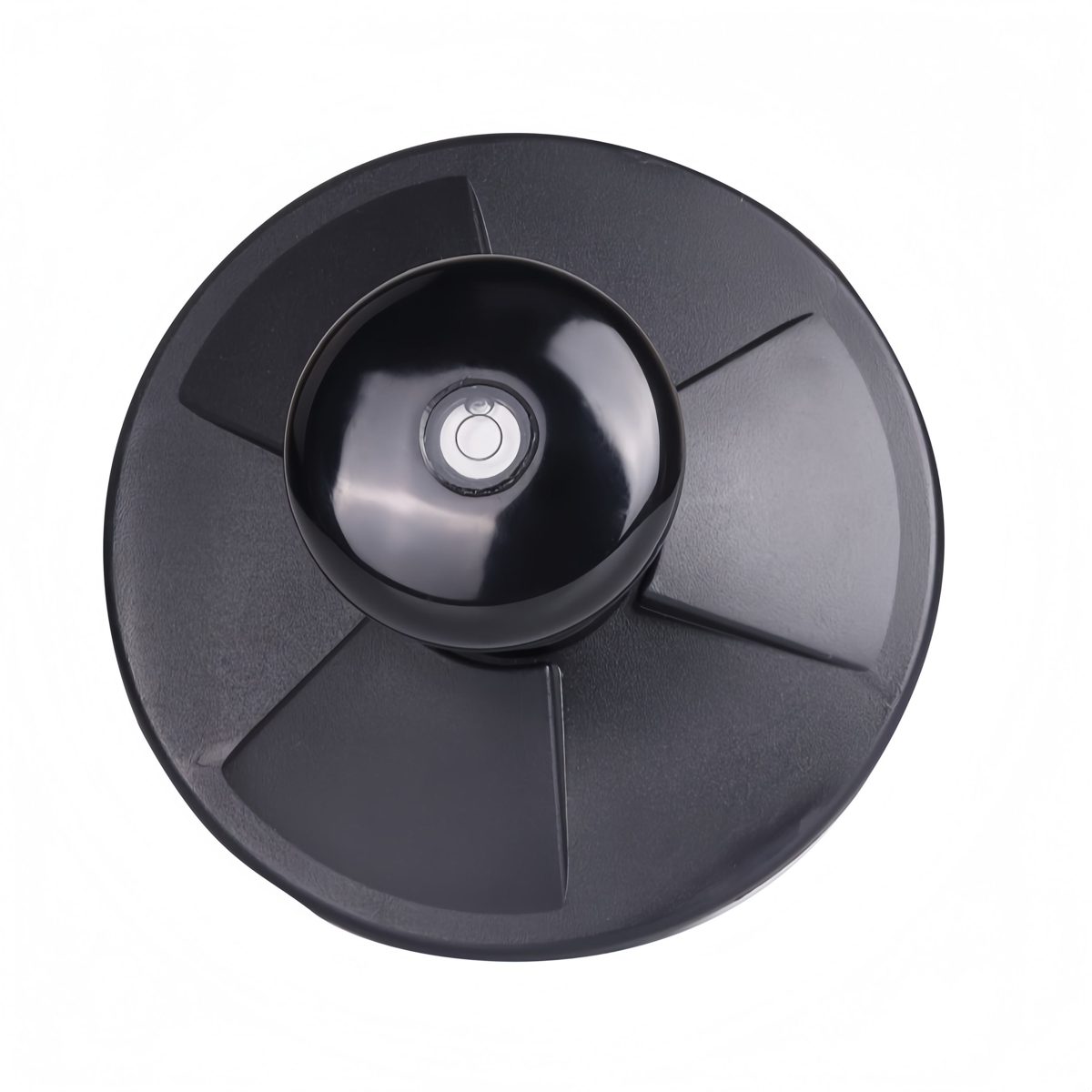

Custom Size BK7 Prism-assembly Optical Prism
Explore Corner Cube Prism Assemblies for surveying with high accuracy and customizable options.
Core attributes
- Material
- BK7
- Shape
- Prism-assembly
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
Product facts
Key attributes
- Material
- BK7
- Shape
- Prism-assembly
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
Product description
The Corner Cube Prism Assembly is designed for precise surveying applications, offering exceptional accuracy and reliability. With a prism constant of +2mm and an accuracy of less than 5 arc seconds, it ensures accurate measurements in various conditions. Made from BK7 material, this prism assembly is suitable for a range of optical paths, providing robust performance in surveying tasks.
Key Features
- Effective Diameter of 25.4mm for optimal performance in surveying applications.
- Accuracy of <5" ensures reliable measurements.
- Prism Constant of +2mm for predictable beam deviation.
- Surface Quality of 1/4 for enhanced wavefront integrity.
- Available in ODM and OEM configurations for custom solutions.
Applications
Surveying
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Prism-assembly |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 1/4 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Corner Cube, Surveyor’S Prisms |
| Customized Support | ODM, OEM |
| Warranty | 1 Year |
| Effective Diameter | 25.4mm |
| Prism Constant | +2mm |
| Accuracy | <5" |
| Single Package Size | 121217cm |
| Single Gross Weight | 450g |
FAQ
Can I get custom sizes?
Custom sizes are available through ODM and OEM support.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified; please inquire for details.
