1 / 6Optical Prisms

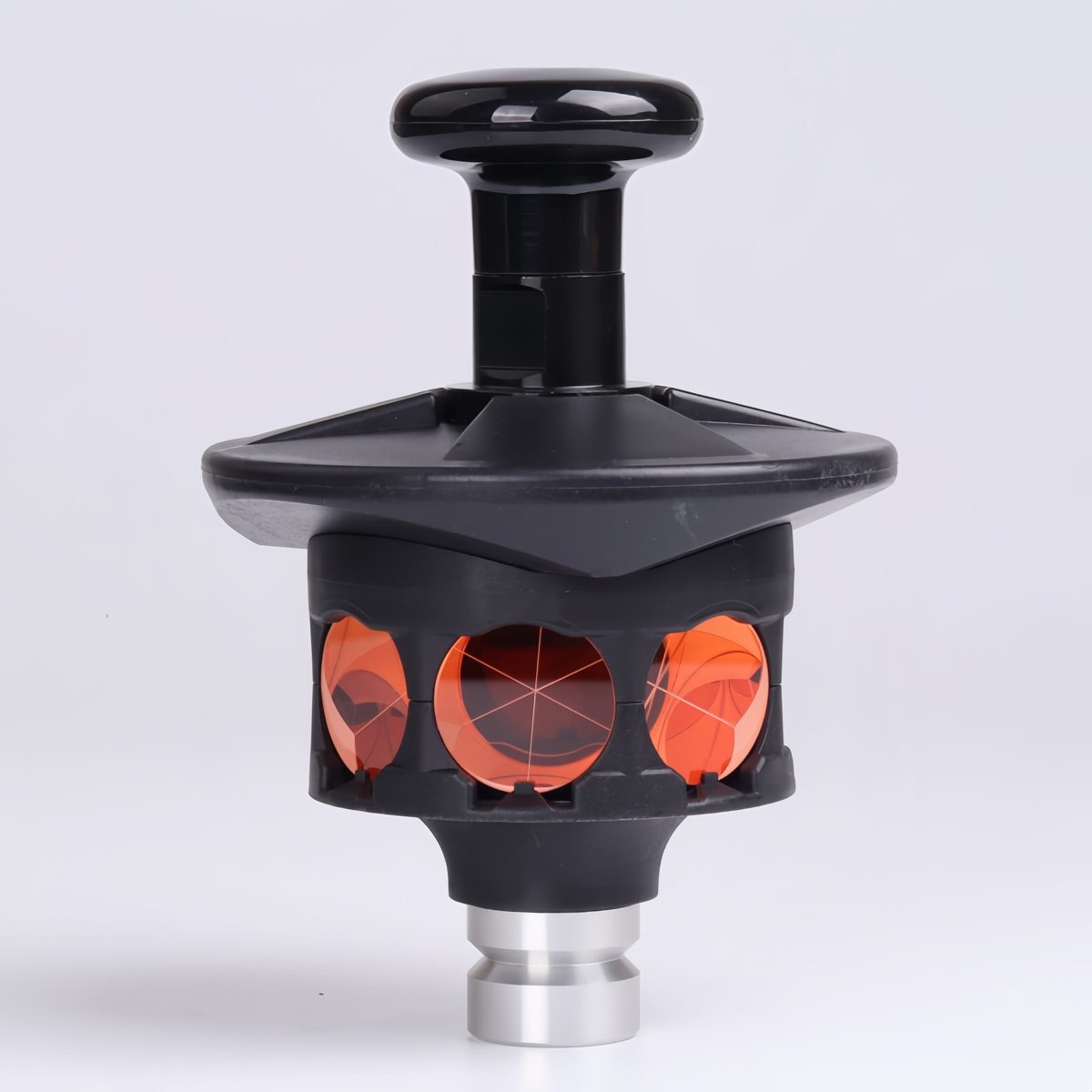

Custom Size BK7 Prism-assembly Optical Prism

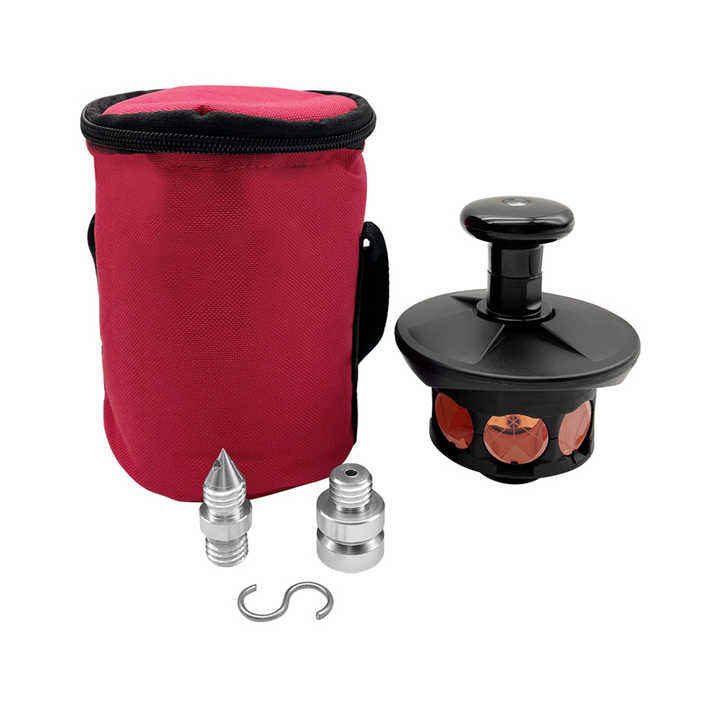

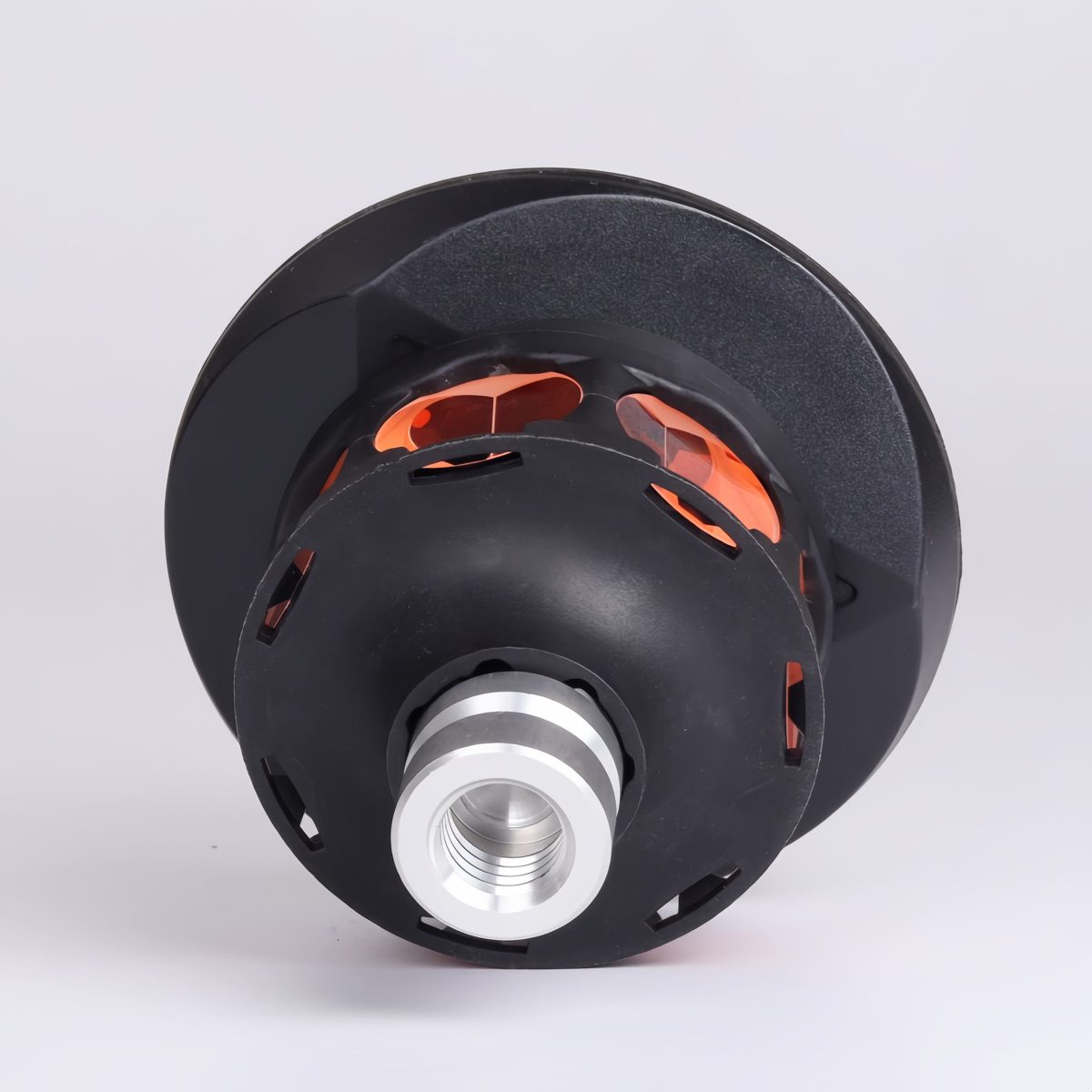

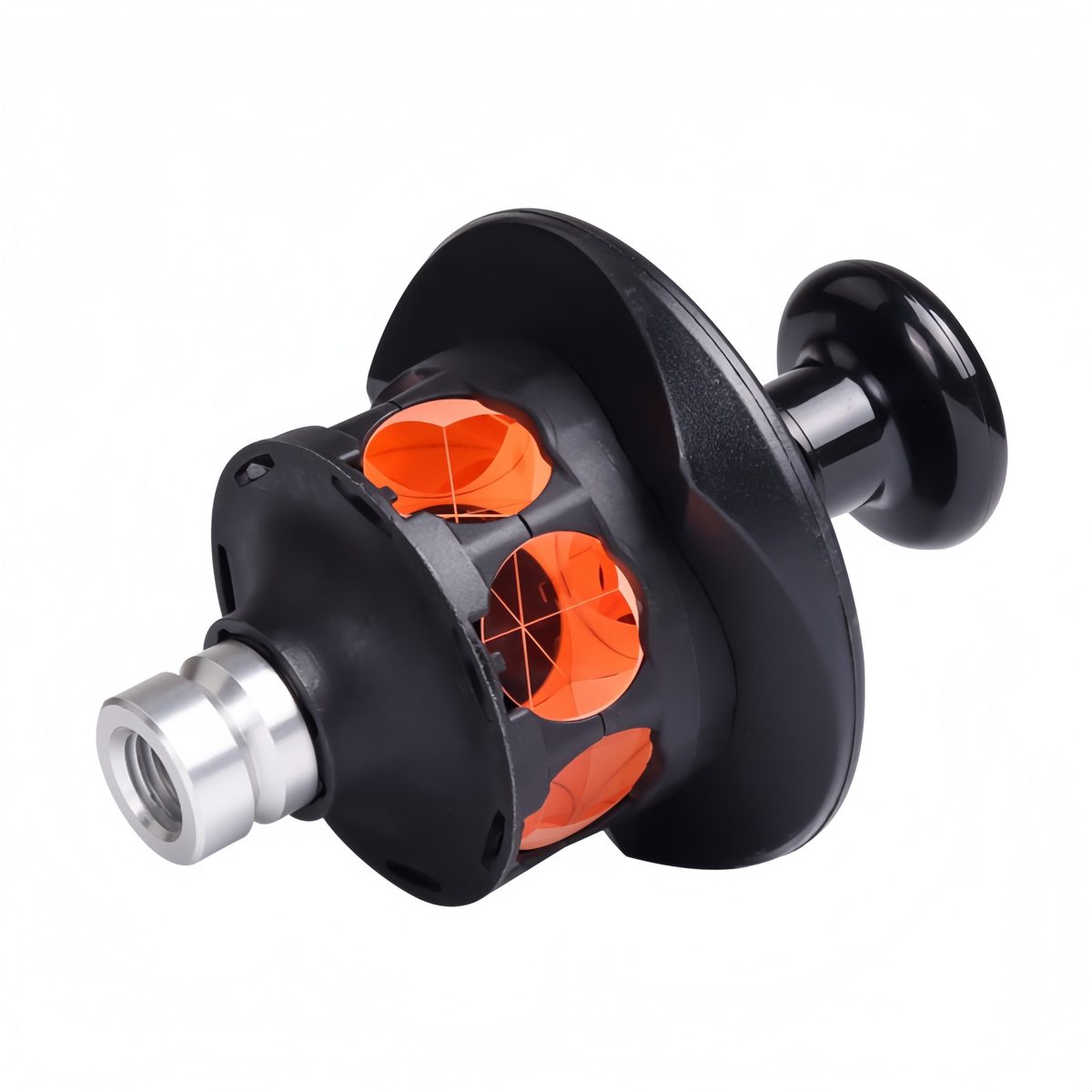

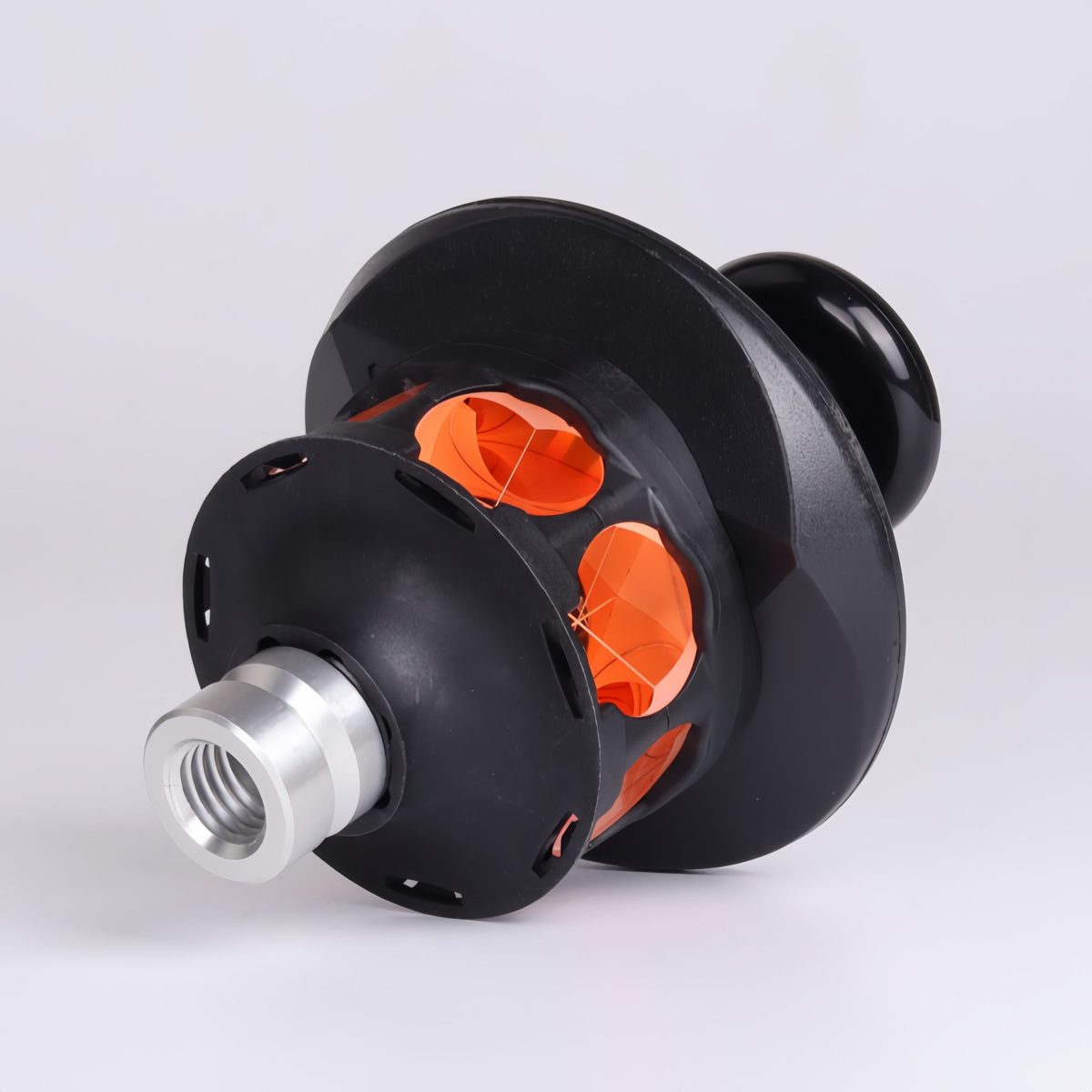

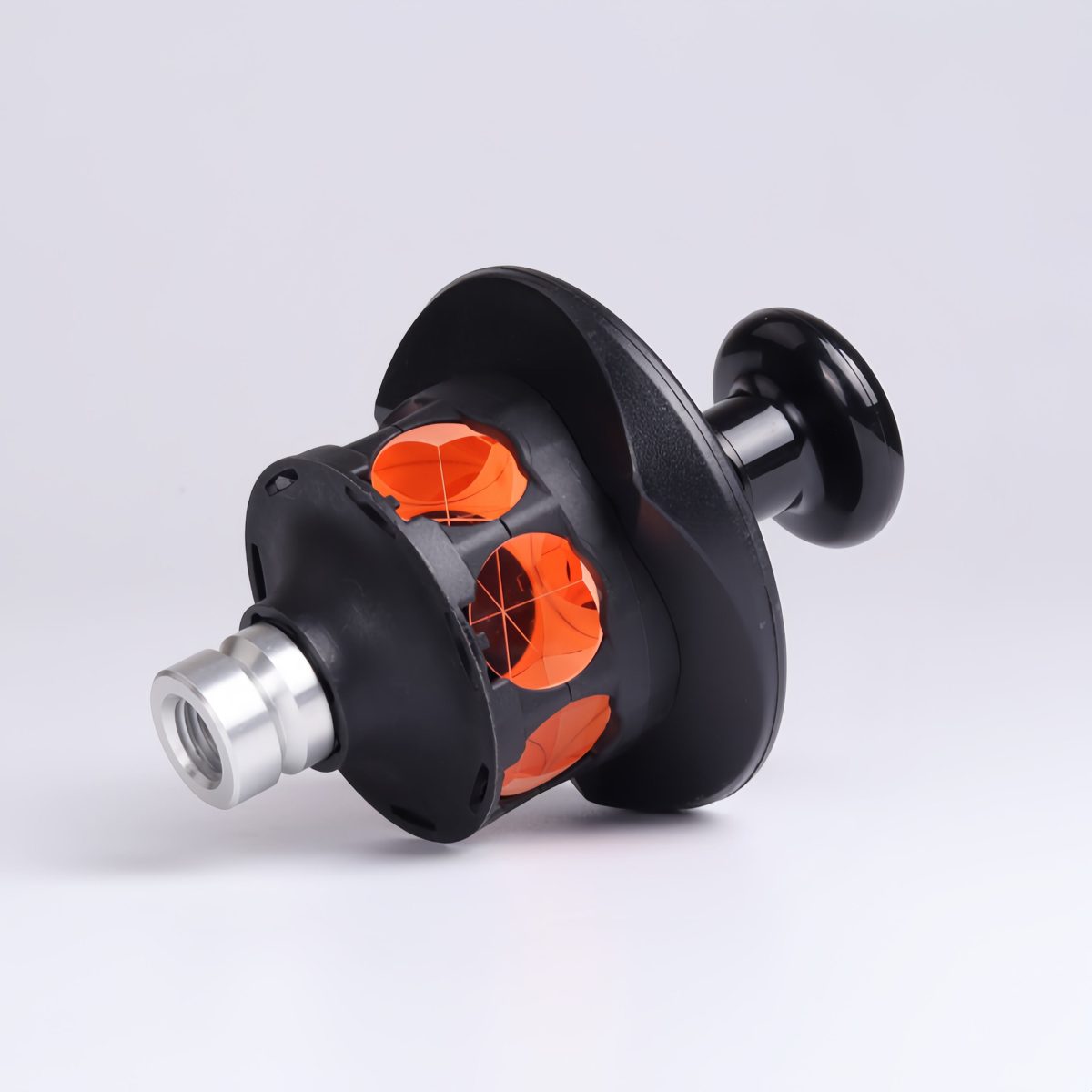

Corner Cube Surveyor's Prism for precise robotic surveying with durable BK7 glass and copper coating.
Core attributes
- Material
- BK7
- Shape
- Prism-assembly
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
- Coating
- copper-coating
Product facts
Key attributes
- Material
- BK7
- Shape
- Prism-assembly
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
- Coating
- copper-coating
Product description
The Corner Cube Surveyor’s Prism is designed for precise robotic surveying applications, providing accurate 360-degree reflectivity. Made from durable BK7 glass, this prism ensures long-lasting performance and reliability. Its pagoda-shaped design optimizes optical performance and stability, while the copper coating enhances reflective properties for superior signal transmission. Ideal for surveying tasks requiring high accuracy.
Key Features
- Effective diameter of 25.4 mm for compatibility with standard surveying equipment.
- Copper coating enhances reflectivity for improved signal transmission.
- Surface quality rated at 1/4 for optimal wavefront integrity.
- Pagoda-shaped design ensures stability and performance in field conditions.
- OEM and ODM support available for customized solutions.
Applications
Surveying
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Prism-assembly |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 1/4 |
| Coating | copper-coating |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Corner Cube, Surveyor’S Prisms |
| Customized Support | ODM, OEM |
| Warranty | 1 Year |
| Effective Diameter | 25.4mm |
| Prism Constant | +2mm |
| Single Package Size | 121217cm |
| Single Gross Weight | 450g |
FAQ
Can I get custom sizes?
Custom sizes are available through ODM and OEM support.
What is the surface quality of the prism?
The surface quality is rated at 1/4.
