1 / 6Beamsplitters

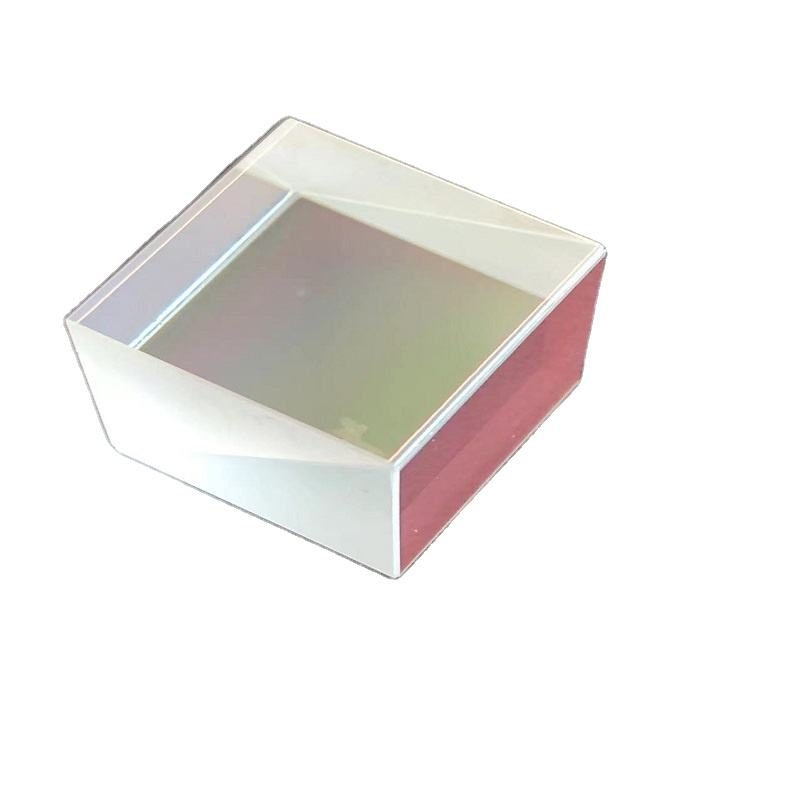

17 mm BK7 Prism Beamsplitter, AR Coated
BK7 right angle prism beamsplitter with 50/50 split ratio, customizable sizes, and low MOQ for optical applications.
Core attributes
- Material
- BK7
- Shape
- Prism
- Size
- 17 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Split Ratio
- 50/50
- Coating
- anti-reflective (AR)
- MOQ
- 10 Pcs
Product facts
Key attributes
- Material
- BK7
- Shape
- Prism
- Size
- 17 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Split Ratio
- 50/50
- Coating
- anti-reflective (AR)
- MOQ
- 10 Pcs
Product description
This BK7 right angle prism beamsplitter is designed to efficiently split light beams with a 50/50 ratio, making it ideal for applications in laser systems and optical setups. With a surface quality of 60/40, it ensures reliable performance across various wavelengths. The prism is customizable in dimensions, allowing for integration into specific projects. Sourced from Shanghai, it meets the demands for batch consistency and supplier reliability.
Key Features
- 50/50 split ratio for balanced light distribution, enhancing optical system performance.
- Surface quality rated at 60/40, ensuring minimal distortion and high clarity.
- Custom dimensions available (17x17x17 mm), accommodating unique project requirements.
- Low minimum order quantity of 10 pieces, facilitating prototyping and small-scale production.
- OEM and ODM support for tailored solutions in optical applications.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Prism |
| Size | 17 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Split Ratio | 50/50 |
| Coating | anti-reflective (AR) |
| MOQ | 10 Pcs |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM |
| Warranty | 3 Years; 3years |
| Dimension | 171717/custom |
| Dimension Tolerance | 0/-0.05 MM |
FAQ
Can I get custom sizes?
Yes, custom dimensions are available, with a standard size of 17x17x17 mm.
What is the minimum order quantity?
The minimum order quantity is 10 pieces.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
