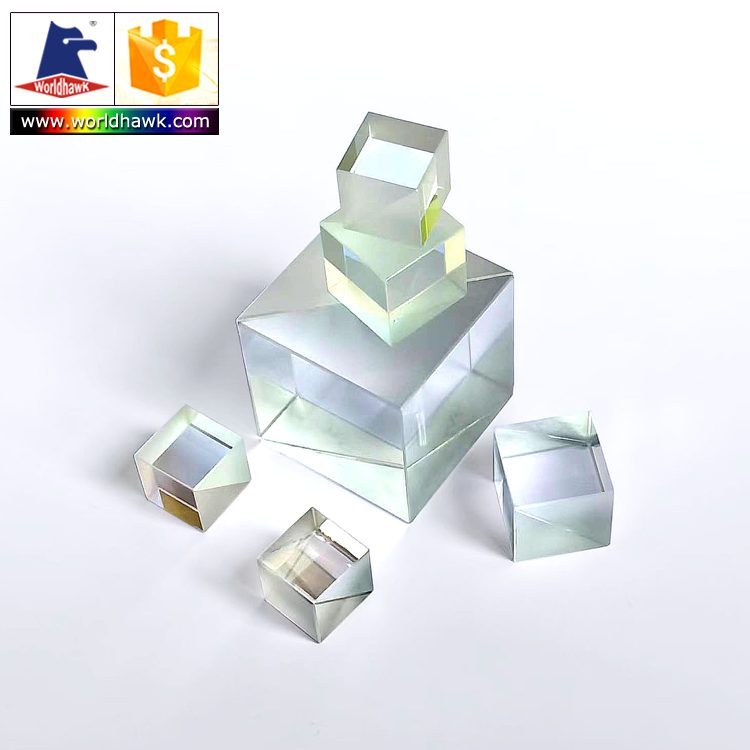

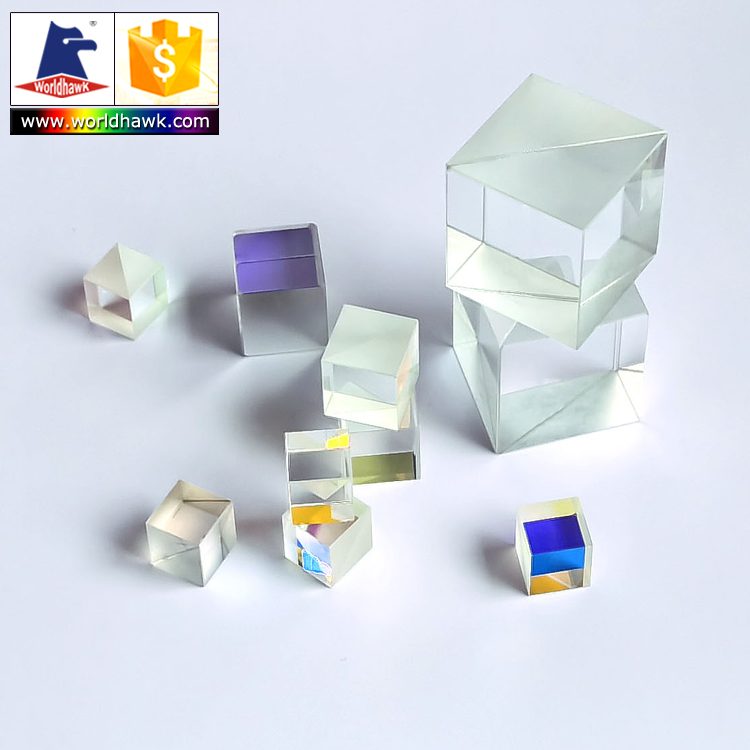

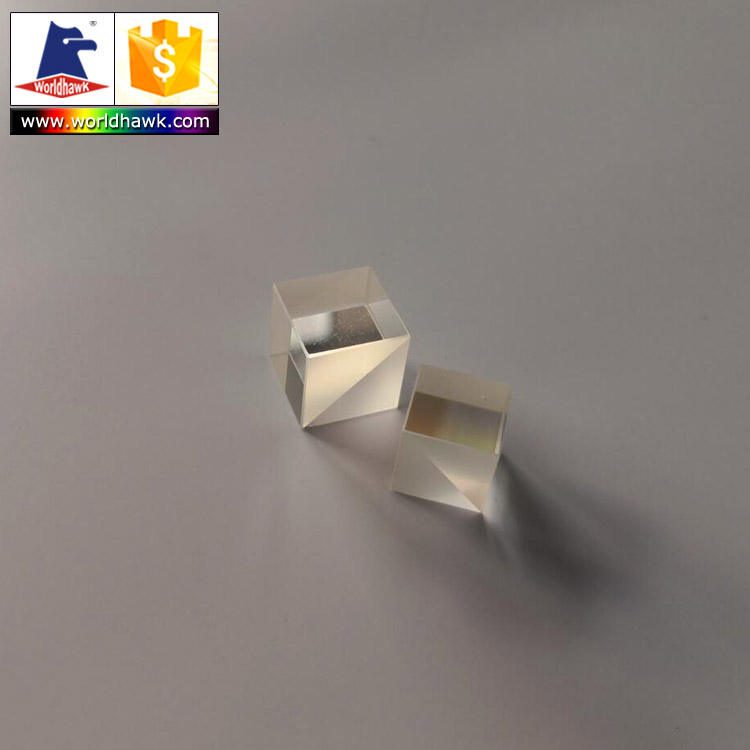

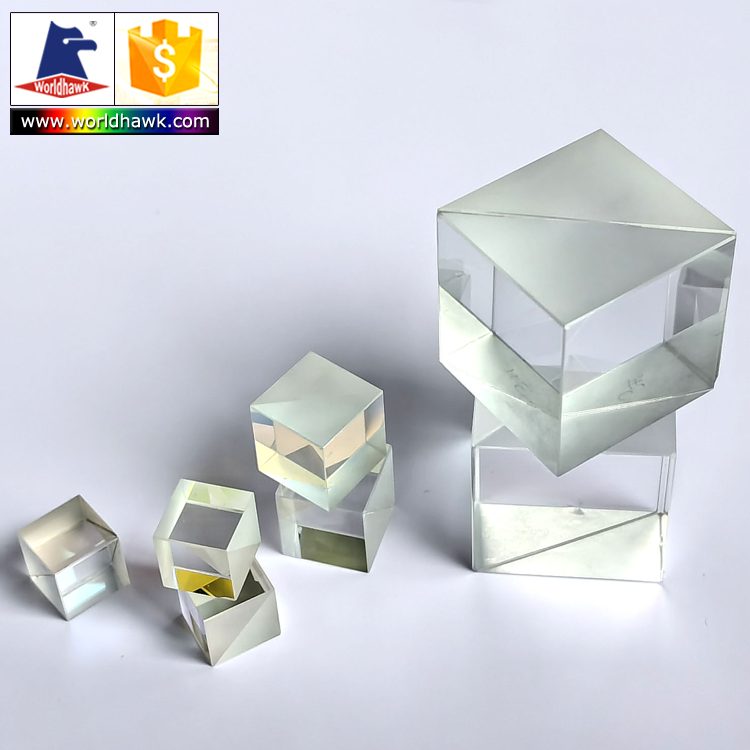

1 mm BK7 Prism Beamsplitter, AR Coated
BK7 prism beamsplitters with customizable sizes, high surface quality, and precise angle tolerances for various optical applications.
Core attributes
- Material
- BK7
- Shape
- Prism
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Prism
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
This BK7 prism beamsplitter is designed for precision applications in optics, providing reliable performance across various configurations. With options for right angle, penta, and triangular prisms, it accommodates a wide range of optical setups. The high surface quality of 60/40 ensures minimal distortion, making it suitable for applications in laser systems, microscopy, and machine vision. The customizable dimensions from 1mm to 380mm allow for tailored solutions to fit specific project needs.
Key Features
- High surface quality (60/40) for minimal distortion in optical applications.
- Customizable dimensions (1mm-380mm) to fit specific project requirements.
- Angle tolerance of <3’ ensures precise alignment in optical setups.
- Surface flatness options (1/2, 1/4, 1/10 lambda) for enhanced performance.
- Clear aperture ≥90% maximizes light transmission for efficient operation.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Prism |
| Size | 1 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|

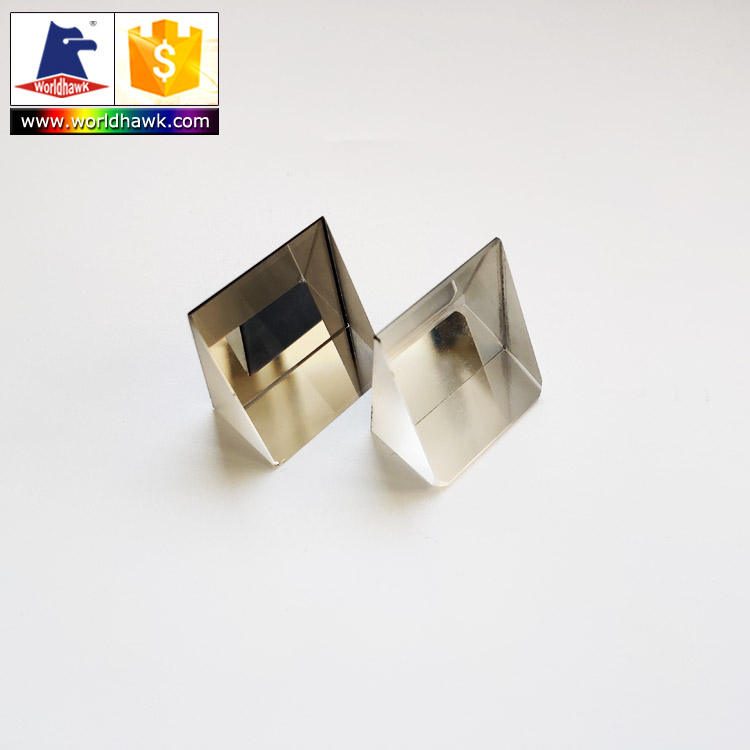

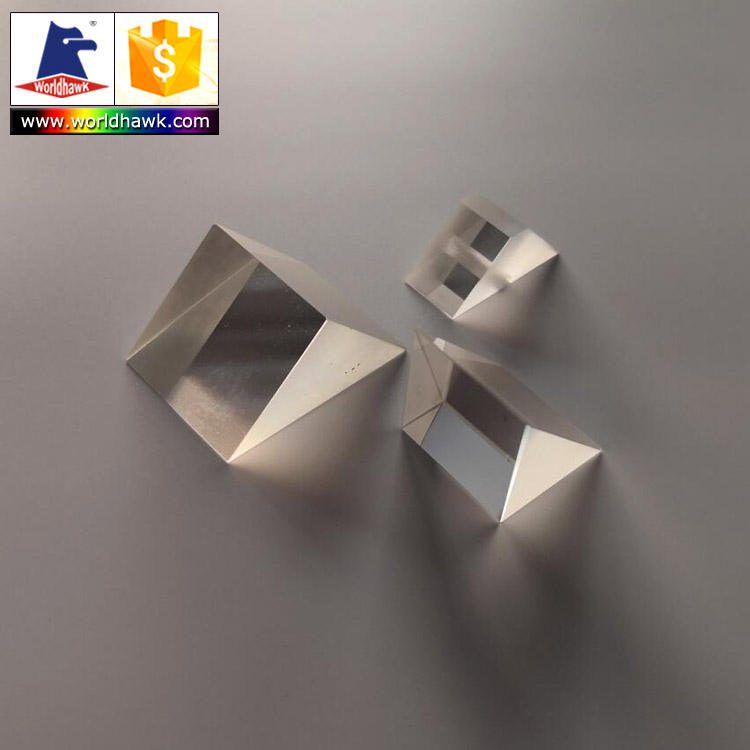

| Prism Type | Right Angle Prism, Penta Prism, Triangular Prism |
| Customized Support | OEM |
| Warranty | 3 Years |
| Dimension | 1mm-380mm |
| Dimension Tolerance | ±0.1mm / ±0.2mm |
| Angle Tolerance | <3’- <0.5'' |
| Clear Aperture | ≥90% |
| Surface Flatness | 1/2 Lanbda, 1/4 Lanbda, 1/10 Lanbda |
| Bevel | <0.2 mm ±45° |
FAQ
What are the available dimensions for customization?
Custom dimensions range from 1mm to 380mm.
What is the angle tolerance for these prisms?
The angle tolerance is <3’ for precise alignment.
