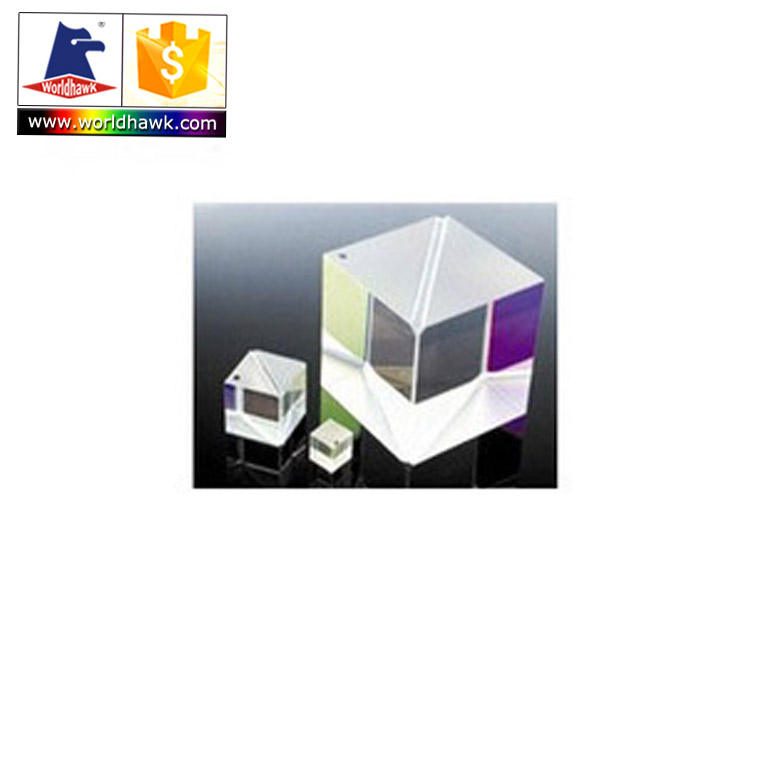

50 mm BK7 Prism Beamsplitter, AR Coated

Product description

This BK7 prism beamsplitter is ideal for applications in optics where precise light splitting is required. Its high surface quality of 60/40 ensures minimal distortion, making it suitable for various optical setups, including laser systems and imaging applications. The prism is available in dimensions ranging from 50mm to 100mm, with a clear aperture of ≥90%, ensuring maximum light transmission. With customizable options, this beamsplitter meets the diverse needs of R&D and procurement engineers.

Key Features

capability: Surface quality of 60/40; benefit: Minimizes distortion for accurate optical performance.
capability: Clear aperture of ≥90%; benefit: Maximizes light transmission for enhanced system efficiency.
capability: Angle tolerance of <3’- <0.5’’; benefit: Ensures precise alignment in optical assemblies.
capability: Dimension tolerance of ±0.1mm / ±0.2mm; benefit: Provides consistency across batches for reliable performance.
capability: Customizable dimensions from 50mm to 100mm; benefit: Accommodates specific application requirements.

Specification Summary

Item	Value
Material	BK7
Shape	Prism
Size	50 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value

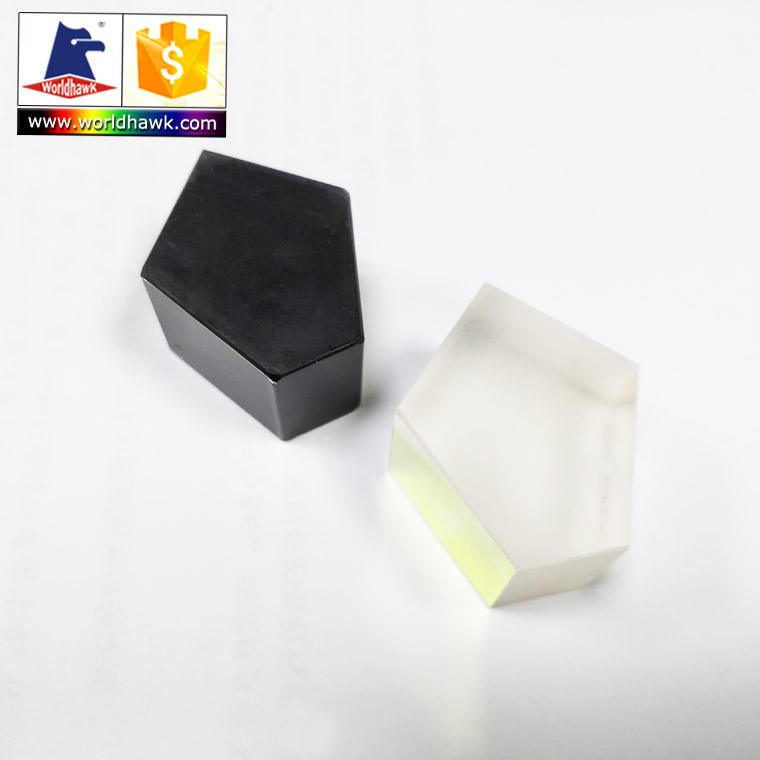

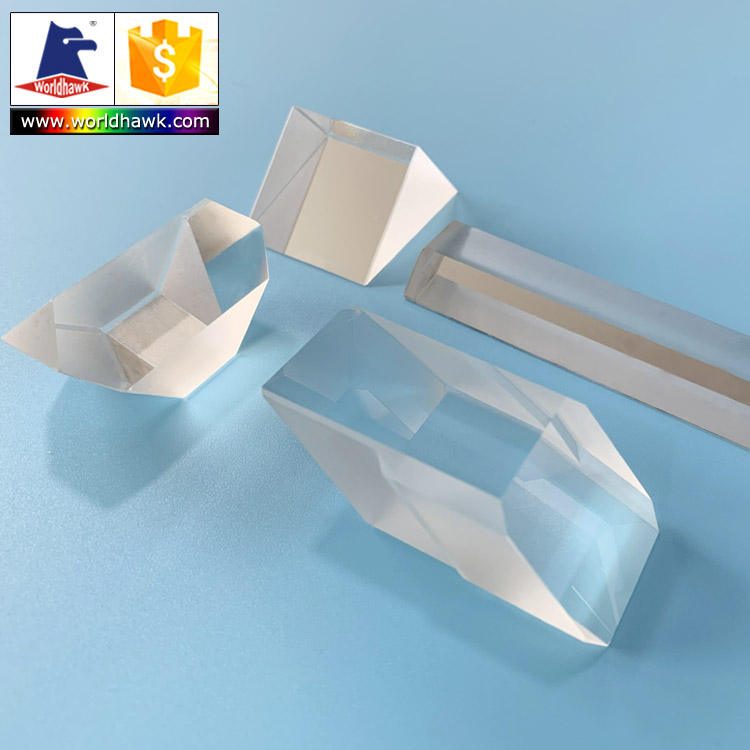

Prism Type	Right Angle Prism, Penta Prism, Triangular Prism
Customized Support	OEM
Warranty	3 Years
Clear Aperture	≥90%
Angle Tolerance	<3’- <0.5''
Dimension	50mm-100mm
Dimension Tolerance	±0.1mm / ±0.2mm
Surface Flatness	1/2 Lanbda
Bevel	<0.2 mm ±45°

FAQ

Can I get custom sizes for this beamsplitter?

Yes, the prism is customizable with dimensions ranging from 50mm to 100mm.

What is the surface flatness of the beamsplitter?

The surface flatness is specified as 1/2 Lambda.

What is the minimum order quantity (MOQ) for this product?

The minimum order quantity is not specified.
