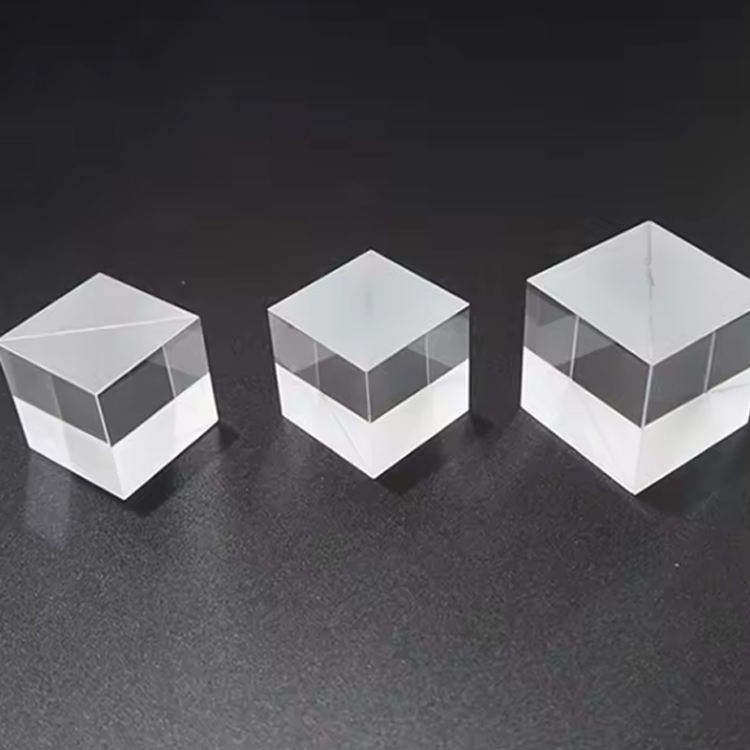

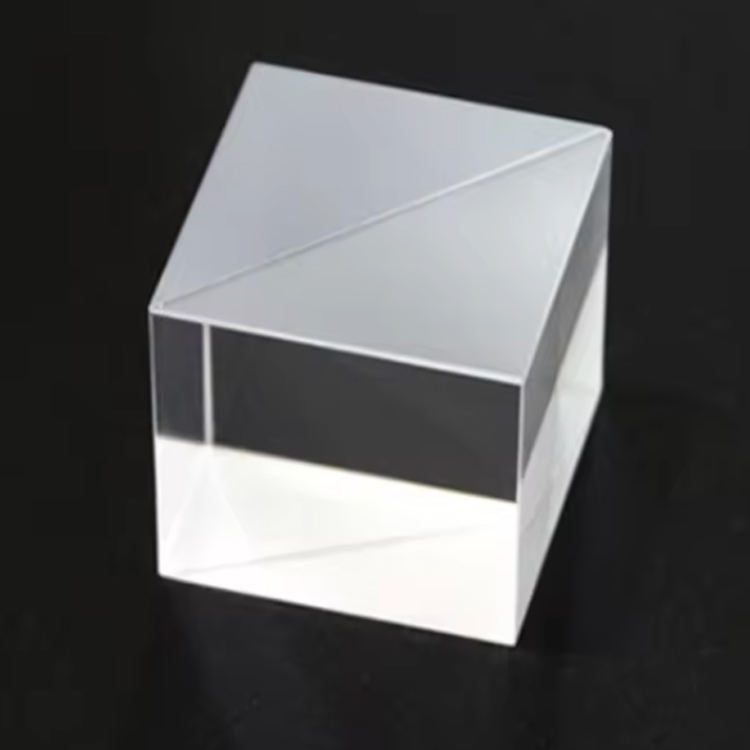

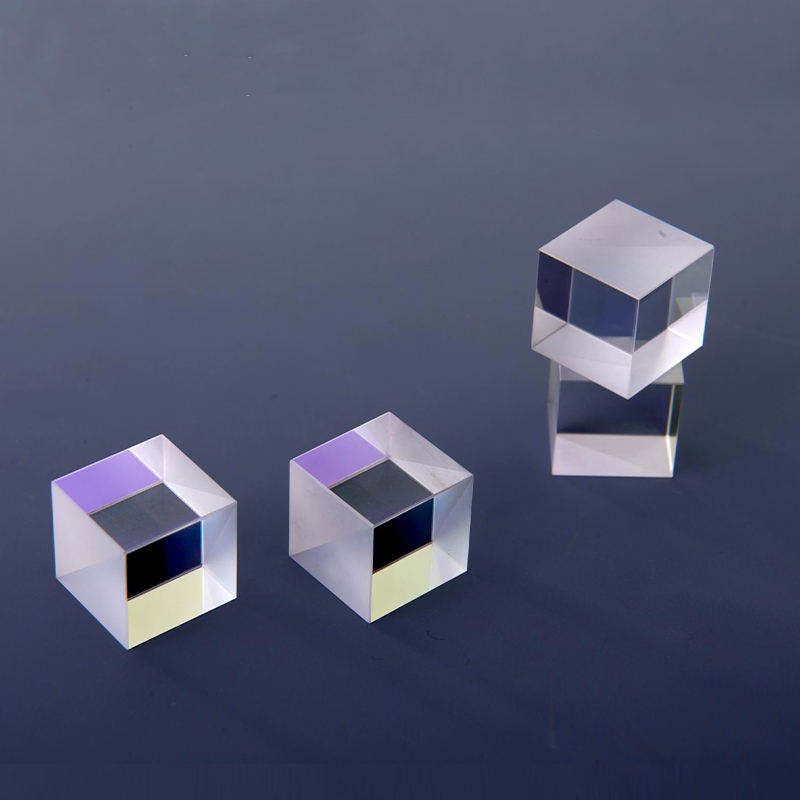

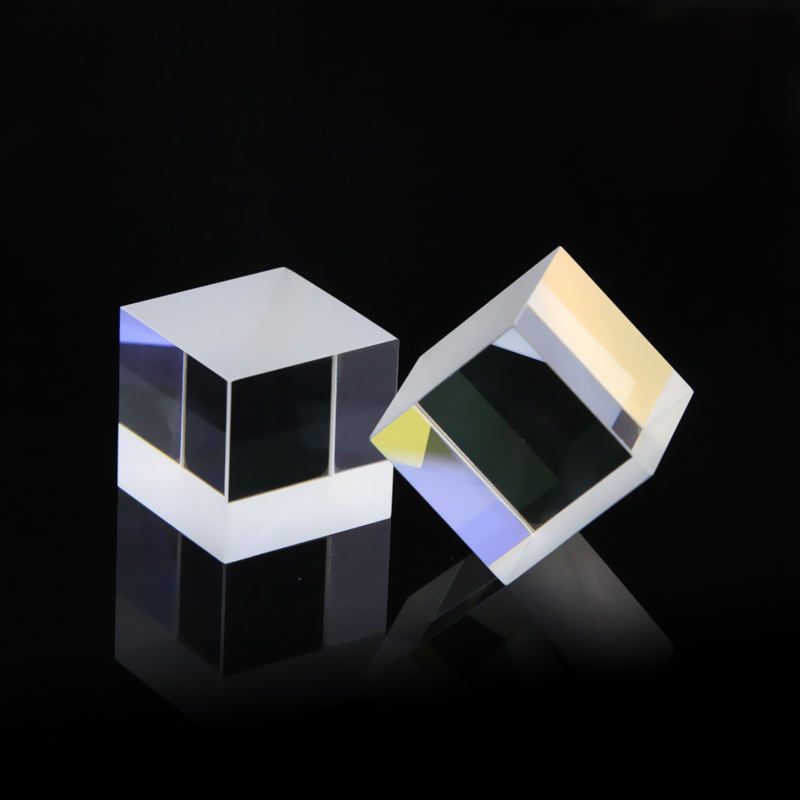

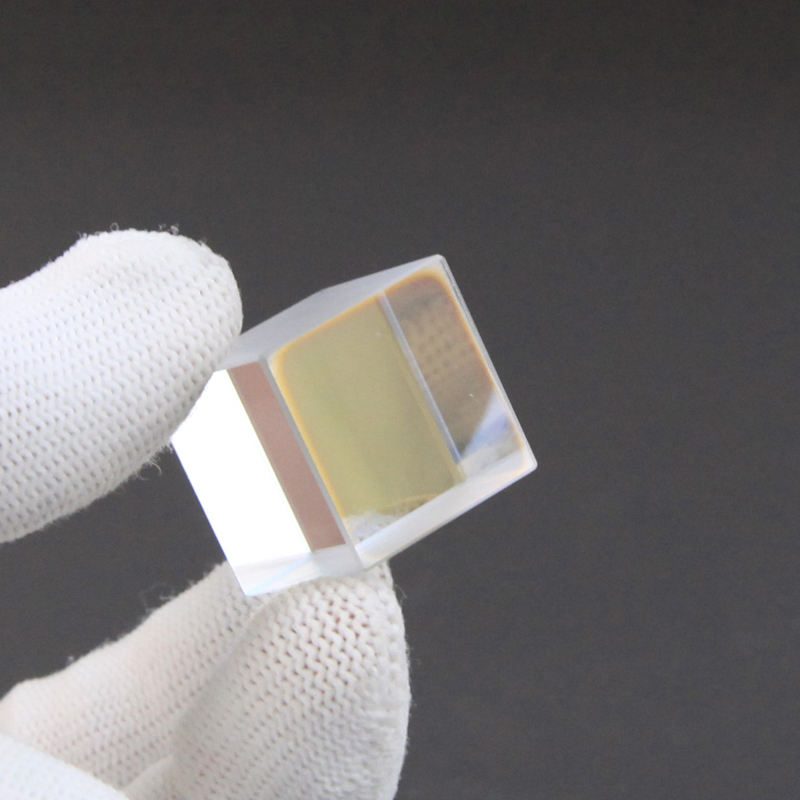

5 mm BK7 Prism Beamsplitter, AR Coated

Product description

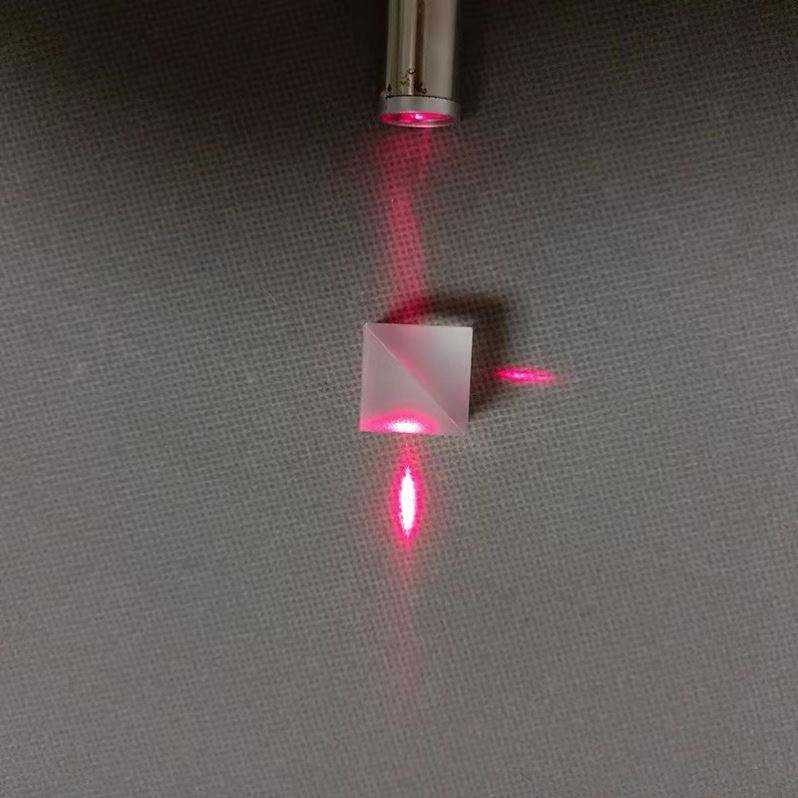

This high-precision BK7 prism beam splitter is designed for applications in laser, microscopy, spectroscopy, and research. Its anti-reflection coating minimizes wavefront distortion and beam skewing, ensuring optimal light transmission. With a clear aperture covering over 90% of the central area and a dimension tolerance of 0.05mm, this component is ideal for precise optical measurements and can be customized to meet specific size requirements.

Key Features

Surface quality of 60/40 ensures minimal distortion for accurate measurements.
Angle tolerance of <±3 arc min guarantees precise alignment.
Clear aperture greater than 90% maximizes light throughput for enhanced performance.
Customizable dimensions available to fit specific application needs.
CE and ISO9001 certifications ensure reliability and quality assurance.

Applications

Laser, Microscopy, Spectroscopy, Research

Specification Summary

Item	Value
Material	BK7
Shape	Prism
Size	5 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	beam splitter
Customized Support	OEM, ODM, OBM
Type	optical triangular prism glass
Angle Tolerance	<±3 arc min
Clear Aperture	>Central 90%
Dimension Tolerance	0.05mm/customize
Certification	CE, ISO9001

FAQ

Can I get custom sizes?

Yes, customizable dimensions are available to meet specific application requirements.

What is the angle tolerance?

The angle tolerance for this beam splitter is <±3 arc min.
