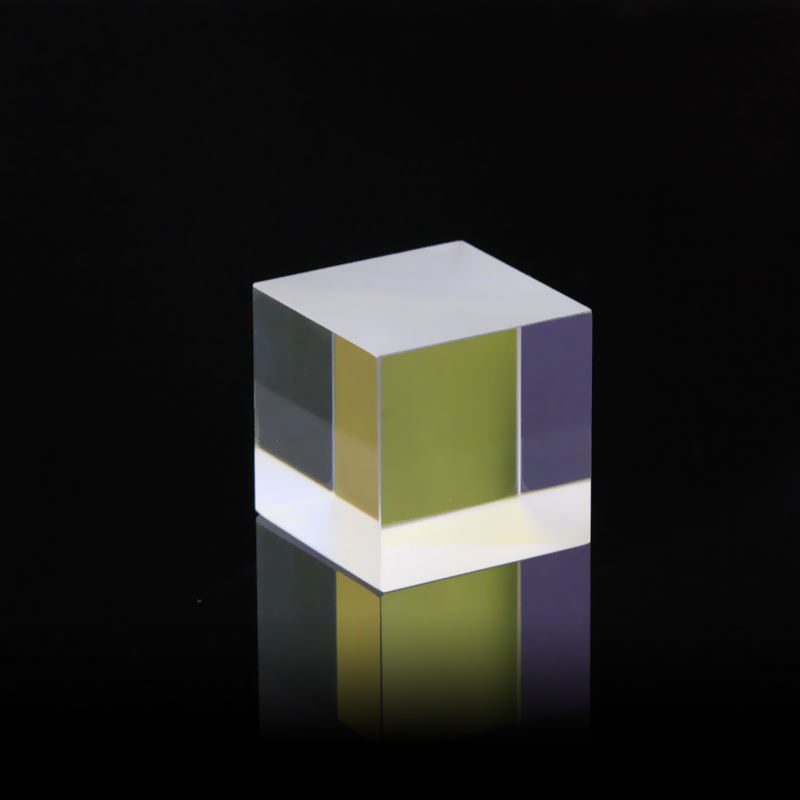

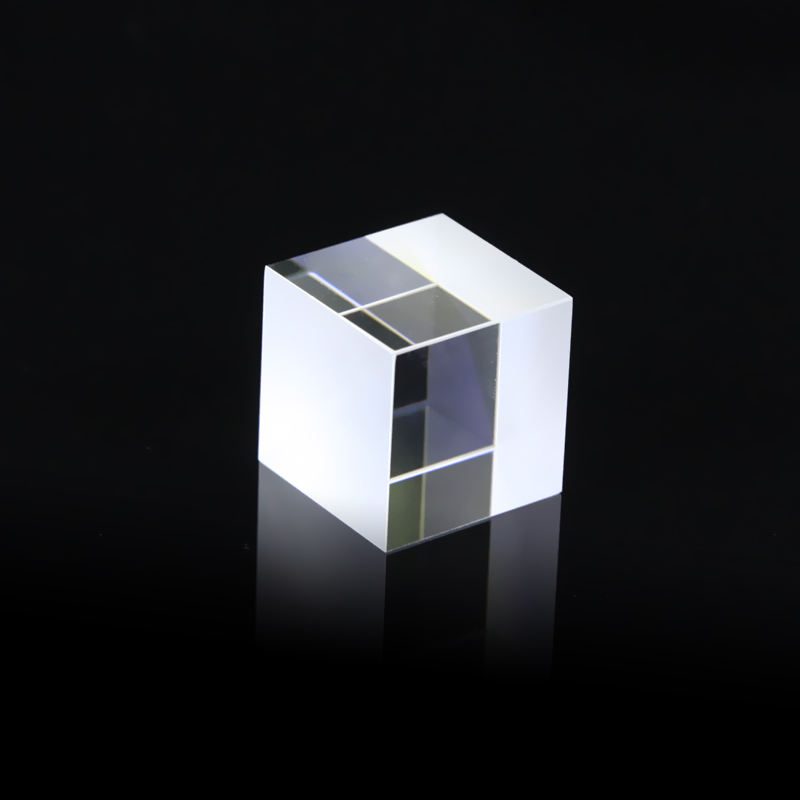

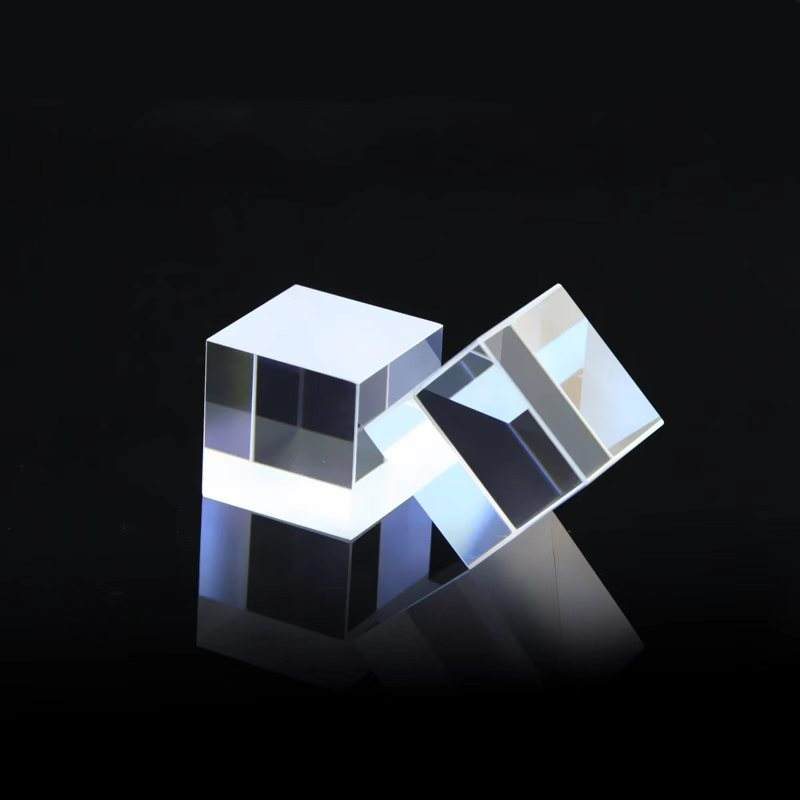

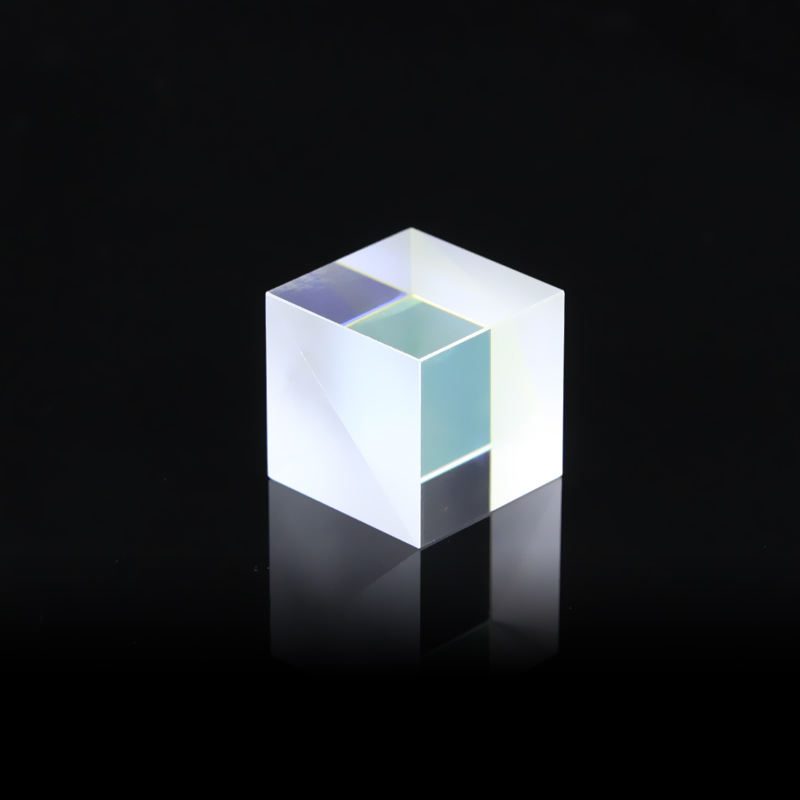

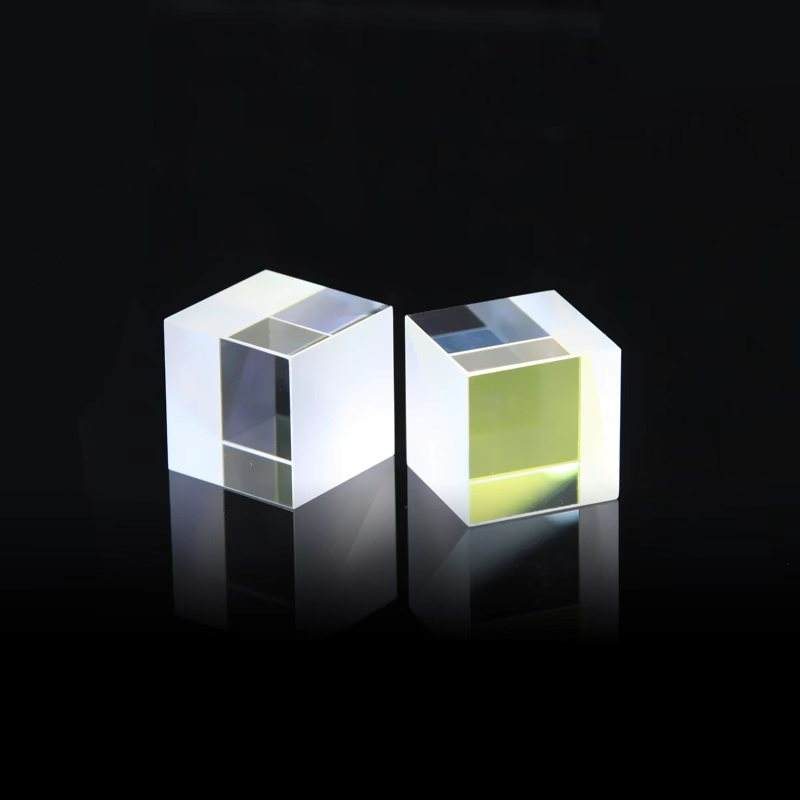

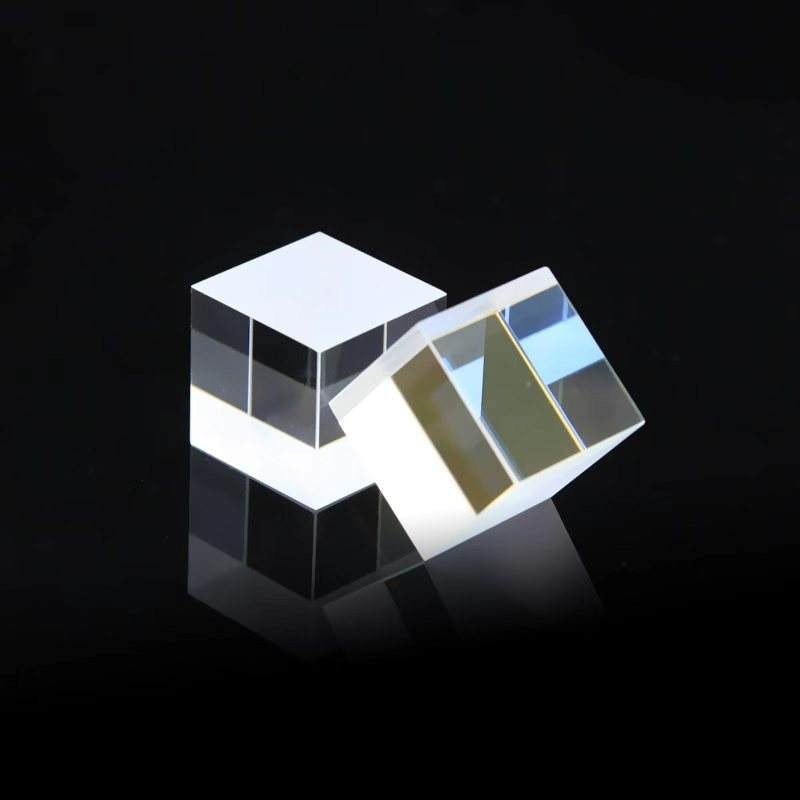

8 mm BK7 Prism Beamsplitter, AR Coated
High-precision beam splitter for microscopy and spectroscopy with customizable sizes and reliable performance.
Core attributes
- Material
- BK7
- Shape
- Prism
- Size
- 8 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), metallic
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Prism
- Size
- 8 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR), metallic
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This high-precision beam splitter minimizes wavefront distortion and beam skewing, making it ideal for applications in microscopy, spectroscopy, and research. With a broad transmission range of 0.4-1.7 μm, it effectively supports various optical measurements. The BK7 prism design, combined with anti-reflection coatings, ensures optimal light transmission while reducing surface reflection losses. Custom sizes can be accommodated to meet specific laboratory and industrial requirements.
Key Features
- Broad transmission range: 0.4-1.7 μm, suitable for diverse applications.
- Surface quality of 60/40 ensures reliable optical performance.
- Angle tolerance of <±3 arc min for precise alignment.
- Dimension tolerance of 0.05mm allows for customization.
- CE and ISO9001 certifications ensure quality standards.
Applications
Microscopy, Spectroscopy, Research
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Prism |
| Size | 8 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), metallic |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | beam splitter |
| Customized Support | OEM, ODM, OBM |
| Type | optical triangular prism glass |
| Angle Tolerance | <±3 arc min |
| Clear Aperture | >Central 90% |
| Dimension Tolerance | 0.05mm/customize |
| Certification | CE, ISO9001 |
FAQ
Is custom sizing available?
Yes, custom sizes can be accommodated.
What is the angle tolerance?
The angle tolerance is <±3 arc min.
