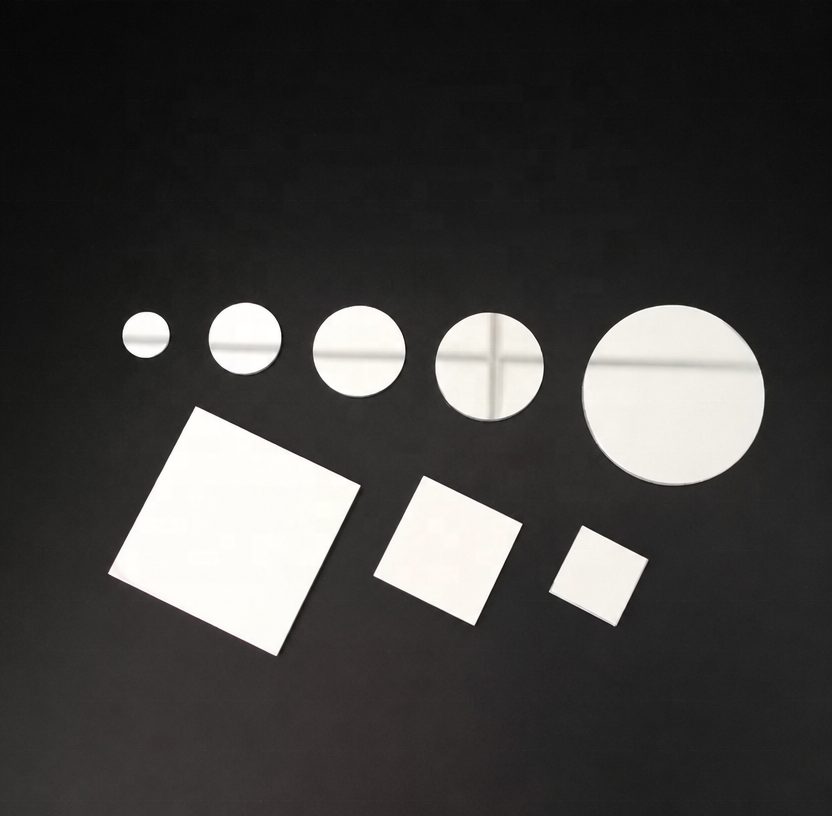

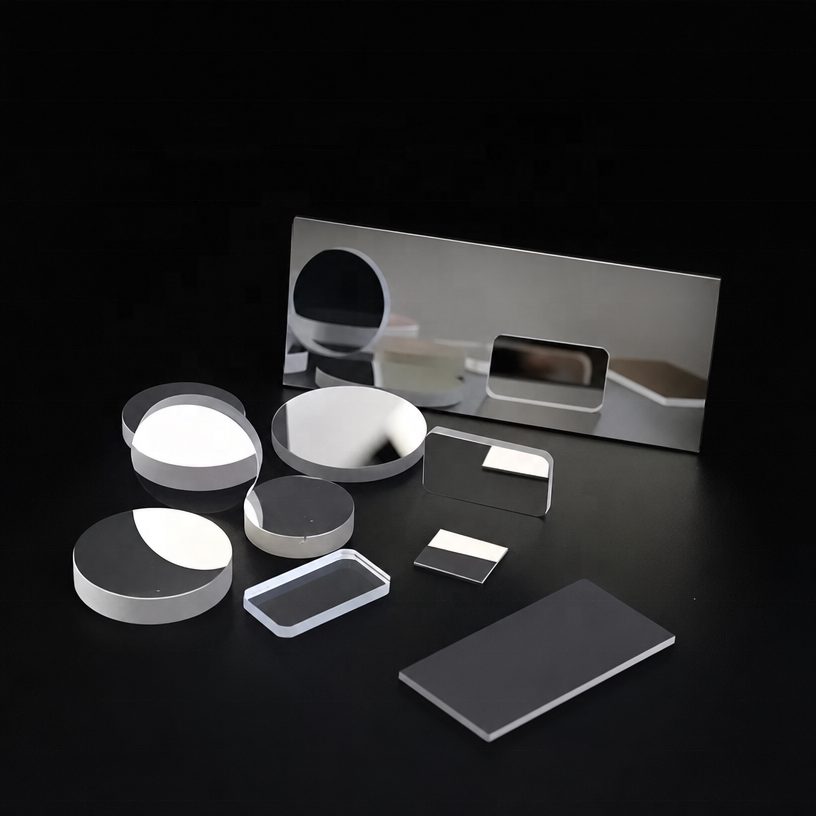

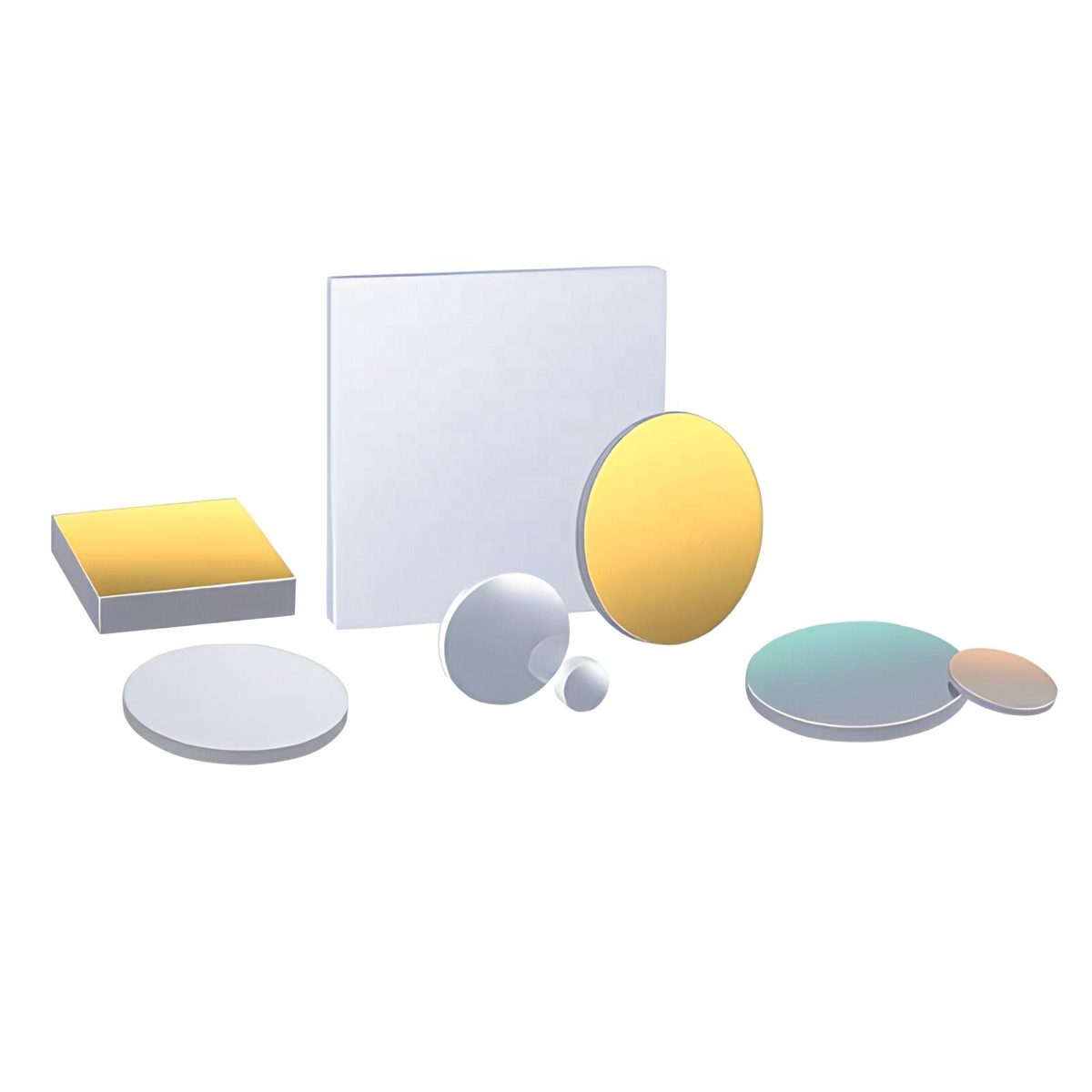

Custom Size BK7 Rectangle Optical Mirror

This BK7 rectangular mirror with a dielectric high-reflectance coating is designed for applications requiring exceptional reflectance and surface quality. With a reflectance of 99.5% and a surface quality of 60/40, it effectively minimizes losses in optical systems. The mirror’s customizable thickness ranging from 0.55 mm to 20 mm allows for versatility in various setups, ensuring it meets specific application requirements.

Key Features

• Reflectance of 99.5% enhances light efficiency, reducing energy loss.
• Surface quality of 60/40 ensures minimal distortion for high-precision applications.
• Dielectric HR coating provides durability and resistance to environmental factors.
• Customizable thickness from 0.55 mm to 20 mm for tailored solutions.
• Flatness specification of <3 arcmin supports high-quality wavefront performance.

Specification Summary

Full Specifications

FAQ

Is custom sizing available?

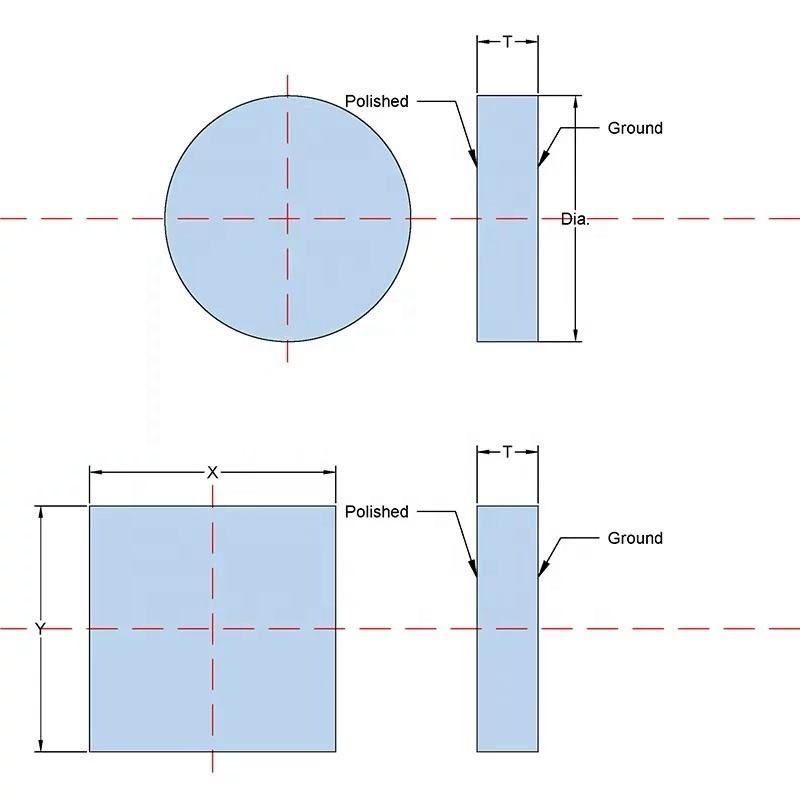

Yes, the mirror can be customized in thickness from 0.55 mm to 20 mm.

What is the surface flatness specification?

The mirror has a flatness specification of <3 arcmin.
