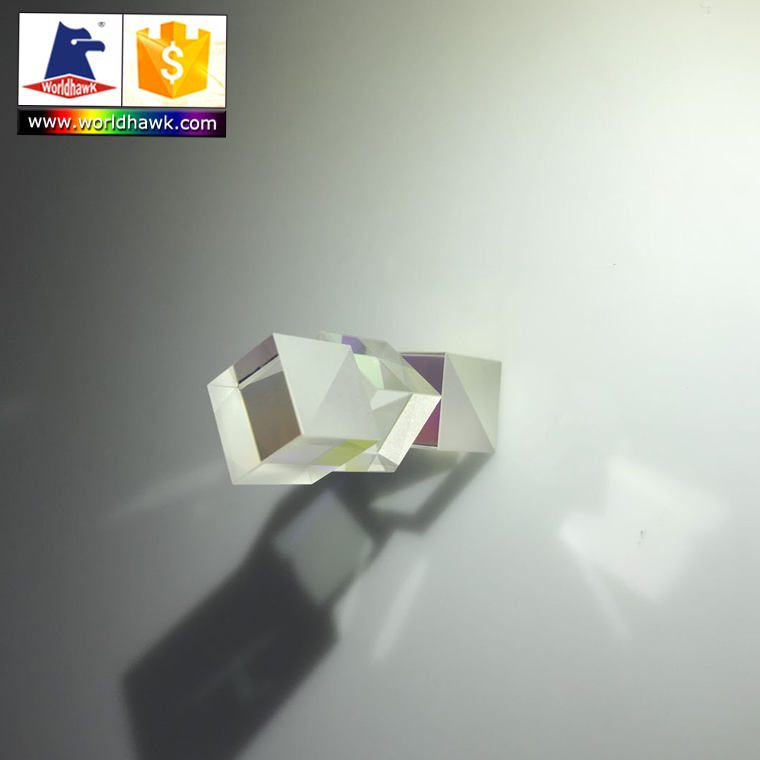

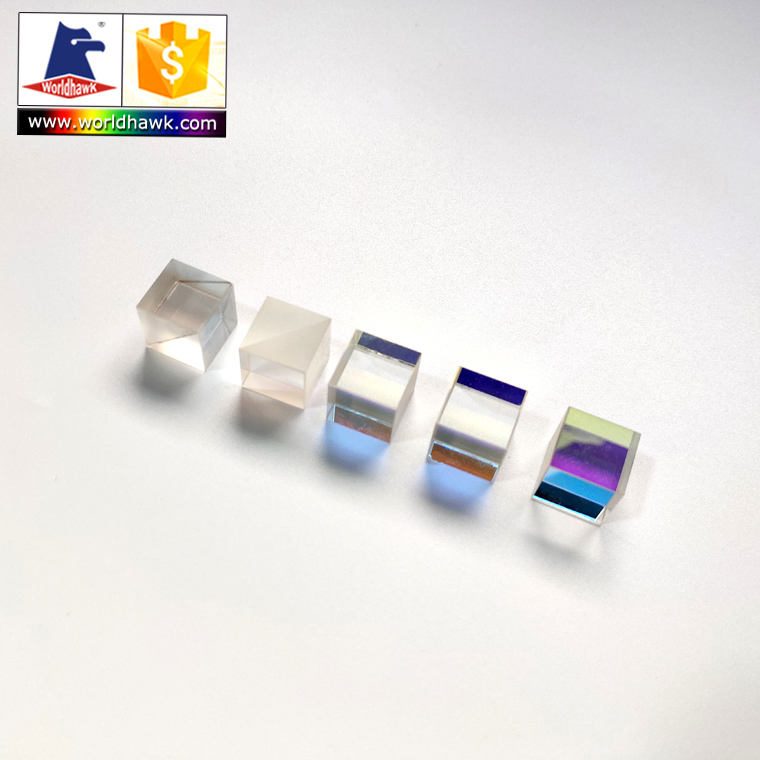

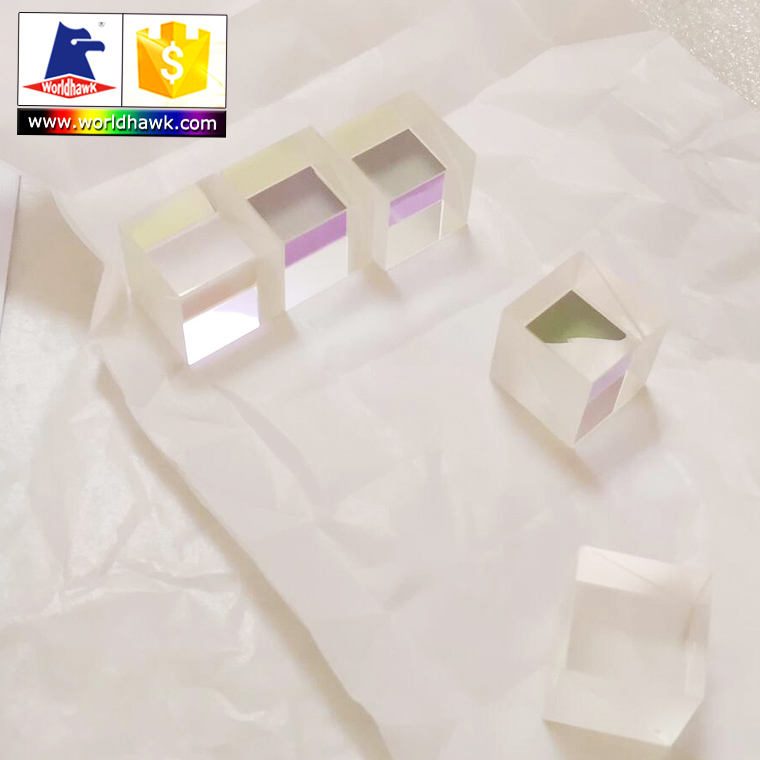

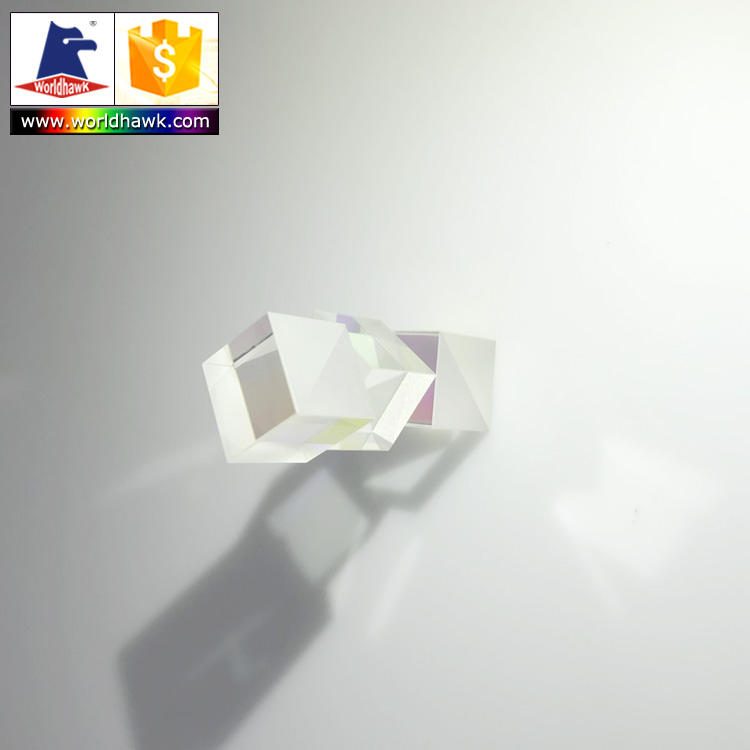

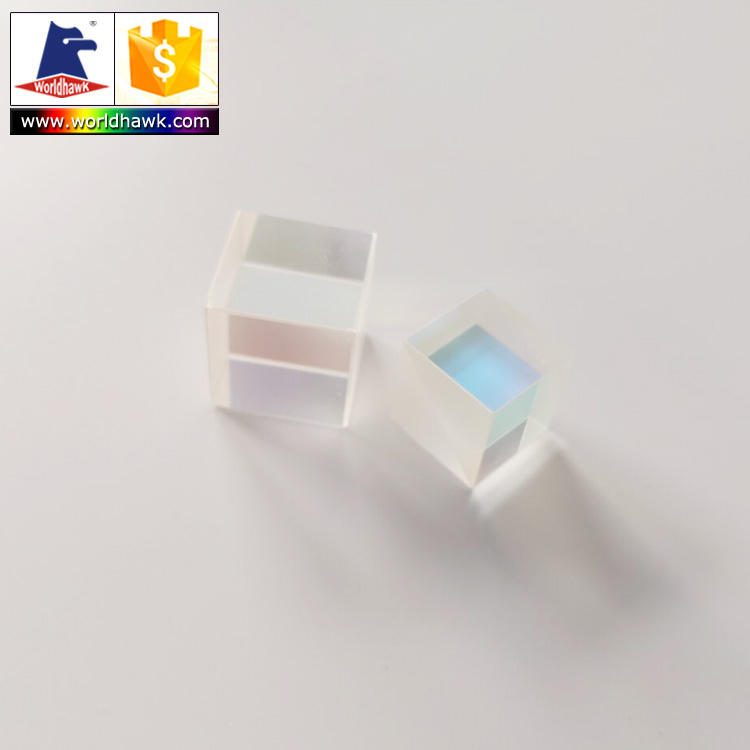

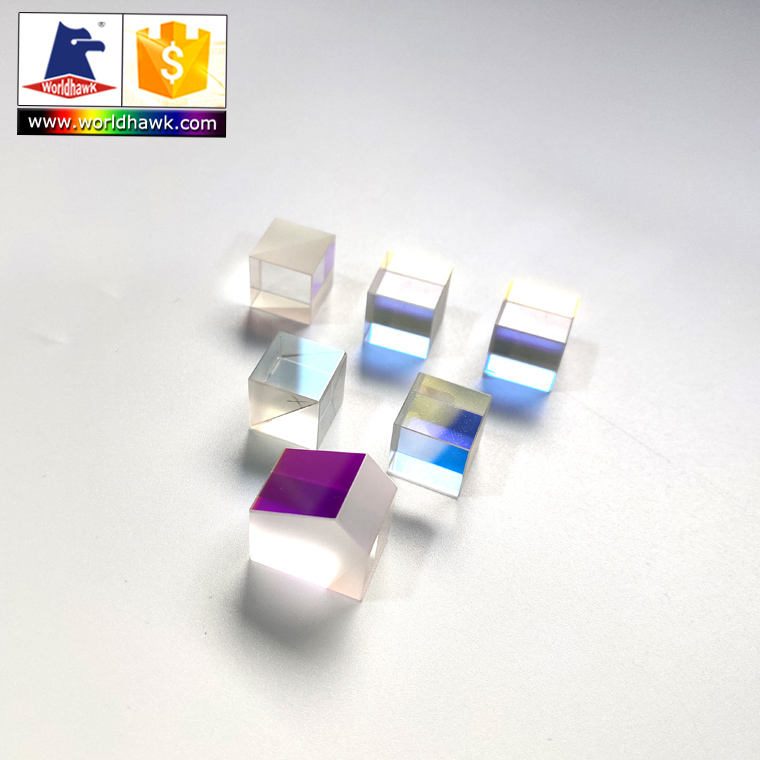

40 mm BK7 Rectangular Beamsplitter, AR Coated
BK7 rectangular beamsplitter for laser applications with customizable sizes and high surface quality.
Core attributes
- Material
- BK7
- Shape
- Rectangular
- Size
- 40 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Rectangular
- Size
- 40 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
This BK7 rectangular beamsplitter is designed for laser applications, providing reliable performance with high surface quality and customizable dimensions. With a surface quality rating of 60/40 and a clear aperture of ≥90%, it ensures effective light management for precision optical systems. The beamsplitter’s compatibility with various prism types enhances its versatility in different setups, making it an ideal choice for R&D and engineering teams seeking dependable optical components.
Key Features
- Surface quality of 60/40 ensures minimal distortion for high-precision applications.
- Clear aperture of ≥90% maximizes light transmission for optimal performance.
- Customizable dimensions from 40mm to 100mm with tolerances of ±0.1mm / ±0.2mm.
- Compatible with various prism types, enhancing application flexibility.
- Angle tolerance of <3’ ensures accurate alignment in optical setups.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Rectangular |
| Size | 40 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism, Penta Prism, Triangular Prism |
| Customized Support | OEM |
| Warranty | 3 Years |
| Dimension | 40mm-100mm |
| Dimension Tolerance | ±0.1mm / ±0.2mm |
| Clear Aperture | ≥90% |
| Surface Flatness | 1/2 Lanbda |
| Angle Tolerance | <3’- <0.5'' |
| Bevel | <0.2 mm ±45° |
FAQ
Is custom sizing available?
Yes, dimensions can be customized from 40mm to 100mm.
What are the tolerances for this beamsplitter?
Dimension tolerances are ±0.1mm / ±0.2mm, with an angle tolerance of <3'.
