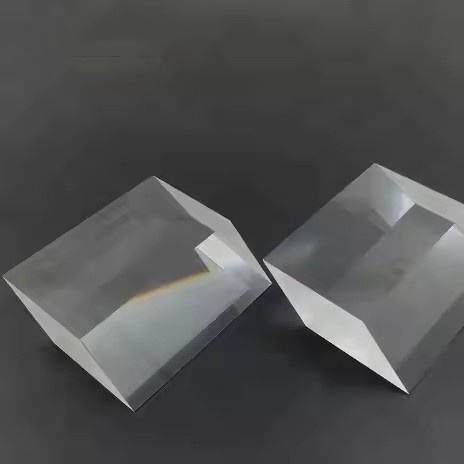

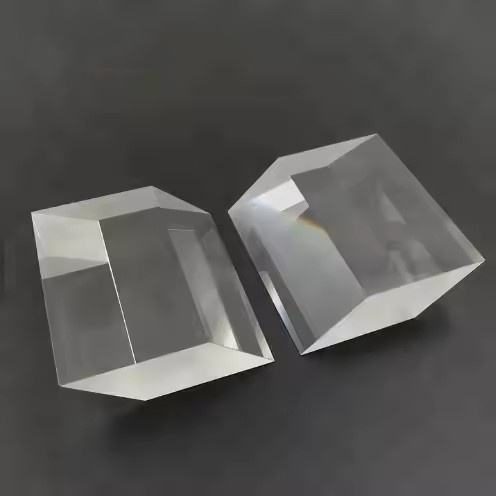

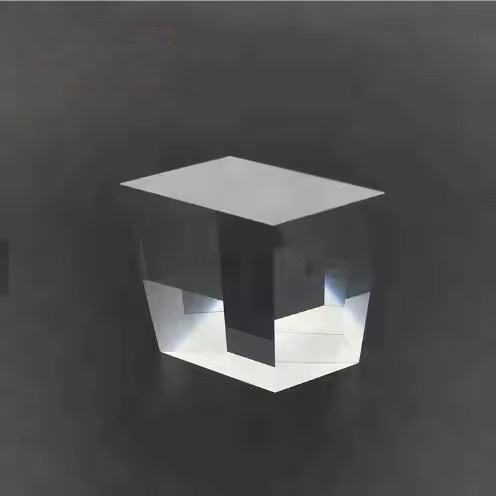

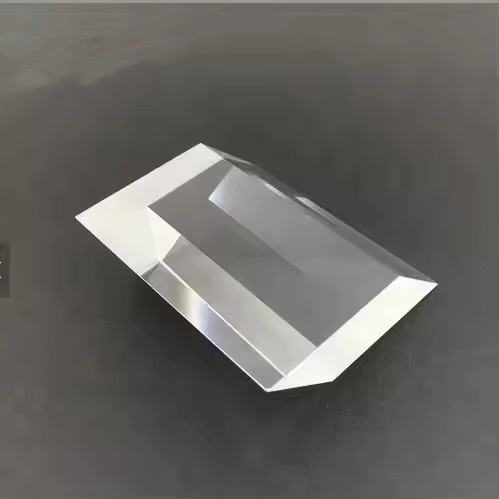

3 mm BK7 Rhomboid Optical Prism
Explore high-performance rhomboid prisms with precise angle tolerance and flatness for various optical applications.
Core attributes
- Material
- BK7
- Shape
- Rhomboid
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- BK7
- Shape
- Rhomboid
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product description
Rhomboid prisms are essential for applications requiring precise beam deviation and angle control. With a clear aperture of over 95%, these prisms ensure minimal light loss while maintaining high optical performance. Designed for versatility, they feature a flatness of L/4 and an angle tolerance of 3 arc minutes, making them suitable for various optical paths in laser and imaging systems. Crafted from BK7 material, these prisms offer reliable performance in diverse environments.
Key Features
- Clear aperture > 95% for optimal light transmission.
- Flatness of L/4 ensures wavefront integrity.
- Angle tolerance of 3 arc minutes for precise alignment.
- Constructed from BK7 for excellent optical properties.
- Standard chamfers for enhanced handling and installation.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Rhomboid |
| Size | 3 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Diamond Prisms |
| Clear Aperture | > 95% |
| Flatness | L/4 |
| Angle Tolerance | 3 arc min |
| Chamfer | standard chamfers |
FAQ
Is custom sizing available for rhomboid prisms?
Custom sizing options are not specified for these rhomboid prisms.
What is the minimum order quantity (MOQ) for these prisms?
The minimum order quantity (MOQ) is not provided for these prisms.
