1 / 6Optical Prisms

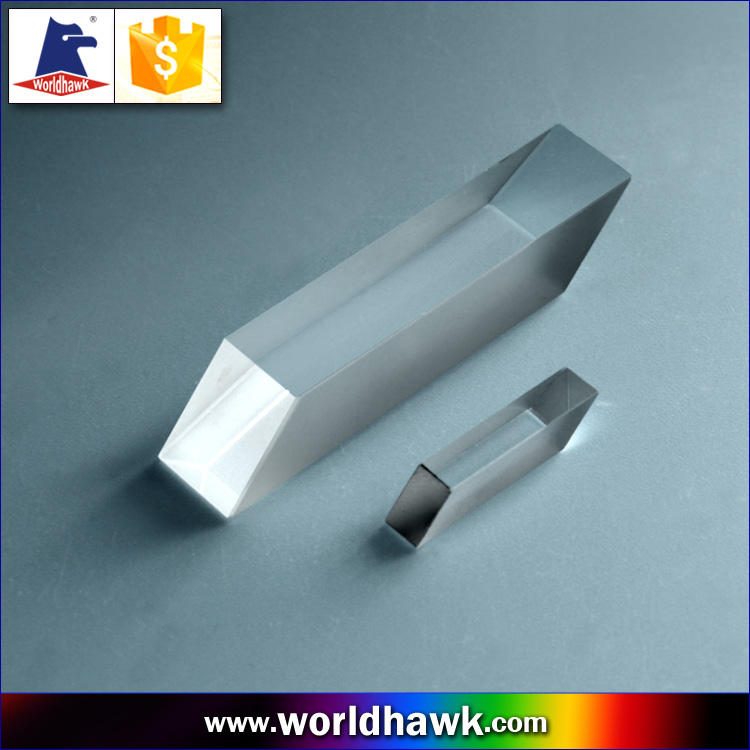

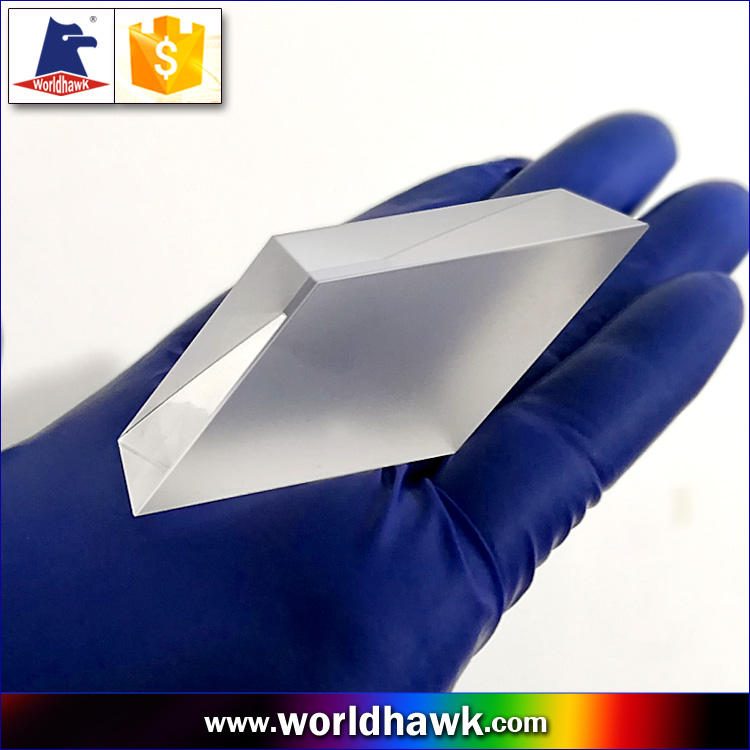

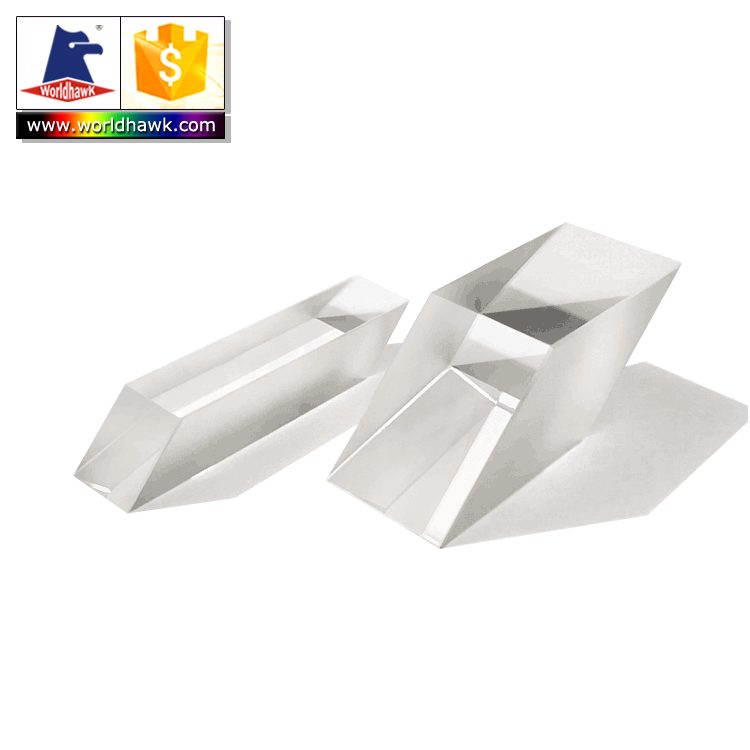

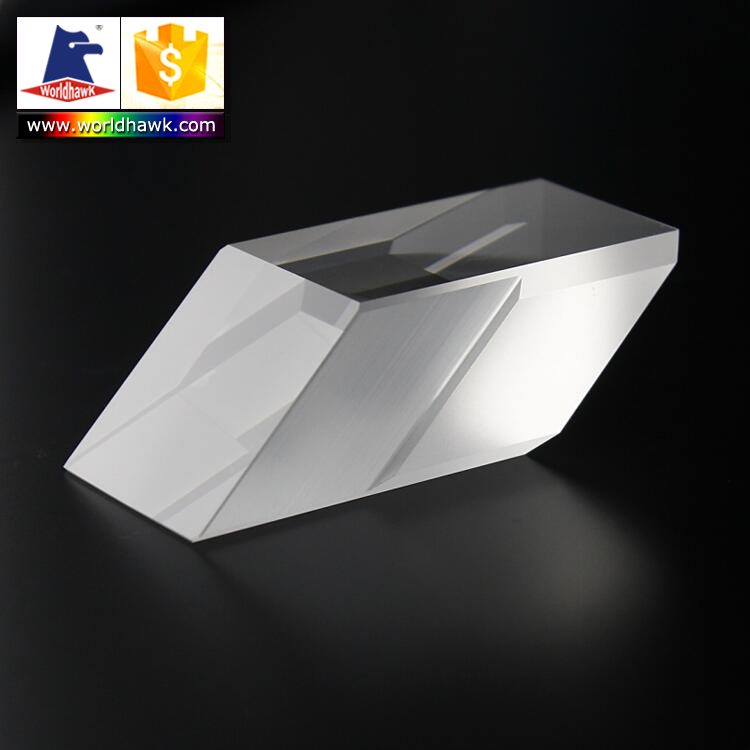

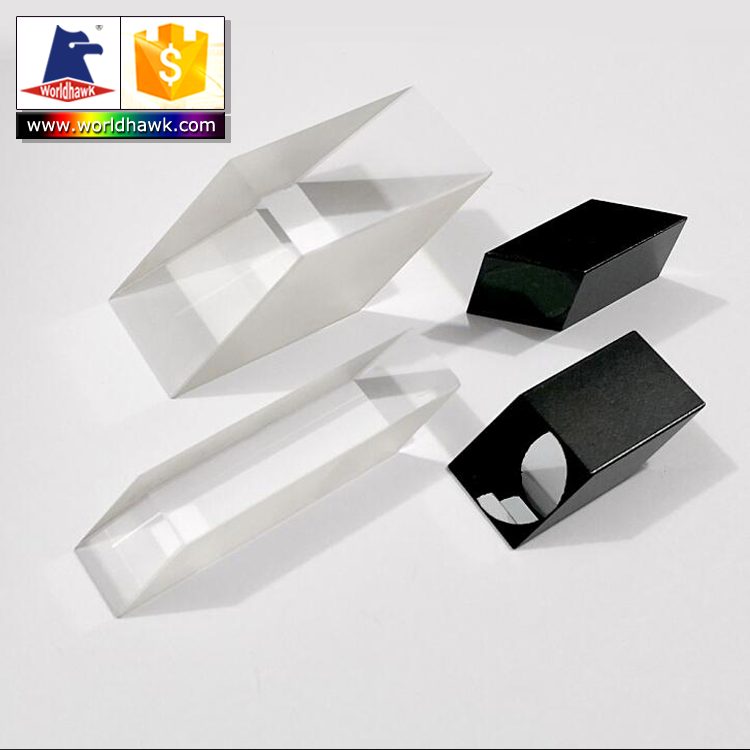

Custom Size BK7 Rhomboid Optical Prism, AR Coated
Explore our rhomboid prism with precise angle tolerance and surface quality for high-performance optical applications.
Core attributes
- Material
- BK7
- Shape
- Rhomboid
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Rhomboid
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The rhomboid prism is designed for applications requiring precise beam deviation and angle accuracy. Ideal for optical paths where minimal distortion is critical, this prism features a surface quality of 60/40 and a flatness of 1/8 Lambda, ensuring wavefront integrity. With an angle tolerance of +/- 2 arc seconds, it is suitable for high-precision optical systems.
Key Features
- Angle tolerance of +/- 2 arc seconds for precise optical alignment.
- Surface quality of 60/40 ensures minimal distortion in optical paths.
- Flatness of 1/8 Lambda maintains wavefront integrity.
- Clear aperture of ≥90% maximizes light transmission efficiency.
- Customized support available for OEM and ODM projects.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Rhomboid |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Dimension Tolerance | ±0.1mm~0.03mm; ±0.2mm |
| Clear Aperture | ≥90% |
| Bevel | <0.2±45° |
| Angle Tolerance | +/- 2 arc seconds |
| Flatness | 1/8 Lambda |
FAQ
What are the available custom sizes?
Custom sizes are supported, but specific dimensions are not provided.
What is the dimension tolerance?
Dimension tolerance ranges from ±0.1mm to ±0.03mm; ±0.2mm.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
