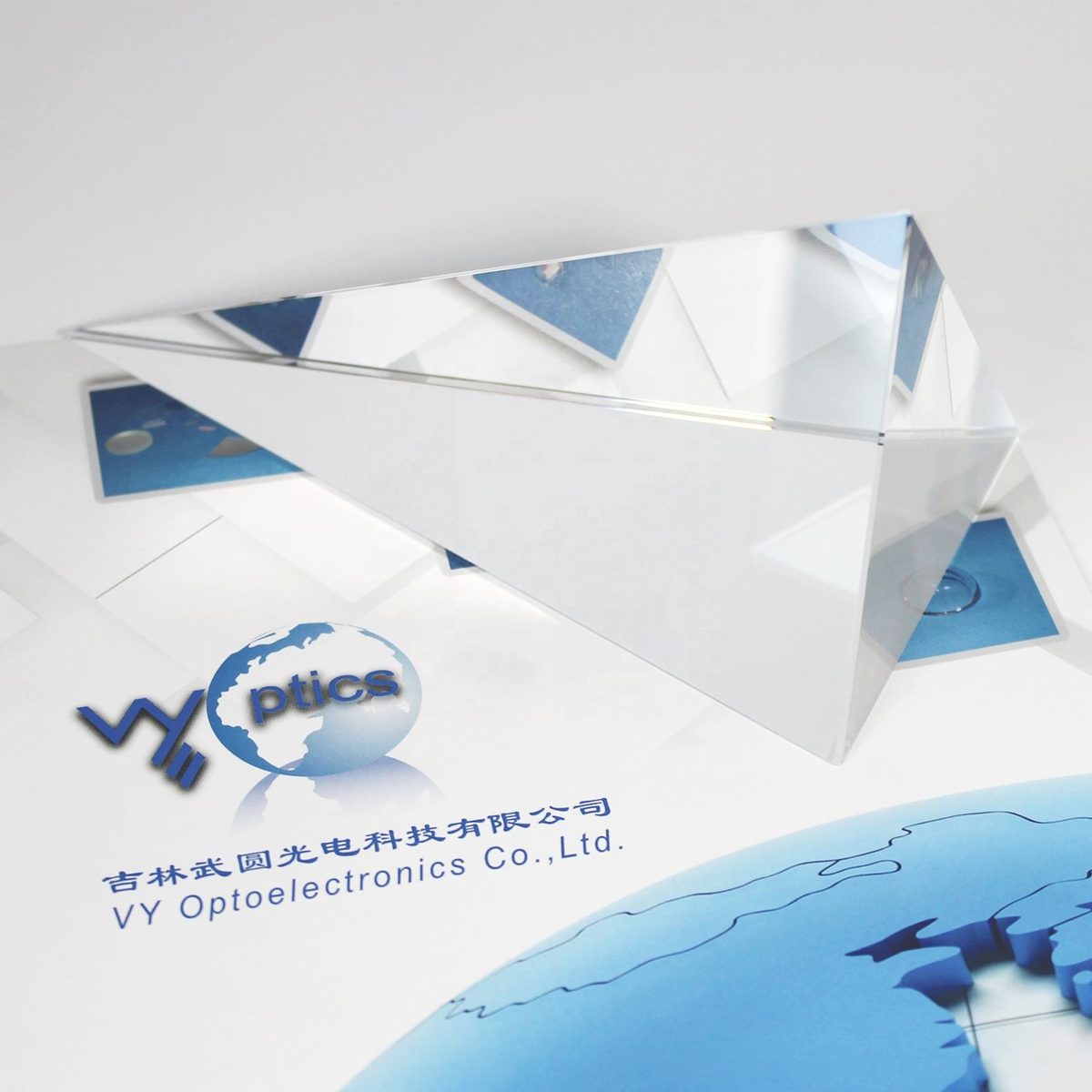

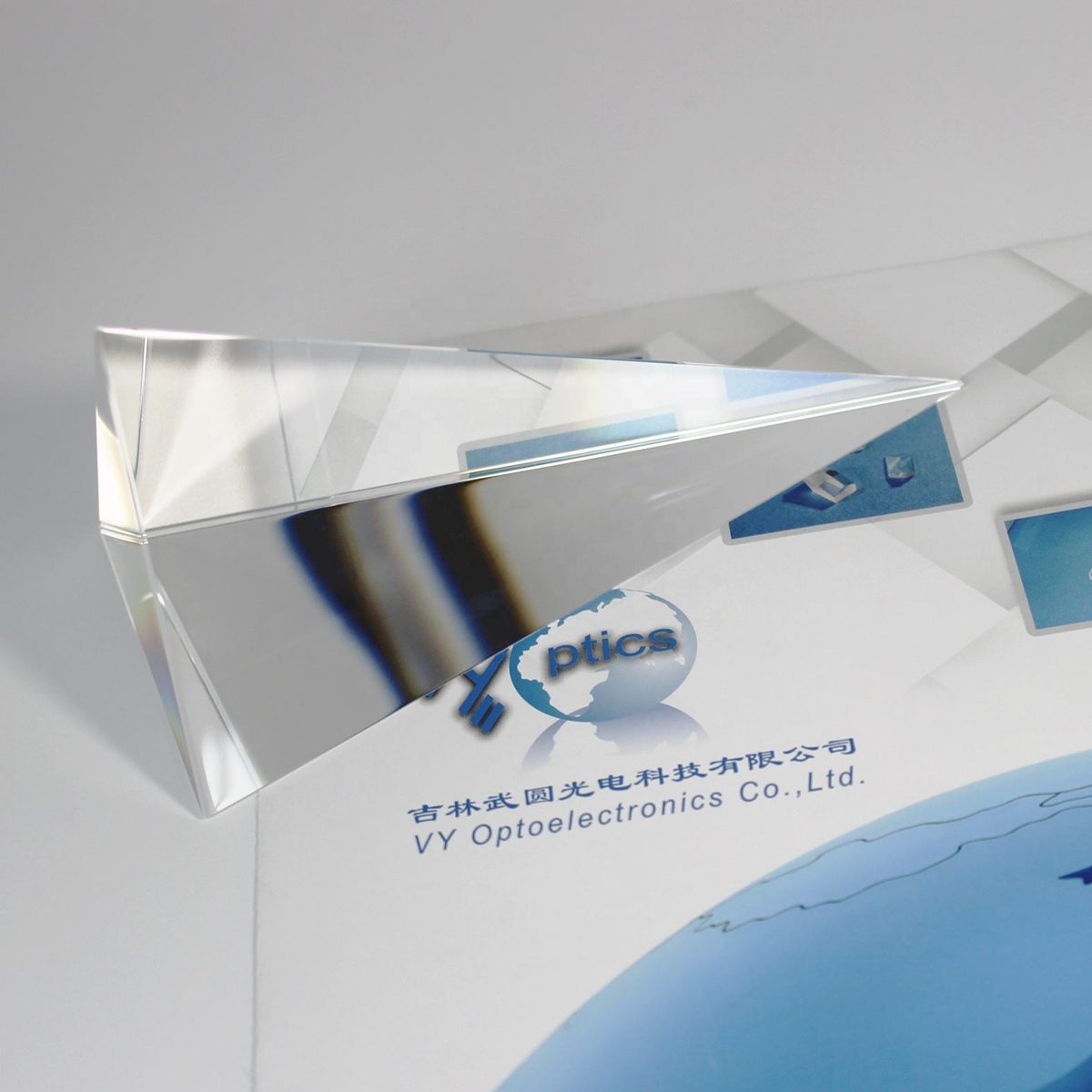

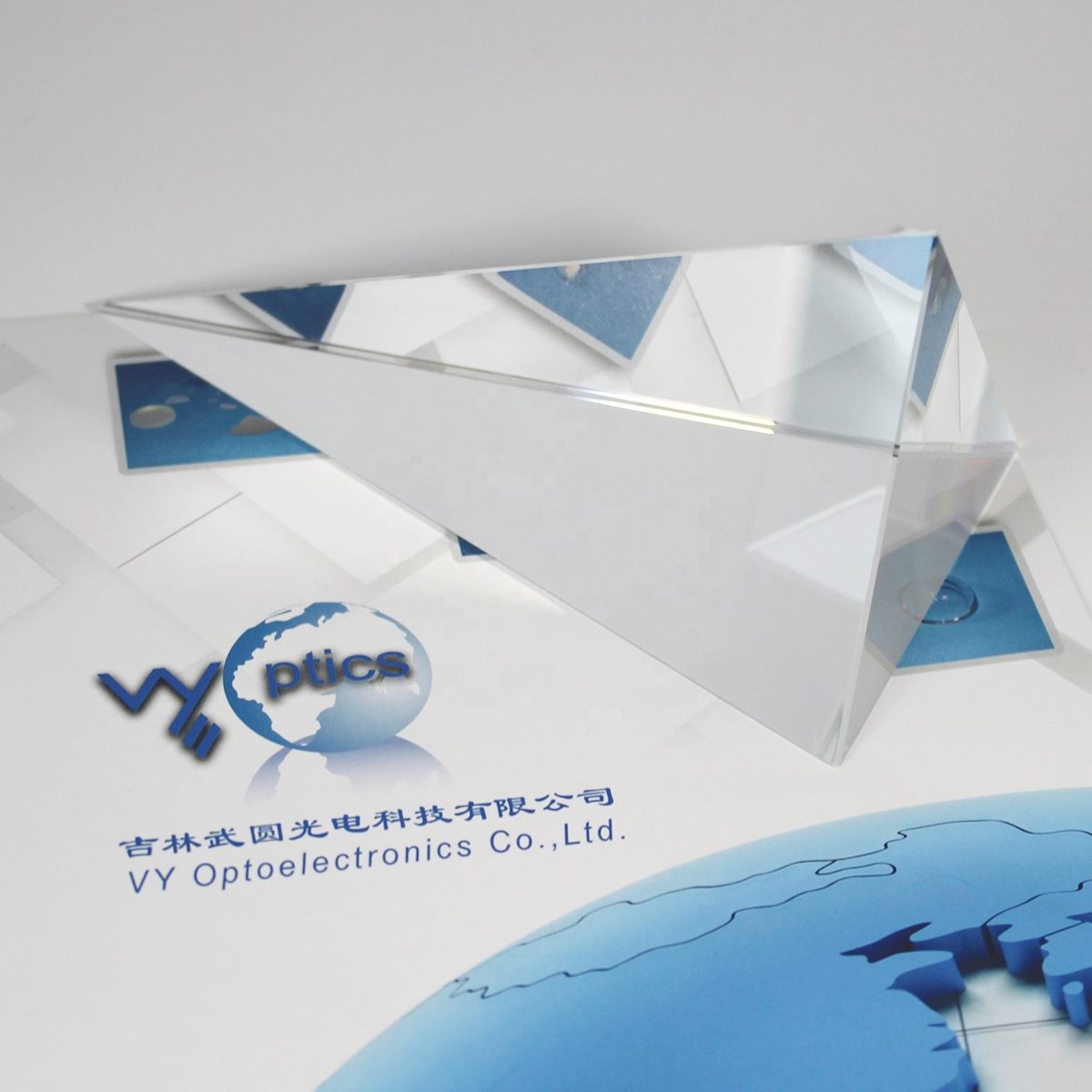

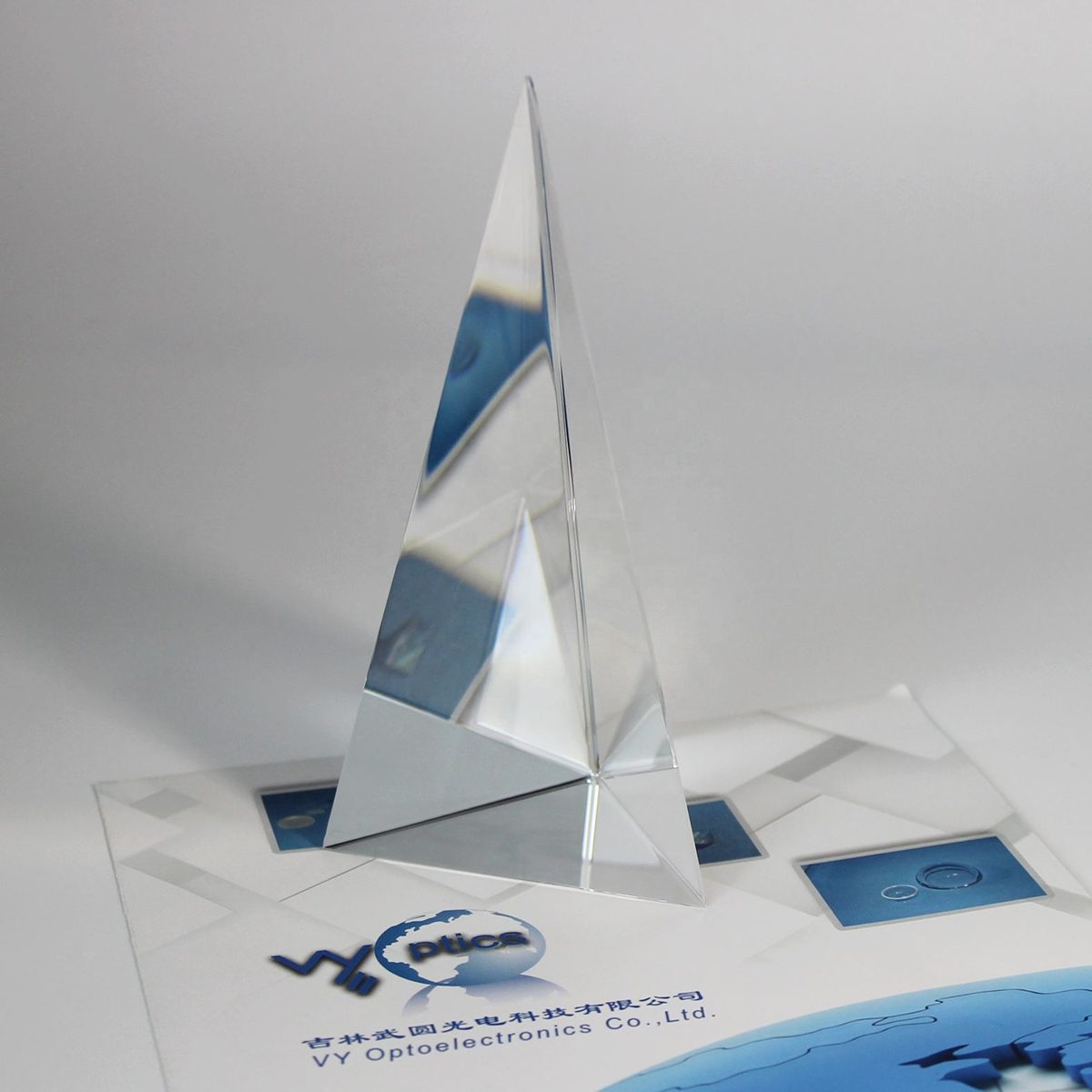

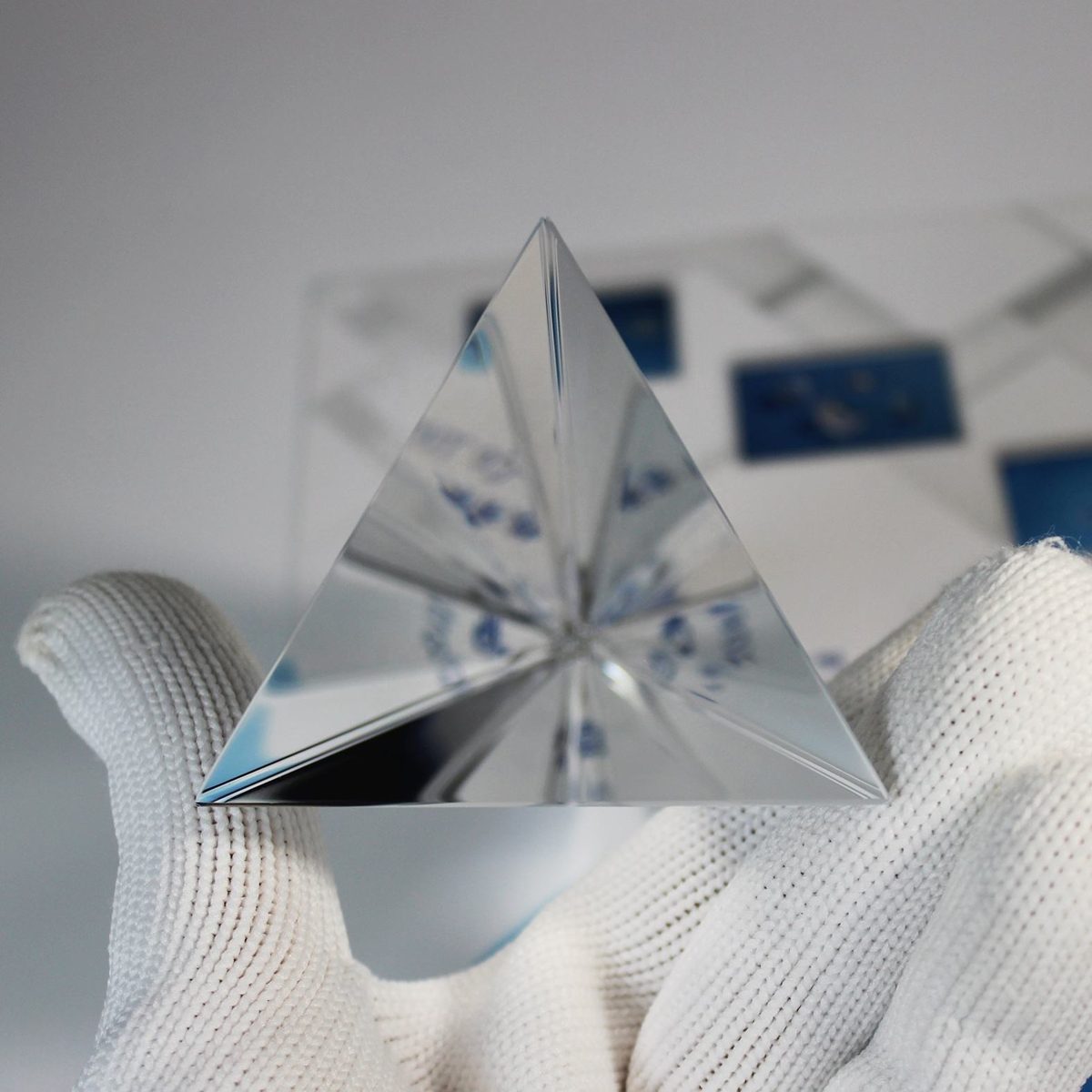

0.5 mm BK7 Right-angle Optical Prism, AR Coated
Explore our right-angle prism with high precision and customizable options for various optical applications.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 0.5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 0.5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
The right-angle prism is an essential optical component for applications requiring precise beam deviation and redirection. With a compact size of 0.5mm, it is suitable for various optical paths and can be customized for specific needs. Designed for high accuracy, it features an angle tolerance of 0.5 arc seconds at 90°, ensuring reliable performance in demanding environments.
Key Features
- Right-angle geometry for effective beam redirection.
- Angle tolerance of 0.5 arc seconds at 90° for high precision.
- Customized support available for OEM and ODM projects.
- Dimension tolerance of +/-0.10 mm for consistent batch quality.
- Clear aperture of 90% for optimal light transmission.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 0.5 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM |
| Type | optical lens |
| Dimension | 0.5mm-200mm(0.5mm right angle) |
| Dimension Tolerance | +/-0.10 |
| Clear Aperture | 90% |
| Angle Tolerance | 0.5 arc second at 90° etc |
FAQ
Can I get custom sizes?
Yes, the prism is available in dimensions ranging from 0.5mm to 200mm.
What is the angle tolerance?
The angle tolerance is 0.5 arc seconds at 90°.
