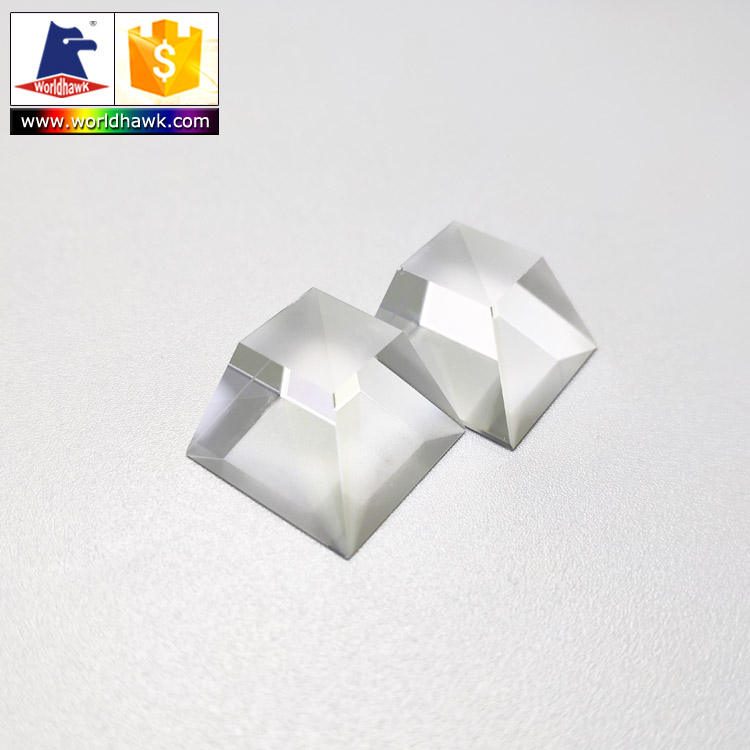

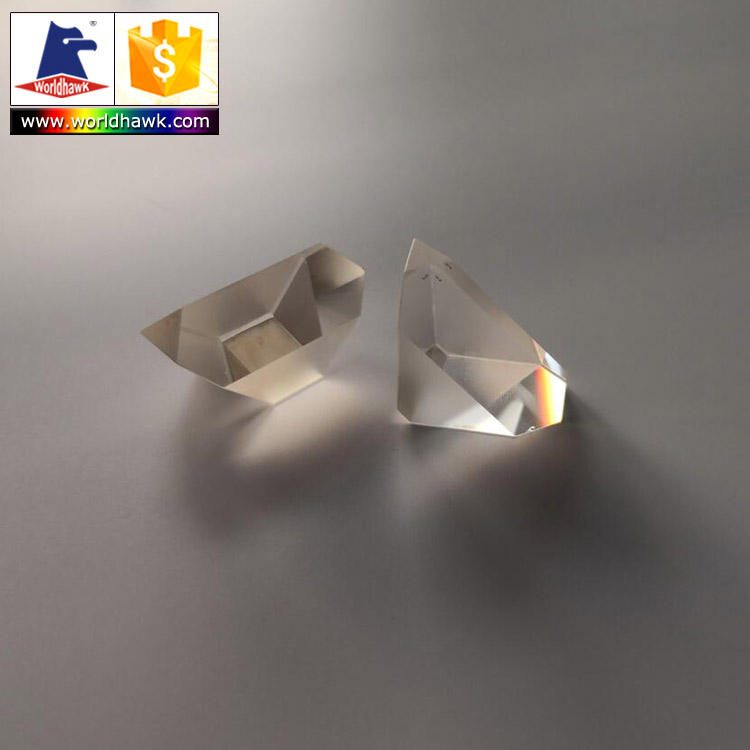

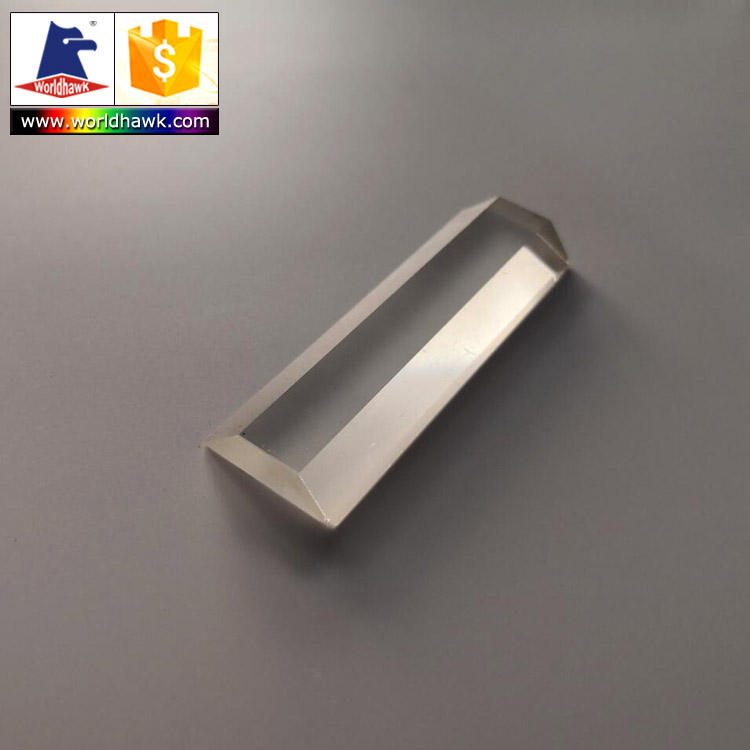

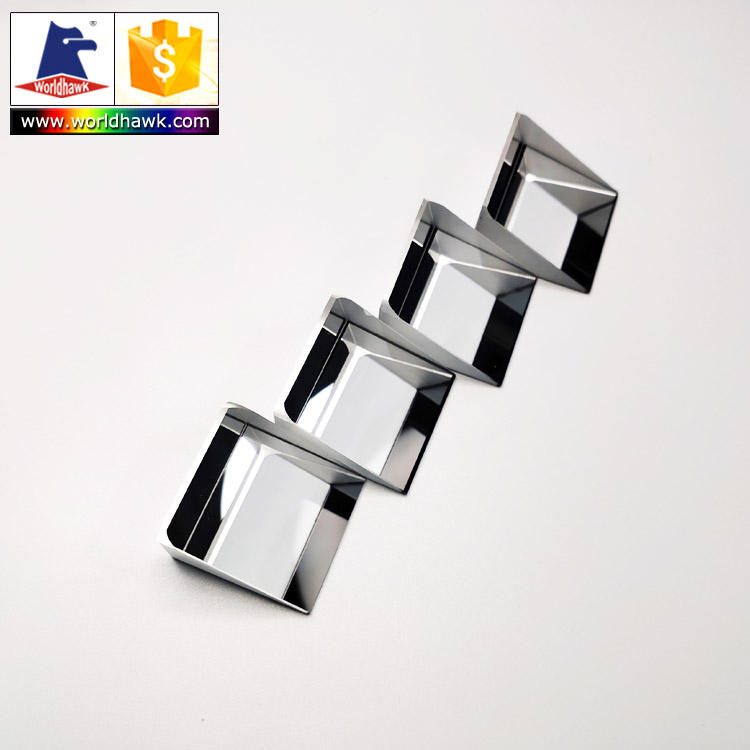

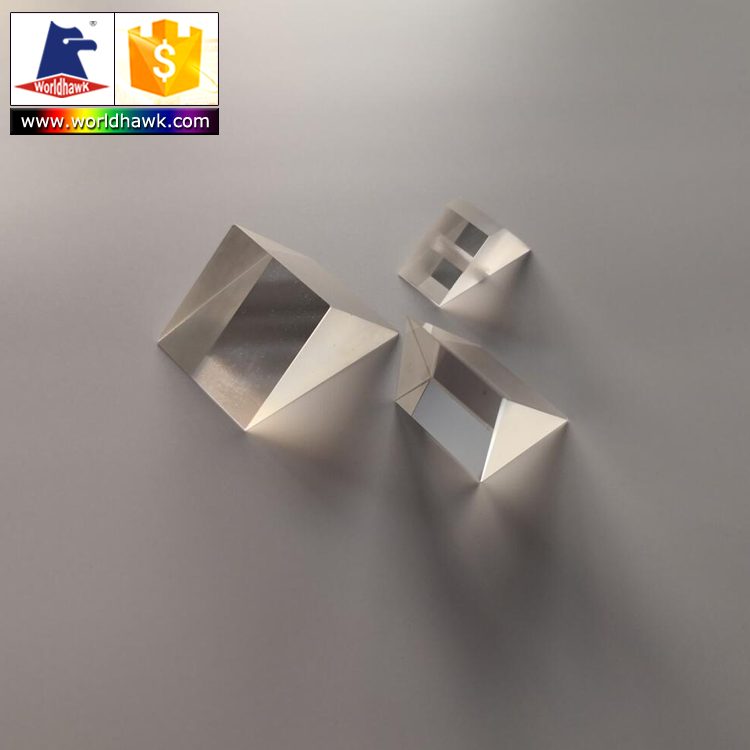

0.5 mm BK7 Right-angle Optical Prism, AR Coated
Right-angle prism in BK7 with AR coating, ideal for laser applications. Custom sizes and high precision available.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The right-angle prism is essential for applications in laser systems, offering precise beam deviation and reliable optical performance. Constructed from BK7 material, it features an AR coating for optimal transmittance. With a surface quality of 60/40 and customizable dimensions ranging from 0.5mm to 380mm, this prism ensures compatibility with various optical paths while maintaining high accuracy and durability.
Key Features
- Right-angle geometry for effective beam deviation in laser applications.
- Surface quality of 60/40 ensures minimal distortion for wavefront integrity.
- Custom dimensions available from 0.5mm to 380mm for diverse project needs.
- Angle tolerance of <3’ ensures precision in optical alignment.
- OEM support allows for tailored solutions to fit specific requirements.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 0.5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism, Penta Prism, Triangular Prism |
| Customized Support | OEM |
| Warranty | 3 Years |
| Dimension | 0.5mm-380mm |
| Dimension Tolerance | ±0.1mm / ±0.2mm |
| Angle Tolerance | <3’- <0.5'' |
| Clear Aperture | ≥90% |
| Surface Flatness | 1/2 Lanbda, 1/4 Lanbda, 1/10 Lanbda |
| Bevel | <0.2 mm ±45° |
FAQ
What are the available custom sizes?
Custom dimensions can be provided from 0.5mm to 380mm.
What is the angle tolerance of the prism?
The angle tolerance is <3’ or <0.5’'.
