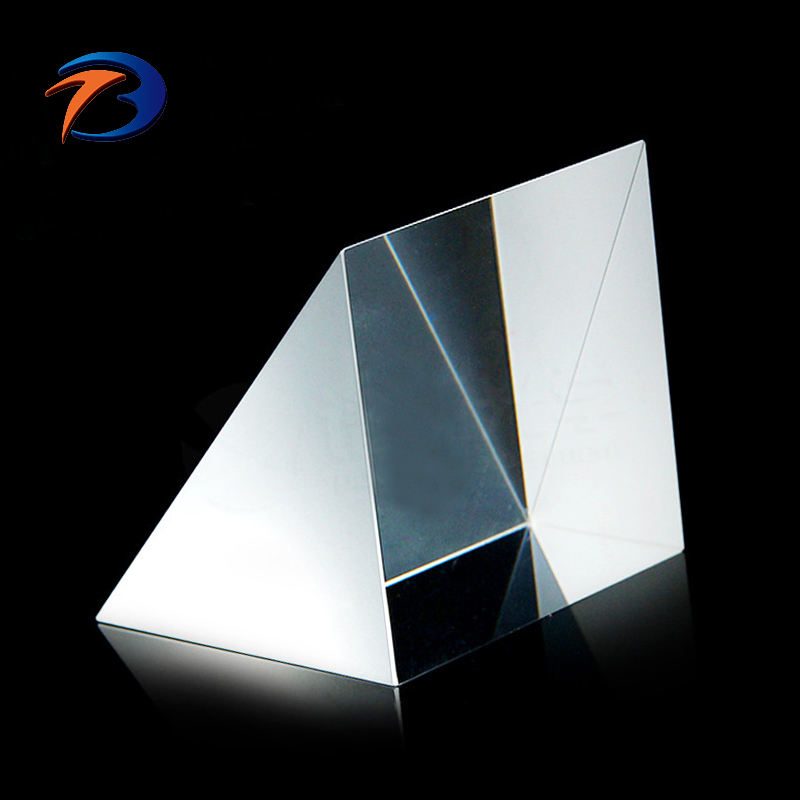

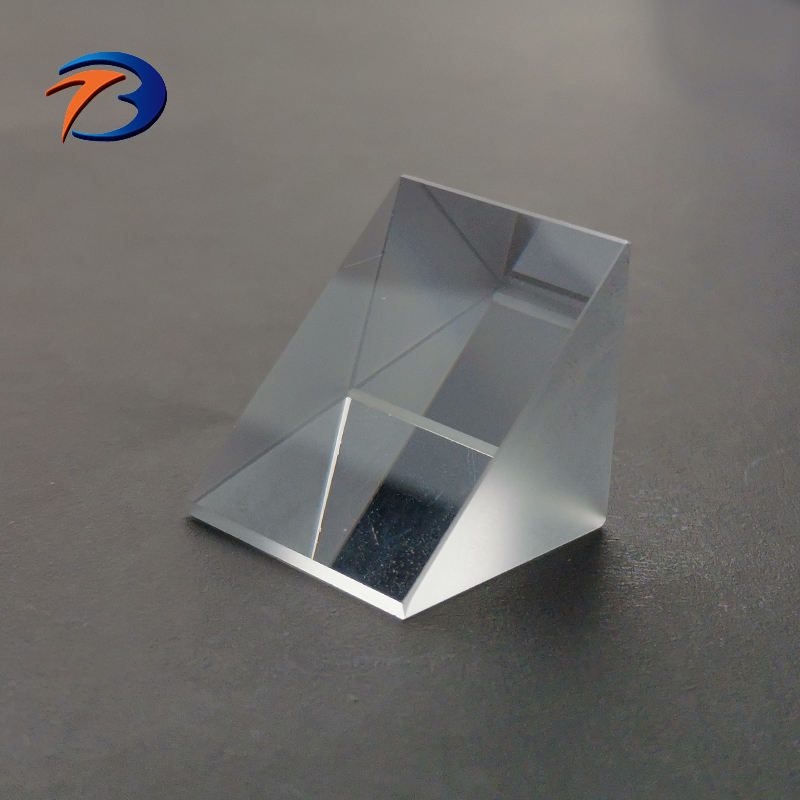

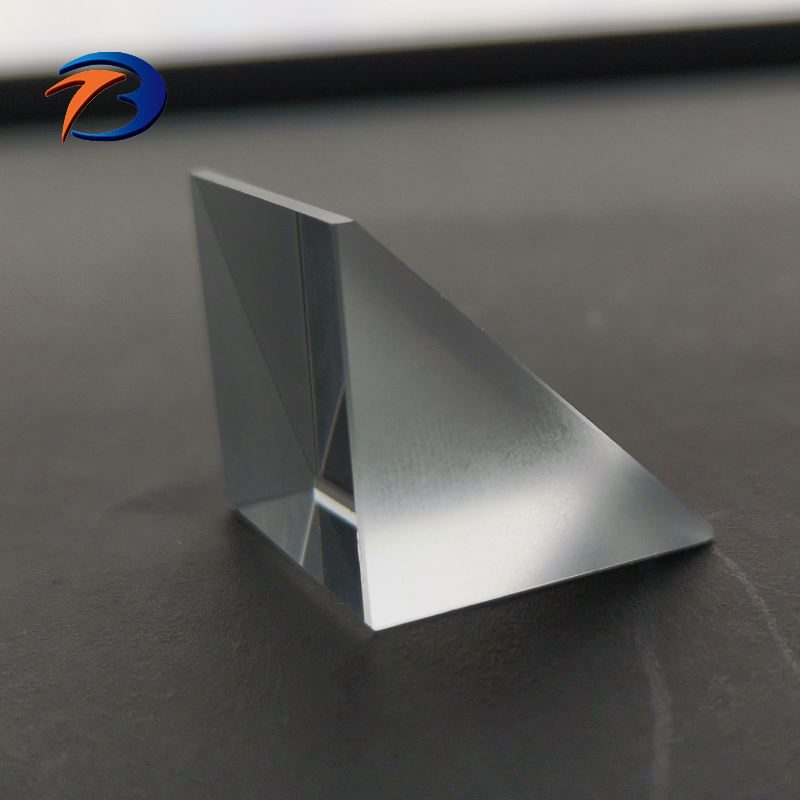

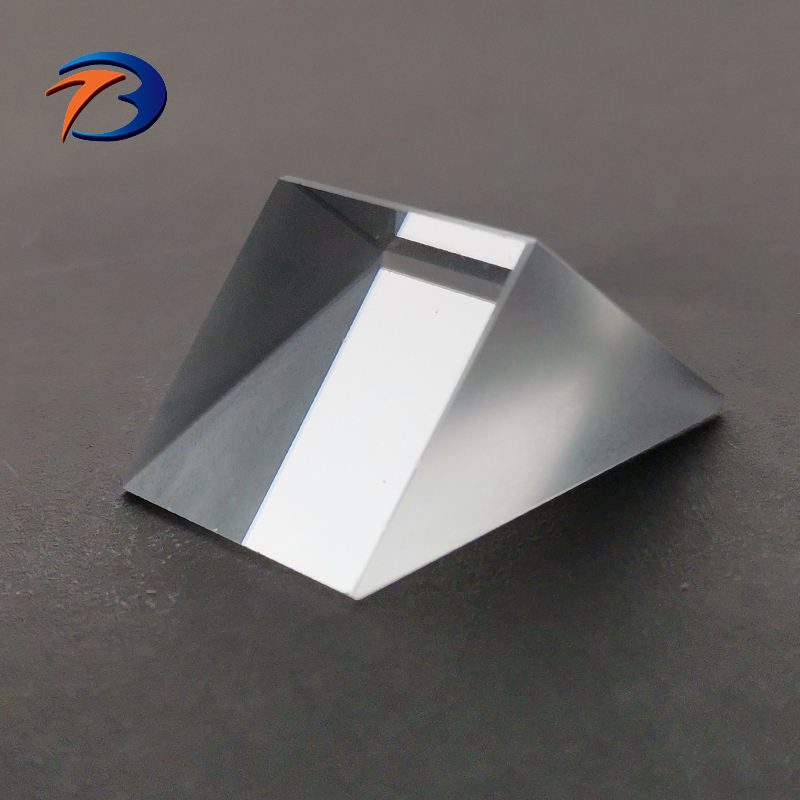

0.5 mm BK7 Right-angle Optical Prism
Explore our right-angle BK7 prism with high precision and customizable options for your optical applications.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 0.5 mm
- Thickness
- Custom
- Surface Quality
- 60/40
Product description

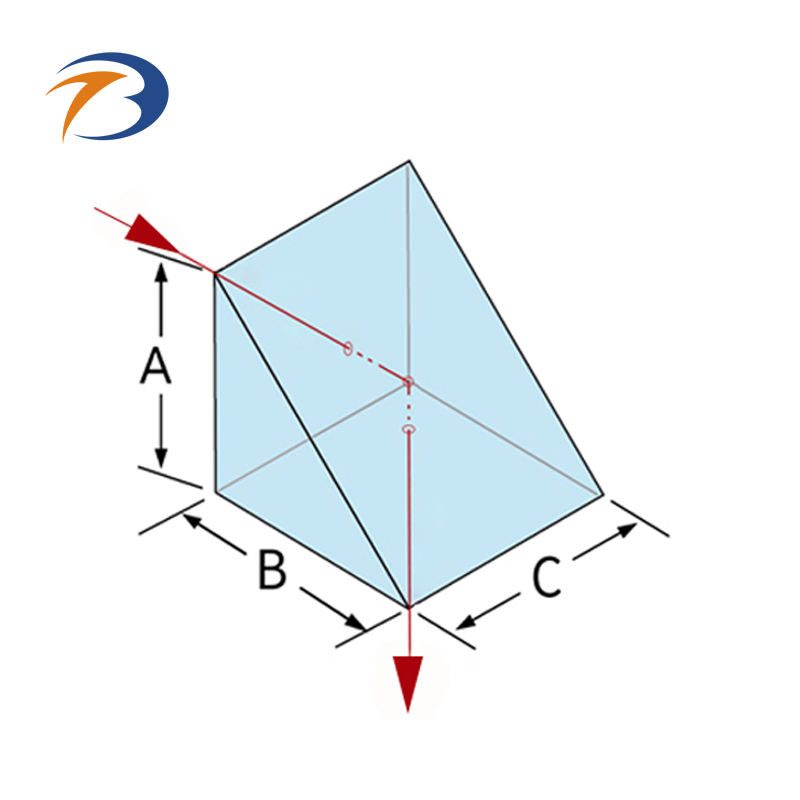

The right-angle prism made from BK7 is designed for precision applications requiring accurate beam deviation and reliable optical performance. With a surface quality of 60/40 and an angle tolerance of ±2 arc seconds, this prism ensures minimal distortion in optical paths. Ideal for applications in laser systems and imaging, it meets the rigorous demands of R&D and industrial environments.
Key Features
- Surface quality of 60/40 ensures minimal optical distortion.
- Angle tolerance of ±2 arc seconds for precise beam alignment.
- Protective bevel available to enhance durability.
- Customizable support for OEM and ODM projects.
- Dimension tolerance of ±0.02mm for consistent batch quality.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 0.5 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM |
| Warranty | 1Y |
| Type | Optical prisms |
| Bevel | Protective bevel as needed |
| Materail | Sapphire |
| Dimension Tolerance | ±0.02mm |
| Angle Tolerance | ±2 Arc Seconds |
| Flatness | 1/4 Lambda or 1/8Lambda |
FAQ
Can I get custom sizes for this prism?
Custom sizes are available through OEM and ODM support.
What is the angle tolerance of this prism?
The angle tolerance is ±2 arc seconds, ensuring high precision.
