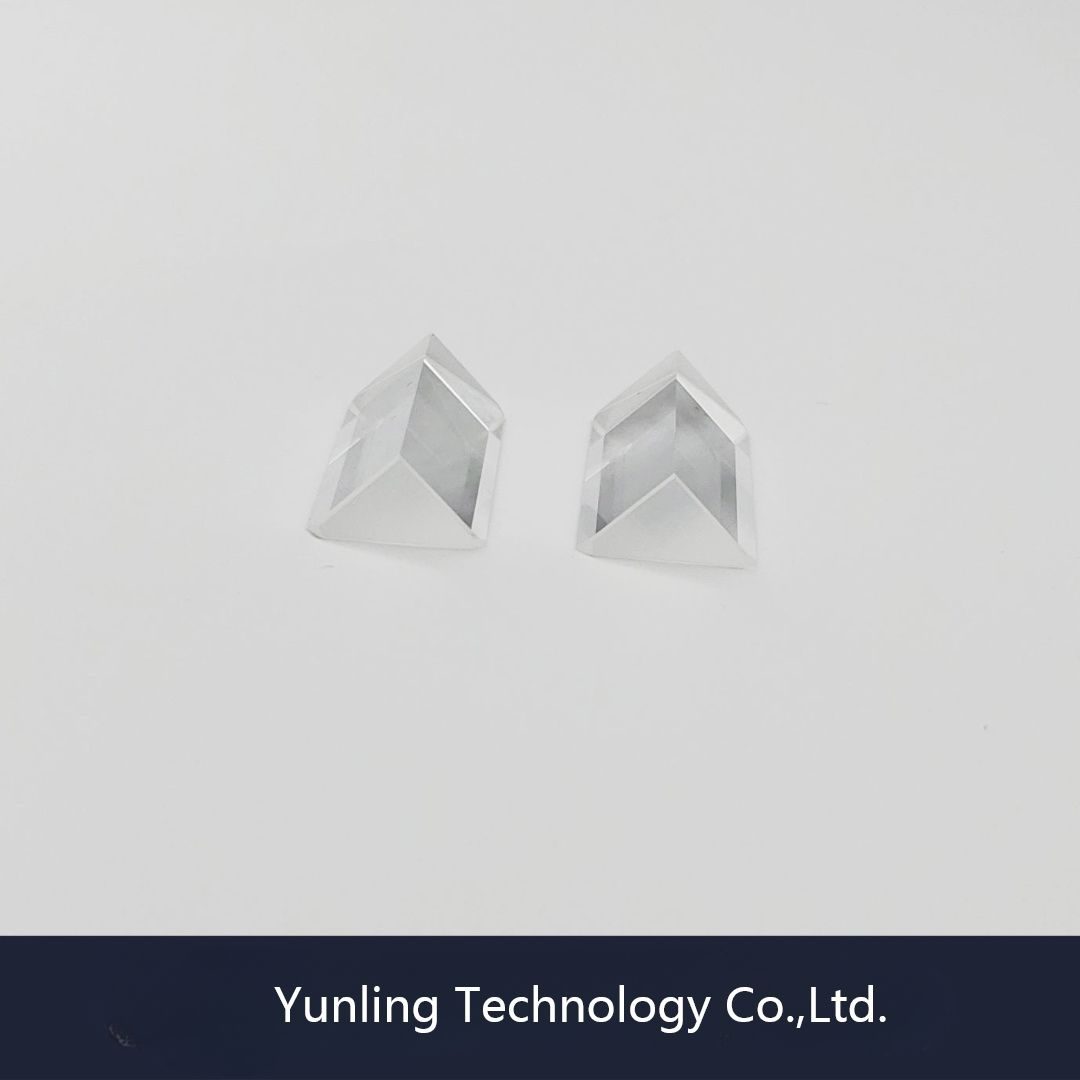

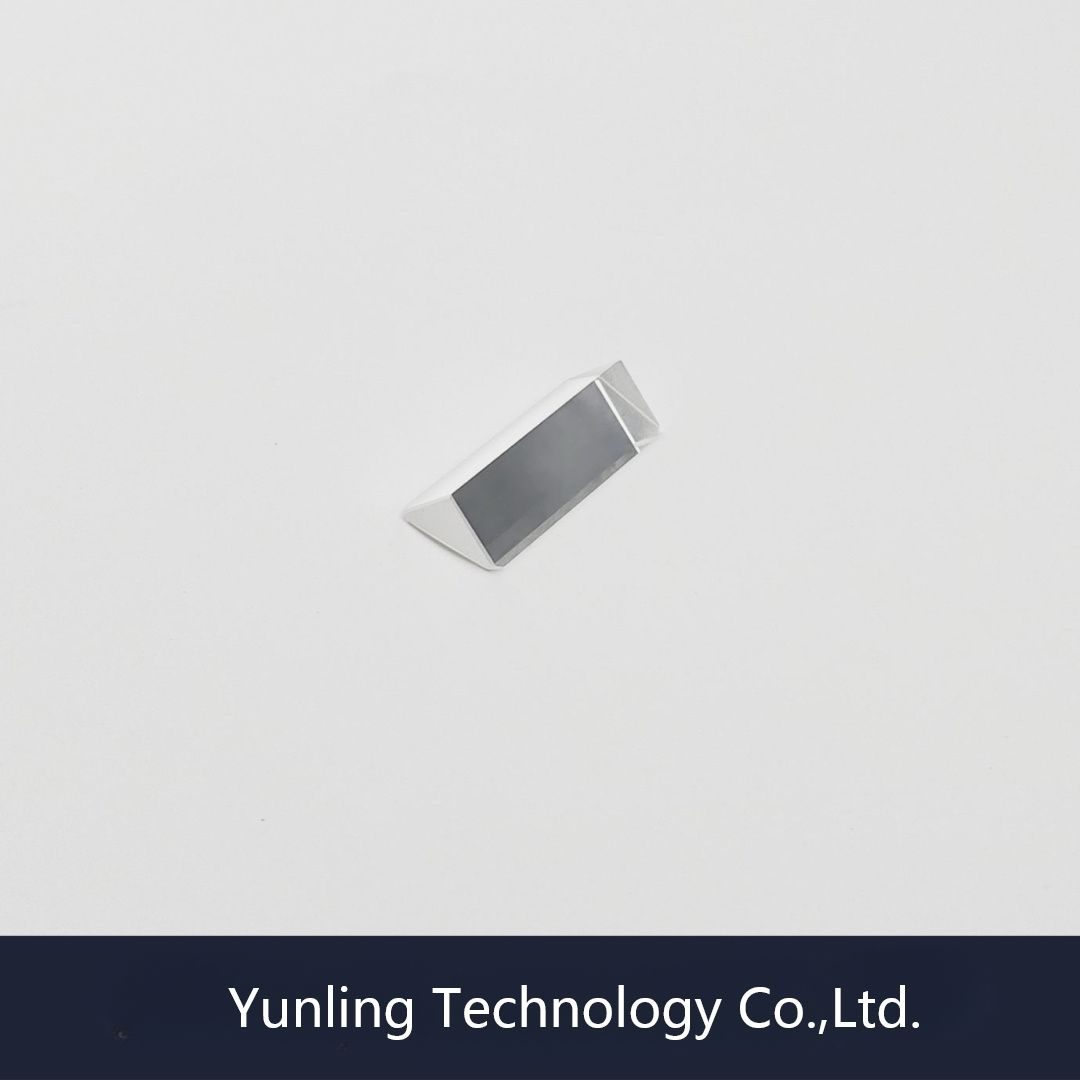

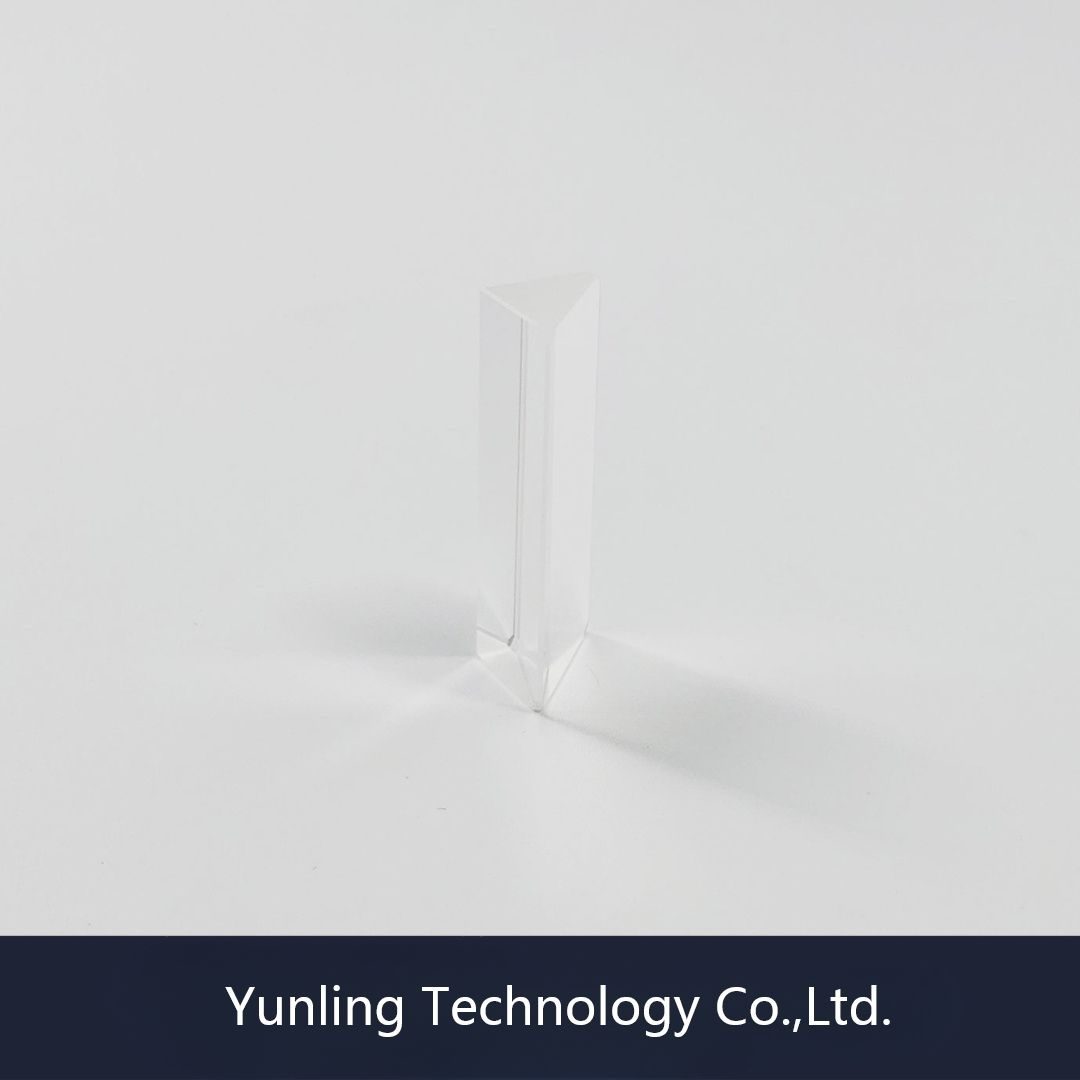

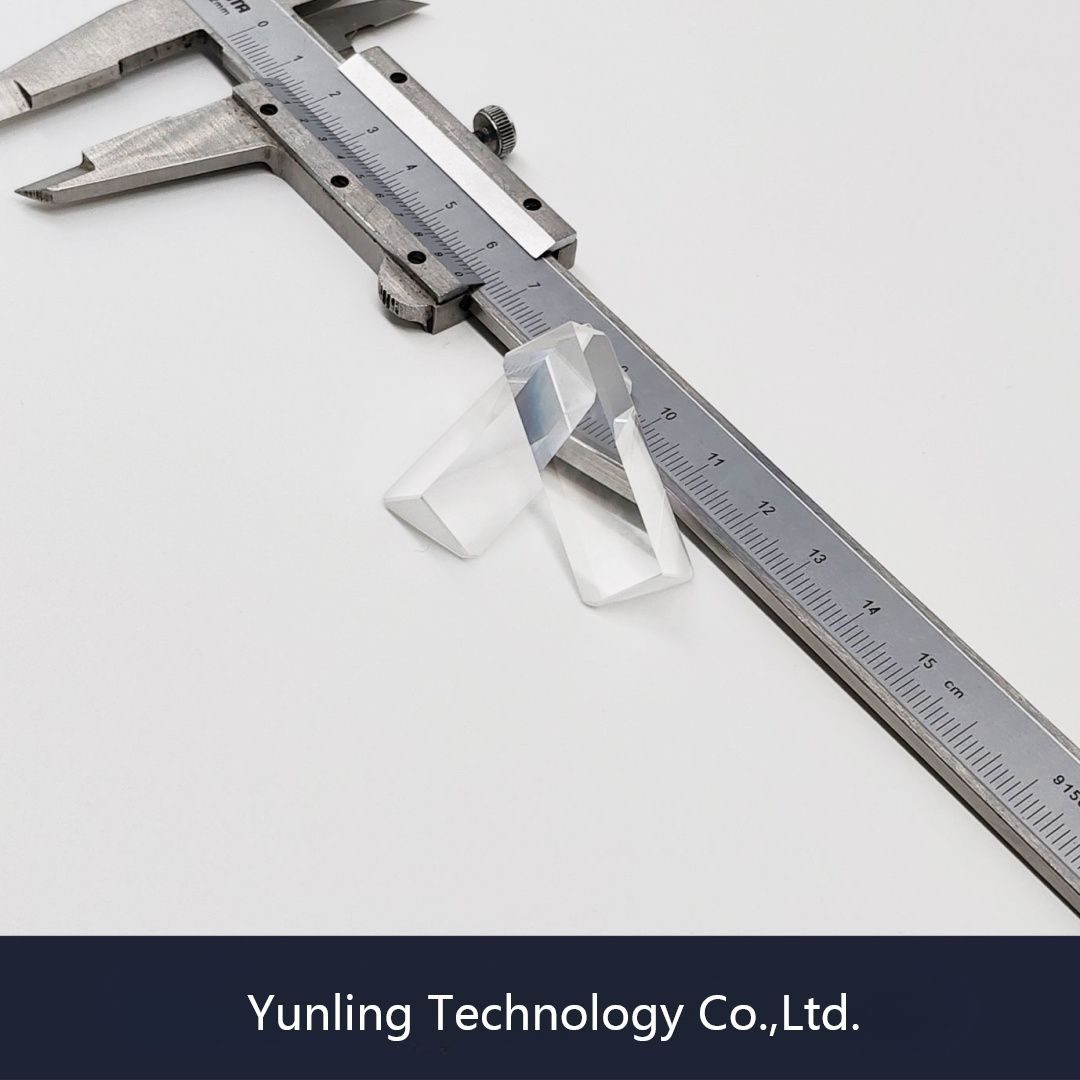

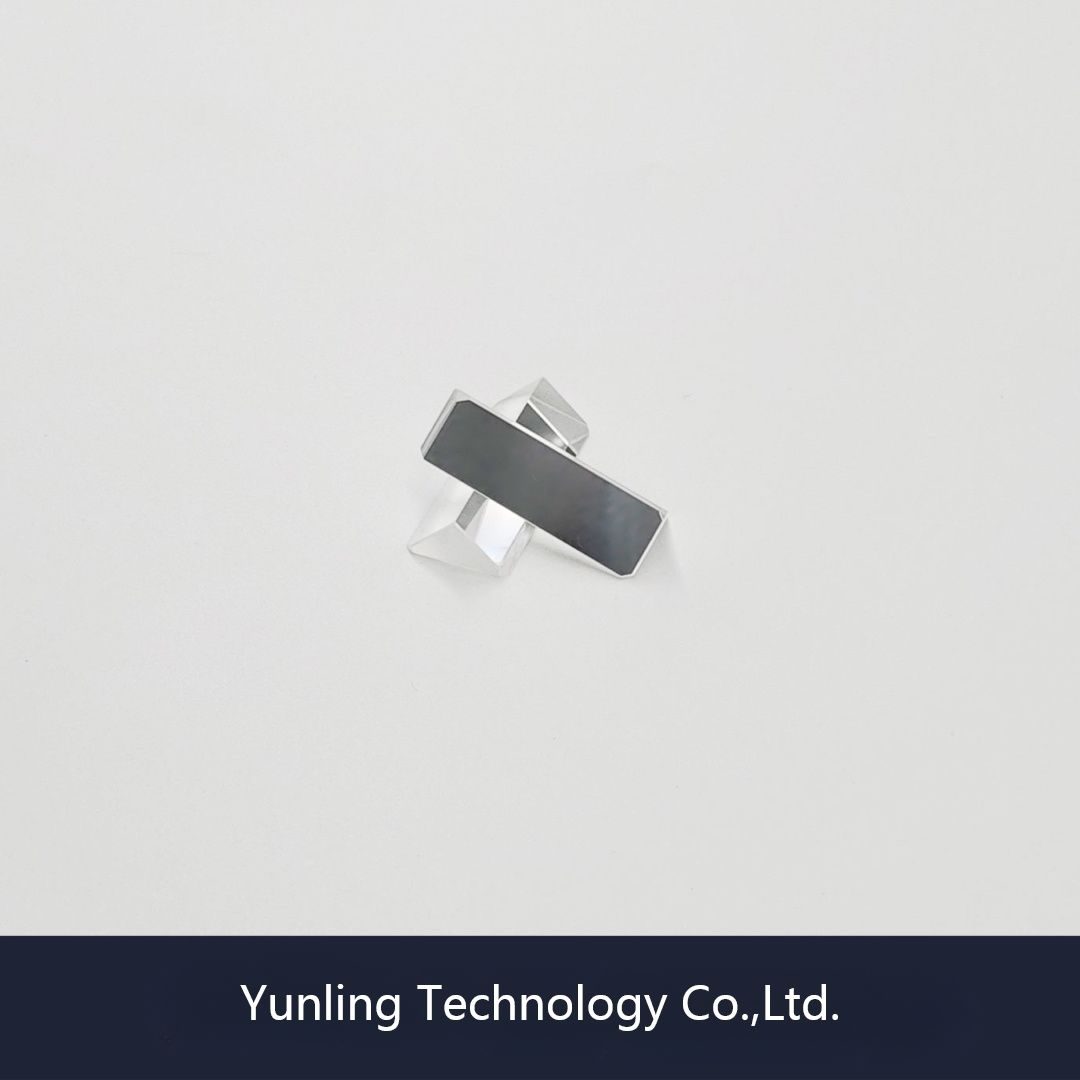

0.1 mm BK7 Right-angle Optical Prism

Product description

The Right Angle Prism is designed for precision applications requiring accurate beam deviation. With an angle tolerance of ±2’’ to ±5’, it ensures reliable performance in optical paths. Made from BK7, this prism is available in sizes ranging from 0.1 mm to 0.5 mm, with options for anti-reflective coatings to enhance transmittance. Ideal for applications in medical imaging and other optical systems, this prism meets stringent quality standards.

Key Features

Angle tolerance of ±2’’ to ±5’ for precise optical alignment.
Flatness of 1/4 Lambda ensures wavefront integrity.
Available in sizes from 0.1 mm to 0.5 mm for versatile applications.
OEM customization options for tailored solutions.
Durable BK7 material for reliable performance.

Specification Summary

Item	Value
Material	BK7
Shape	Right-angle
Size	0.1 mm
Thickness	Custom
Coating	uncoated, anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	Right Angle Prism
Customized Support	OEM
Warranty	1 Year; 1 year
Type	Right Angle Prism
Angle Tolerance	±2’’~±5'
Flatness	1/4 Lambda
Thickness Tolerance	0.01~0.05
Diameter Tolerance	+0/-0.05mm

FAQ

What are the available sizes for the right angle prism?

The right angle prism is available in sizes ranging from 0.1 mm to 0.5 mm.

What is the angle tolerance for this prism?

The angle tolerance for the right angle prism is ±2’’ to ±5'.
