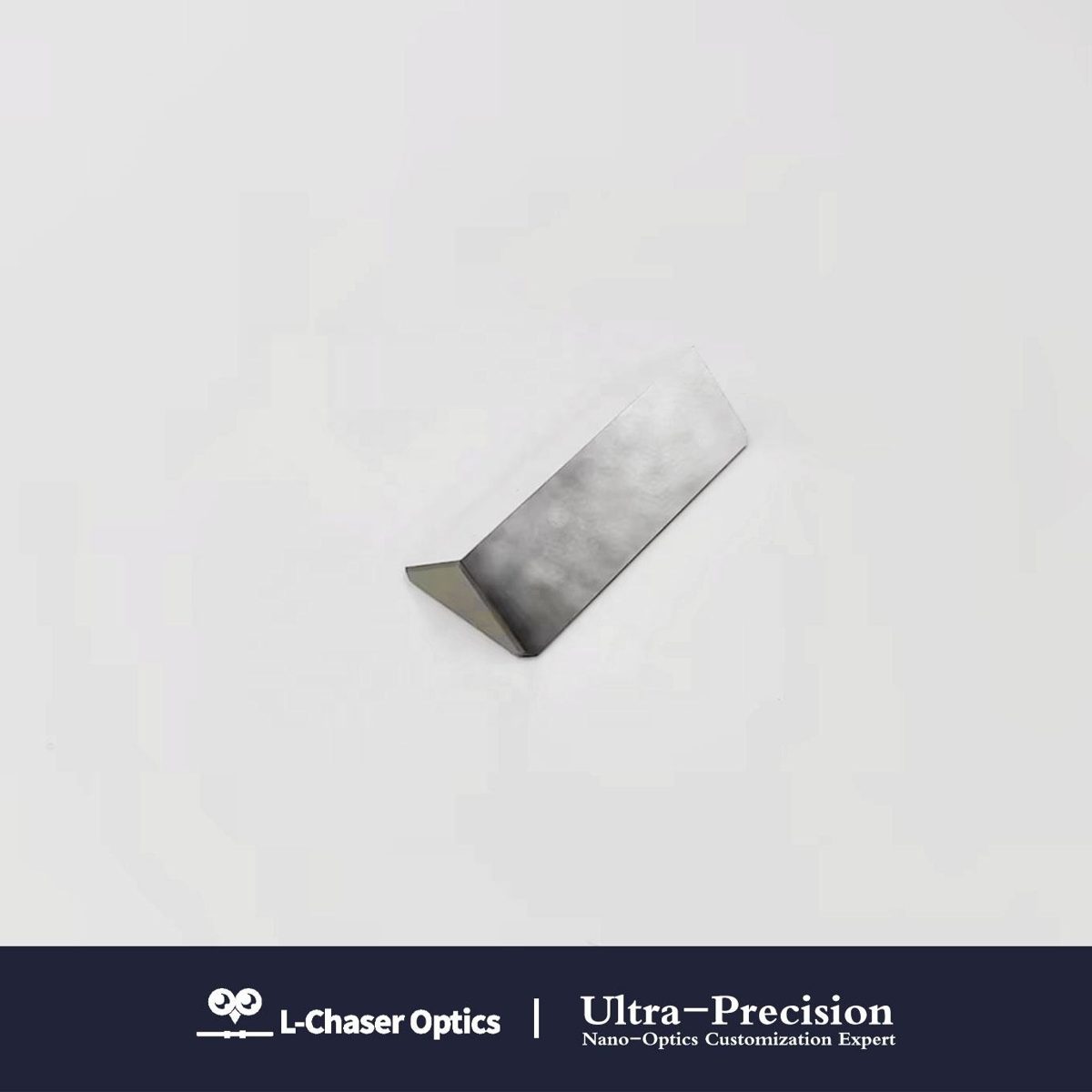

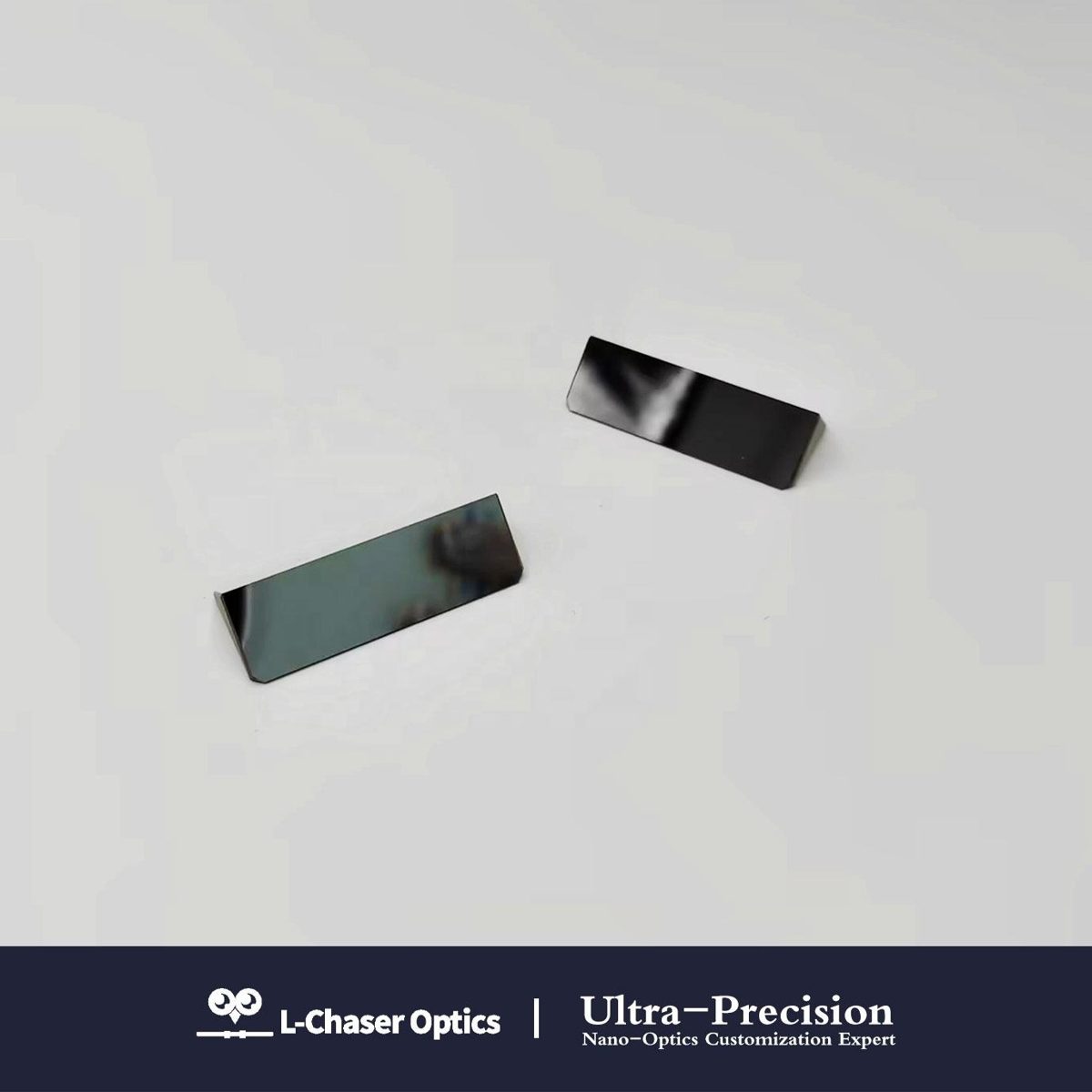

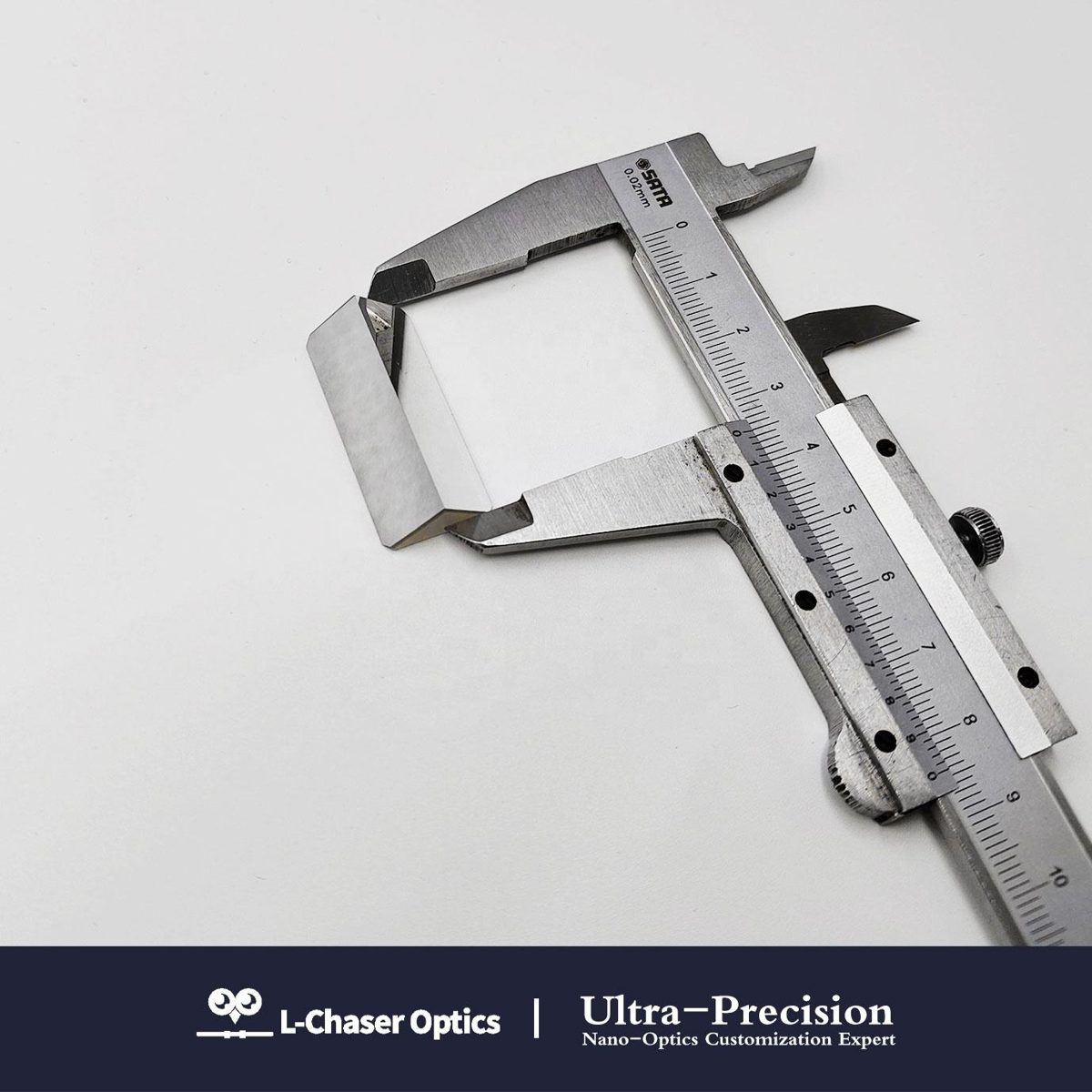

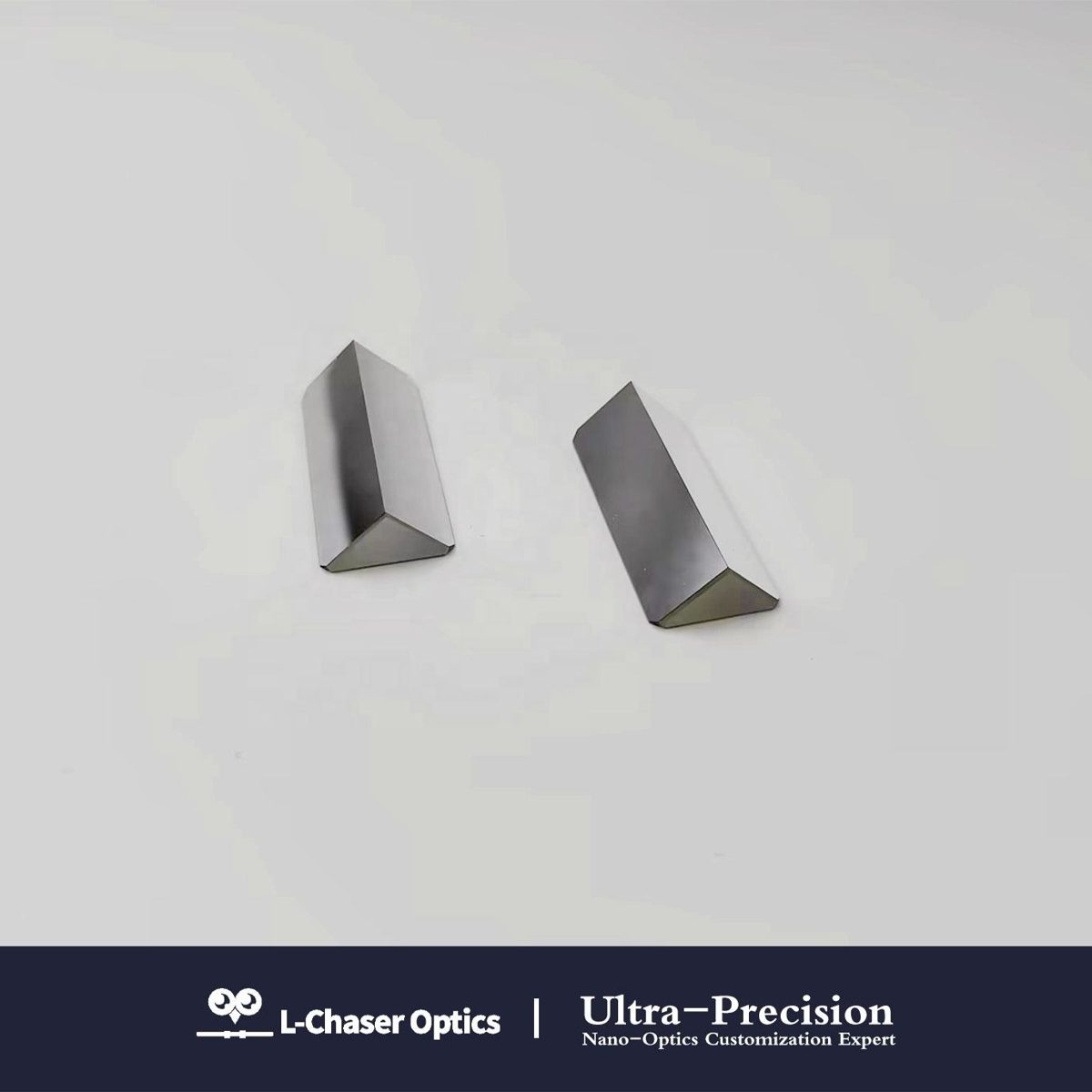

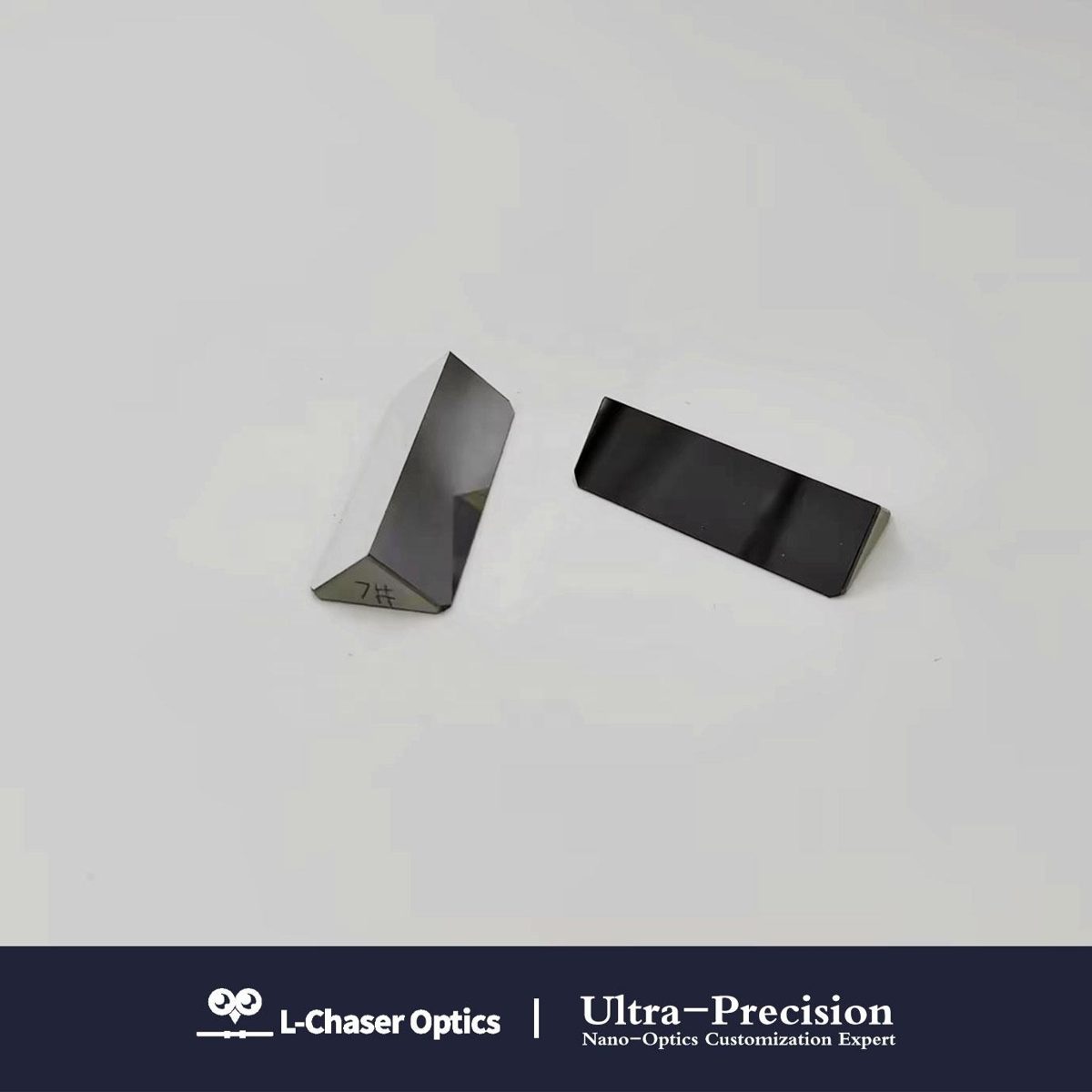

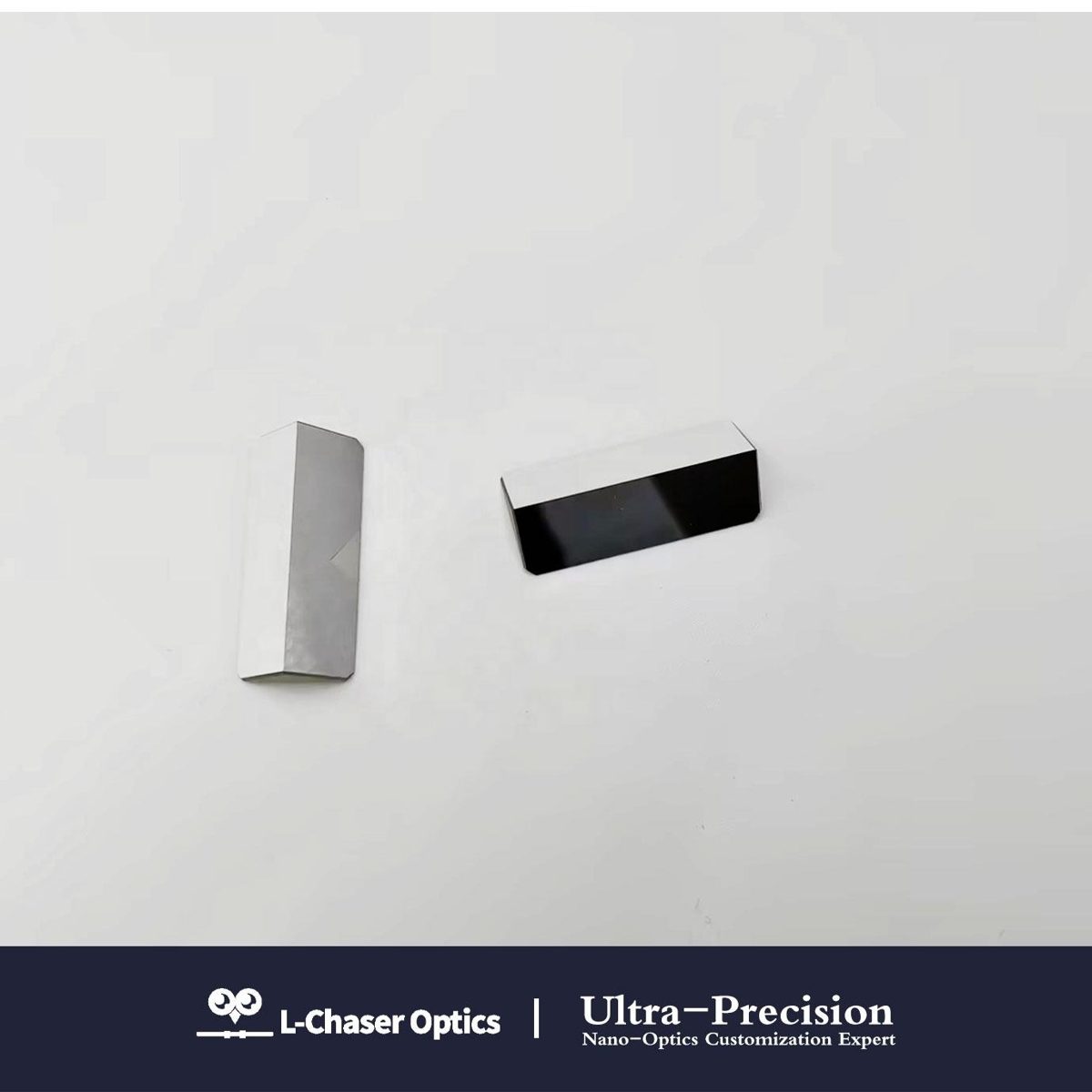

12 mm BK7 Right-angle Optical Prism
Right Angle Prism with 1/10 surface quality, customizable sizes, and high precision for optical applications.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 12 mm
- Thickness
- Custom
- Surface Quality
- 1/10
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 12 mm
- Thickness
- Custom
- Surface Quality
- 1/10
Product description
The Right Angle Prism is designed for precise beam deviation in optical applications, ensuring optimal performance in laser, LIDAR, and machine vision systems. With a surface quality of 1/10 and a size tolerance of 0.1mm, this prism guarantees high fidelity in wavefront integrity. Manufactured from BK7 material in Jilin, it is suitable for various optical paths and can be customized to meet specific requirements.
Key Features
- Surface quality of 1/10 ensures minimal distortion for high-precision applications.
- Size tolerance of 0.1mm/+0mm allows for accurate integration into existing systems.
- Lambda/10 surface flatness at 632.8nm supports excellent wavefront integrity.
- 85%-95% clear aperture maximizes light throughput for enhanced performance.
- OEM and ODM customization options available to meet unique project needs.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 12 mm |
| Thickness | Custom |
| Surface Quality | 1/10 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM |
| Warranty | 1 year |
| Size Tolerance | 0.1mm/+0mm |
| Surface Flatness | Lambda/10 @632.8nm |
| Dimension Tolerance | 0.0/-0.1mm Colored Glass Prism |
| Clear Aperture | 85%-95% |
| Bevel | Protective Bevel |
FAQ
Can I get custom sizes for this prism?
Yes, OEM and ODM customization options are available.
What is the size tolerance for this prism?
The size tolerance is 0.1mm/+0mm.
