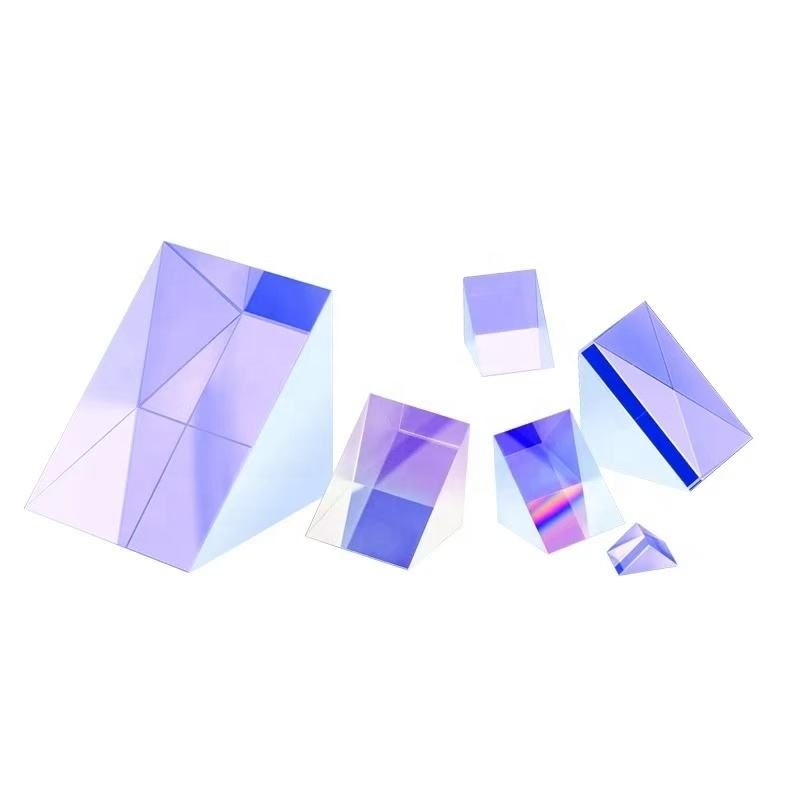

1 mm BK7 Right-angle Optical Prism
Explore our Right Angle Prism made from BK7, featuring precise angle tolerance and customizable options for various optical applications.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 1 mm
- Thickness
- Custom
- Coating
- uncoated
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 1 mm
- Thickness
- Custom
- Coating
- uncoated
Product description
The Right Angle Prism is designed for applications requiring precise beam deviation and optical path adjustments. Constructed from BK7 glass, this prism offers a reliable solution for various optical setups. With a size range from 1.0 mm to 100.0 mm and an angle tolerance of +/- 3 minutes, it ensures accuracy in optical alignment. The prism is available uncoated, making it suitable for applications where specific coatings are not required. Customization options are available to meet specific project needs.
Key Features
- Size range: 1.0 mm to 100.0 mm for versatile applications.
- Angle tolerance of +/- 3 minutes ensures precise beam deviation.
- Manufactured from BK7 glass for optimal optical performance.
- Customizable with OEM, ODM, and OBM support for tailored solutions.
- Clear color and 0.2*45° bevel enhance optical clarity.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 1 mm |
| Thickness | Custom |
| Coating | uncoated |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Color | clear |
| Size Tolerance | +/-0.05mm |
| Angle Tolerance | +/-3minutes |
| Bevel | 0.2*45° |
FAQ
What is the size tolerance for this prism?
+/-0.05 mm size tolerance ensures high precision.
Is customization available for this prism?
Yes, OEM, ODM, and OBM customization options are offered.
