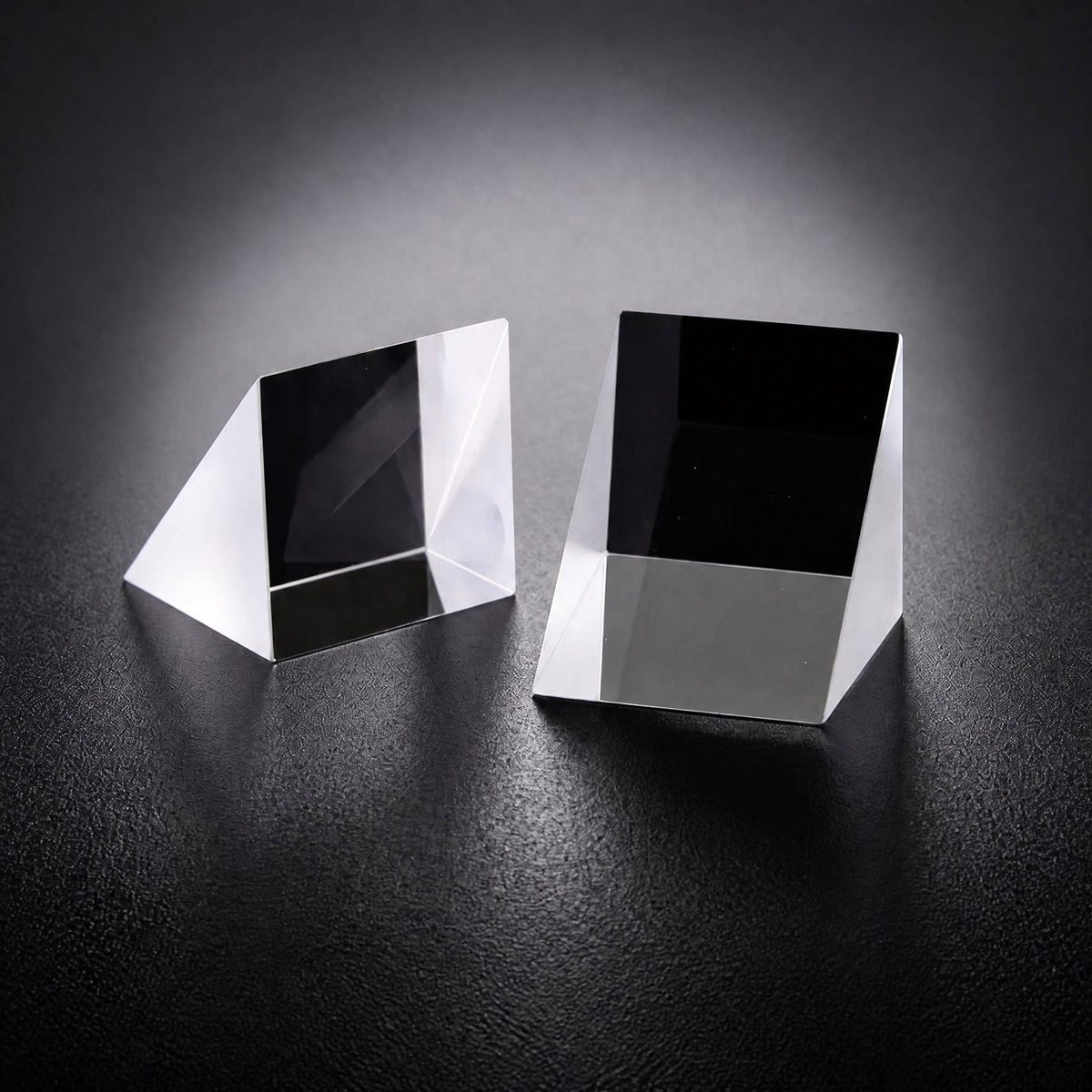

1 mm BK7 Right-angle Optical Prism
Explore our right-angle prism made of BK7, ideal for laser applications with customizable sizes and high surface quality.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 40/20
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 1 mm
- Thickness
- Custom
- Surface Quality
- 40/20
Product description
The right-angle prism is essential for redirecting laser beams in optical paths, ensuring precise beam alignment and manipulation. Constructed from BK7, this prism offers a surface quality of 40/20, making it suitable for high-performance laser applications. Its size ranges from 1.0 mm to 300.0 mm, accommodating various setups while maintaining a size tolerance of +0/-0.2 mm.
Key Features
- Right-angle geometry enables efficient beam redirection for laser applications.
- Surface quality of 40/20 ensures minimal distortion for optimal wavefront integrity.
- Size range from 1.0 mm to 300.0 mm allows flexibility in design and application.
- Customizable support available through OEM, ODM, and OBM options.
- Bevel of 0.2 mm at 45 degrees enhances edge safety and handling.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 1 mm |
| Thickness | Custom |
| Surface Quality | 40/20 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Size Tolerance | +0/-0.2mm |
| Bevel | 0.2mm* 45 DEGREE |
FAQ
What is the size tolerance for this prism?
The size tolerance for the right-angle prism is +0/-0.2 mm.
Is custom sizing available?
Custom sizing options are supported through OEM, ODM, and OBM services.
