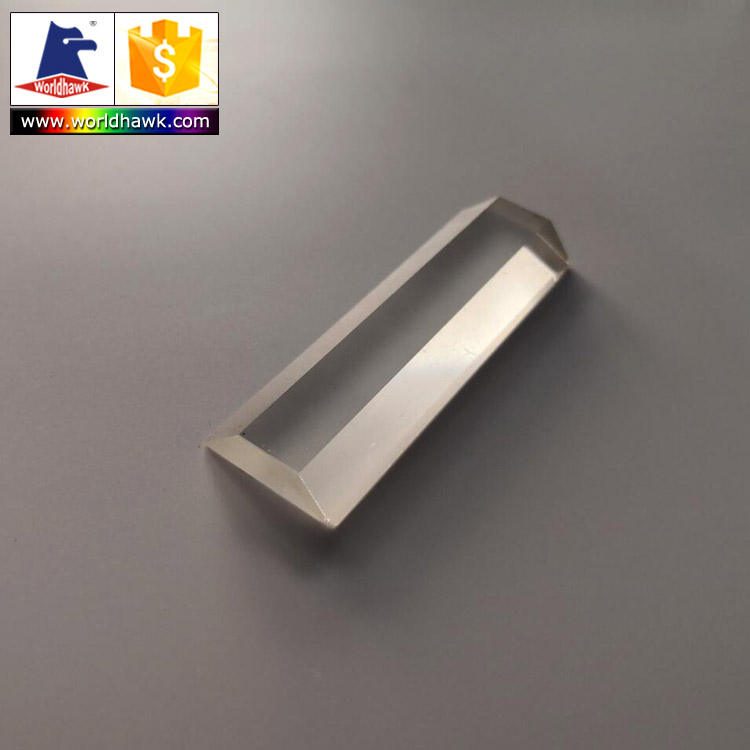

200 mm BK7 Right-angle Optical Prism, AR Coated
Explore our right-angle prism with AR coating, 200mm size, and precise angle tolerance for reliable optical applications.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 200 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 200 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The right-angle prism is designed for applications requiring precise beam deviation and angle accuracy. With a dimension of 200mm and a surface quality of 60/40, this prism ensures high performance in optical paths. It features an AR coating for optimal transmission, making it suitable for various optical applications. The prism’s angle tolerance of <3’ and dimension tolerance of ±0.1mm ensure reliability in critical setups.
Key Features
- Right-angle geometry allows for efficient beam deviation in optical systems.
- Surface quality of 60/40 ensures minimal wavefront distortion.
- Angle tolerance of <3’ guarantees precise alignment in applications.
- AR coating enhances transmission efficiency for optimal performance.
- Custom OEM support available for tailored solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 200 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism, Penta Prism, Triangular Prism |
| Customized Support | OEM |
| Warranty | 3 Years |
| Dimension | 200mm |
| Dimension Tolerance | ±0.1mm / ±0.2mm |
| Clear Aperture | ≥90% |
| Surface Flatness | 1/2 Lanbda |
| Angle Tolerance | <3’- <0.5'' |
| Bevel | <0.2 mm ±45° |
FAQ
Is custom sizing available?
Custom sizes are supported through OEM options.
What is the angle tolerance of the prism?
The angle tolerance is <3’ (<0.5’’).
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
