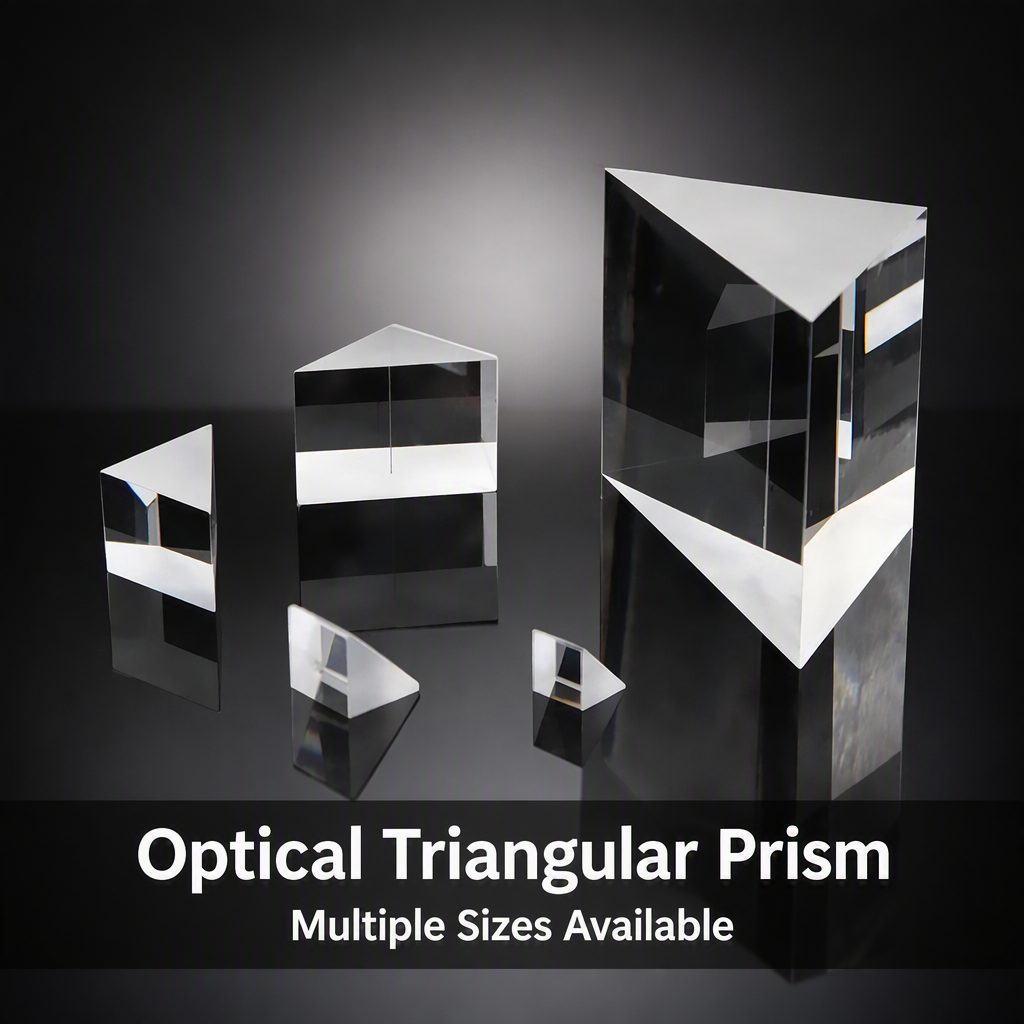

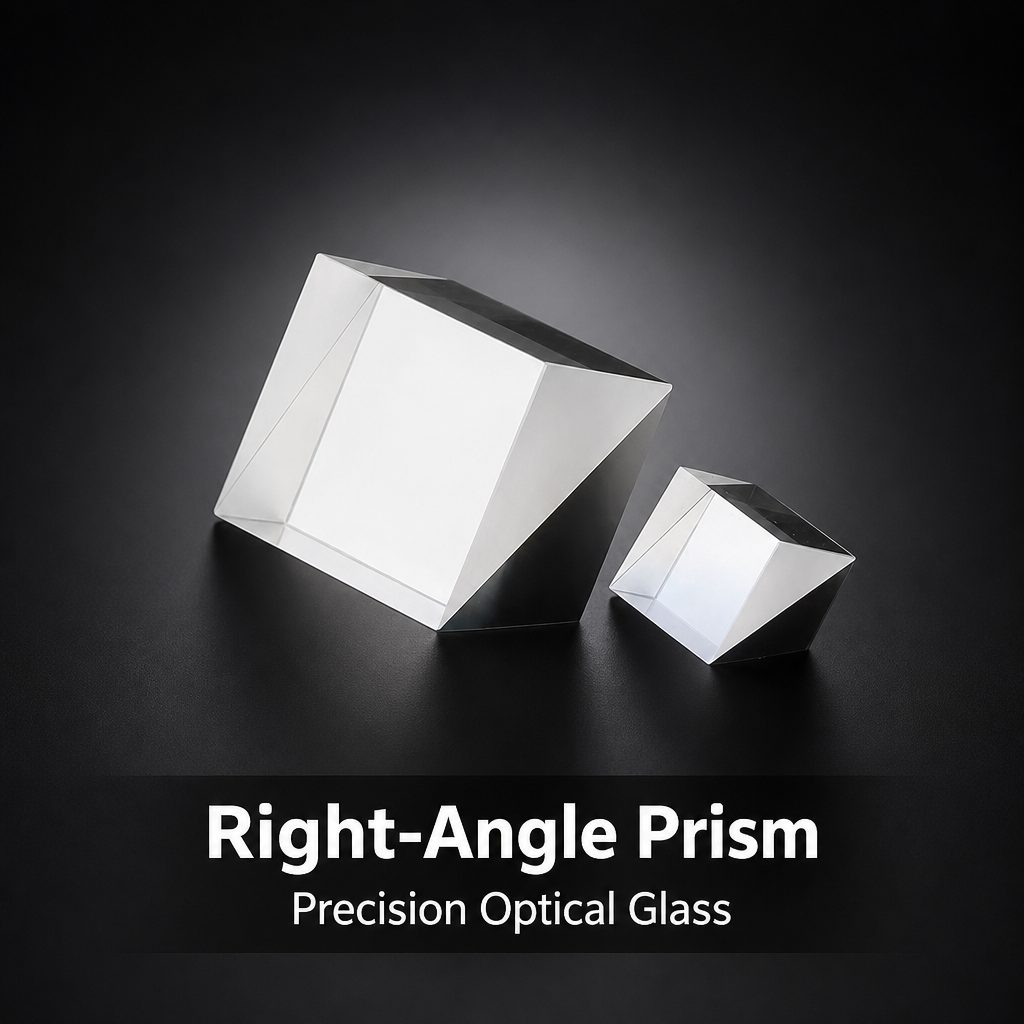

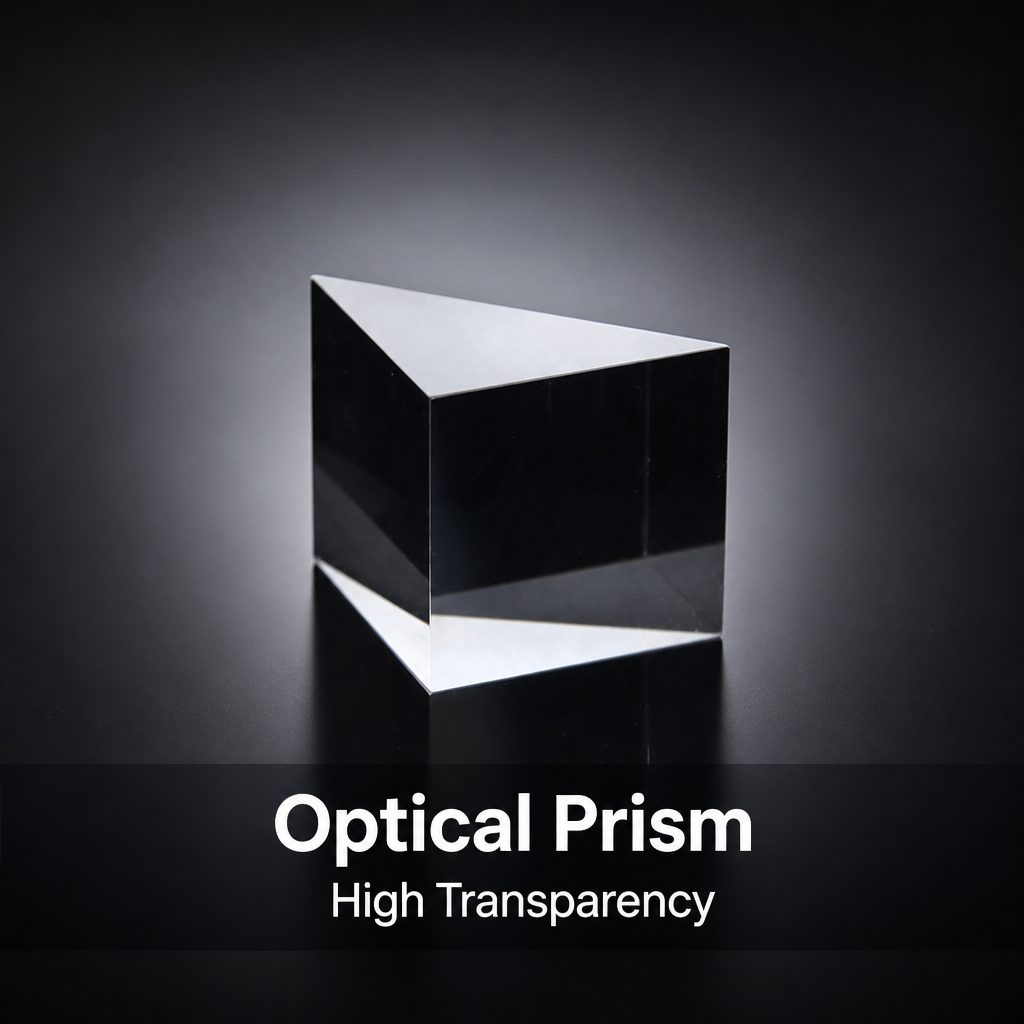

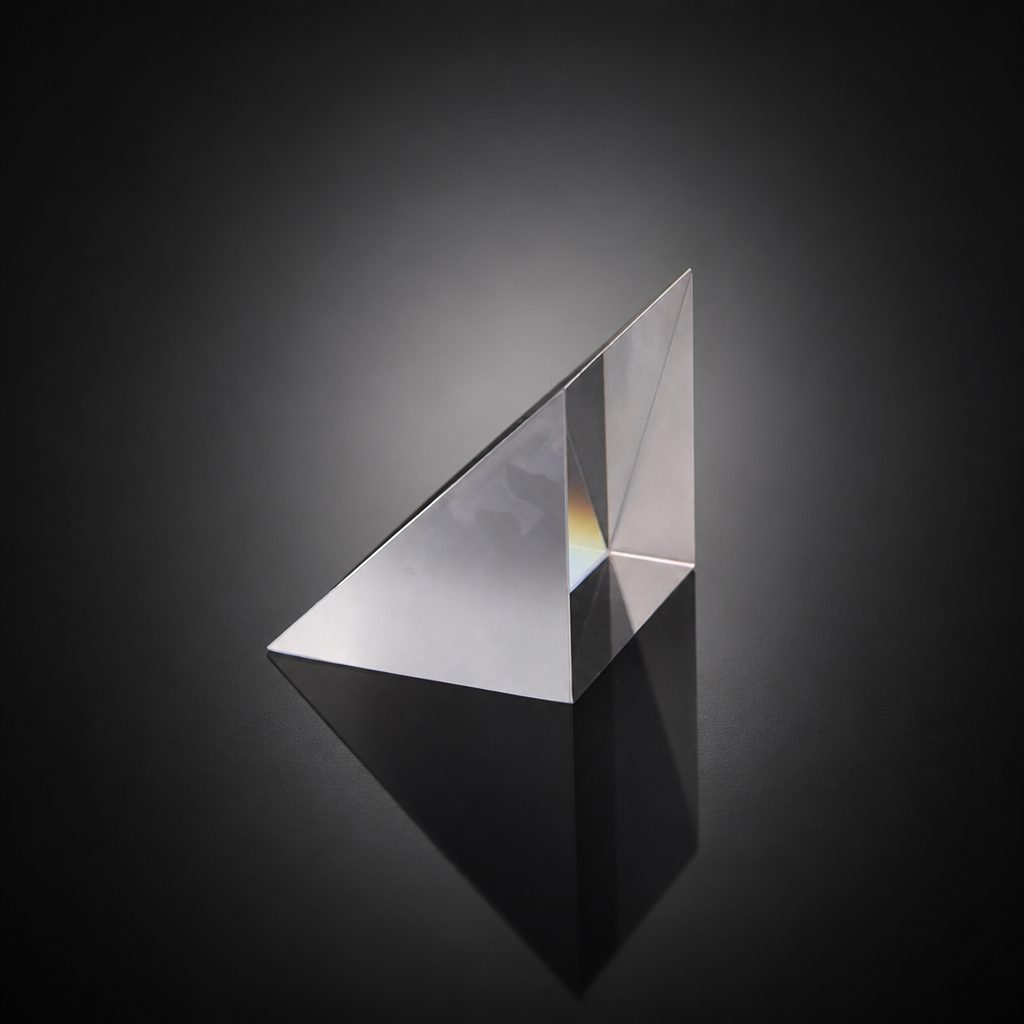

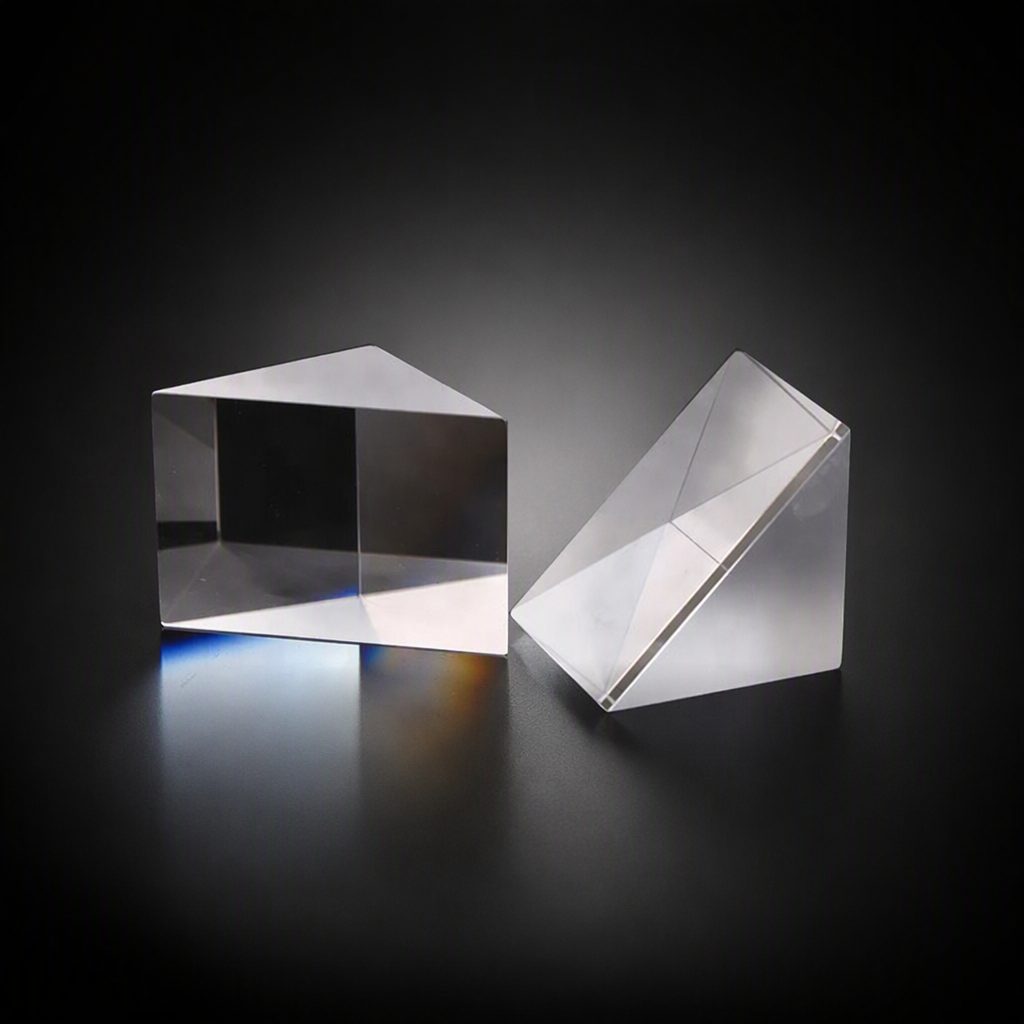

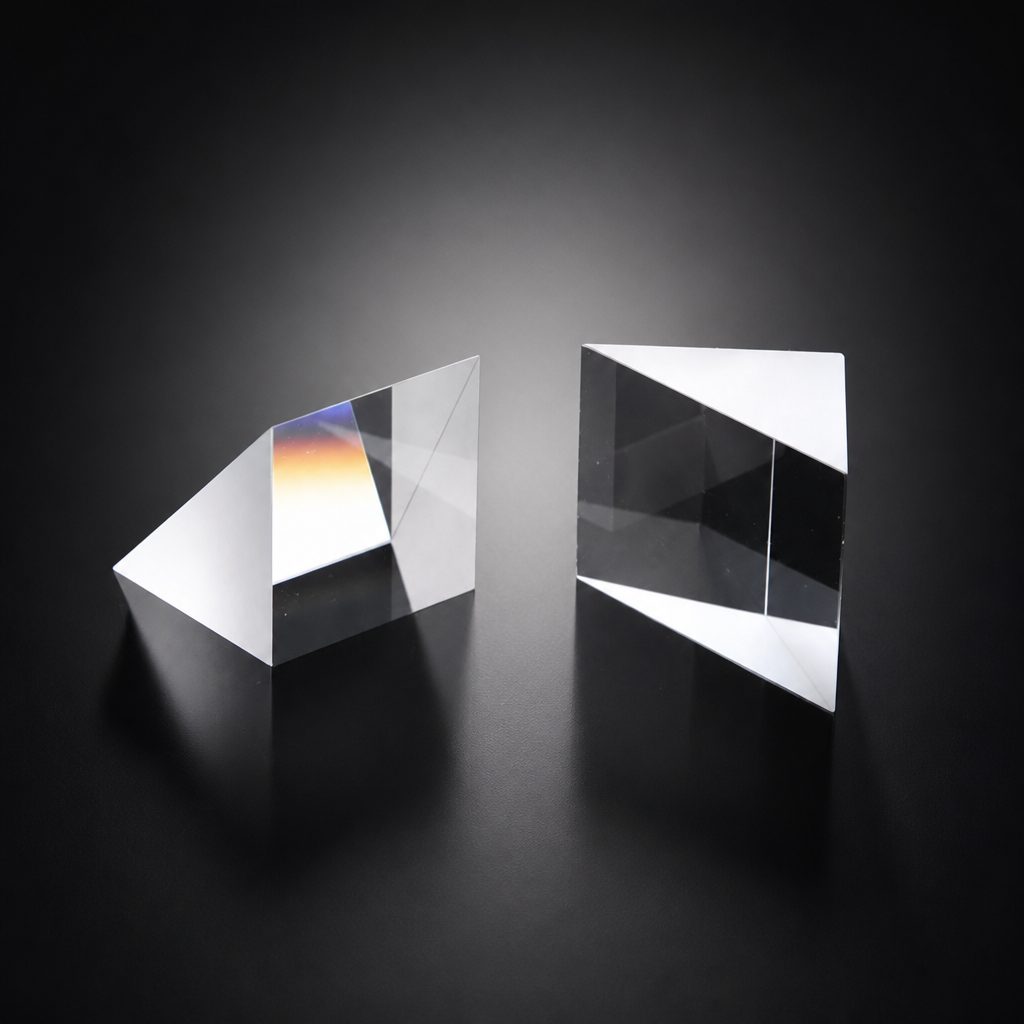

25.4 mm BK7 Right-angle Optical Prism, AR Coated
Right Angle Prism for laser applications, featuring AR coating, 90% clear aperture, and customizable options.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 25.4 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 25.4 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The Right Angle Prism is designed for precise beam deflection in laser applications, providing a 90-degree angle for accurate alignment and measurement. Made from high-quality BK7 glass, it ensures superior light transmission across the 0.7-1.7 μm and 400-700 nm bands. With a surface quality rating of 60/40, this prism is ideal for applications requiring reliable optical performance. Custom sizes and OEM/ODM options are available to meet specific project needs.
Key Features
- Right angle geometry for 90-degree beam deflection, ensuring precise optical alignment.
- AR coating enhances light transmission, improving performance in laser applications.
- Surface quality of 60/40 supports wavefront integrity for critical optical systems.
- Clear aperture of 90% maximizes light throughput for efficient operation.
- Customizable options available for tailored solutions to fit specific requirements.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 25.4 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM |
| Warranty | None |
| Clear Aperture | 90% |
| Type | Optical prism |
| Color | Transparent |
| Materail | BK7 /K9 QUARTZ/ SAPPHIRE |
| Diameter Tolerance | 0/-0.05mm |
| Certificate | CE/ISO9001 |
FAQ
Are custom sizes available?
Yes, customizable options are offered to meet specific application needs.
What is the surface quality of the prism?
The prism has a surface quality rating of 60/40.
