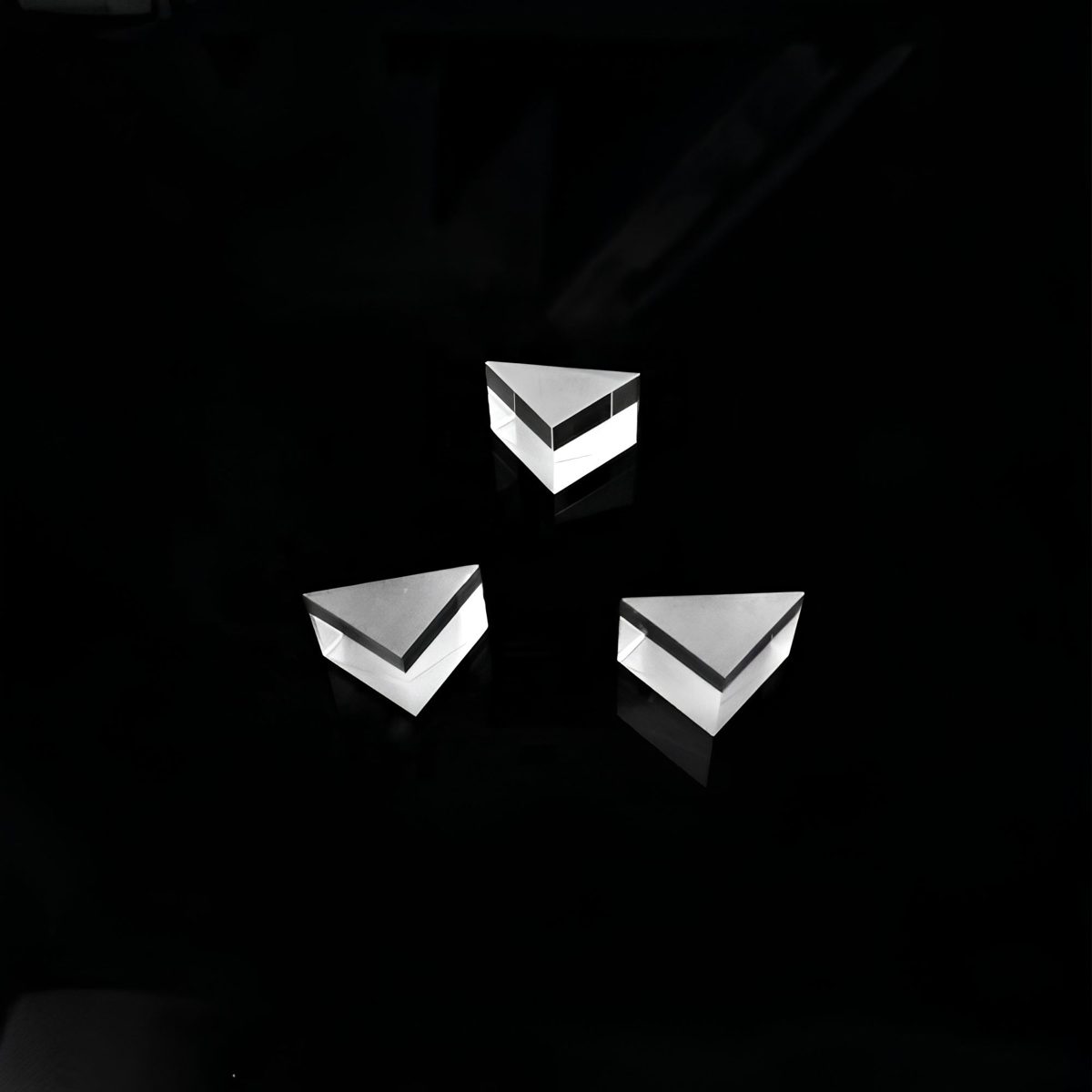

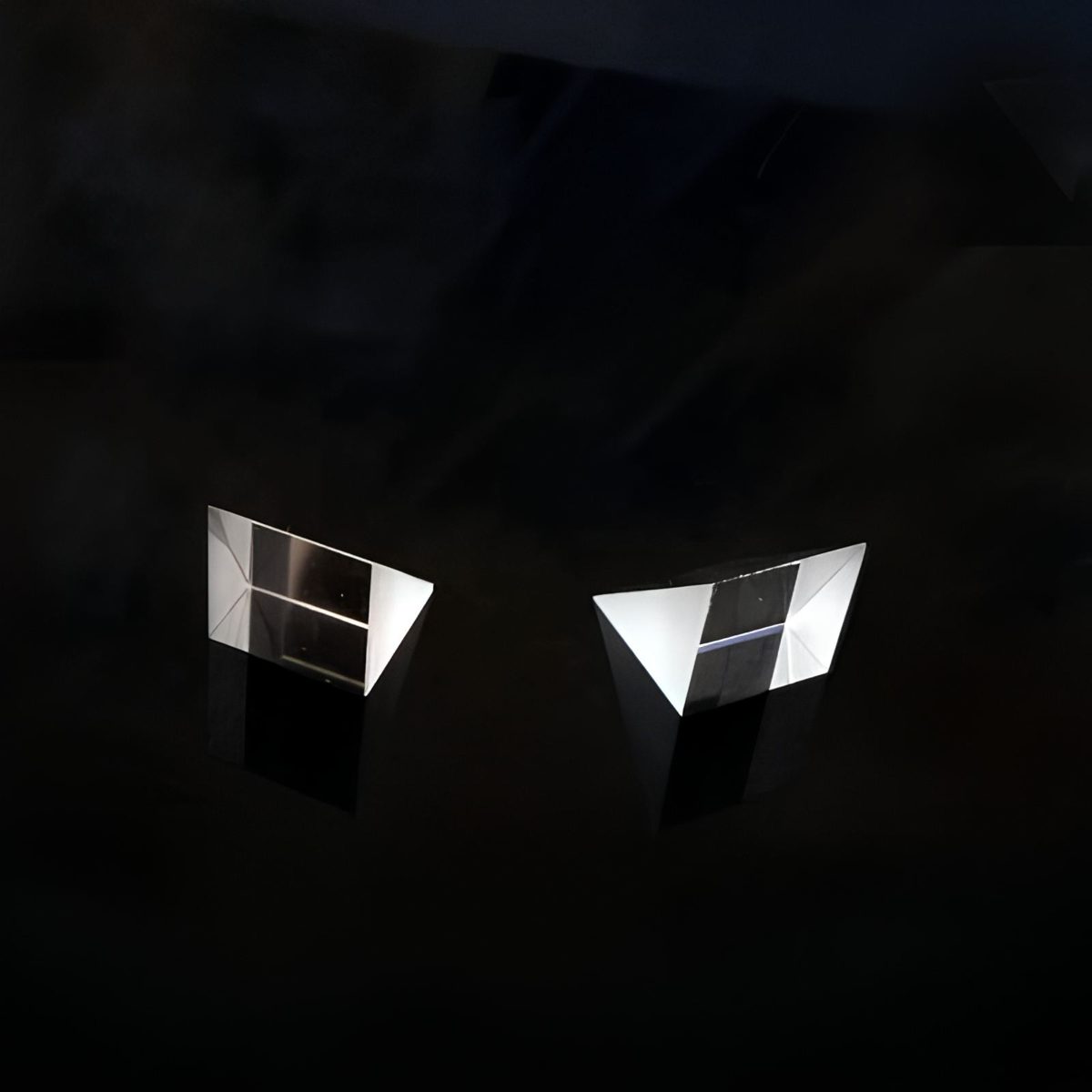

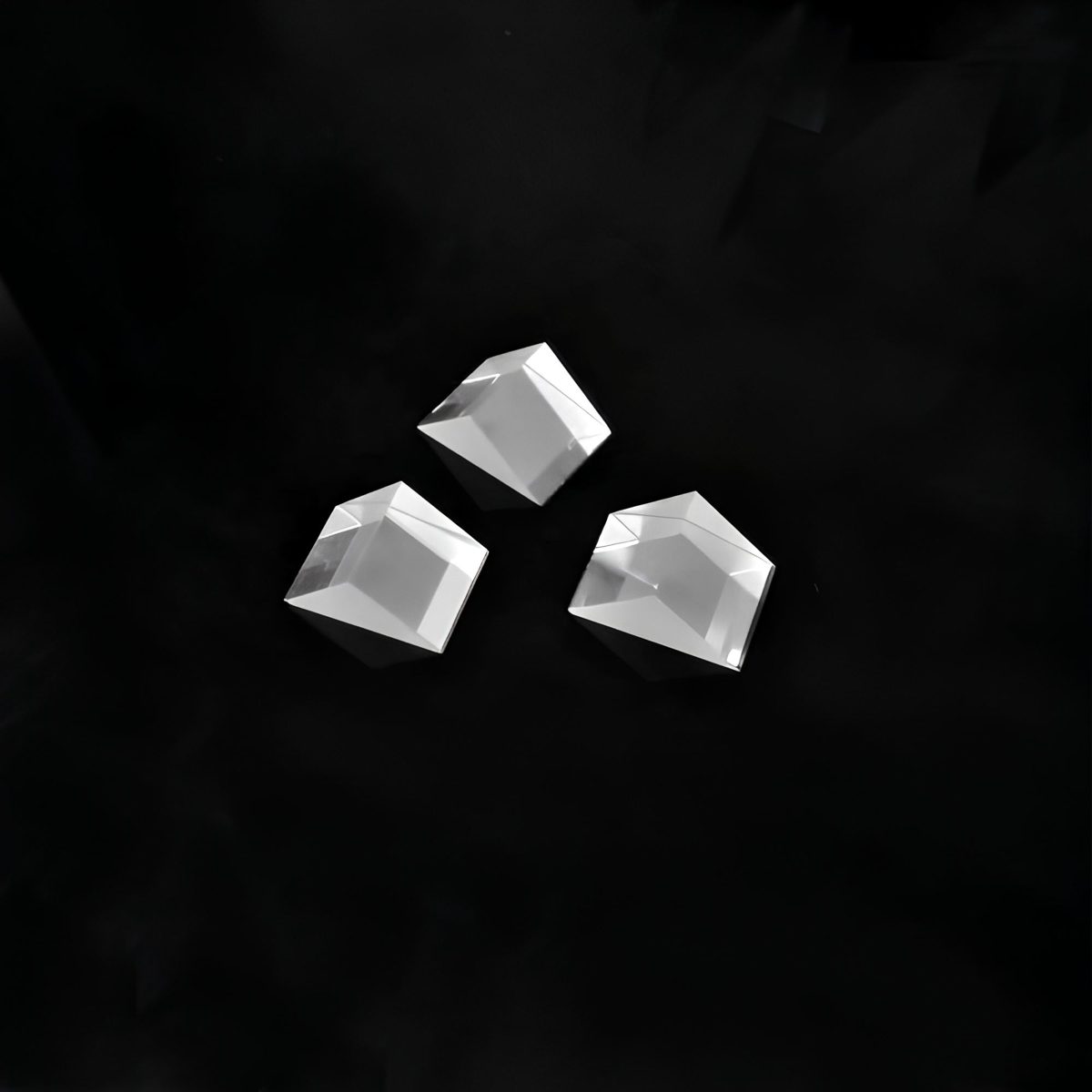

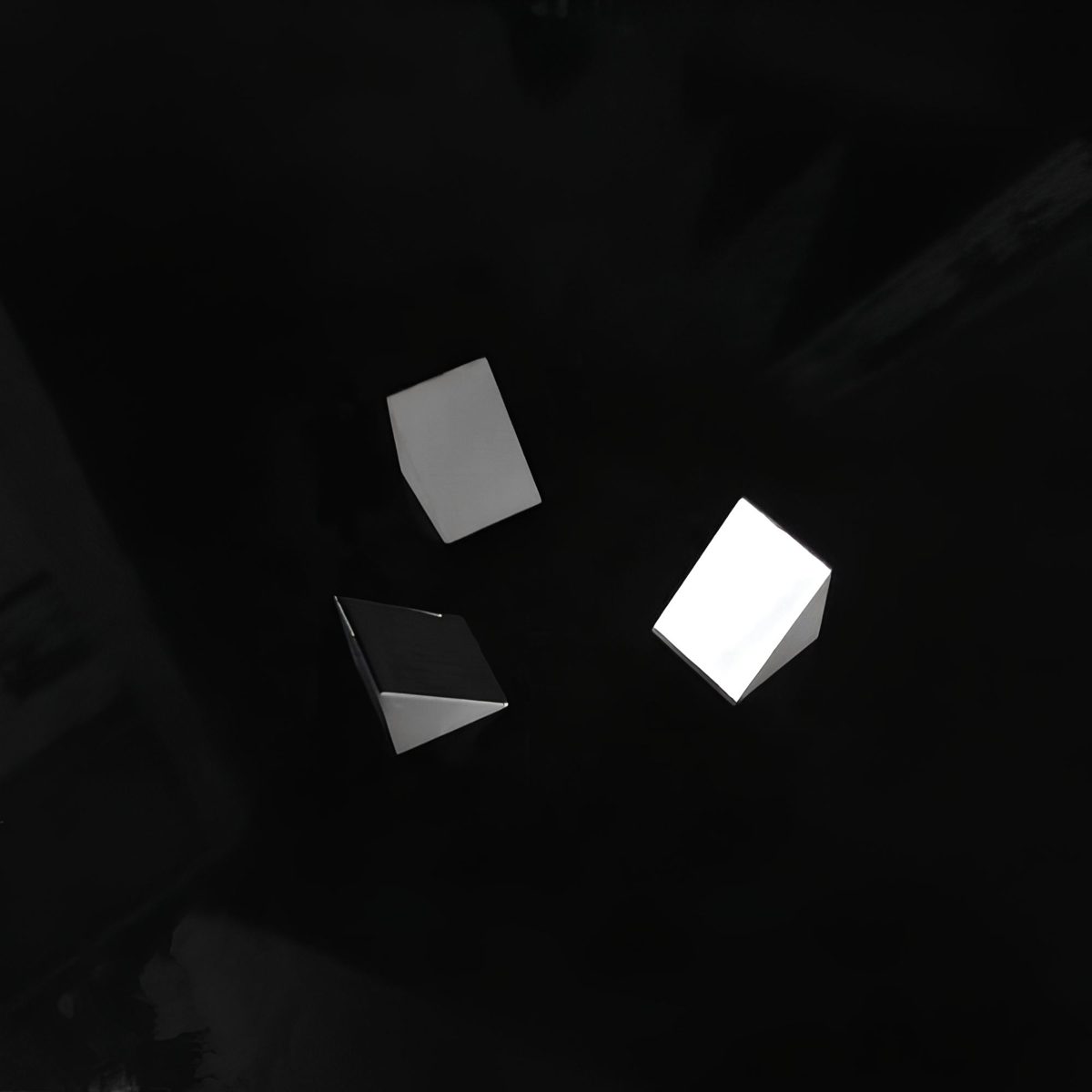

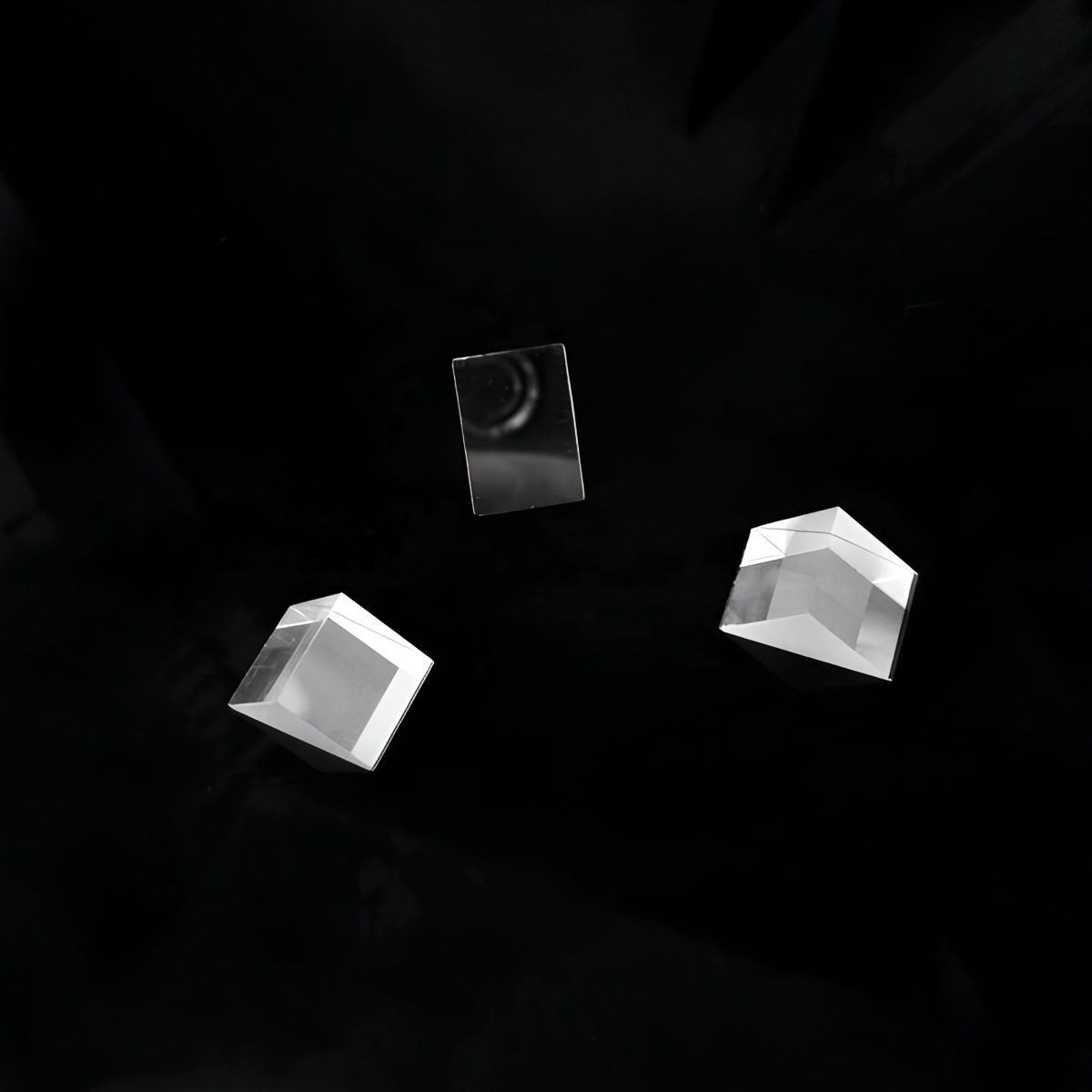

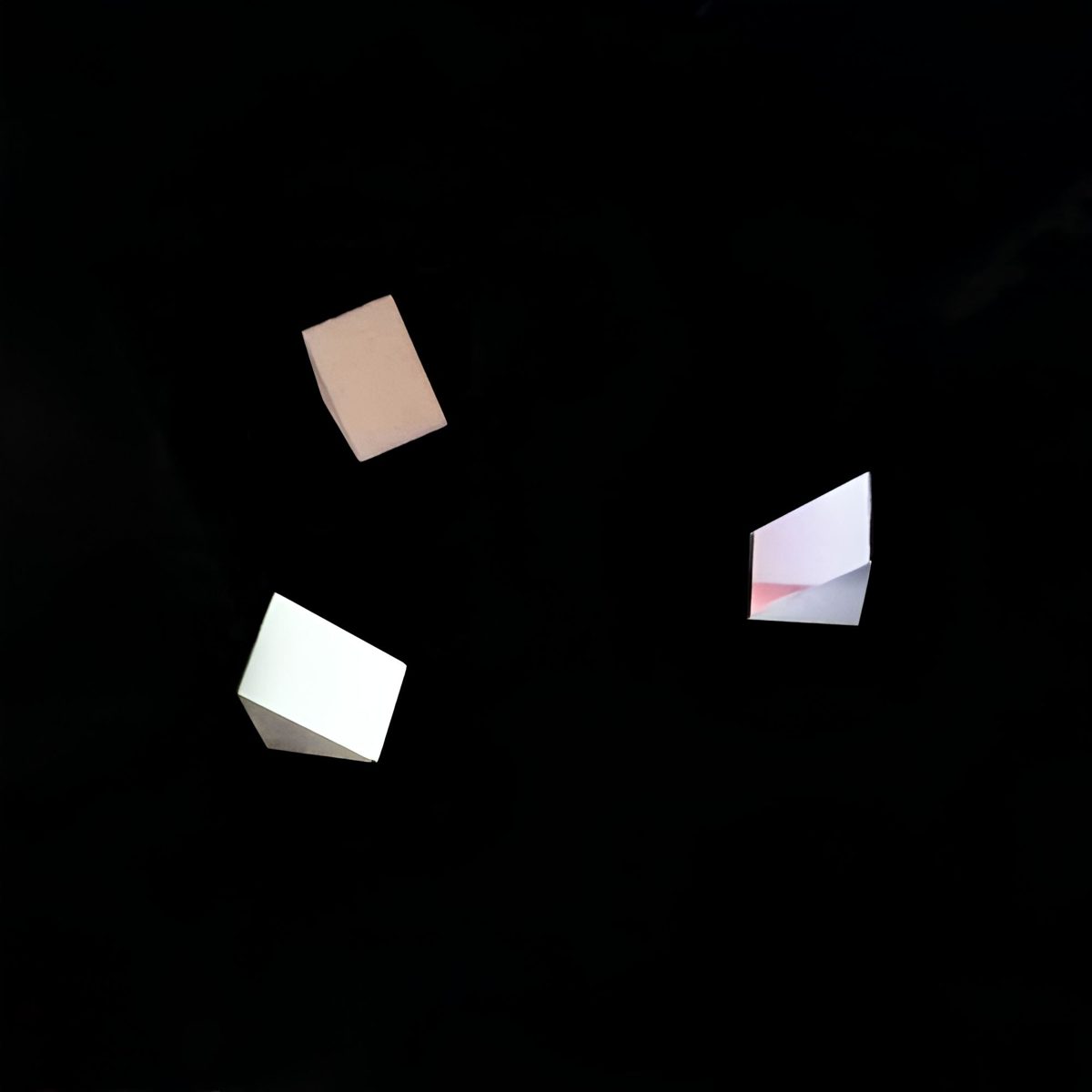

3 mm BK7 Right-angle Optical Prism
Explore our BK7 Right Angle Prism for laser applications, featuring high reflectivity and a compact design.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- aluminum, anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- aluminum, anti-reflective (AR)
Product description
The Right Angle Prism made from BK7 glass is designed for precise optical alignment in laser applications. Its compact 3x3x3 mm size and high-quality aluminum coating enhance reflectivity while ensuring minimal surface roughness. With a clear aperture greater than 90%, this prism guarantees excellent light transmission, making it suitable for a variety of optical systems. Its robust construction and surface quality of 60/40 ensure durability and reliability in demanding environments.
Key Features
- Right Angle Geometry: Ideal for laser alignment applications.
- Aluminum Coating: Enhanced reflectivity and reduced surface roughness for better performance.
- Surface Quality: 60/40 ensures minimal distortion for wavefront integrity.
- Compact Size: 3x3x3 mm for easy integration into optical systems.
- High Clear Aperture: Greater than 90% for optimal light transmission.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 3 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | aluminum, anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 years |
| Materail | BK7 /K9 |
| Size Tolerance | +/-0.05mm |
| Surface Flatness | 1/4 Lambda |
| Angle Tolerance | +/-3 minutes |
| Clear Aperture | >90% |
FAQ
What is the size tolerance for this prism?
The size tolerance for this prism is +/-0.05 mm.
What is the angle tolerance for the right angle prism?
The angle tolerance is +/-3 minutes.
