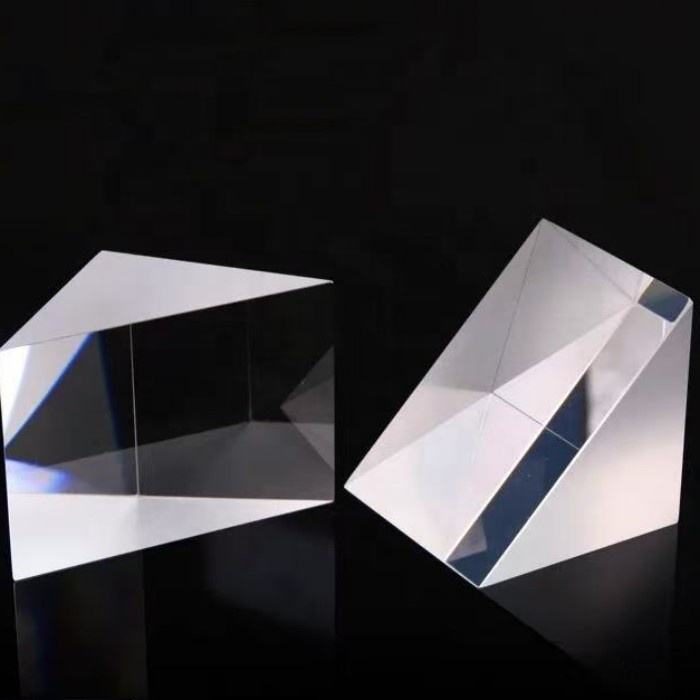

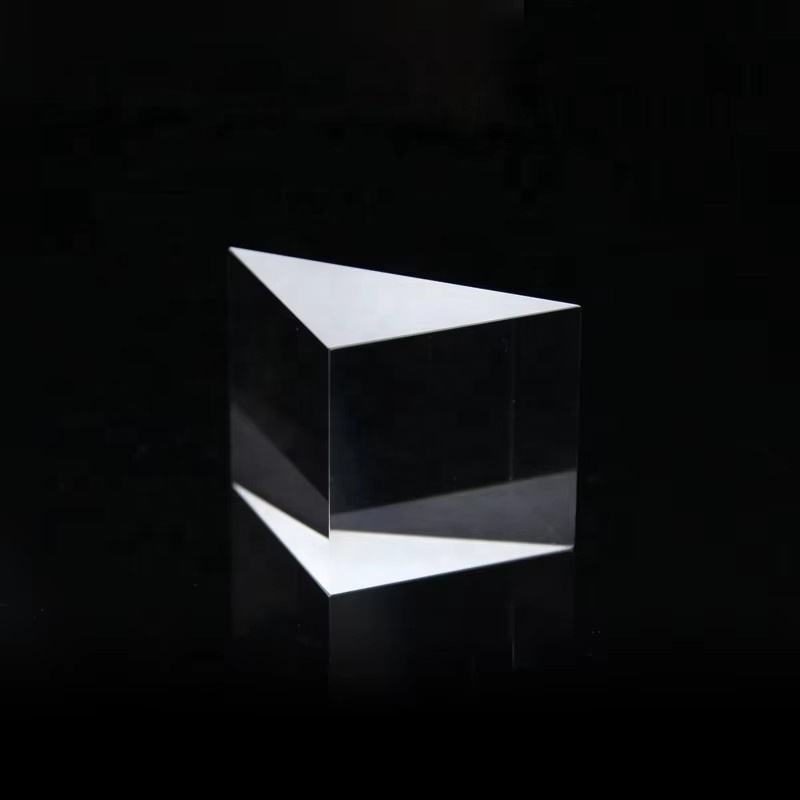

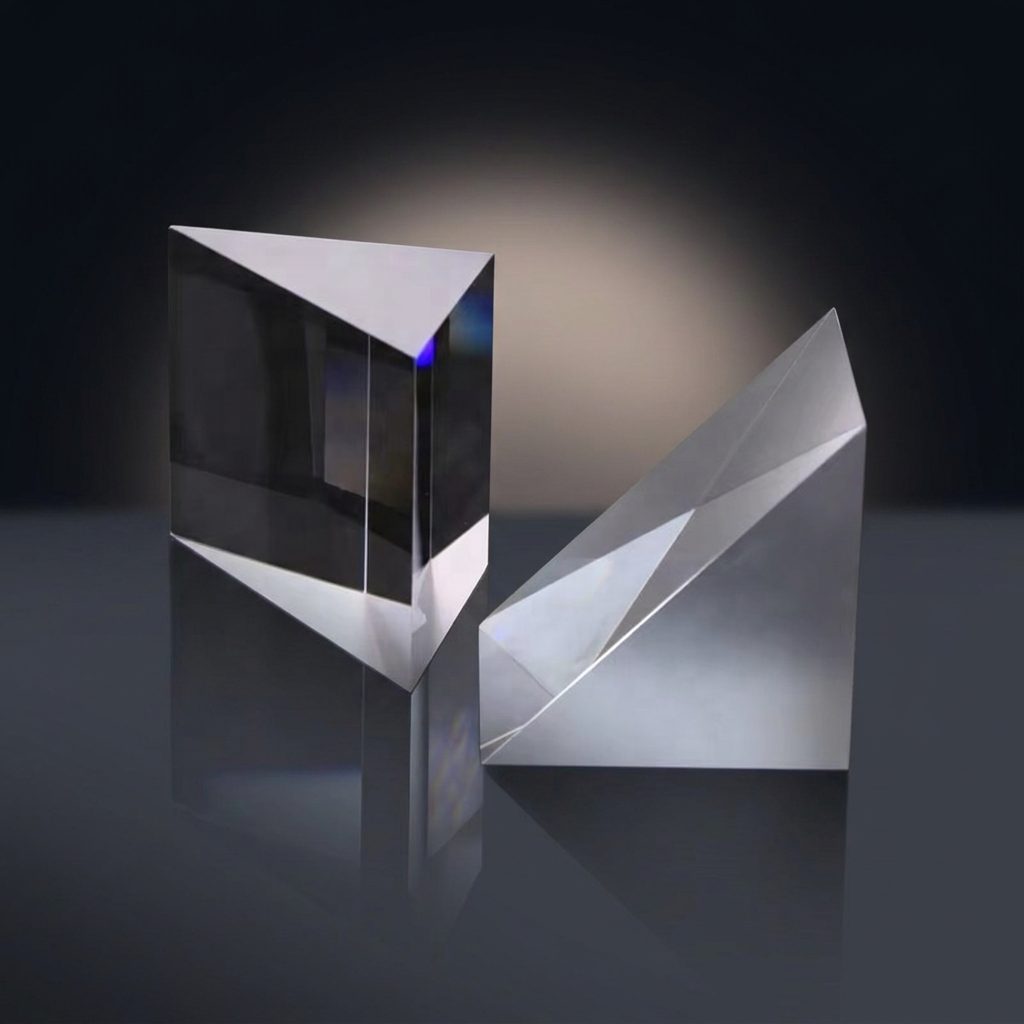

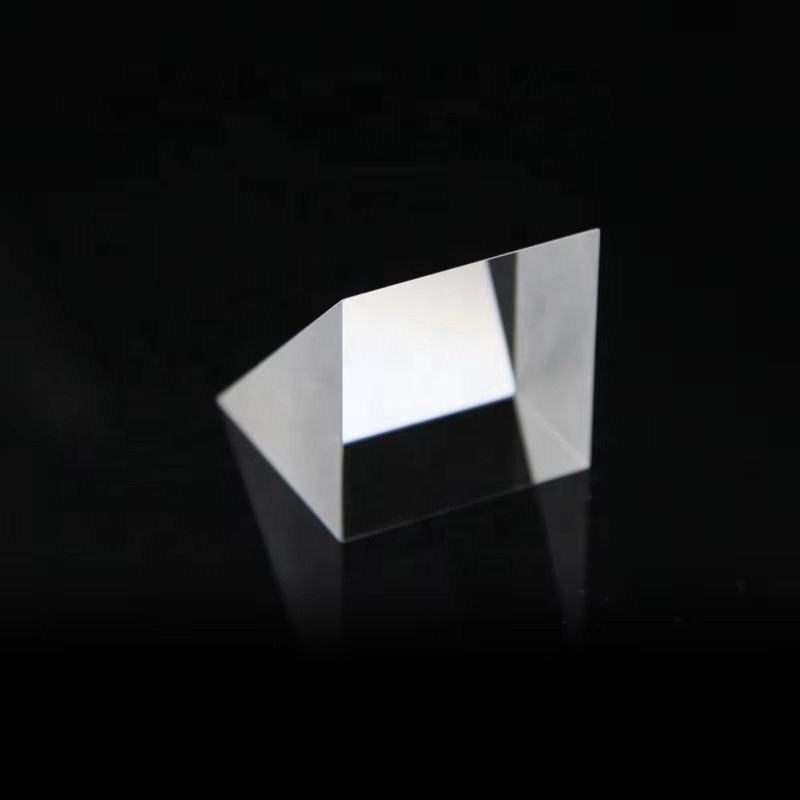

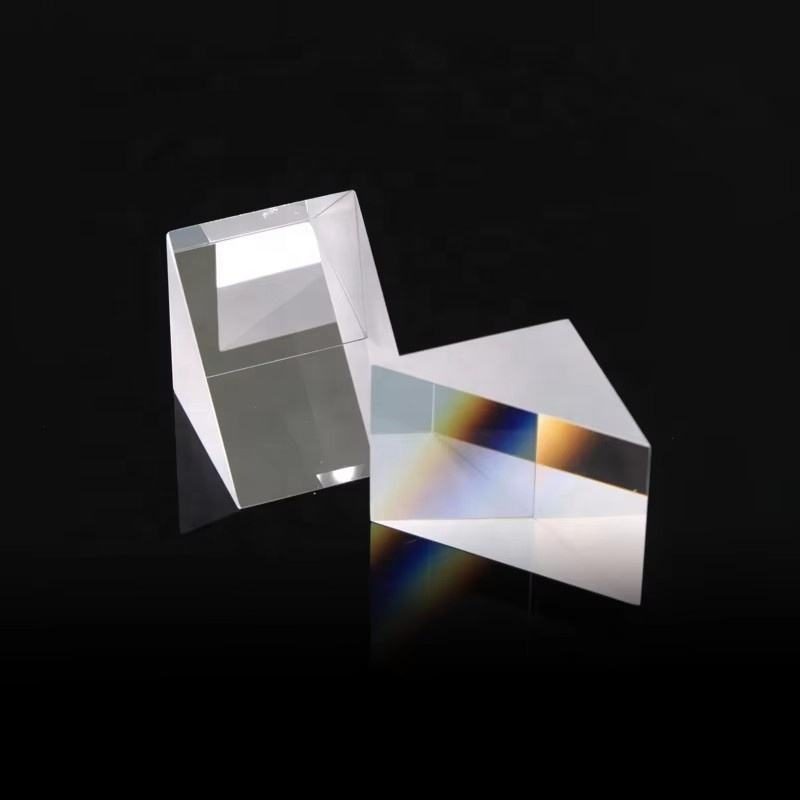

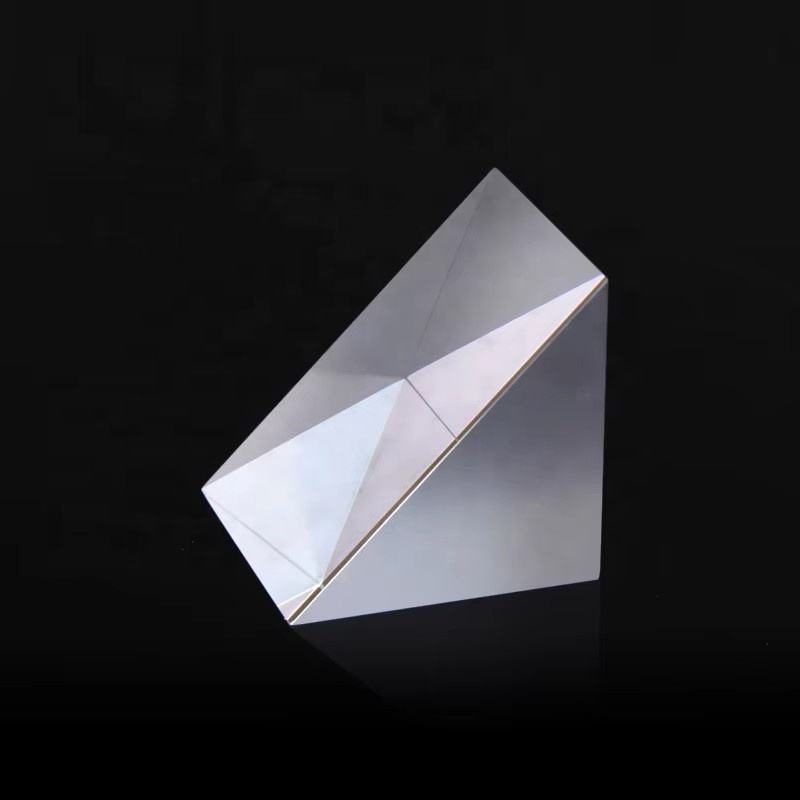

40 mm BK7 Right-angle Optical Prism
High precision BK7 Right Angle Prism for laser applications with AR coating, 1/4Lambda flatness, and +/-3 minutes angle tolerance.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 40 mm
- Thickness
- Custom
- Coating
- silver, anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 40 mm
- Thickness
- Custom
- Coating
- silver, anti-reflective (AR)
Product description
The BK7 Right Angle Prism is designed for precise laser applications, ensuring accurate light redirection with minimal reflection. Its advanced AR coating enhances light transmission, making it ideal for high-performance optical systems. With a surface flatness of 1/4Lambda and an angle tolerance of +/-3 minutes, this prism guarantees exceptional optical integrity. Manufactured in Henan, it is suitable for various laser and microscope applications.
Key Features
- Right Angle Geometry: Ensures accurate light redirection for laser applications.
- Advanced AR Coating: Minimizes reflections, enhancing light transmission.
- Surface Flatness of 1/4Lambda: Maintains wavefront integrity for high precision.
- Angle Tolerance of +/-3 minutes: Guarantees reliable performance in critical applications.
- Clear Aperture >90%: Maximizes light throughput for efficient optical systems.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 40 mm |
| Thickness | Custom |
| Coating | silver, anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Surface Flatness | 1/4Lambda |
| Angle Tolerance | +/-3minutes |
| Clear Aperture | >90% |
| Bevel | 0.2mm*45 degrees |
FAQ
Can this prism be customized?
Yes, customization options include OEM, ODM, and OBM support.
What is the angle tolerance of this prism?
The angle tolerance is +/-3 minutes, ensuring precise alignment.
