1 / 6Optical Prisms

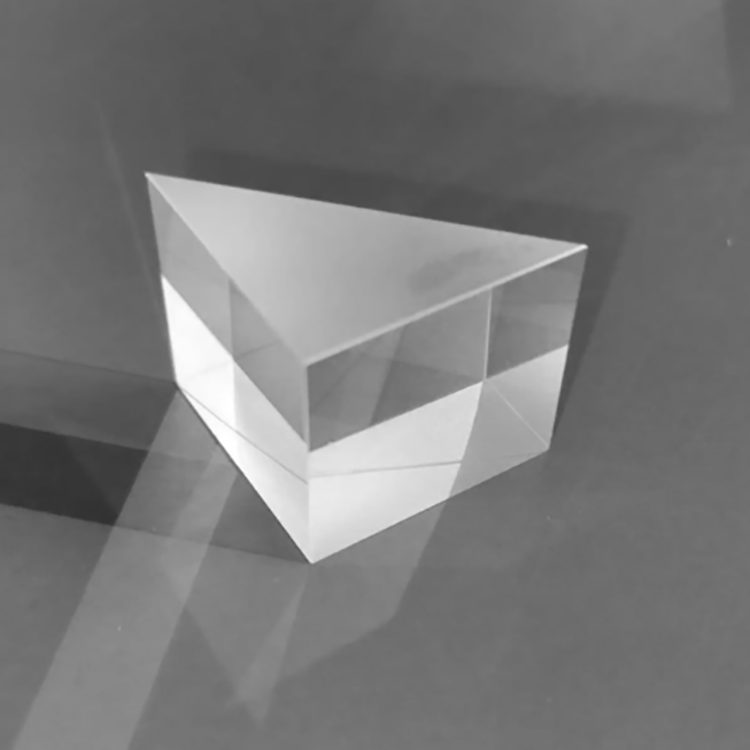

40 mm BK7 Right-angle Optical Prism
Explore our right-angle prism for machine-vision applications, featuring BK7 material and customizable options.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 40 mm
- Thickness
- Custom
- Coating
- uncoated
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 40 mm
- Thickness
- Custom
- Coating
- uncoated
Product description
The right-angle prism is designed for machine-vision applications, providing precise optical measurements. Its geometry allows for efficient beam deviation while maintaining high integrity in optical paths. The BK7 material ensures durability and reliability, making it suitable for various optical setups. With OEM and ODM customization options, this prism can be tailored to fit specific project requirements.
Key Features
- Right-angle geometry enables accurate beam deviation for optical measurements.
- Made from BK7 material for enhanced durability and optical performance.
- Flatness specification of 60/40 ensures wavefront integrity.
- Thickness tolerance of 0.01~0.05 mm supports precise alignment.
- OEM and ODM customization available for tailored solutions.
Applications
Machine Vision
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 40 mm |
| Thickness | Custom |
| Coating | uncoated |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Flatness | 60/40 |
| Package | Carton |
| Use | Optical Measurements |
| Thickness Tolerance | 0.01~0.05 |
| Diameter Tolerance | +0/-0.05mm |
FAQ
Can I get custom sizes for this prism?
Yes, OEM and ODM customization options are available.
What is the thickness tolerance for this prism?
The thickness tolerance is between 0.01 and 0.05 mm.
