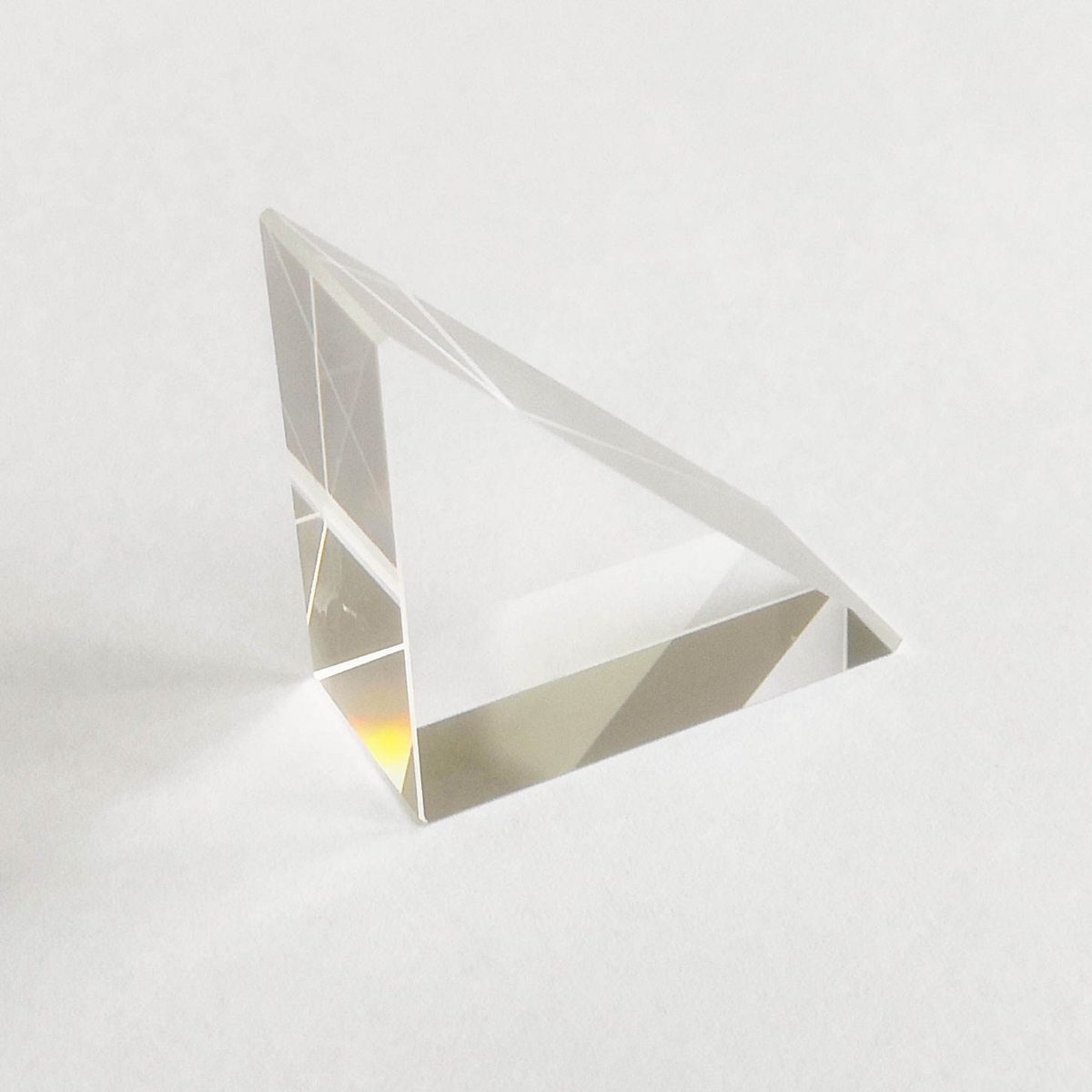

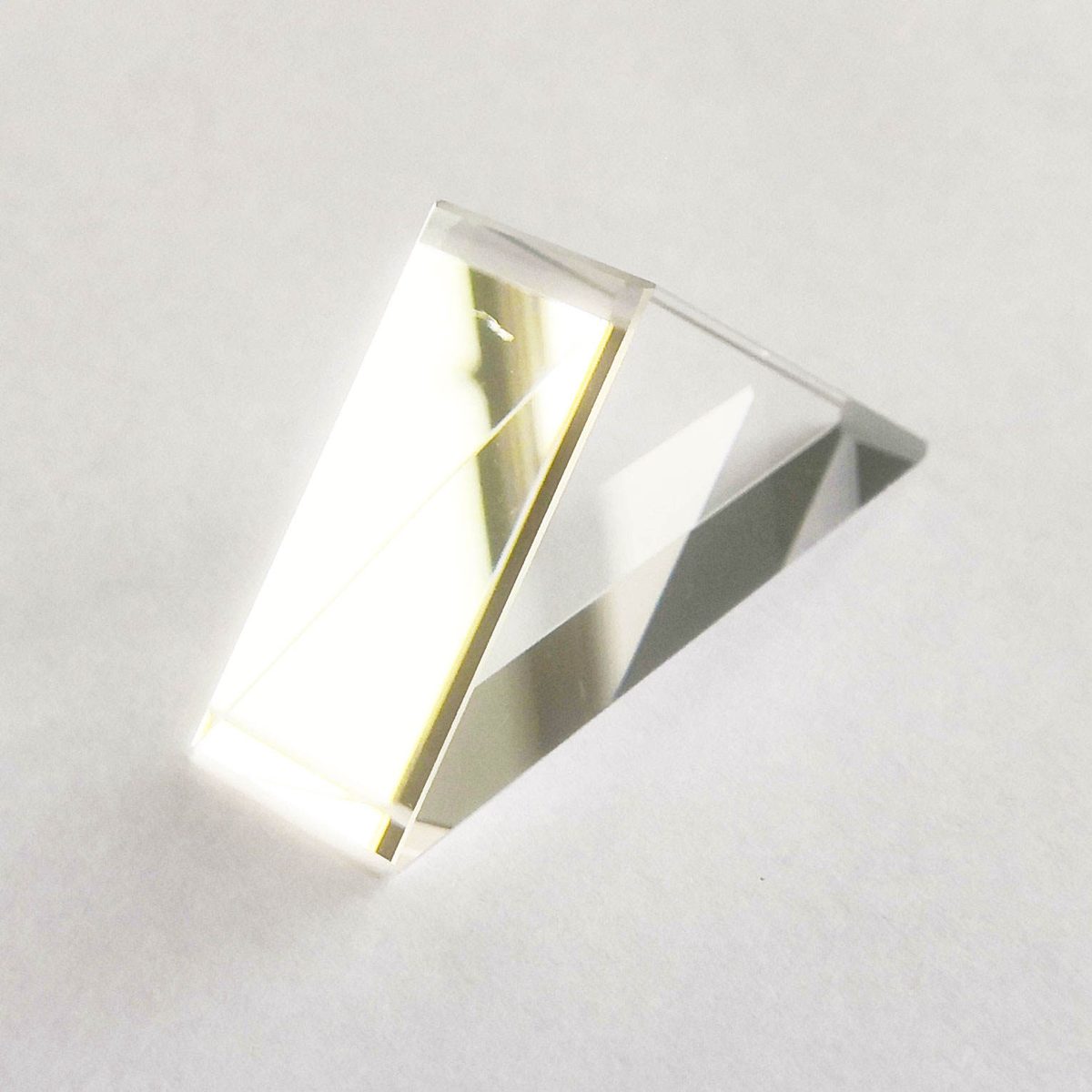

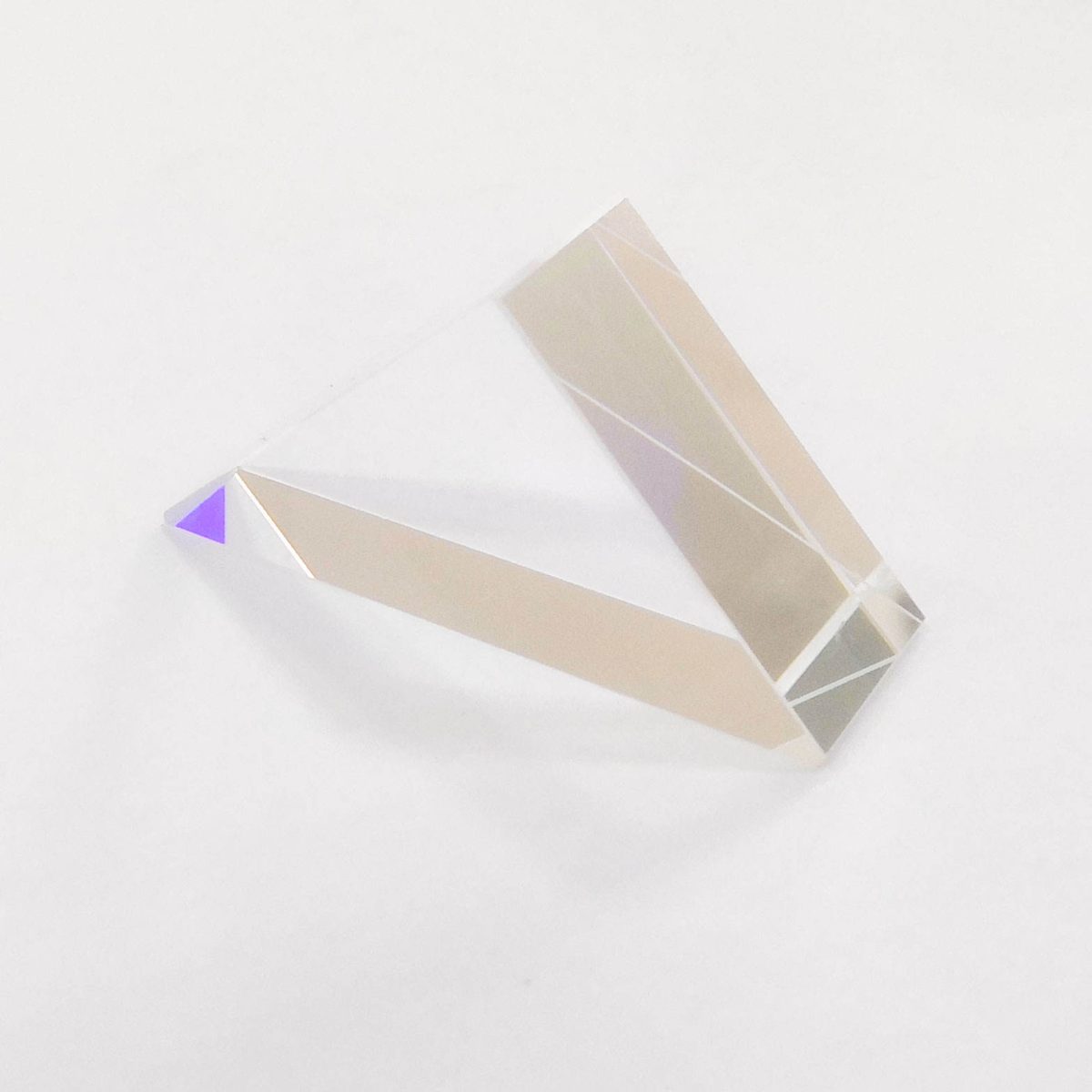

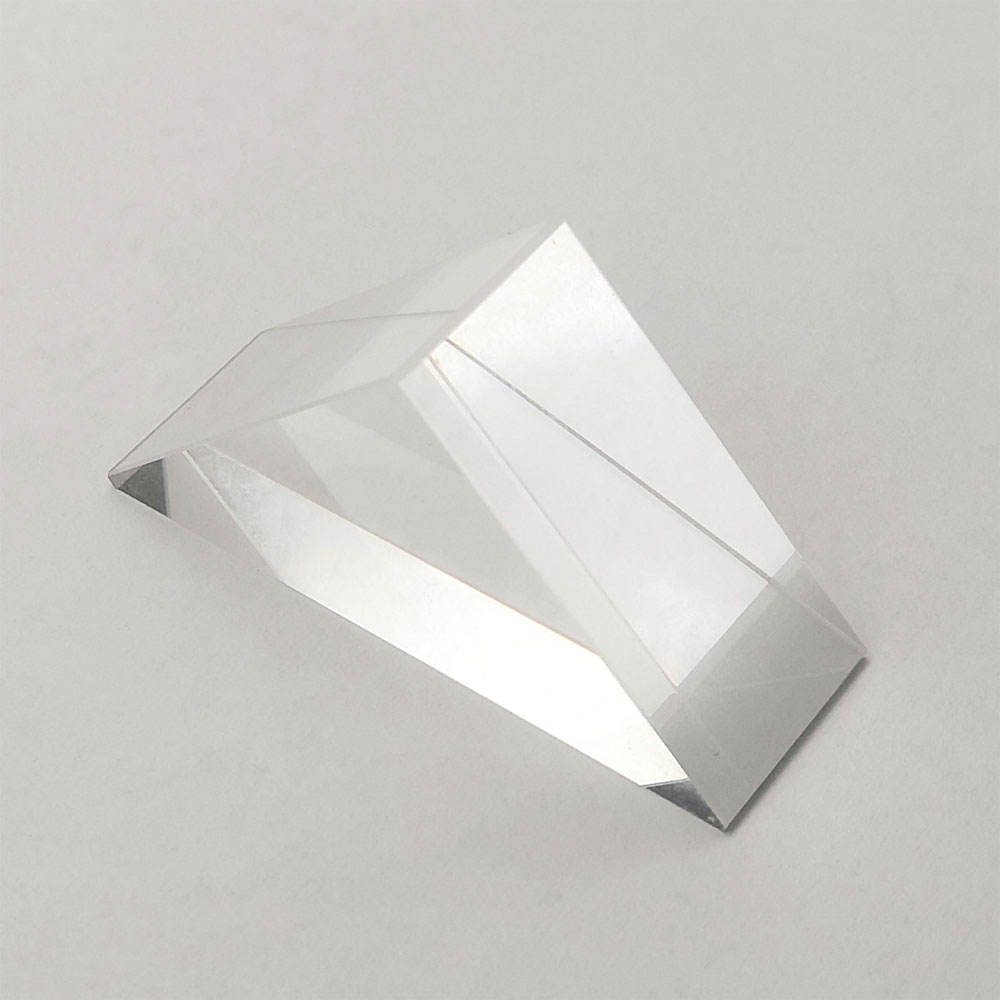

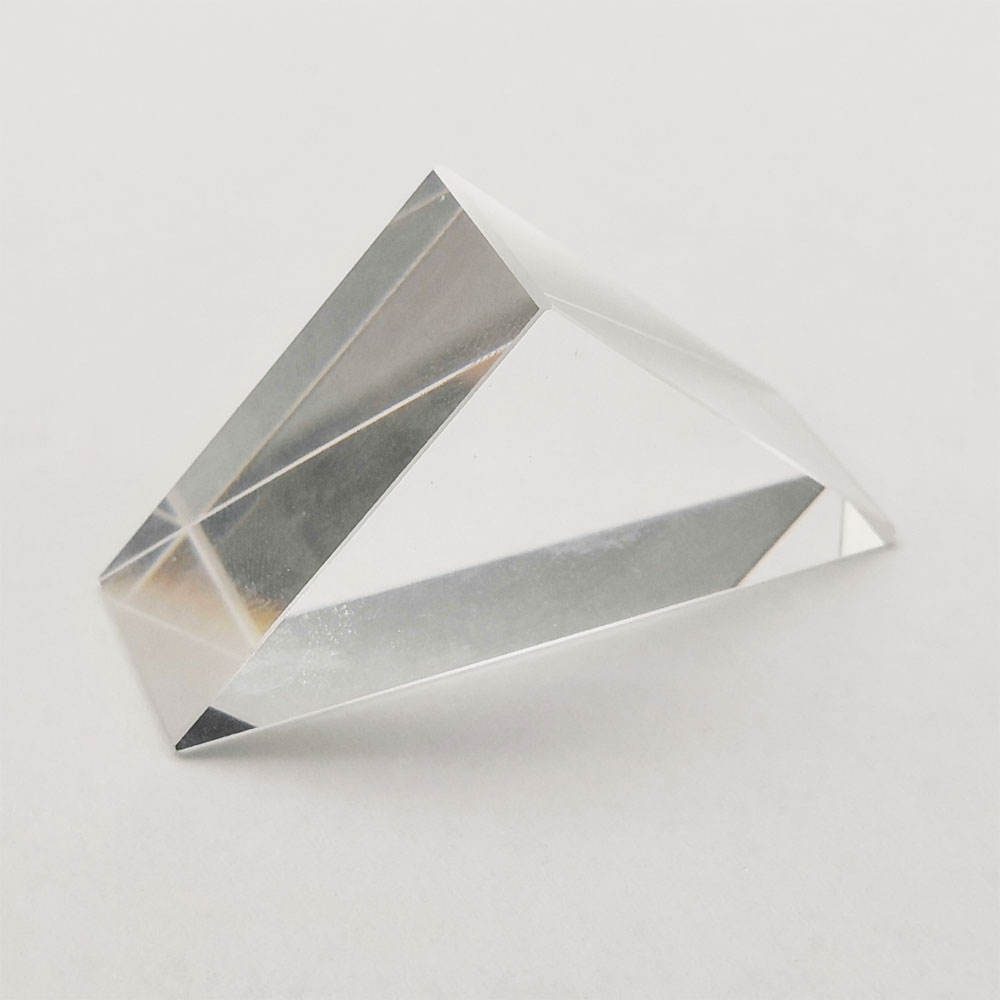

5 mm BK7 Right-angle Optical Prism, AR Coated
Right-angle prism in BK7 with Lambda/4 flatness, <10 arcsec angle tolerance, and sizes from 5 to 100 mm.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- 5 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
The right-angle prism is designed to efficiently redirect light paths in optical systems, making it ideal for applications in laser, machine vision, and surveying instruments. With a size range of 5 to 100 mm, it provides precise angle tolerances of less than 10 arcseconds, ensuring reliable performance in critical applications. The prism features anti-reflective coatings for enhanced transmittance and is manufactured from high-quality BK7 glass, ensuring durability and optical clarity.
Key Features
- Surface flatness of Lambda/4 for optimal wavefront integrity.
- Dimension tolerance of ±0.1 mm for precise fitting in optical assemblies.
- Angle tolerance of < 10 arcseconds for accurate beam deviation.
- Clear aperture greater than 90% for maximum light throughput.
- Bevel dimensions of 0.1-0.5 mm at 45 degrees for safe handling.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | 5 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Surface Flatness | Lambda/4 |
| Dimension | 5-100mm |
| Dimension Tolerance | ±0.1mm |
| Angle Tolerance | < 10 arcsec |
| Clear Aperture | >90% |
| Bevel | 0.1-0.5mmX45 degree |
FAQ
What are the available sizes for the right-angle prism?
The right-angle prism is available in sizes ranging from 5 mm to 100 mm.
What is the angle tolerance of the prism?
The angle tolerance is less than 10 arcseconds, ensuring high precision.
