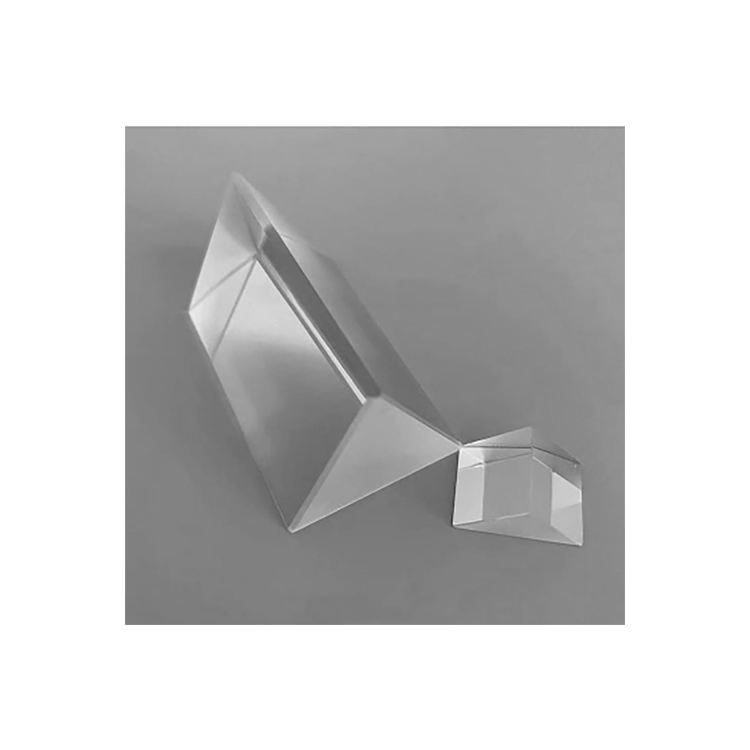

5 mm BK7 Right-angle Optical Prism, AR Coated

Product description

The right-angle prism is essential for applications requiring precise optical measurements and beam deviation. Constructed from high-quality BK7 optical glass, this prism is ideal for redirecting light paths with minimal distortion. It features a flatness specification of 60/40 and a surface flatness of 1/4L, ensuring high wavefront integrity. Custom sizes are available, making it suitable for various optical setups.

Key Features

Right-angle geometry for accurate beam redirection, enhancing optical path efficiency.
Flatness specification of 60/40, ensuring minimal distortion for precise measurements.
Surface flatness of 1/4L, maintaining wavefront integrity in optical applications.
Customizable through OEM and ODM options, catering to specific project requirements.
Diameter tolerance of +0/-0.05mm for consistent batch quality.

Specification Summary

Item	Value
Material	BK7
Shape	Right-angle
Size	5 mm
Thickness	Custom
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	Right Angle Prism
Customized Support	OEM, ODM
Warranty	3 months
Materail	optical glass
Flatness	60/40
Thickness Tolerance	0.01~0.05
Diameter Tolerance	+0/-0.05mm
Surface Flatness	1/4L
Use	Optical Measurements

FAQ

Can I get custom sizes?

Yes, custom sizes are available through OEM and ODM support.

What are the tolerances for thickness and diameter?

Thickness tolerance ranges from 0.01 to 0.05mm, with a diameter tolerance of +0/-0.05mm.
