1 / 6Optical Prisms

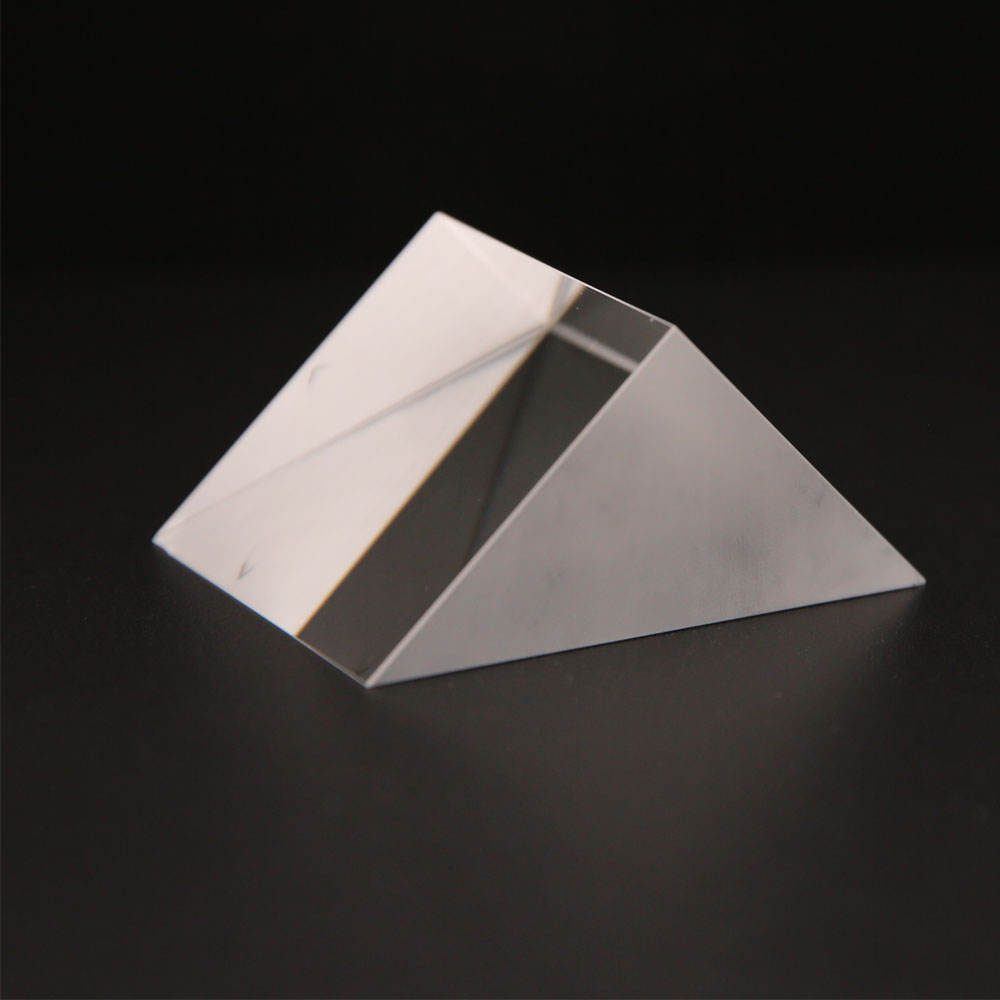

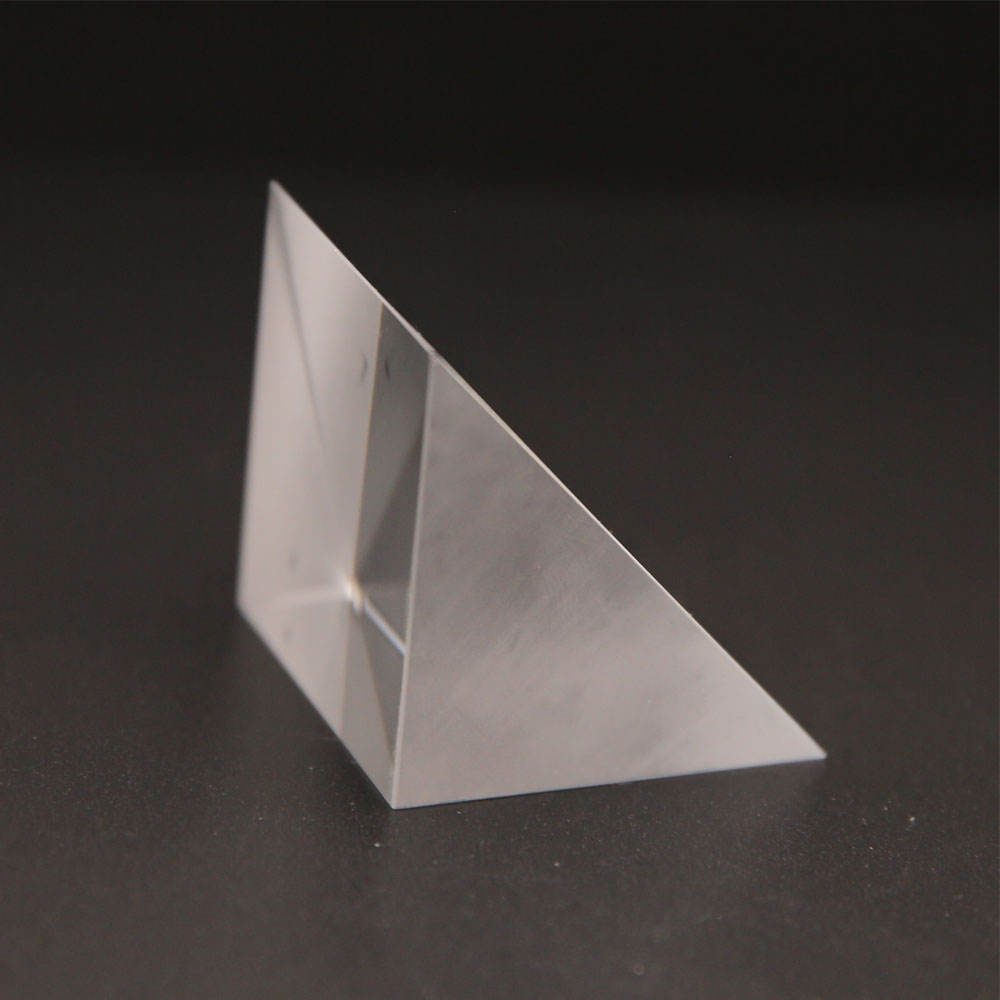

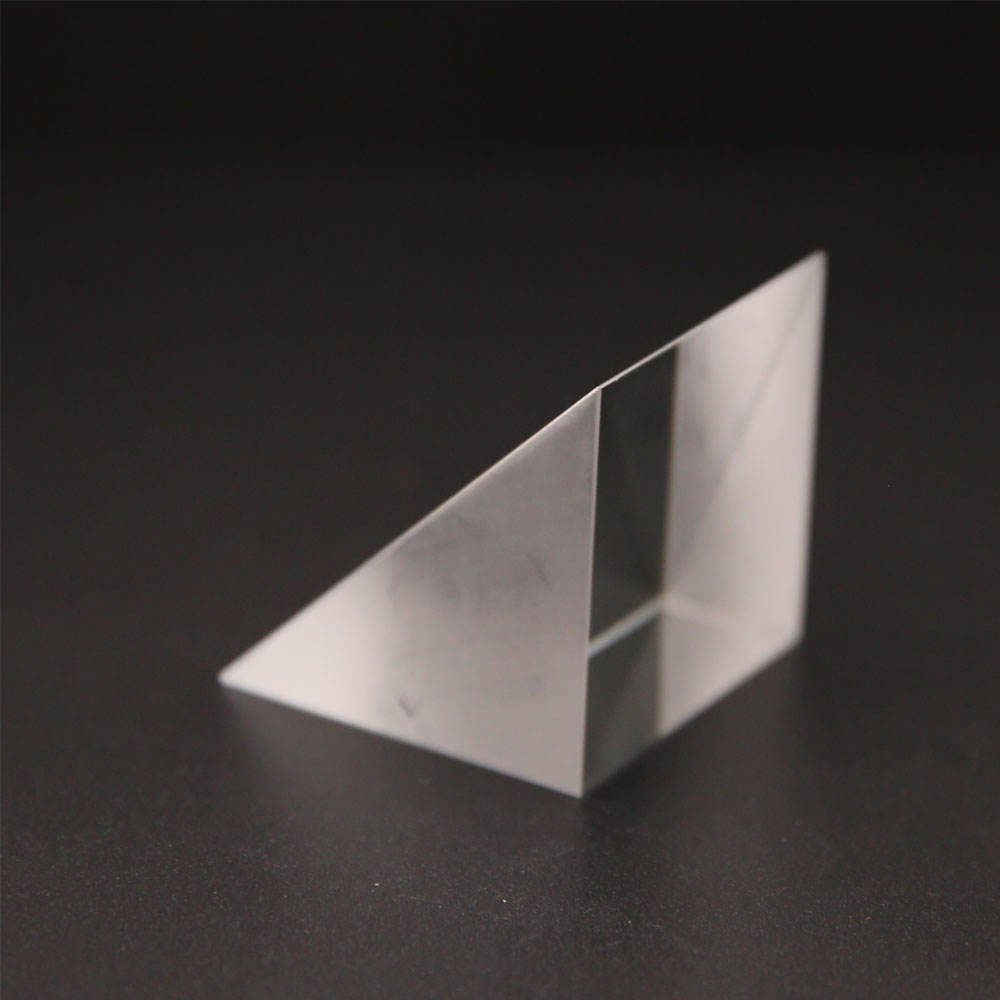

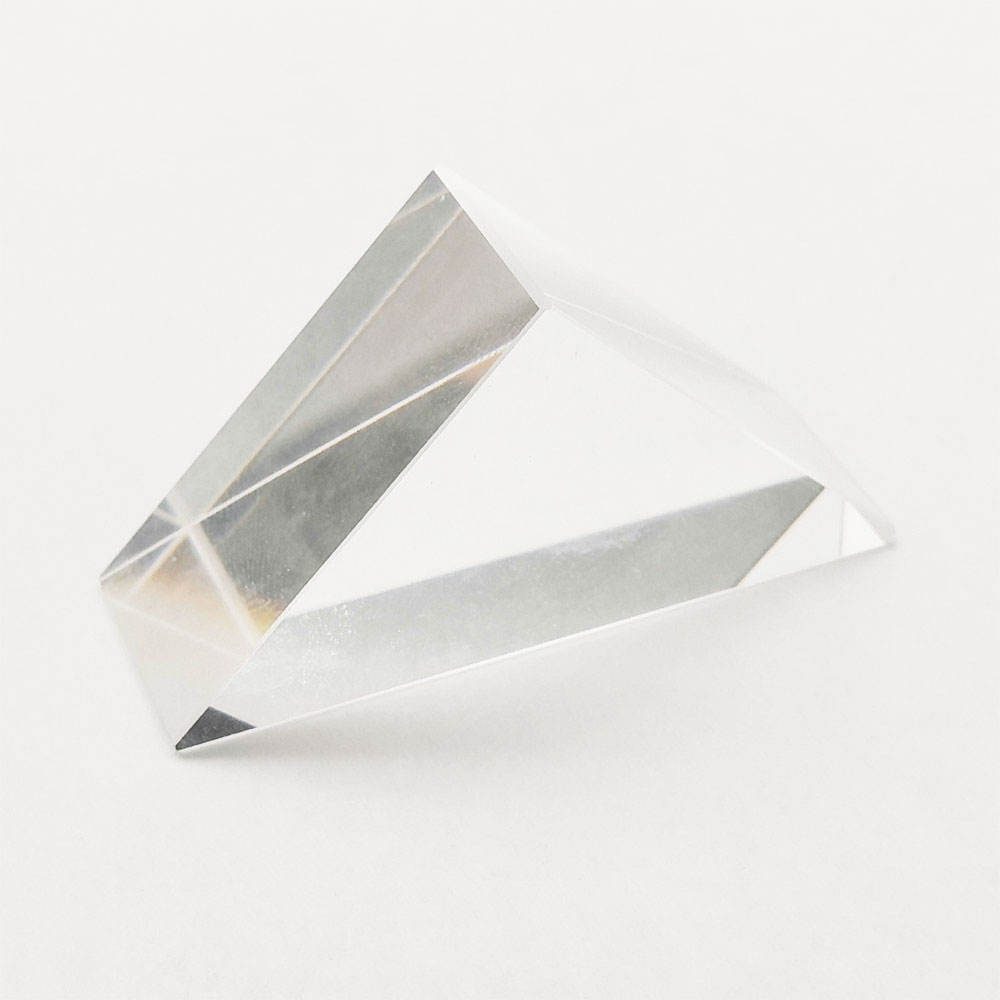

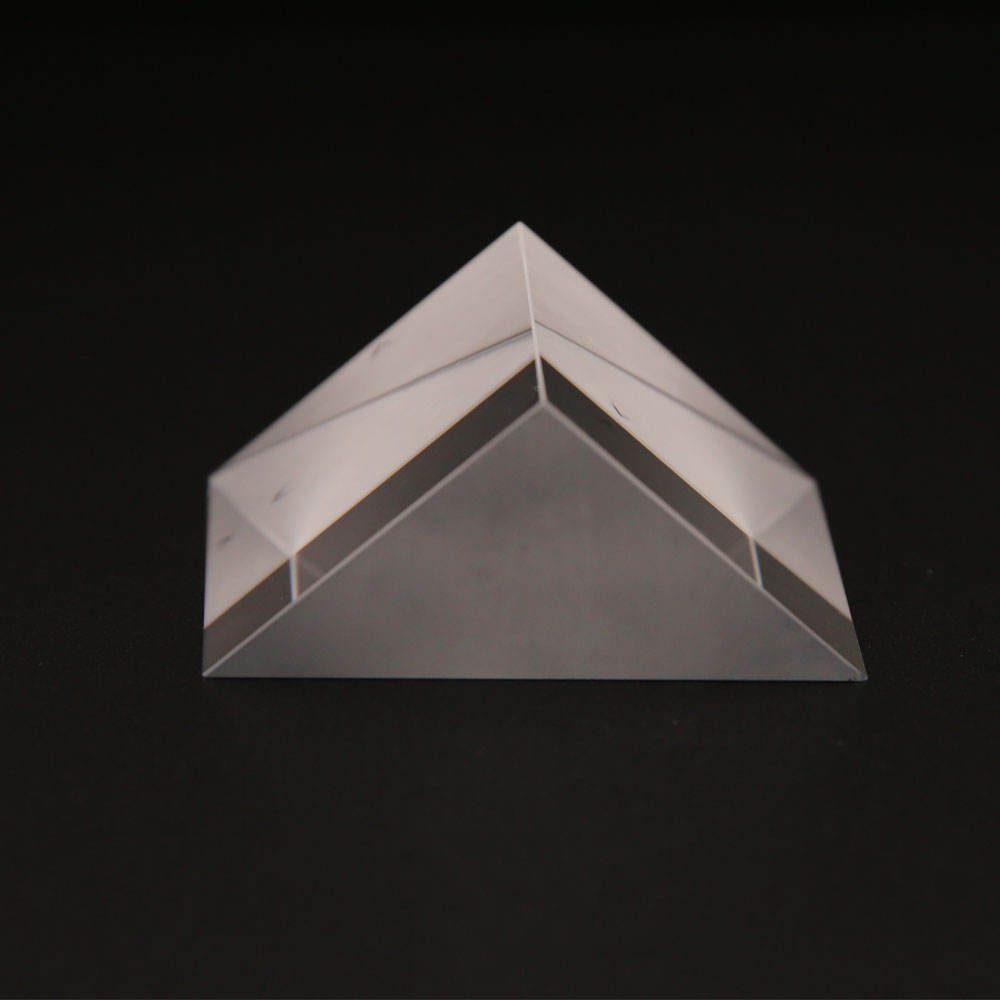

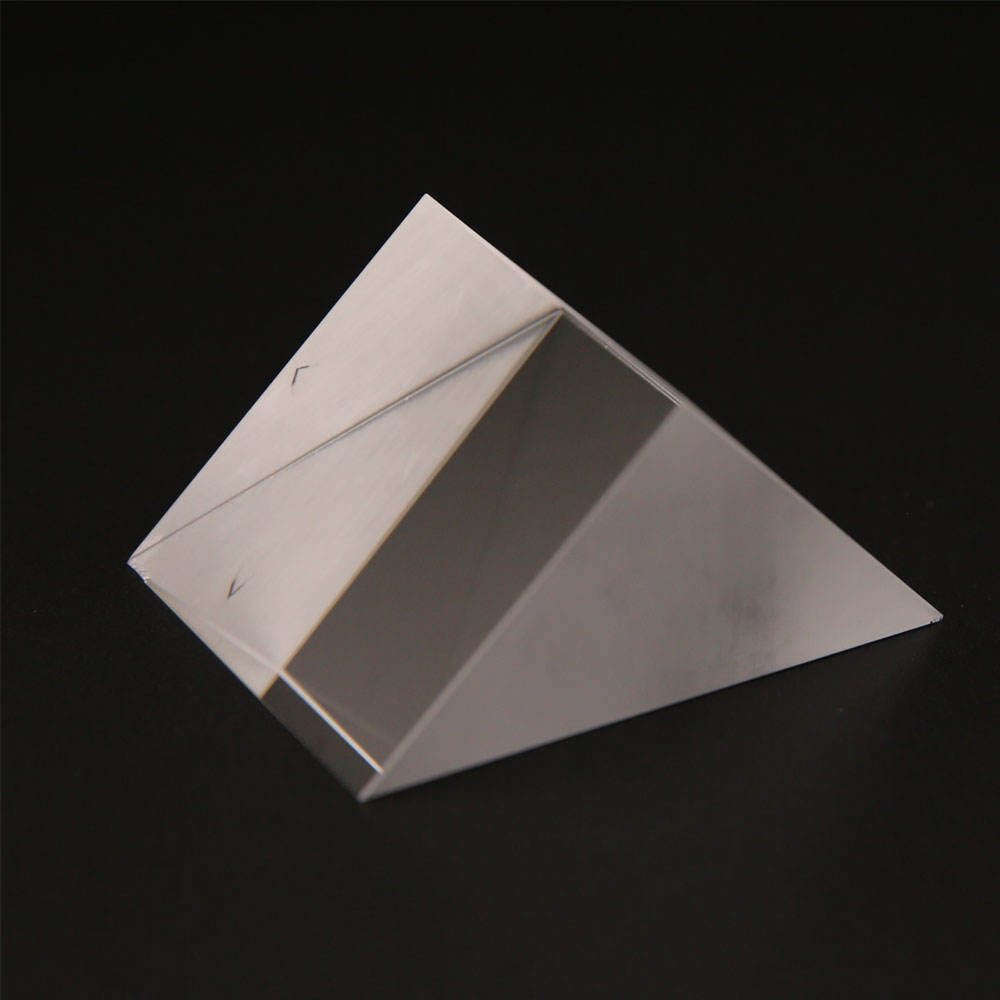

Custom Size BK7 Right-angle Optical Prism, AR Coated
Explore BK7 right-angle prisms with AR coatings, custom sizes, and high surface quality for precise optical applications.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 1/4
- Coating
- anti-reflective (AR)
Product description
Right-angle prisms made from BK7 glass are ideal for applications requiring precise beam deviation and optical path adjustments. With a surface quality of 1/4, these prisms ensure minimal wavefront distortion. The anti-reflective (AR) coatings enhance transmittance, making them suitable for various optical systems. Custom dimensions are available to meet specific project requirements.
Key Features
- Surface quality of 1/4 ensures high wavefront integrity.
- Custom dimensions available to fit specific optical paths.
- AR coatings enhance transmission efficiency for improved performance.
- Clear aperture >90% maximizes light throughput.
- Dimension tolerance of ±0.1mm ensures precision in applications.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 1/4 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 month |
| Materail | BK7, K9, JGS1 |
| Dimension | As requirements |
| Dimension Tolerance | ±0.1mm |
| Clear Aperture | >90% |
| Bevel | 0.2mmX45degree |
FAQ
Can I get custom sizes for the right-angle prism?
Yes, custom dimensions can be provided as per requirements.
What is the tolerance for the dimensions?
The dimension tolerance is ±0.1mm.
