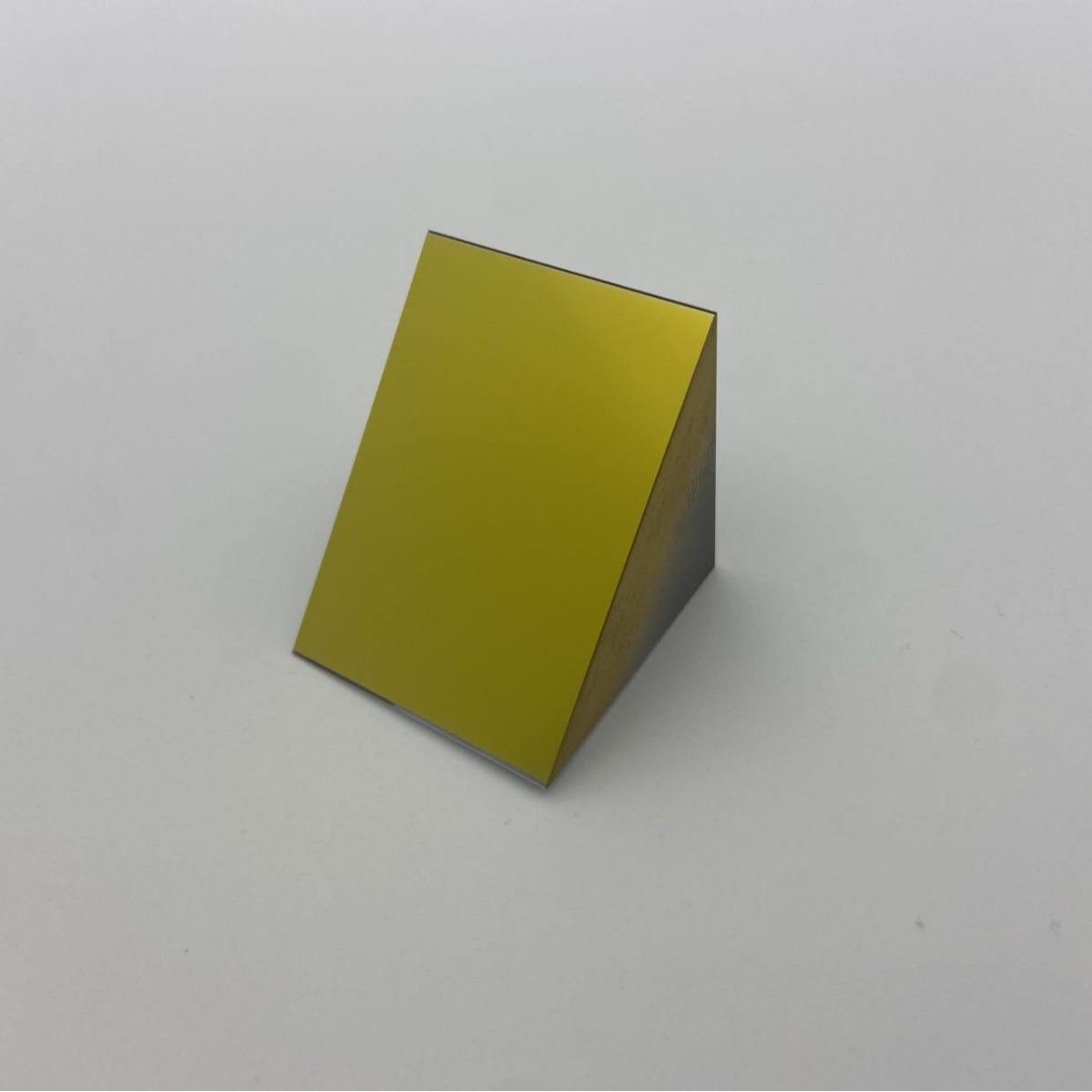

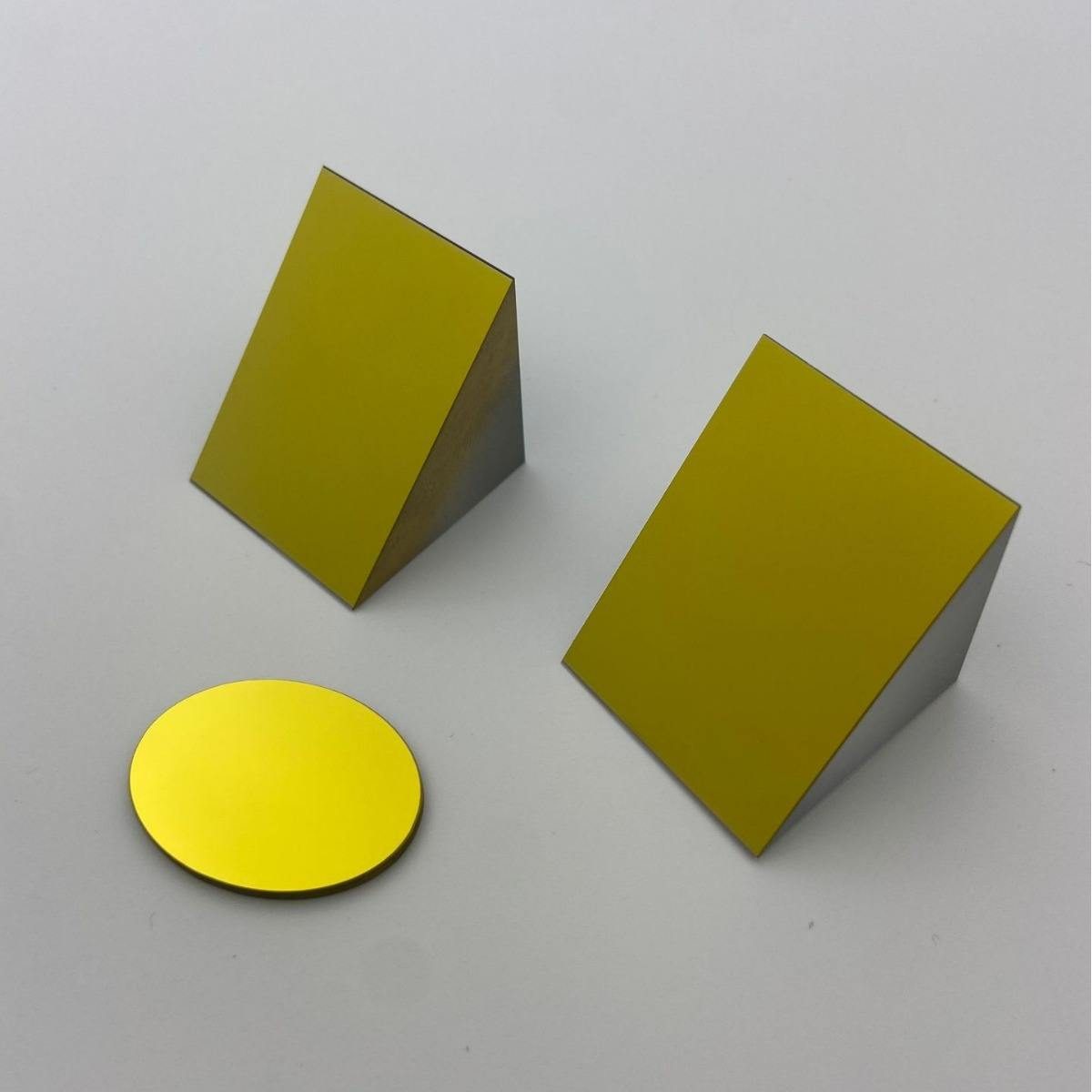

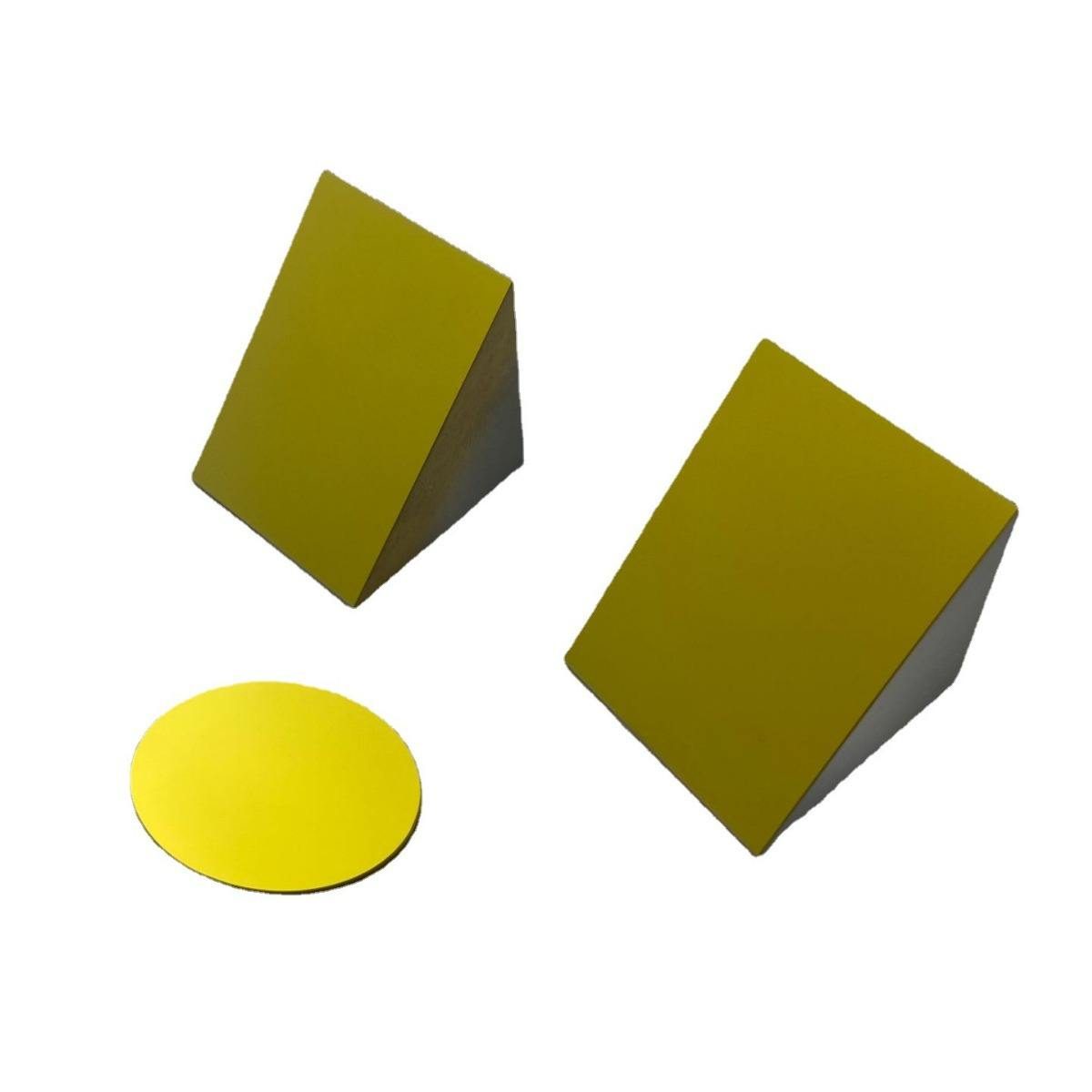

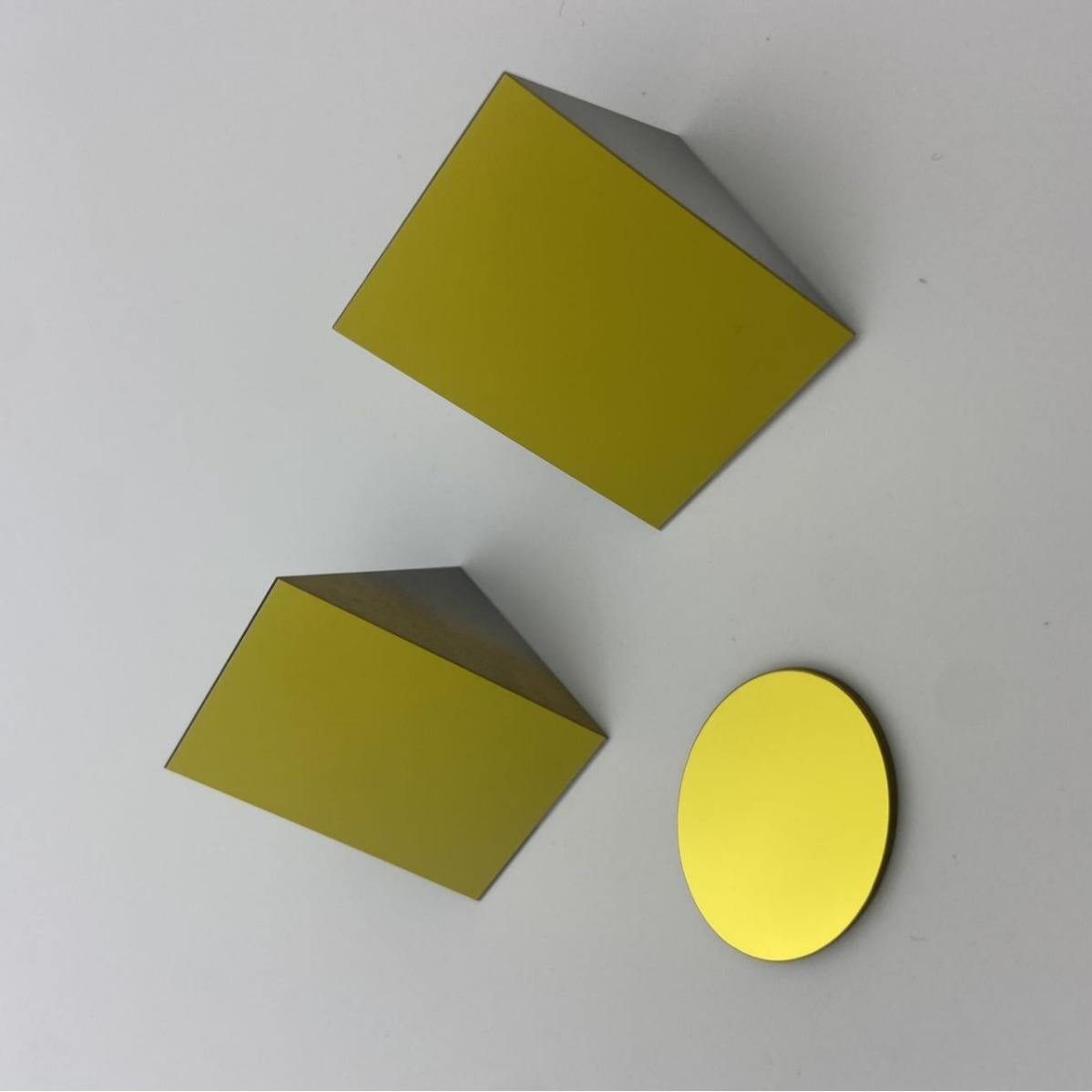

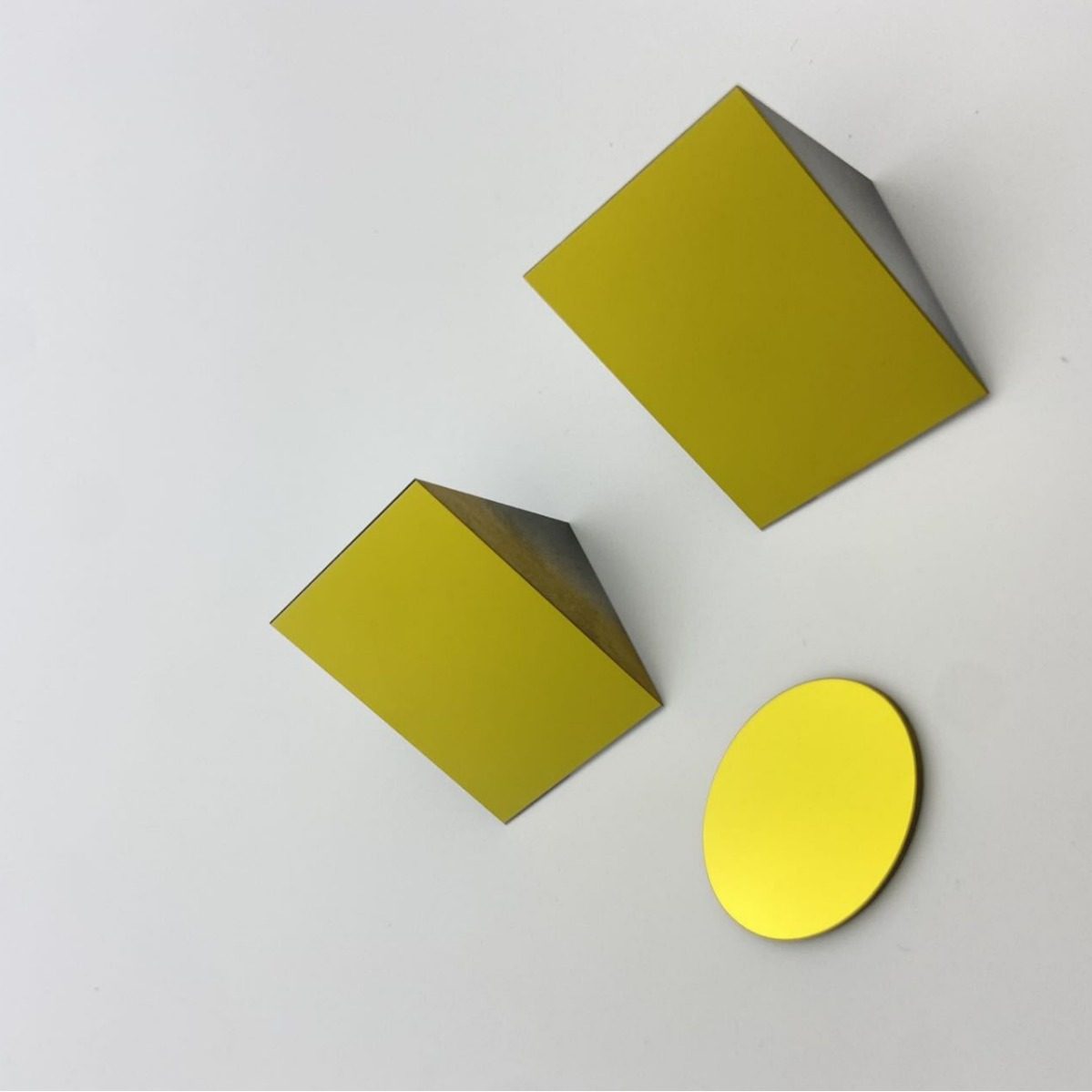

Custom Size BK7 Right-angle Optical Prism
Explore our Right Angle Prism with high-reflectivity gold coating for precision optical applications.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR, gold
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR, gold
Product description
The Right Angle Prism is designed for precision optical applications, providing stable and uniform light reflection. With a high-reflectivity gold coating, it enhances light efficiency, making it ideal for angular measurements. Its customizable surface quality allows for adaptability in various setups, ensuring reliable performance in demanding environments.
Key Features
- High-reflectivity gold coating enhances light reflection efficiency.
- Right angle geometry ensures precise angular measurements.
- Surface quality rating of 20/10 for reliable optical performance.
- Dimension tolerance of ±0.1mm for consistent batch quality.
- Clear aperture range of 90%-98% for optimal light transmission.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | dielectric HR, gold |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM |
| Warranty | 1 Year |
| Type | Right Angle Prism |
| Dimension Tolerance | ±0.1mm |
| Clear Aperture | 90%-98% |
FAQ
Can I get custom sizes?
Custom sizes are available through OEM and ODM support.
What is the dimension tolerance?
The dimension tolerance for this prism is ±0.1mm.
