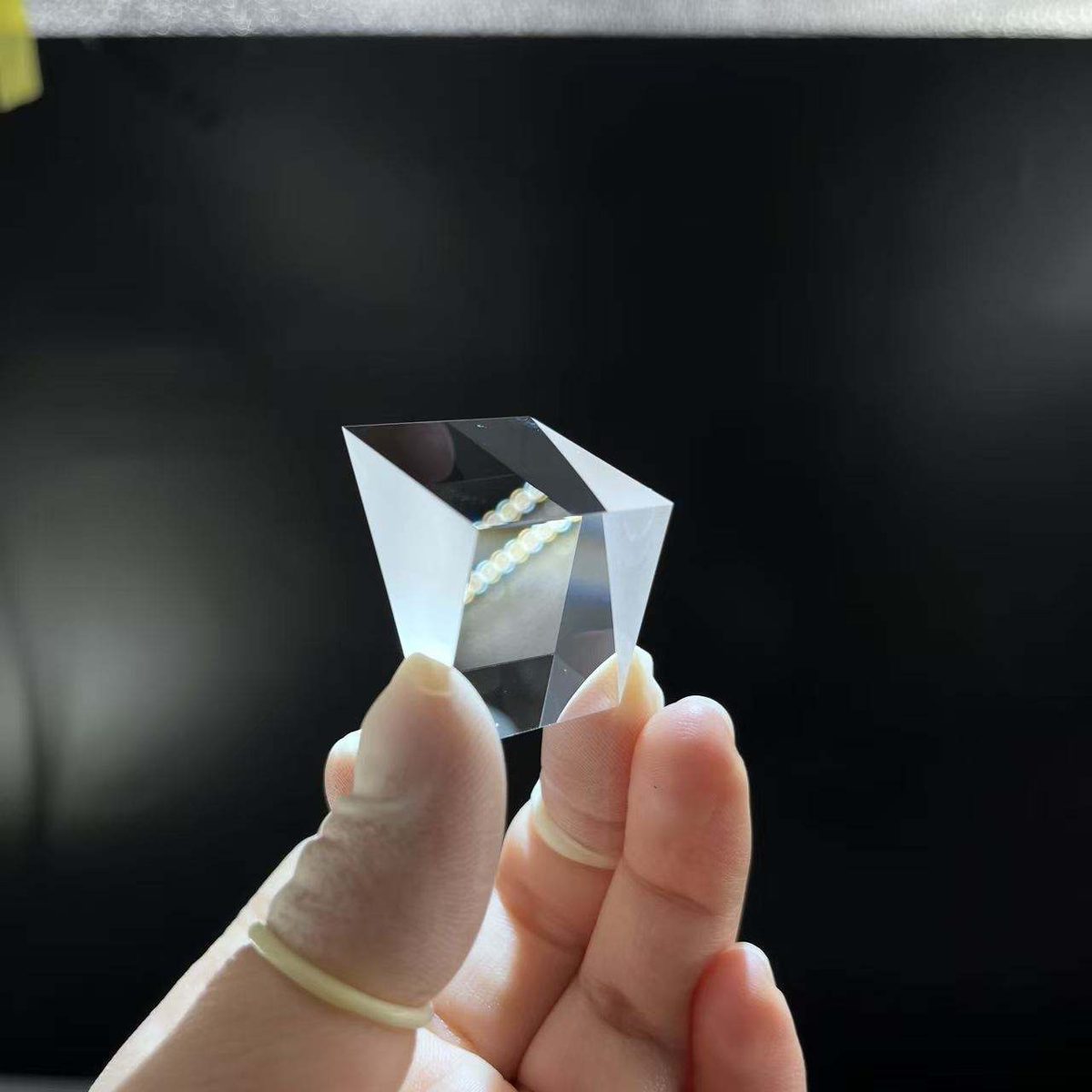

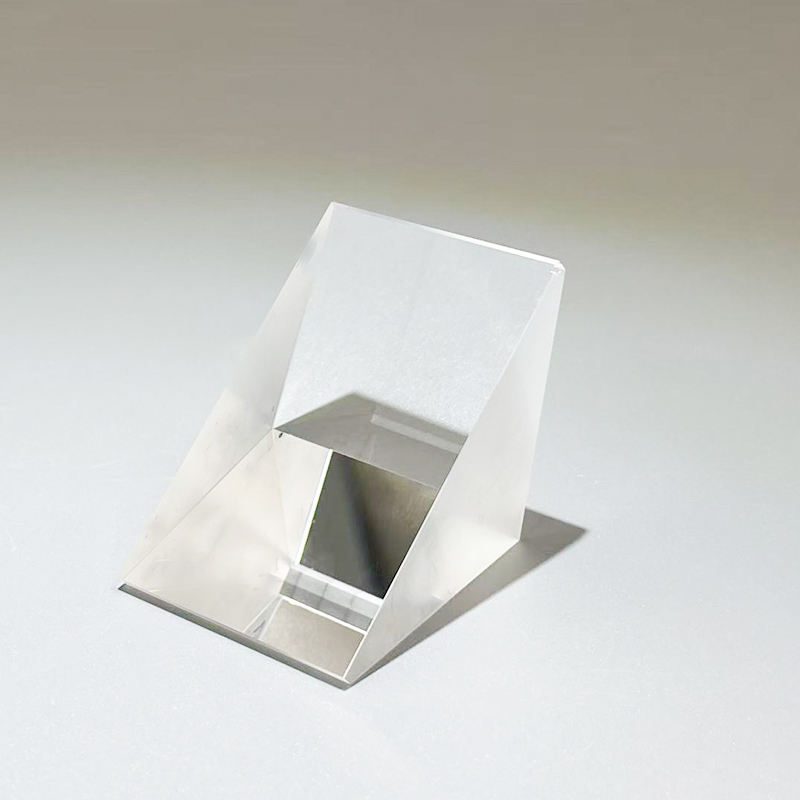

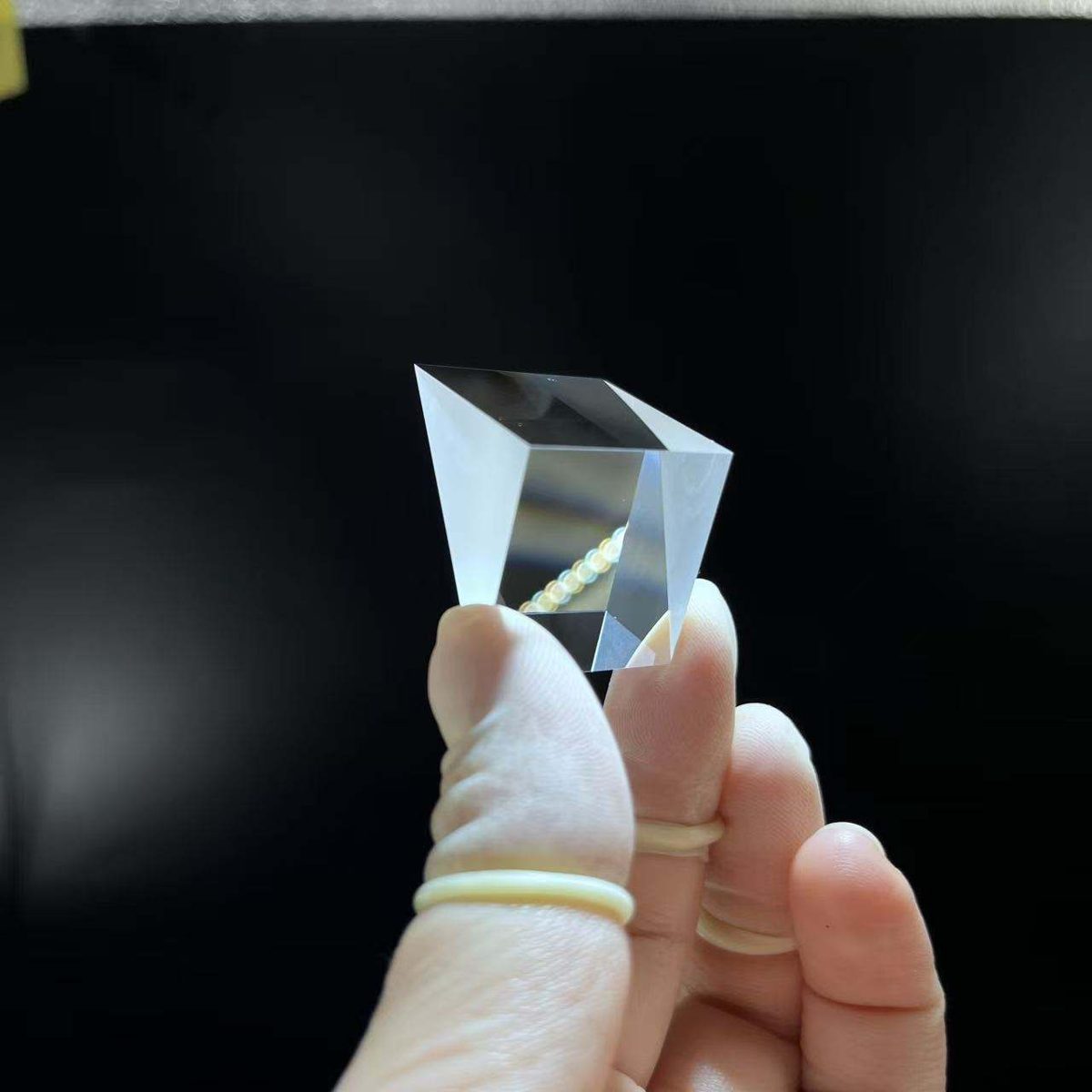

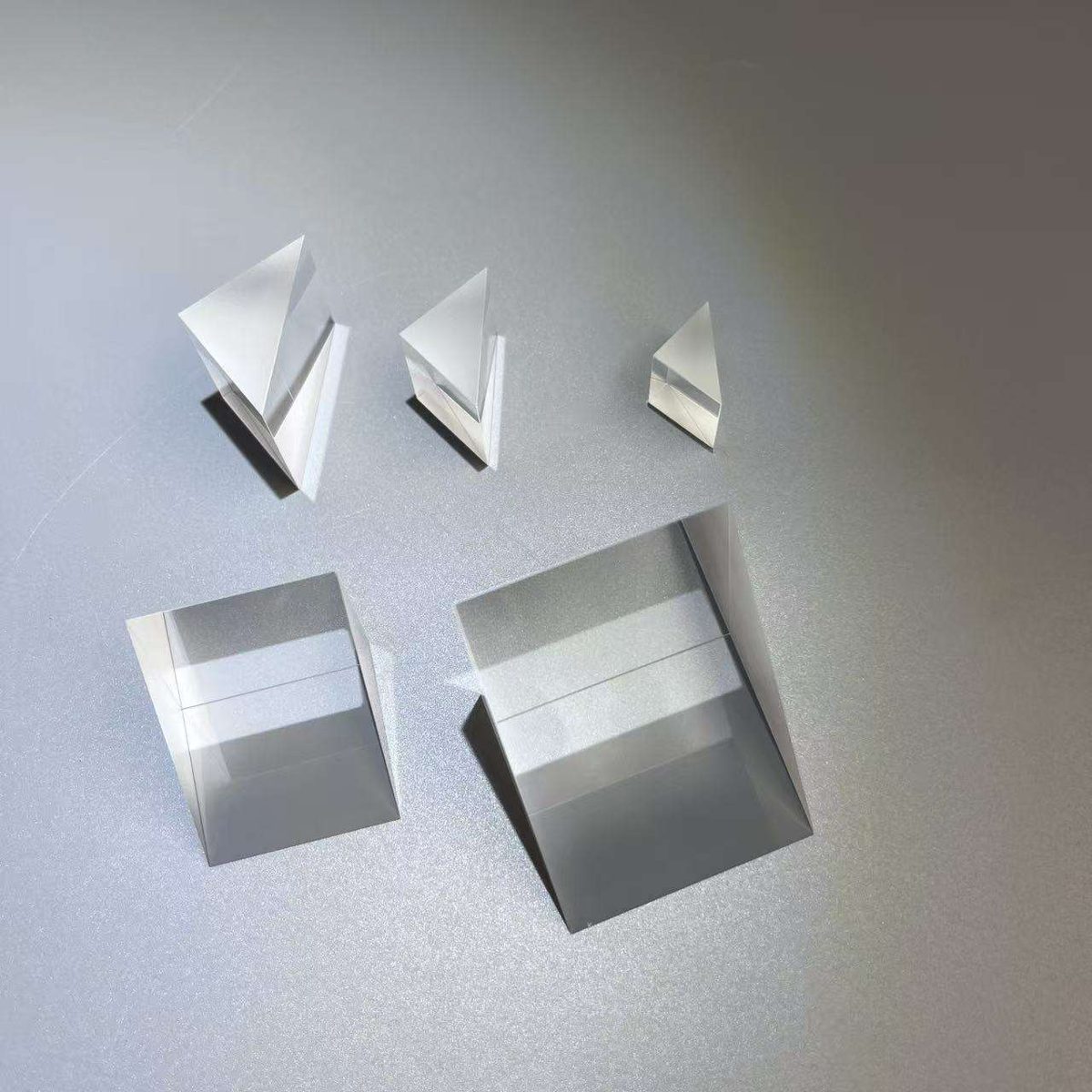

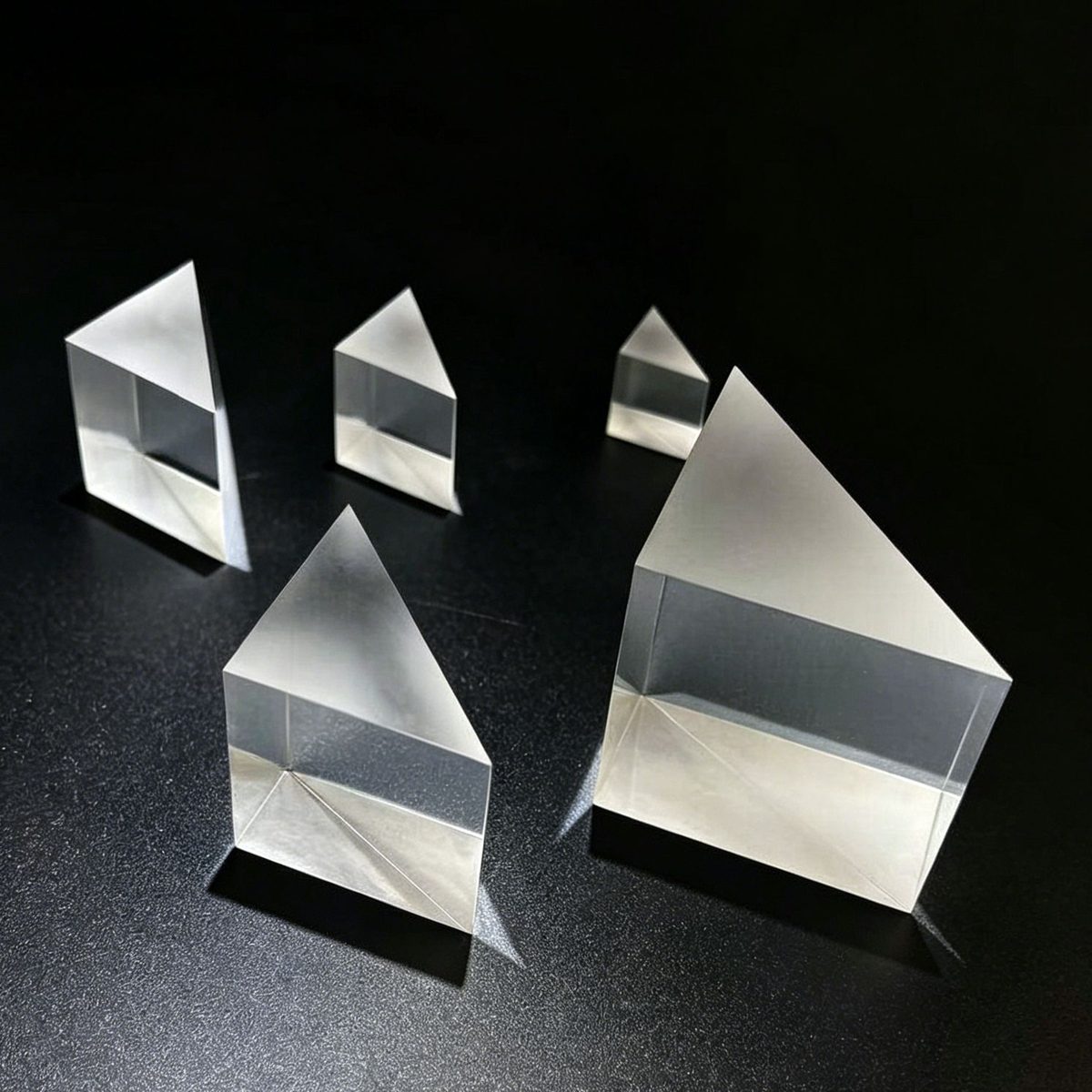

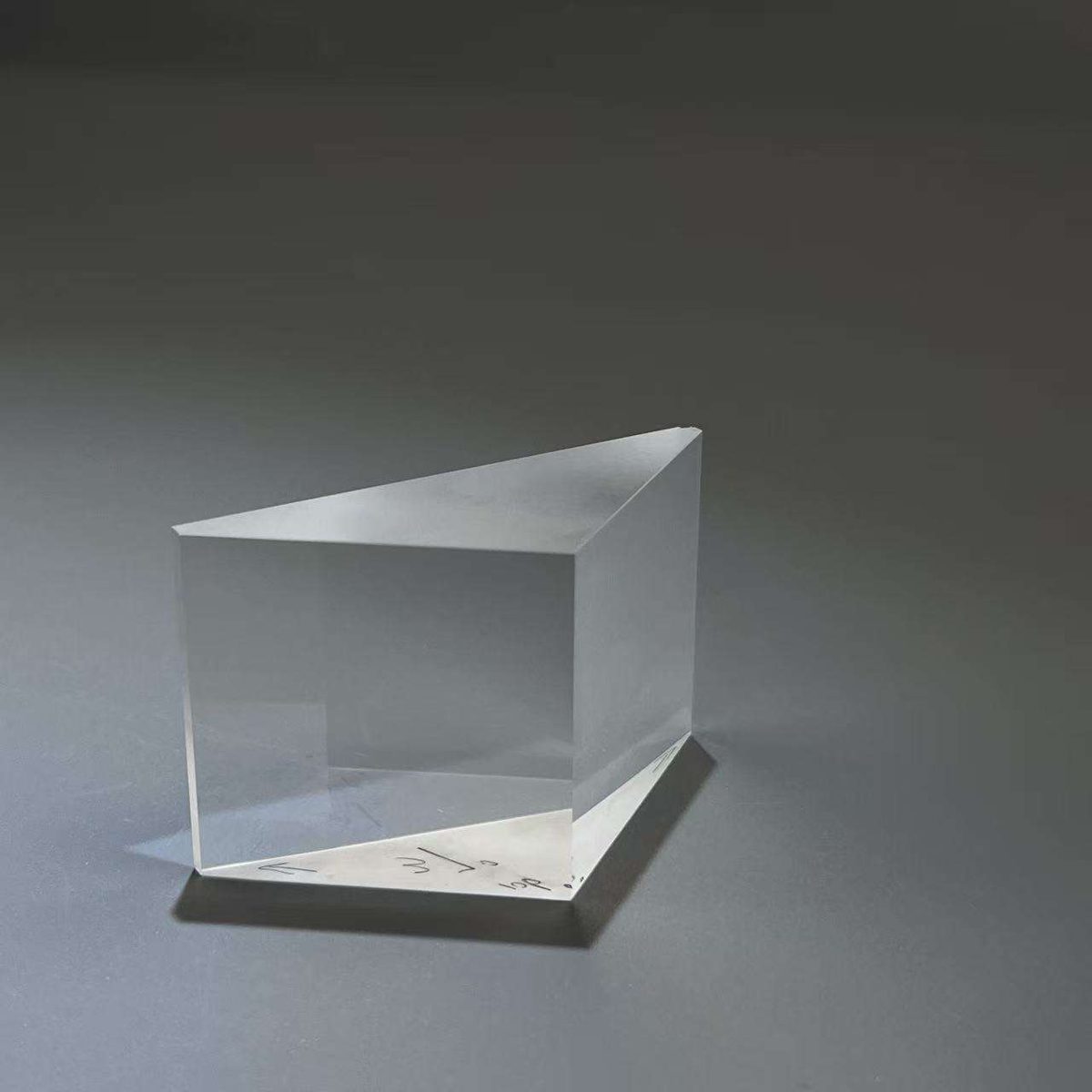

Custom Size BK7 Right-angle Optical Prism
Explore our right-angle prism with dielectric HR coatings for high reflectivity and precision angle tolerance.
Core attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR
Product facts
Key attributes
- Material
- BK7
- Shape
- Right-angle
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 20/10
- Coating
- dielectric HR
Product description
The right-angle prism is essential for redirecting light paths in optical systems, providing precise angle adjustments. With a robust BK7 glass construction and dielectric HR coatings, it ensures minimal loss and high reflectance for various applications. The prism’s angle tolerance ranges from 3 arcseconds to 5 arcminutes, making it suitable for demanding optical setups.
Key Features
- Right-angle geometry for efficient beam redirection.
- Dielectric HR coatings enhance reflectivity and minimize losses.
- Surface quality of 20/10 ensures high wavefront integrity.
- Angle tolerance of 3 arcseconds to 5 arcminutes for precision applications.
- Customizable options available for OEM, ODM, and OBM needs.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Right-angle |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 20/10 |
| Coating | dielectric HR |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Triangular Glass |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| Angle Tolerance | 3arcseconds-5arcminutes or customizable |
FAQ
What is the angle tolerance for this prism?
The angle tolerance ranges from 3 arcseconds to 5 arcminutes, with customization options available.
Can I get custom sizes for this prism?
Yes, customizable support is available for OEM, ODM, and OBM requirements.
