Custom Size BK7 Round Optical Filter, AR Coated
Dichroic filter with customizable center wavelength and FWHM for fluorescence microscopy and beauty IPL applications.
Core attributes
- Material
- BK7
- Shape
- Round
- Size
- Custom
- Thickness
- 0.1 mm
- Filter Type
- dichroic
- Cwl
- 800nm
- Coating
- anti-reflective (AR), high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- BK7
- Shape
- Round
- Size
- Custom
- Thickness
- 0.1 mm
- Filter Type
- dichroic
- Cwl
- 800nm
- Coating
- anti-reflective (AR), high-reflective (HR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The dichroic filter is designed for applications in fluorescence microscopy and beauty IPL systems, selectively transmitting specific wavelengths while reflecting others. With a center wavelength of 800 nm and customizable FWHM options ranging from 5-500 nm, it is ideal for precise optical applications. This filter is made from BK7 glass and features AR and HR coatings, ensuring optimal performance across the specified bands of 0.7-1.7 μm, 400-700 nm, and <400 nm. Its robust design allows for effective use in various environmental conditions.
Key Features
- Center wavelength of 800 nm for targeted optical performance.
- Customizable FWHM options (5-500 nm) to fit specific application needs.

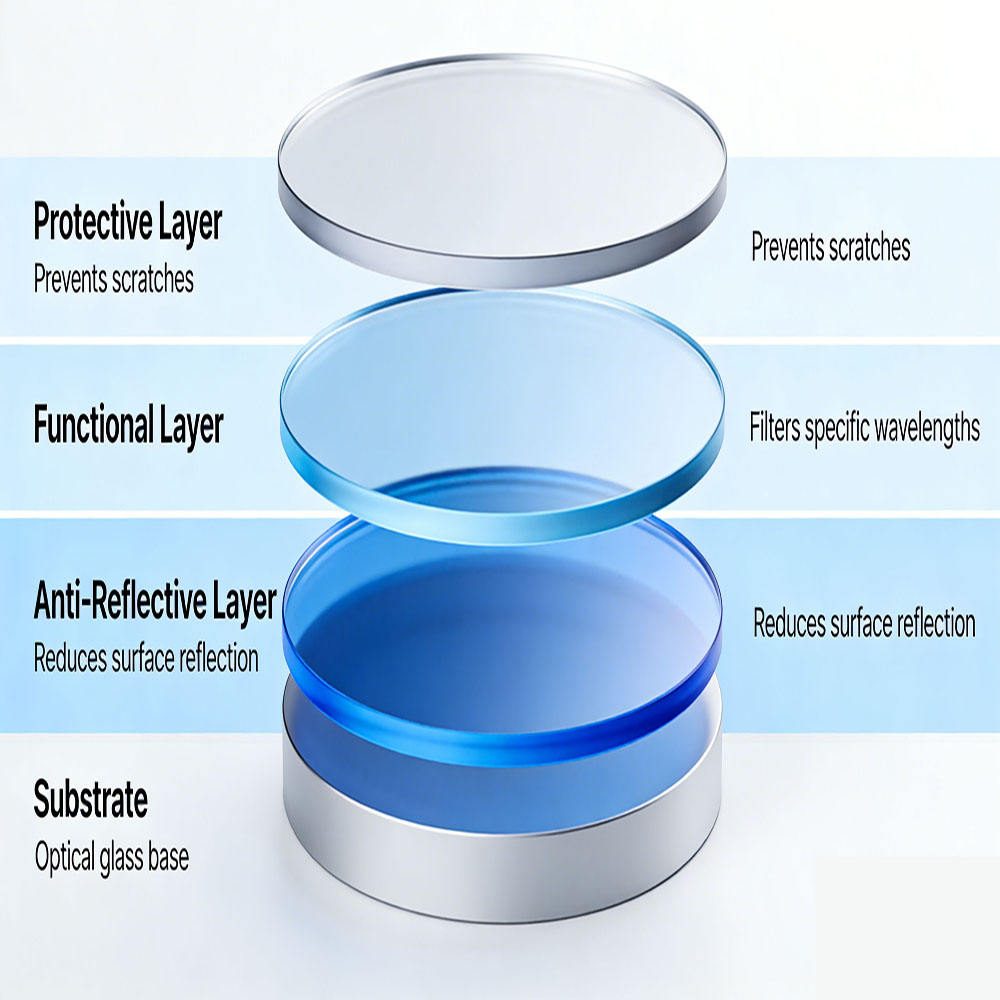

- AR and HR coatings enhance transmission and reflection characteristics.
- Constructed from BK7 glass for durability and reliability.
- Accepts samples for testing before bulk orders.
Applications
Fluorescence, Microscopy, Beauty Ipl
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Round |
| Size | Custom |
| Thickness | 0.1 mm |
| Filter Type | dichroic |
| Cwl | 800nm |
| Coating | anti-reflective (AR), high-reflective (HR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Selective Translucency |
| Structure | Solid |
| Warranty | 3 Years |
| Feature | Optical Glass |
| Cwl | Customize |
| Fwhm | 5-30nm 40-100nm 150-500nm |
| Packing | Wooden Cases |
| Sample | Acceptable |
| Customized Support | OEM |
FAQ
Can I get custom sizes?
Custom sizes are not specified, but the center wavelength can be customized.
What are the minimum order quantities?
Minimum order quantities are not provided in the specifications.
