12.7x1 mm BK7 Round Optical Mirror

Product description

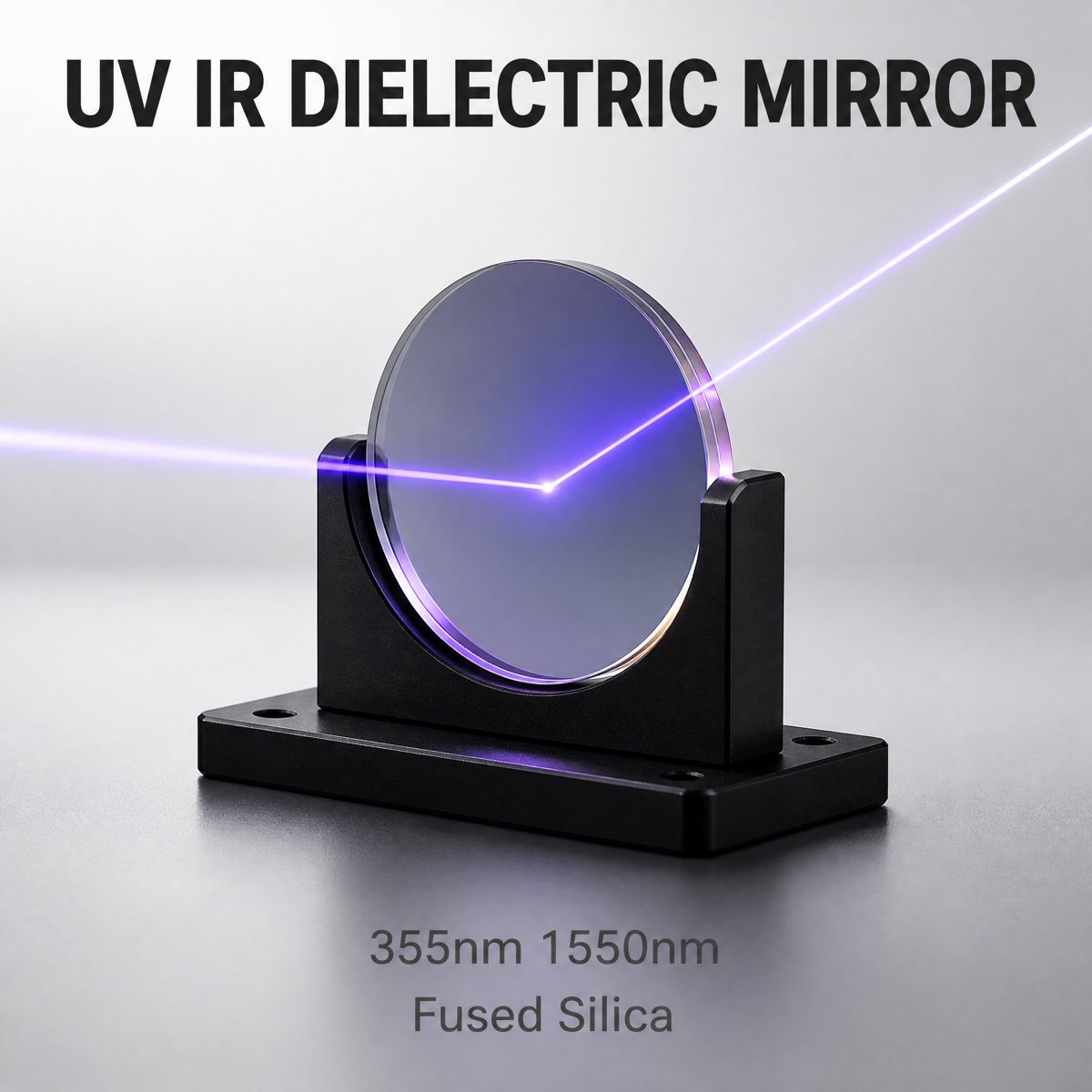

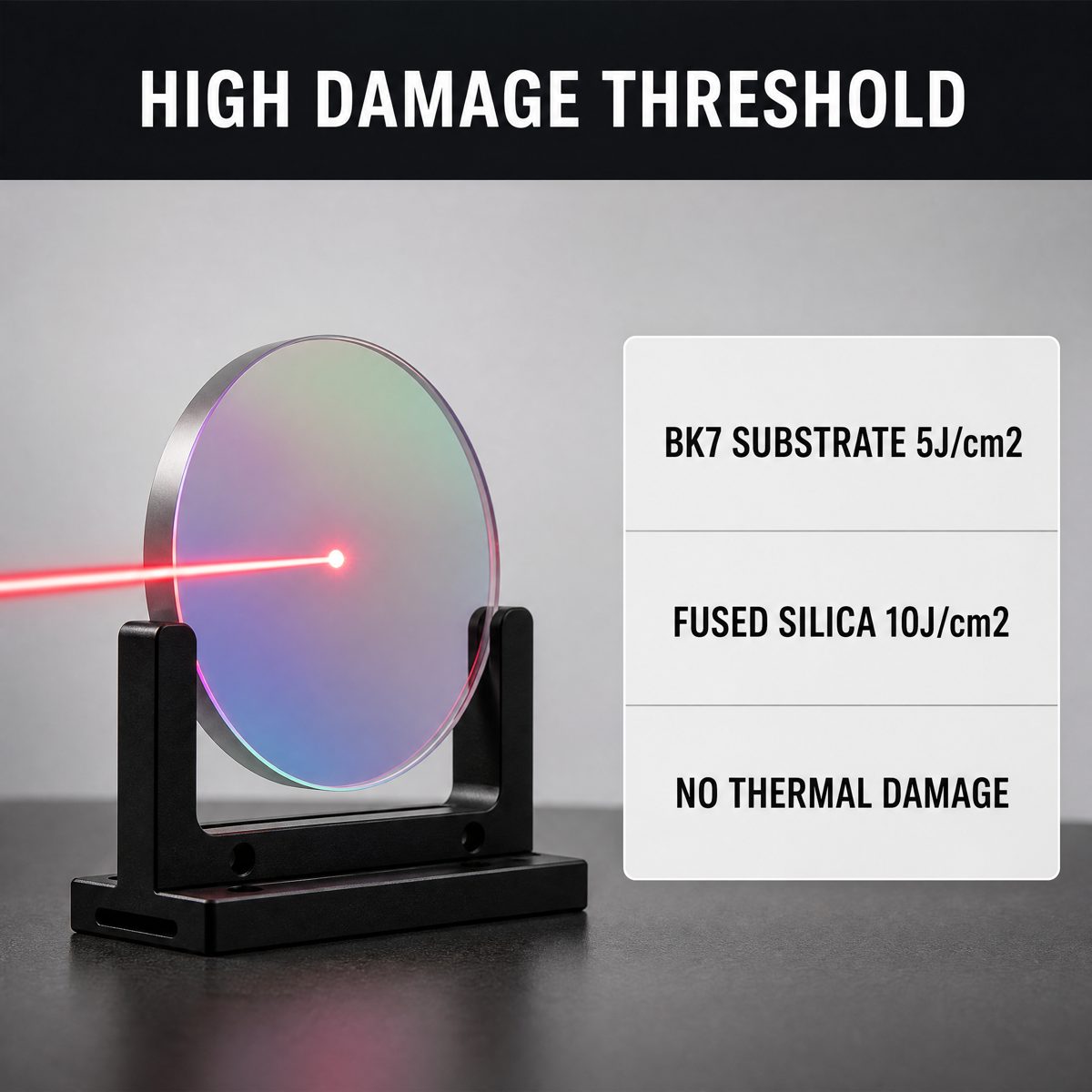

The UV IR dielectric mirror is designed for high-performance applications in laser and LiDAR systems, offering exceptional reflectance of over 99% across the 0.7-1.7 μm and <400 nm bands. With a solid BK7 substrate and a surface quality of 20/10, this mirror ensures minimal loss and high precision. Ideal for high-power UV and IR laser applications, it features a damage threshold of 10 J/cm², making it suitable for demanding environments.

Key Features

Reflectance > 99% for superior light efficiency
Dielectric HR coating for enhanced durability and performance
Surface quality of 20/10 ensures minimal distortion
Lambda/10 flatness for optimal wavefront quality
Standard size of 12.7 mm with robust BK7 material

Available Sizes

Size x Thickness (mm)
12.7 x 1

Applications

Laser, Lidar

Specification Summary

Item	Value
Material	BK7
Shape	Round
Size	12.7 mm
Thickness	1 mm
Surface Quality	20/10
Reflectance	99%
Coating	dielectric HR
Transmission bands	NIR (0.7-1.7 μm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Super Smooth Optical Mirror
Structure	Solid
Warranty	5 year
After-Sale Service	Other, Online Technical Support
Project Solution Capability	anti-reflective coating
Product Type	UV IR Dielectric Mirror

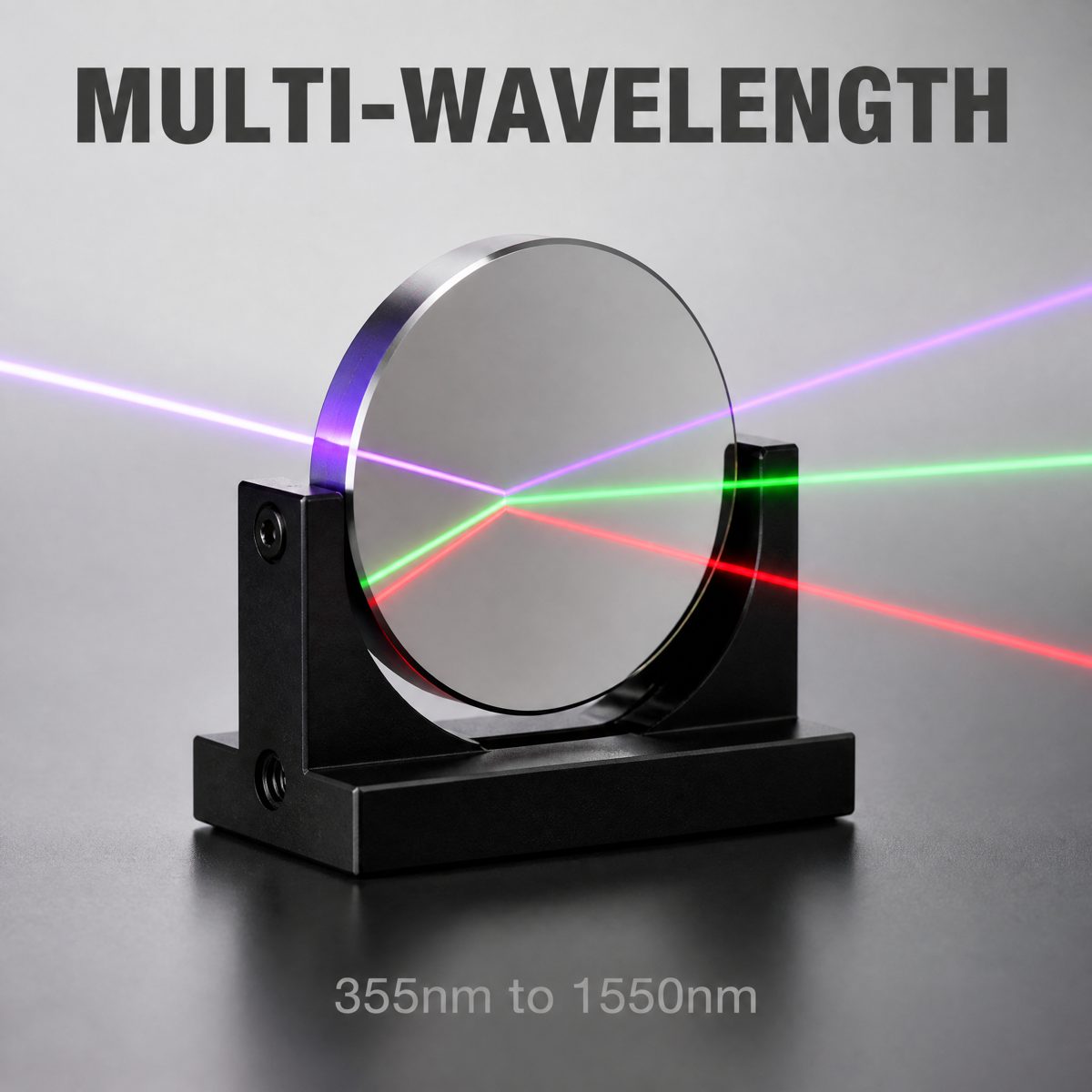

Wavelength	355nm 1550nm
Surface Flatness	Lambda/10

FAQ

Are custom sizes available?

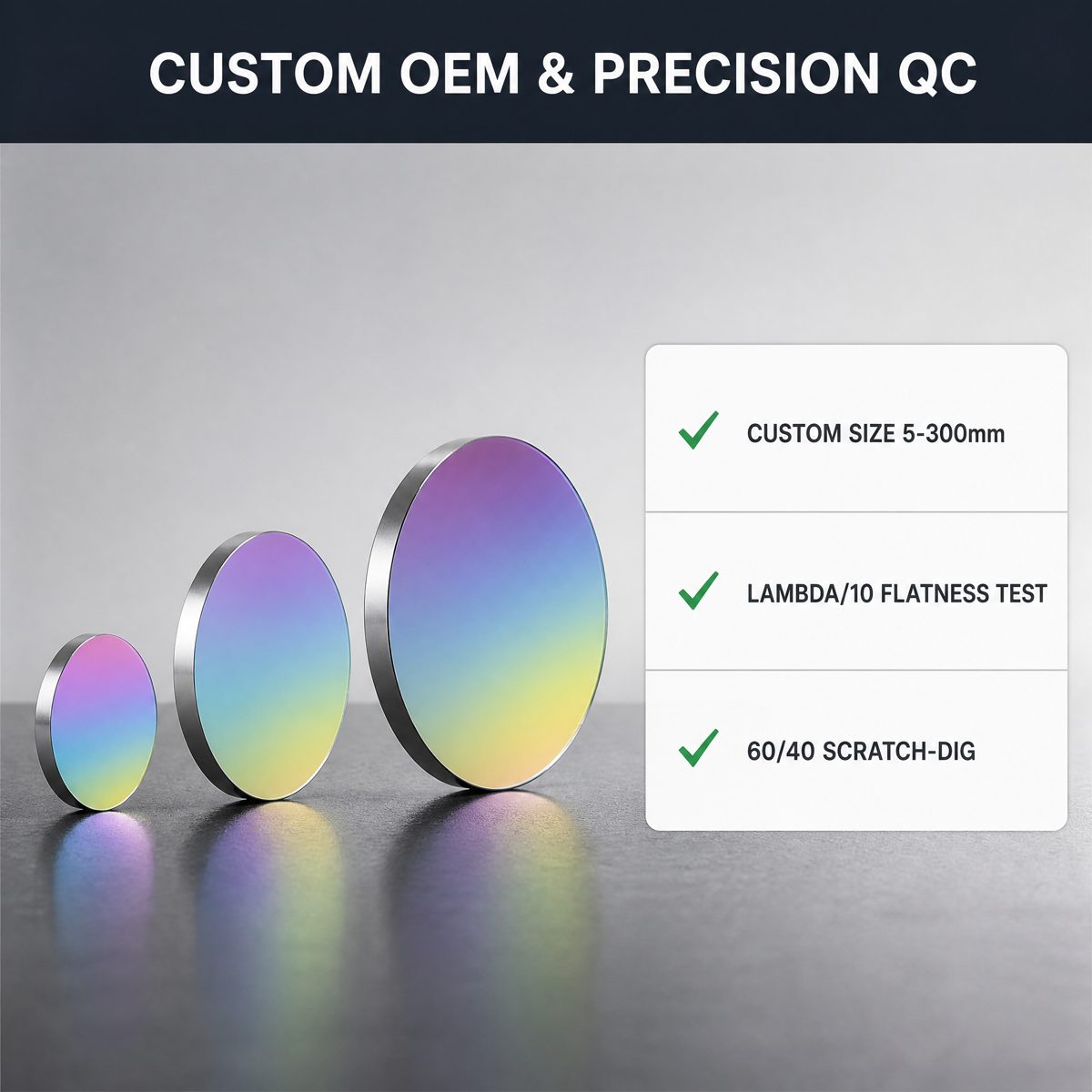

Standard sizes include 12.7 mm and 25.4 mm diameters, with some custom size options for specific applications.

What is the minimum order quantity (MOQ)?

The product does not specify a minimum order quantity.
