Custom Size BK7 Round Optical Mirror

Product description

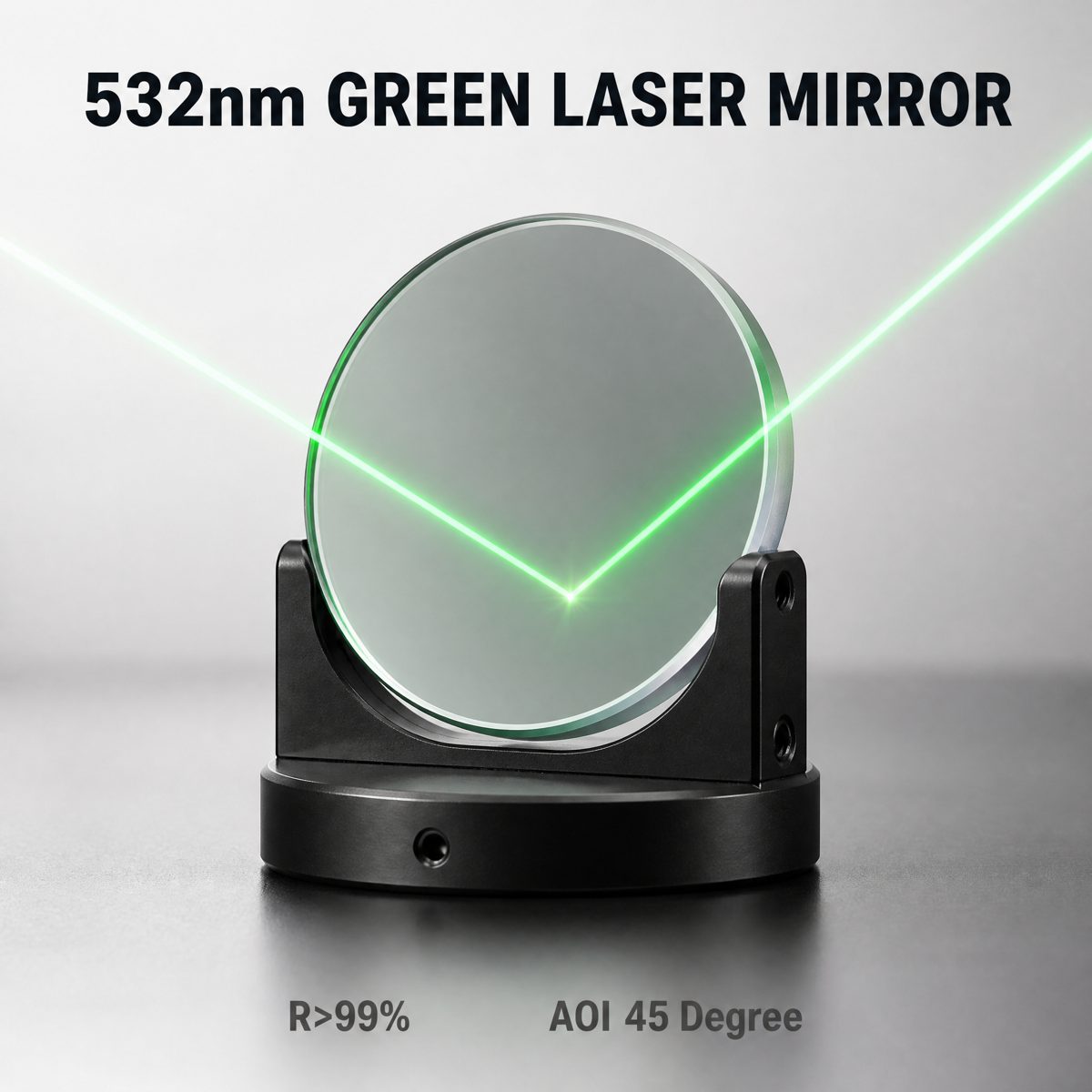

The 532nm Dielectric Mirror is designed for high-performance applications in laser marking and engraving. With a reflectance exceeding 99%, this mirror ensures optimal light efficiency for green laser systems. Its superior surface quality (40/20) and flatness (Lambda/10) provide precise beam steering, making it ideal for compact laser beam paths in galvo scanning and mirror optics systems. Custom sizes and coatings are available to meet specific application needs.

Key Features

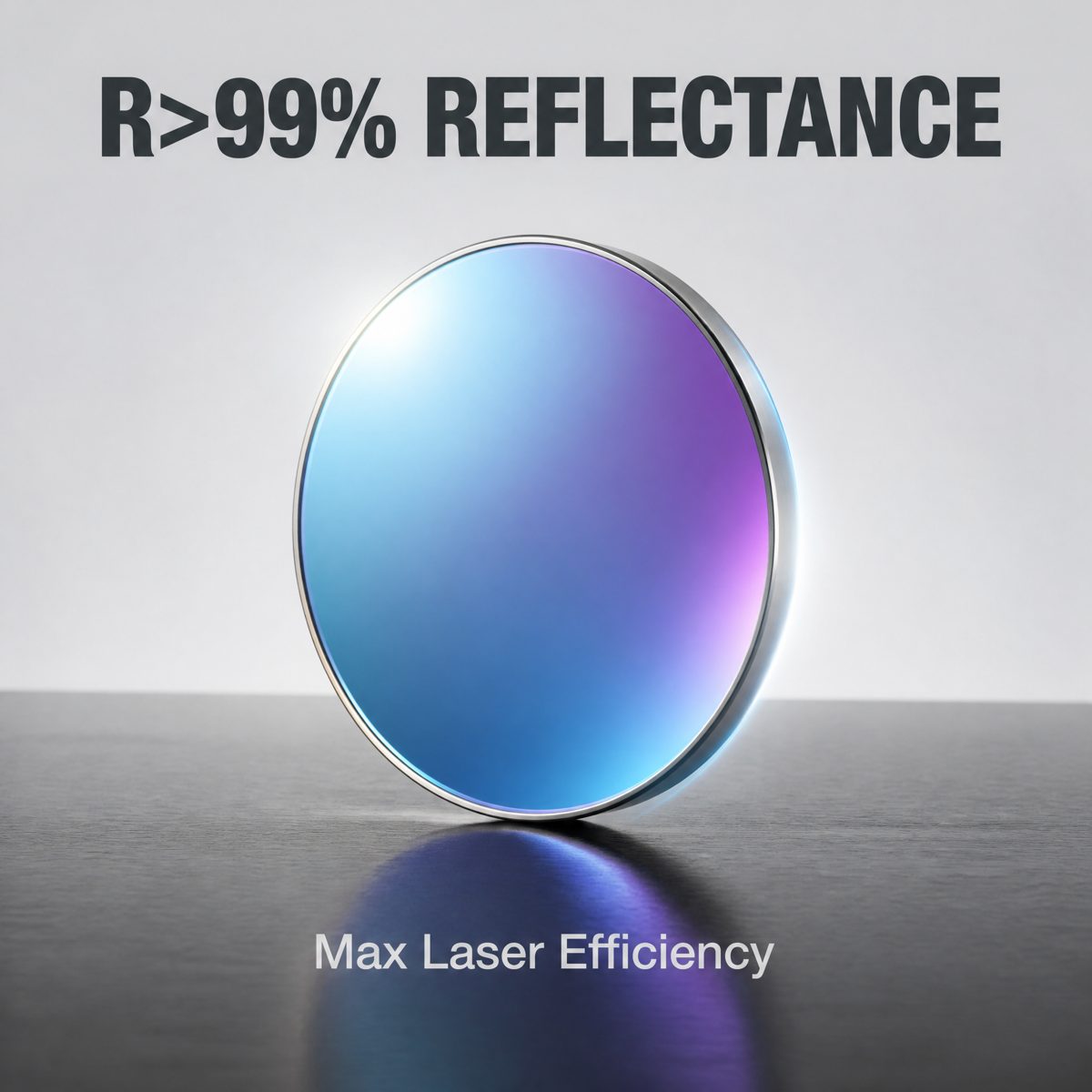

Reflectance of 99% for optimal light efficiency in laser applications.
Surface quality of 40/20 ensures minimal distortion for accurate beam steering.
Lambda/10 surface flatness supports high wavefront quality for precision optics.
High damage threshold of 3J/cm² for reliable performance in demanding environments.
Custom diameter and dielectric coating options available for tailored solutions.

Applications

Laser

Specification Summary

Item	Value
Material	BK7
Shape	Round
Size	Custom
Thickness	1 mm
Surface Quality	40/20
Reflectance	99%
Coating	dielectric HR
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Super Smooth Optical Mirror
Structure	Solid
Warranty	5 year
After-Sale Service	Other, Online Technical Support
Project Solution Capability	anti-reflective coating
Product Type	532nm Dielectric Mirror
Wavelength	532nm Green Laser
Surface Flatness	Lambda/10

FAQ

What custom sizes are available?

Custom diameter options are available to meet specific application requirements.

What are the tolerances for surface flatness?

The mirror features a surface flatness of Lambda/10, ensuring high wavefront quality.
