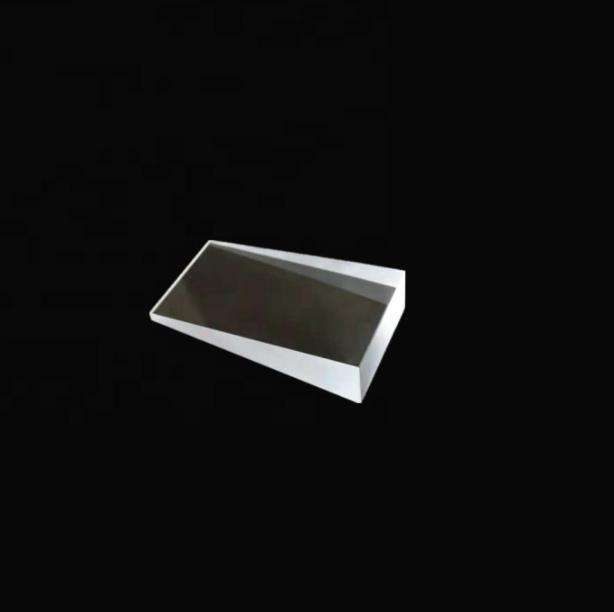

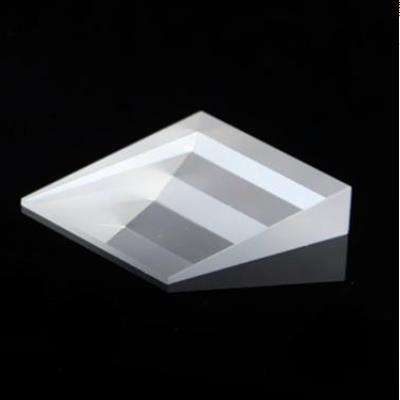

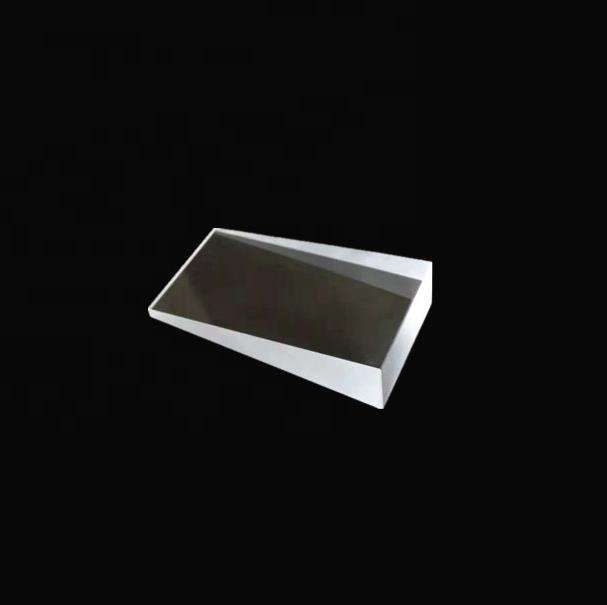

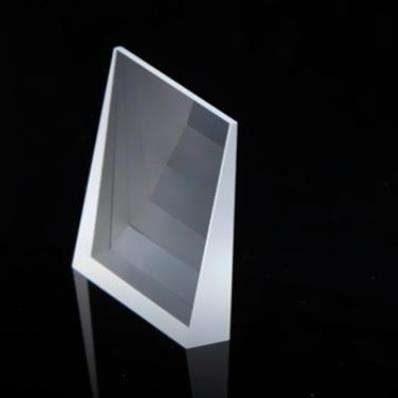

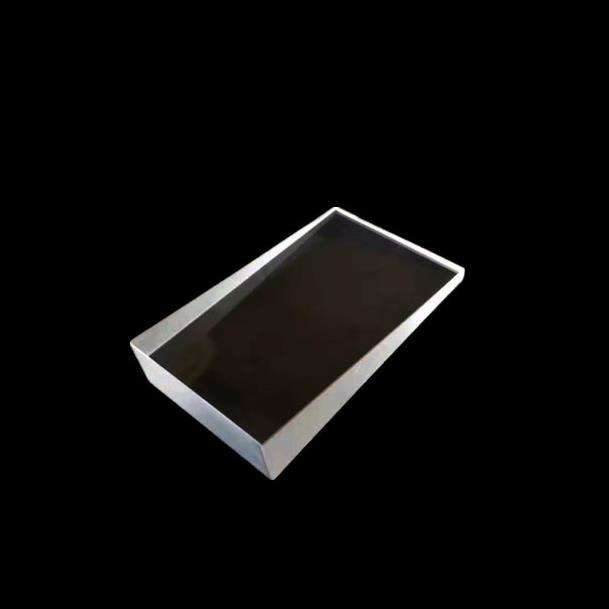

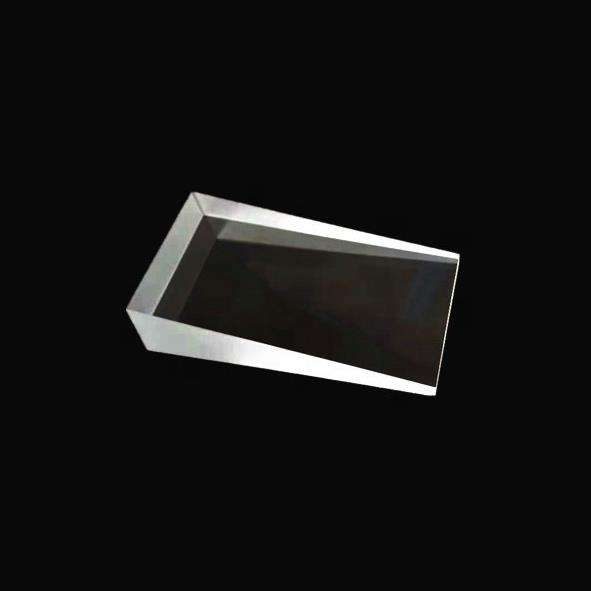

Custom Size BK7 Wedge Optical Prism, AR Coated

Product description

Wedge prisms made of BK7 glass are essential for applications requiring precise angular deviation and minimal distortion. With a surface quality of 20/10 and a flatness tolerance of 1/4 Lambda, these prisms ensure high wavefront integrity. Ideal for beam steering and optical path adjustments, they provide reliable performance in various optical systems.

Key Features

Angle tolerance of 3 Arcmin ensures precise alignment in optical setups.
Surface quality of 20/10 guarantees minimal scattering and optimal transmission.
Flatness specification of 1/4 Lambda supports high wavefront integrity.
Clear aperture greater than 90% maximizes light throughput.
Dimension tolerance of ±0.1mm allows for accurate integration into existing systems.

Specification Summary

Item	Value
Material	BK7
Shape	Wedge
Size	Custom
Thickness	Custom
Surface Quality	20/10
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Angle Tolerance	3 Arcmin, 3 Arcmin
Surface Flatness	1/4 Lambda
Clear Aperture	>90%
Dimension Tolerance	±0.1mm
Flatness	1/4 Lambda

FAQ

Can I get custom sizes for the wedge prism?

Custom sizes are not specified; please inquire for availability.

What is the angle tolerance for this prism?

The angle tolerance is 3 Arcmin, ensuring precise optical alignment.
