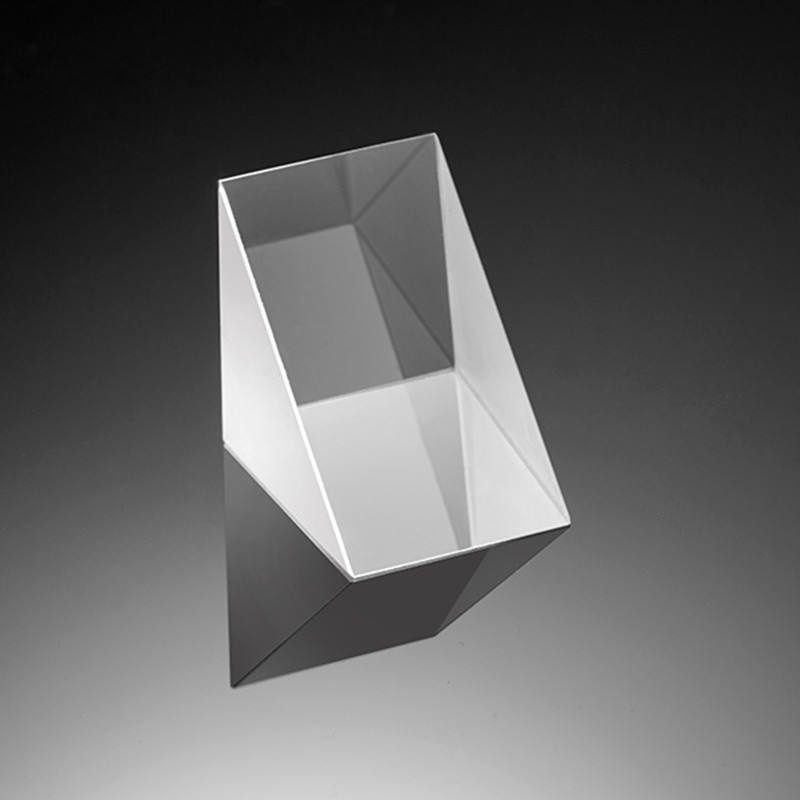

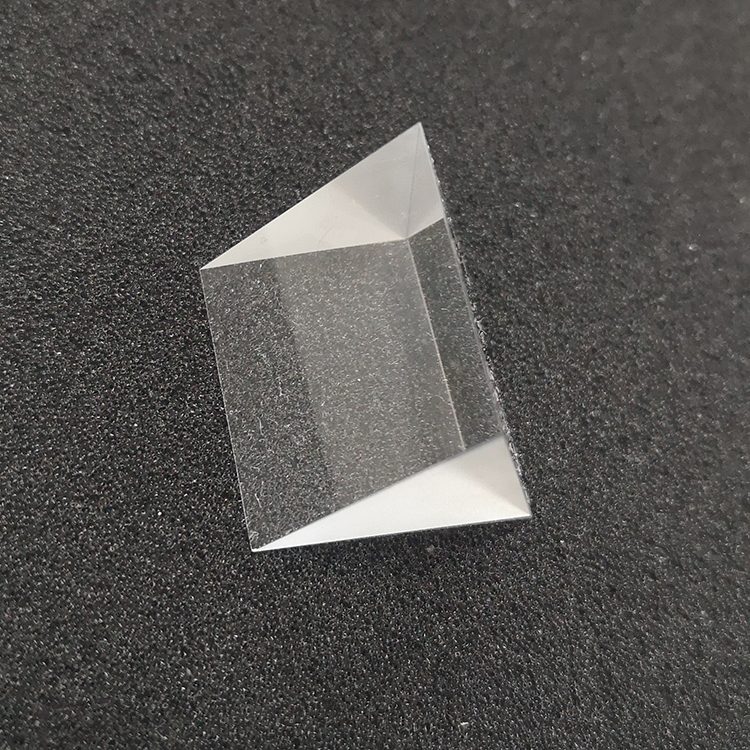

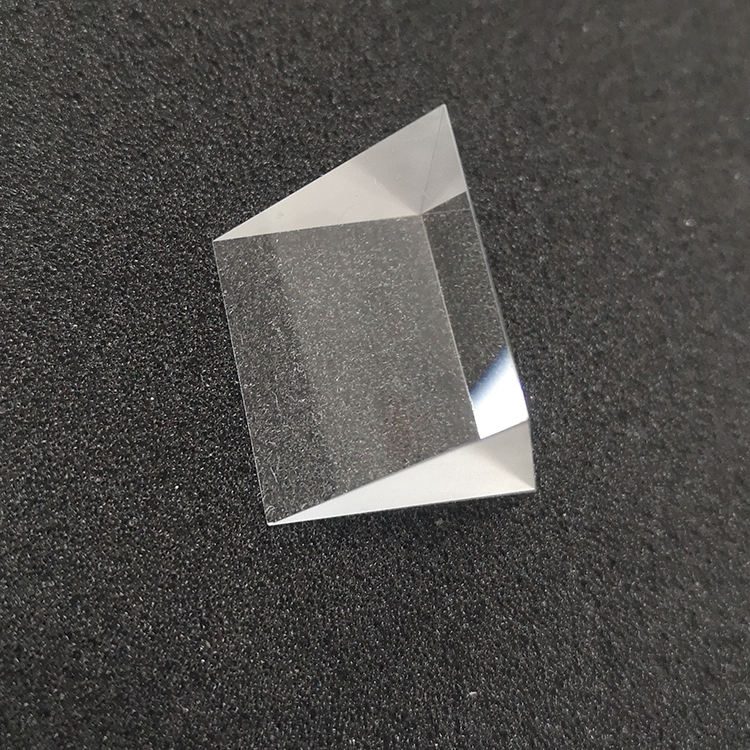

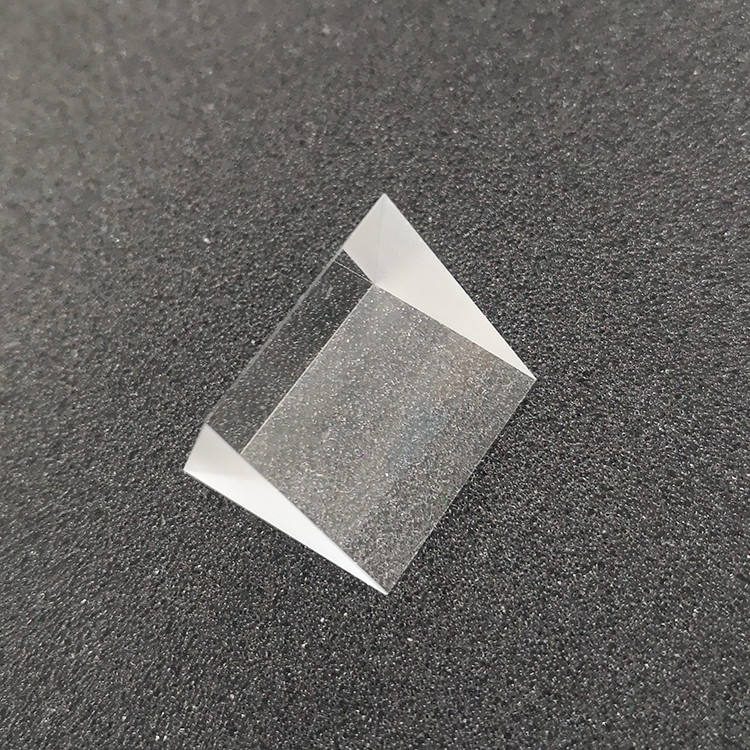

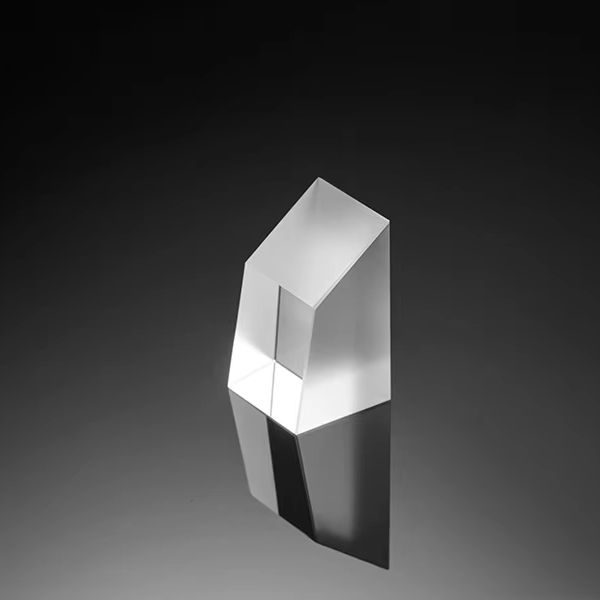

Custom Size BK7 Wedge Optical Prism, AR Coated

Product description

Wedge prisms are essential for diverging light paths, making them ideal for applications in laser systems and optical devices. Constructed from BK7 glass, these prisms feature anti-reflective coatings that enhance light transmission. With precise angle tolerances of ±1 arc minute and a dimension tolerance of +0/-0.1 mm, they ensure reliable performance in critical optical setups. Sourced from Henan, these prisms can be customized to meet specific project requirements.

Key Features

Angle tolerance of 3’’~3’, ensuring precise beam deviation for accurate optical paths.
Dimension tolerance of +0/-0.1 mm, providing consistency in batch production.
Constructed from BK7 material, offering excellent optical clarity and durability.
AR coating enhances light transmission, improving overall system efficiency.
Customizable options available through OEM, ODM, and OBM support.

Specification Summary

Item	Value
Material	BK7
Shape	Wedge
Size	Custom
Thickness	Custom
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	wedge prism
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Dimension Tolerance	+0/-0.1mm
Angle Tolerance	3’’~3’,±1 arc minute
Use	Diverging light path
Color	transparent

FAQ

What are the angle tolerances for the wedge prism?

The wedge prism has an angle tolerance of 3’’~3’, ±1 arc minute.

Is there a minimum order quantity (MOQ) for these prisms?

The minimum order quantity (MOQ) is not specified.
