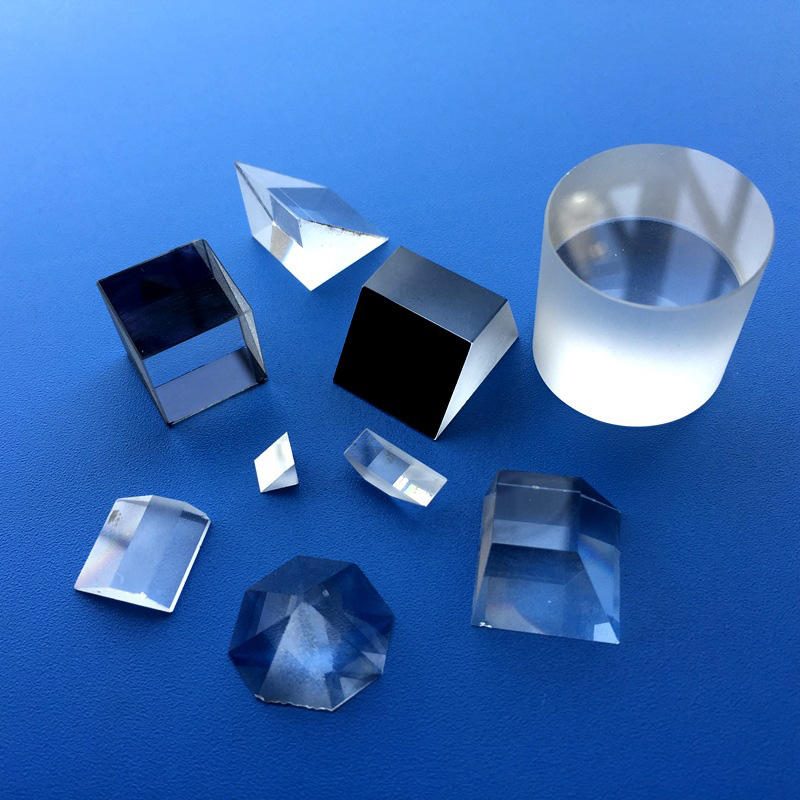

Custom Size BK7 Wedge Optical Prism
Explore BK7 wedge prisms with high surface quality and customizable options for precision optical applications.
Core attributes
- Material
- BK7
- Shape
- Wedge
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 10/20
Product facts
Key attributes
- Material
- BK7
- Shape
- Wedge
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 10/20
Product description
The BK7 wedge prism is designed to redirect light with precision, making it ideal for applications in optical systems where beam deviation is critical. With a surface quality of 10/20, this prism ensures minimal distortion, while its customizable options allow for tailored solutions to fit specific optical paths. The prism’s manufacturing origin in Shandong guarantees reliable sourcing.
Key Features
- Surface quality of 10/20 ensures minimal wavefront distortion.
- Diameter tolerance of ±0.02mm allows for precise integration into optical systems.
- Thickness tolerance of ±0.05mm supports consistent performance across batches.
- Clear aperture greater than 90% maximizes light transmission.
- Bevel specification of <0.25mm*45° enhances ease of handling and installation.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | Wedge |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 10/20 |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 months |
| Diameter Tolerance | ±0.02mm |
| Thickness Tolerance | ±0.05mm |
| Clear Aperture | >90 |
| Bevel | <0.25mm*45° |
FAQ
Can I get custom sizes for the wedge prism?
Custom sizing options are available, supporting OEM, ODM, and OBM requests.
What is the minimum order quantity (MOQ) for this prism?
The minimum order quantity is not specified; please inquire for details.
