1 / 6Optical Prisms

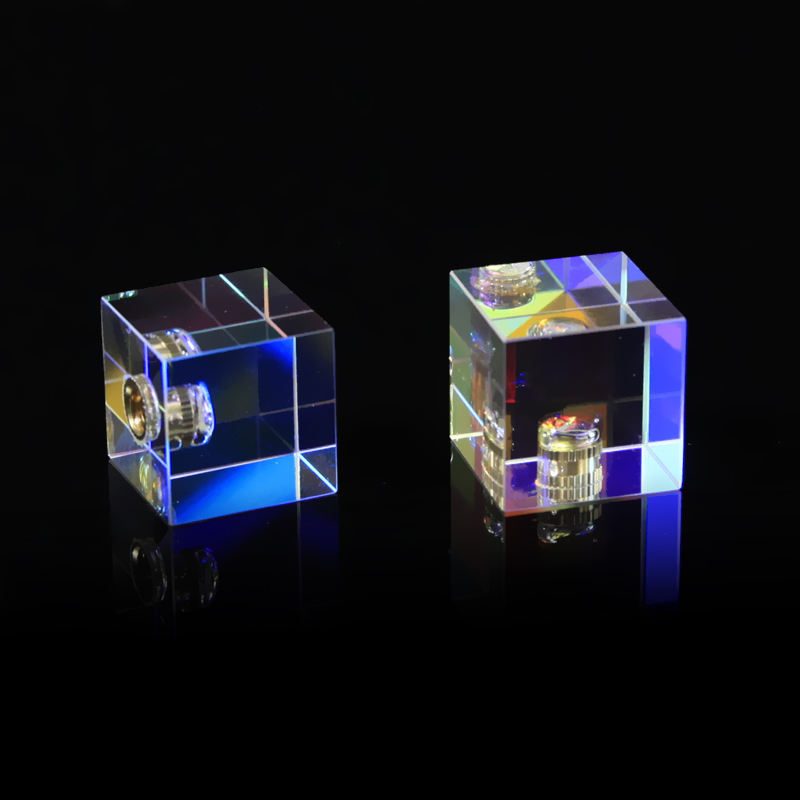

25 mm BK7 X-cube Optical Prism, AR Coated
Explore the X-Cube prism for efficient beam splitting in optical systems, featuring L/4 flatness and AR coatings.
Core attributes
- Material
- BK7
- Shape
- X-cube
- Size
- 25 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- BK7
- Shape
- X-cube
- Size
- 25 mm
- Thickness
- Custom
- Coating
- anti-reflective (AR)
Product description
The X-Cube prism is designed for efficient beam splitting and combining in optical systems. With a size of 25mm x 25mm and a flatness of L/4, it ensures minimal wavefront distortion. Coated with anti-reflective (AR) coatings, this prism enhances transmittance, making it ideal for applications in laser and optical systems. Its BK7 material offers excellent optical clarity and durability.
Key Features
- Size: 25mm x 25mm, fitting standard optical paths.
- Flatness: L/4, ensuring high wavefront integrity.
- Material: BK7, providing excellent optical performance.
- AR Coating, enhancing transmittance for better light efficiency.
- Size Tolerance: +/-0.5mm, allowing for precise integration.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | X-cube |
| Size | 25 mm |
| Thickness | Custom |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Cube Prisms |
| Color | +/-0.1mm |
| Flatness | L/4 |
| Materail | BK7 /K9 QUARTZ/ SAPPHIRE |
| Clear Aperture | 80%~95% |
| Size Tolerance | +/-0.5MM |
FAQ
Is custom sizing available?
Custom sizing options are not specified.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
