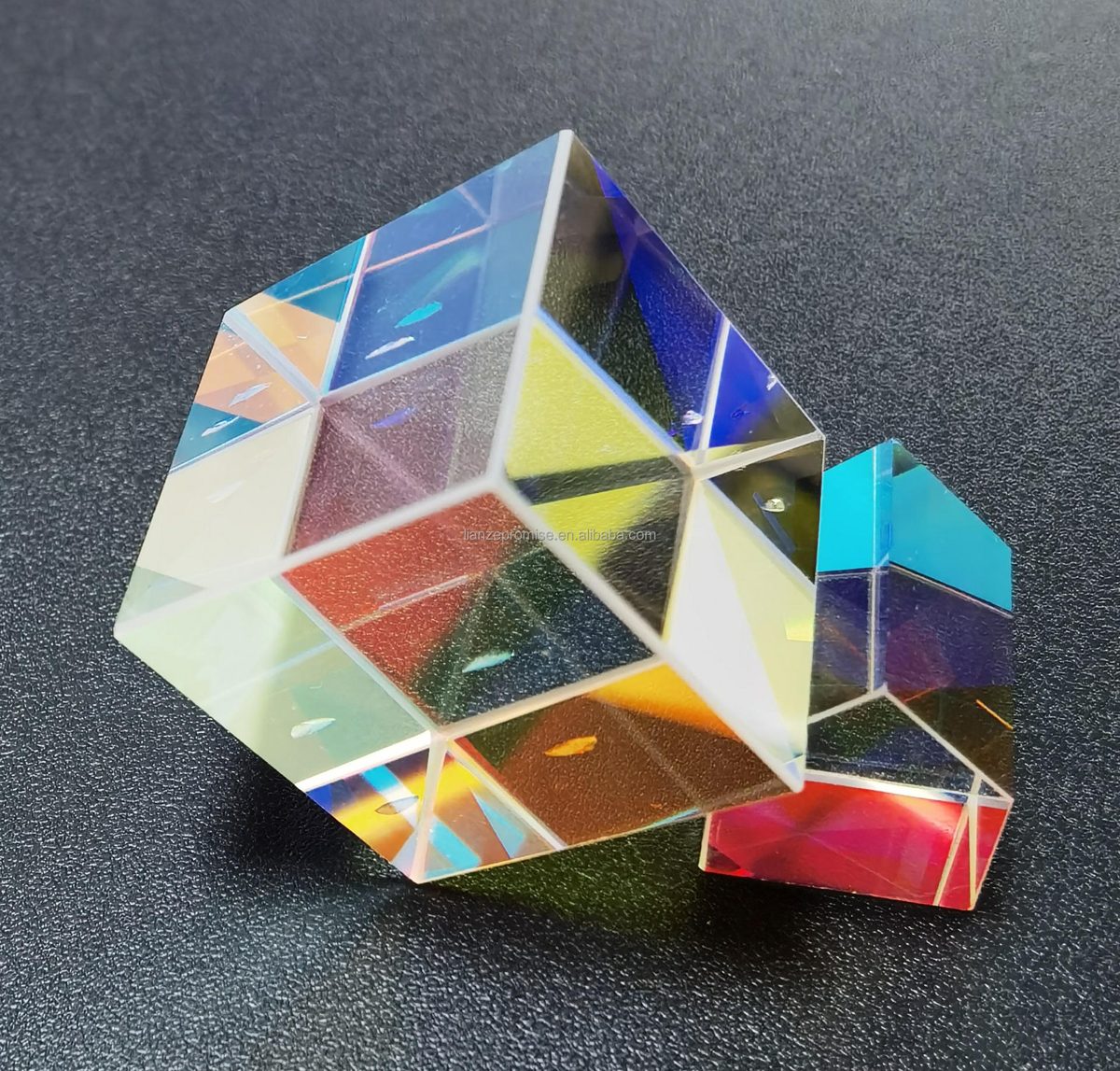

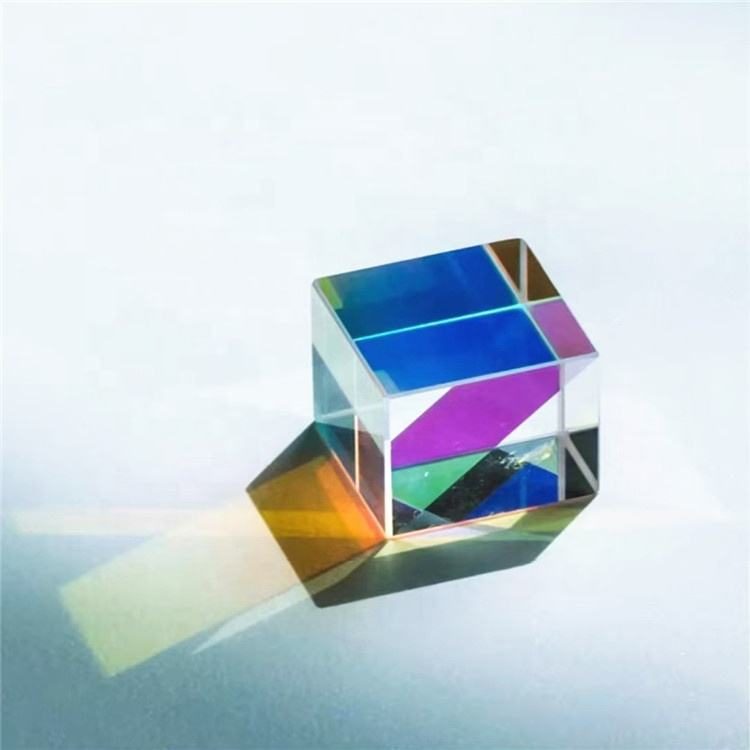

25 mm BK7 X-cube Optical Prism

Product description

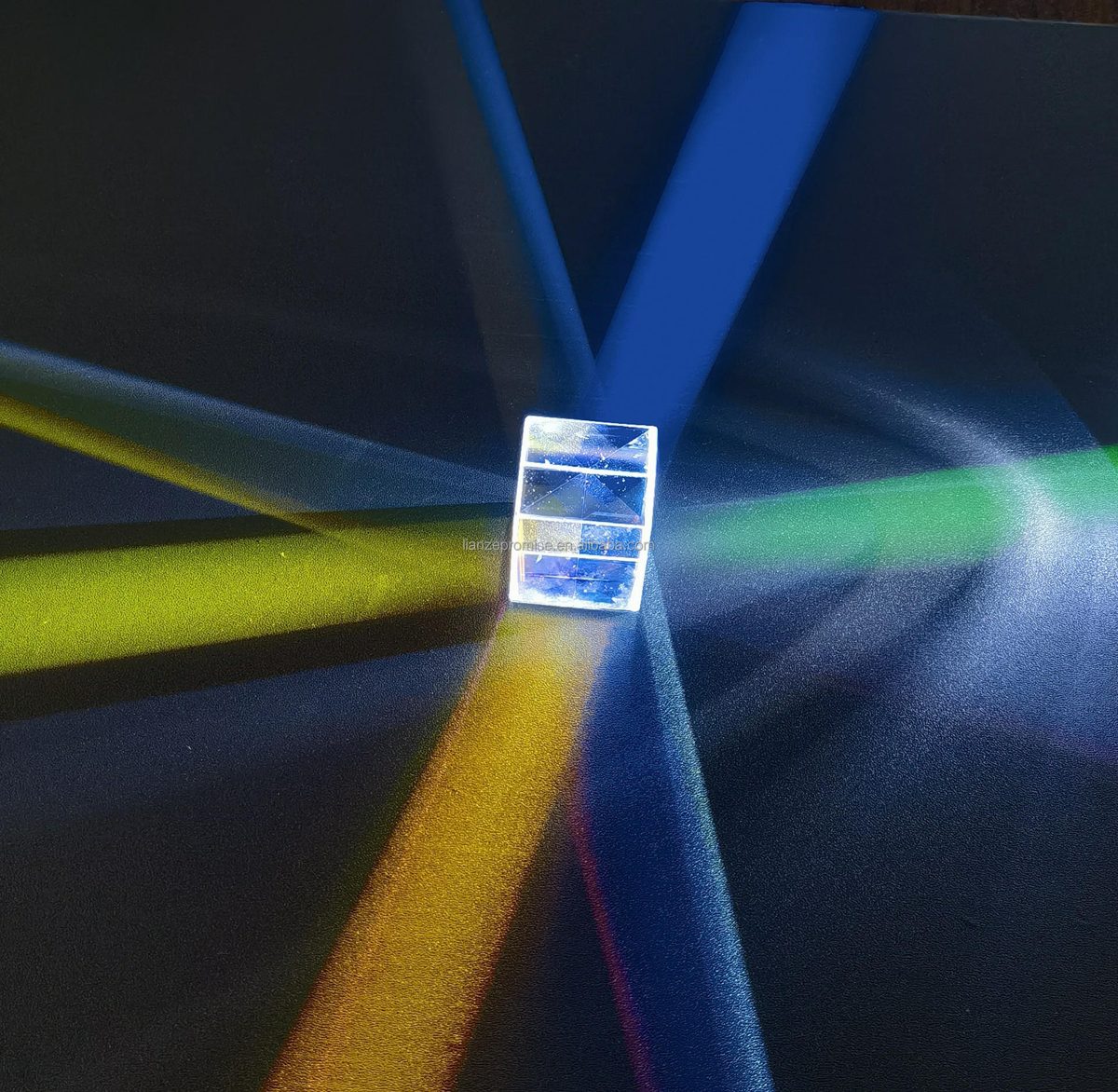

The X-Cube prism is designed for applications requiring precise beam splitting and combining, ideal for laser and optical systems. Made from BK7, this prism offers a surface quality of 60/40 and a flatness of 1/4, ensuring high wavefront integrity. With customizable dimensions and angle tolerances, it meets the needs of various optical setups, providing reliable performance in demanding environments.

Key Features

Surface quality of 60/40 ensures minimal distortion for accurate optical performance.
Angle tolerance of 3 degrees or customizable for precise alignment in optical paths.
Dimension tolerance of +/-0.1mm supports exact fitting in complex assemblies.
Optical level chamfering available to enhance integration with other components.
Custom OEM, ODM, and OBM support for tailored solutions to specific project needs.

Specification Summary

Item	Value
Material	BK7
Shape	X-cube
Size	25 mm
Thickness	Custom
Surface Quality	60/40

Full Specifications

Parameter	Value
Prism Type	Corner Cube, Right Angle Prism
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Chamfer	optical level as needed
Surface Flatness	1/4
Dimension Tolerance	+/-0.1mm
Angle Tolerance	3 or customize

FAQ

Can I get custom sizes for the X-Cube prism?

Yes, the X-Cube prism offers customizable dimensions to fit specific optical requirements.

What is the angle tolerance for this prism?

The angle tolerance is 3 degrees, with options for customization based on application needs.
