1 / 6Optical Prisms

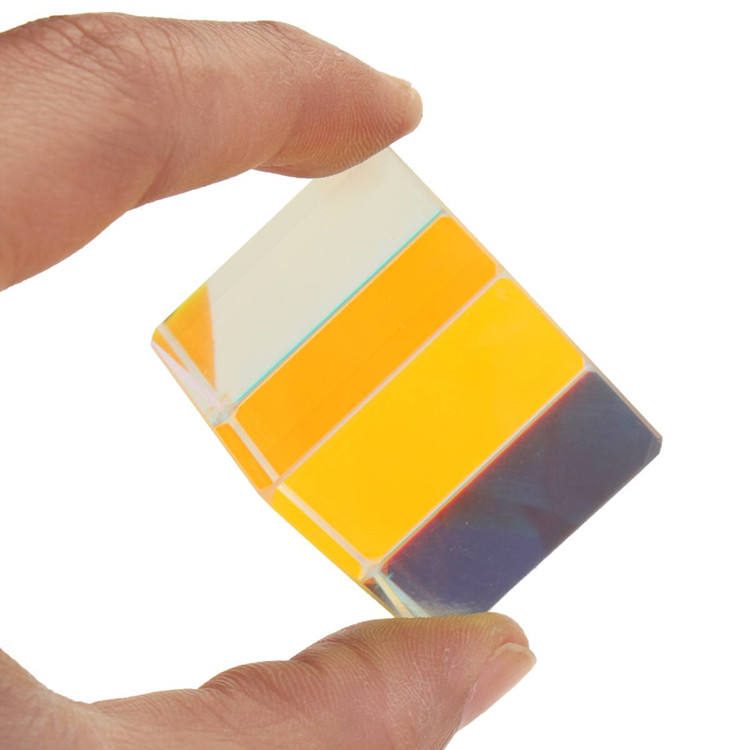

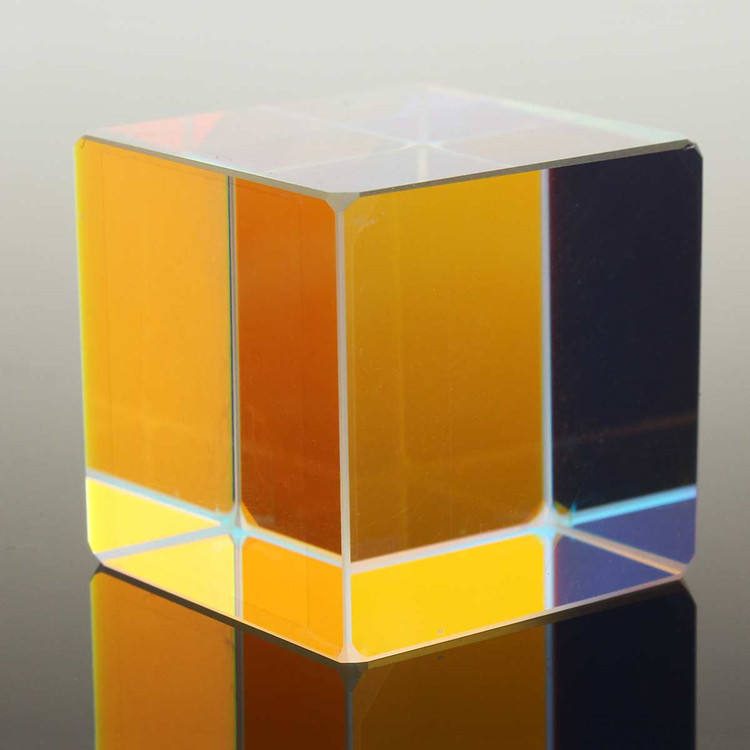

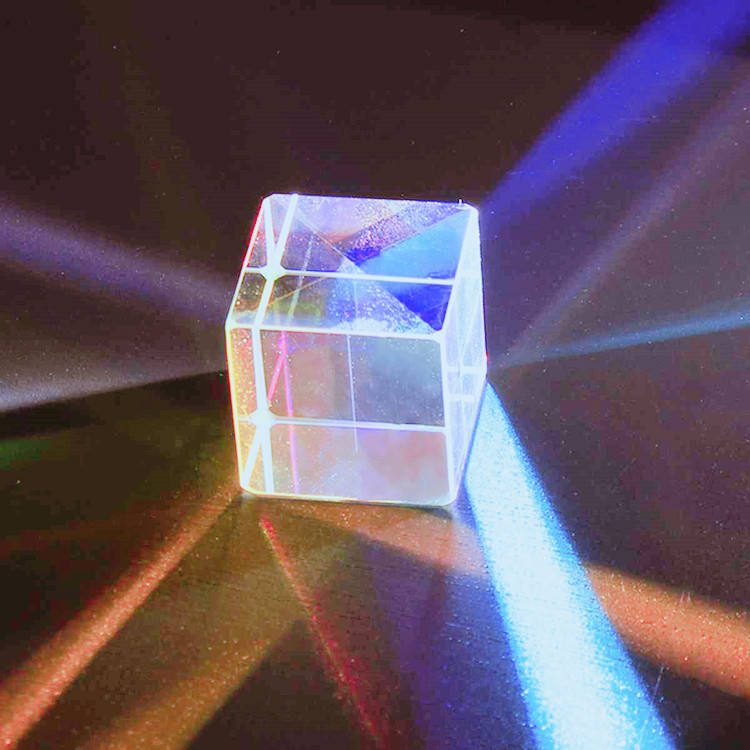

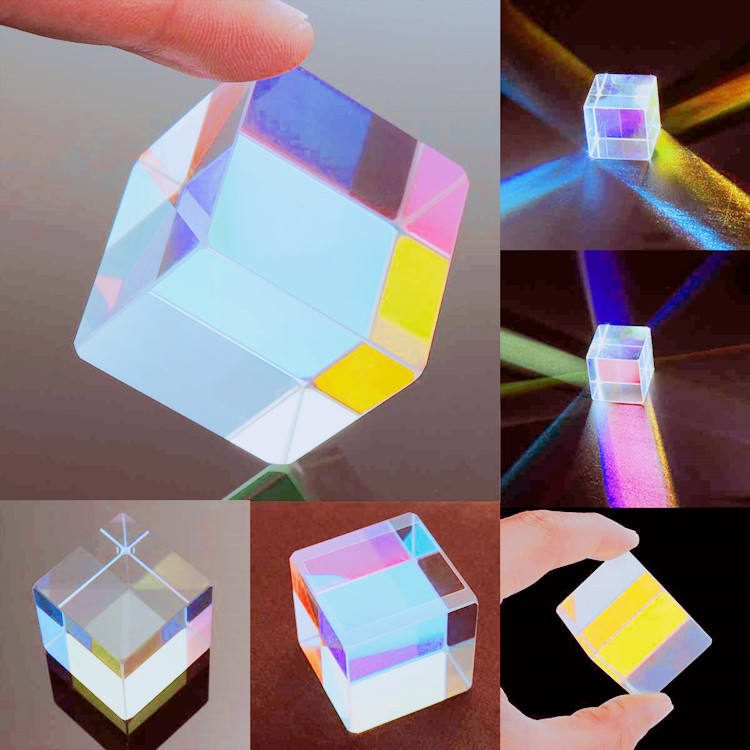

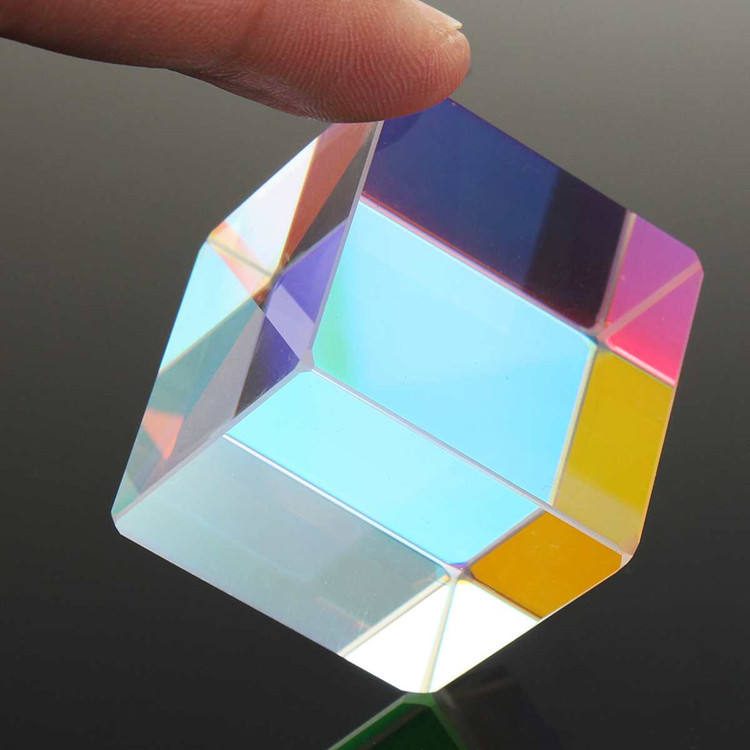

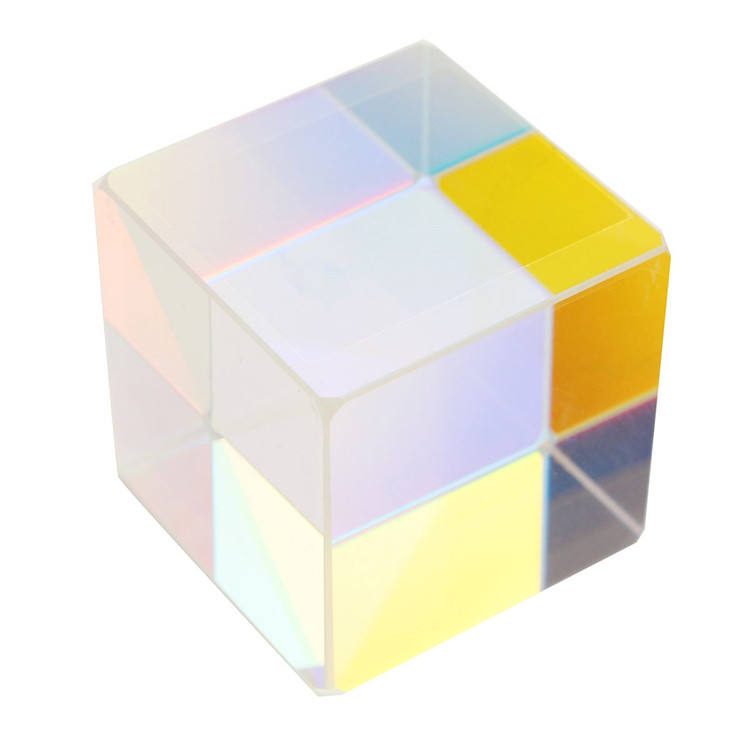

30 mm BK7 X-cube Optical Prism
Discover the X-Cube Prism for RGB applications, offering precise color manipulation and OEM customization support.
Core attributes
- Material
- BK7
- Shape
- X-cube
- Size
- 30 mm
- Thickness
- Custom
Product facts
Key attributes
- Material
- BK7
- Shape
- X-cube
- Size
- 30 mm
- Thickness
- Custom
Product description
The X-Cube Prism is designed for optical applications requiring precise color separation and combination. Ideal for RGB applications, this prism facilitates efficient light manipulation with a clear transparent finish. Its robust construction ensures consistent performance in various environments, making it suitable for integration into complex optical systems.
Key Features
- Clear transparent color enhances light transmission and visibility.
- Diameter tolerance of +/-0.05 mm ensures precise fitting in optical assemblies.
- Flatness specification of 1/4 enhances wavefront integrity for critical applications.
- 80%~95% clear aperture maximizes light throughput for improved efficiency.
- OEM customization support available for tailored optical solutions.
Specification Summary
| Item | Value |
|---|---|
| Material | BK7 |
| Shape | X-cube |
| Size | 30 mm |
| Thickness | Custom |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | RGB |
| Customized Support | OEM |
| Color | Clear Transparent |
| Clear Aperture | 80%~95% |
| Diameter Tolerance | +/-0.05 |
| Flatness | 1/4 |
| Package | Safe Packing |
FAQ
Can I get custom sizes for the X-Cube Prism?
OEM customization support is available, allowing for tailored optical solutions.
What is the diameter tolerance of the prism?
The diameter tolerance is +/-0.05 mm, ensuring precise fitting.
Product inquiry
Request a quote
Share your application and target specifications. Optional optical details help clarify the request.
