1 / 6Optical Filters
Custom Size Borofloat Round Optical Filter
High-performance bandpass filter for fluorescence microscopy with >90% transmittance and excellent blocking capabilities.
Core attributes
- Material
- Borofloat
- Shape
- Round
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 615nm
- Fwhm
- 30nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- Borofloat
- Shape
- Round
- Size
- Custom
- Thickness
- Custom
- Transmittance
- 90%
- Filter Type
- bandpass
- Cwl
- 615nm
- Fwhm
- 30nm
- Coating
- hard-coat
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description

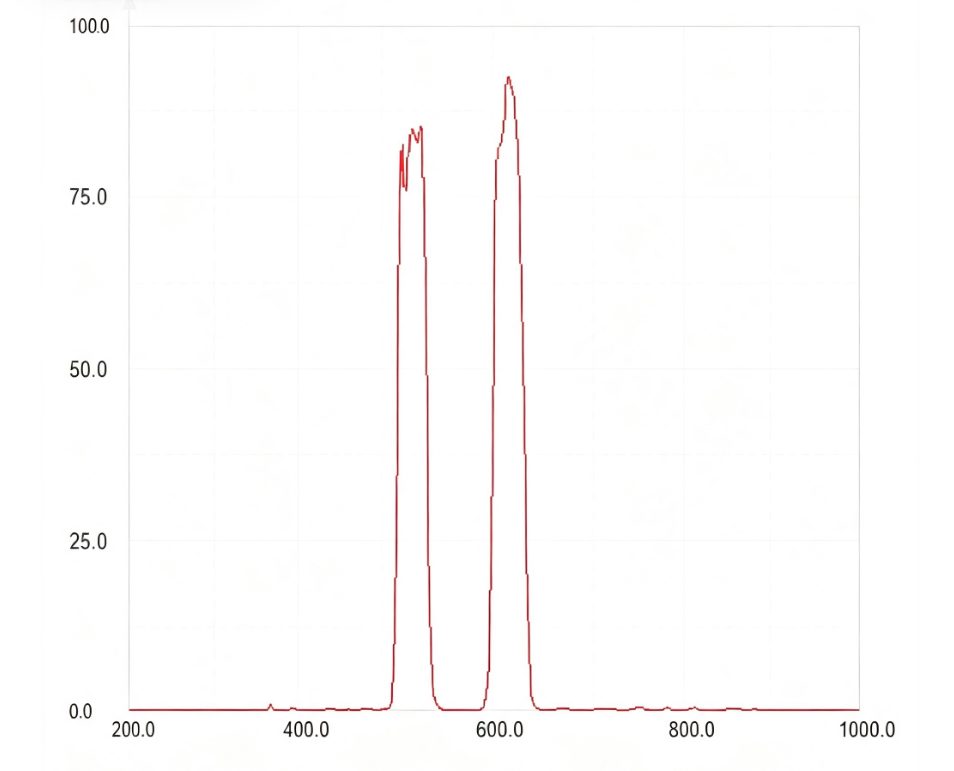

This bandpass filter is designed for fluorescence microscopy and medical applications, effectively transmitting dual fluorescence wavelengths at 530-535 nm and 610-615 nm with over 90% transmittance. Its 30 nm FWHM ensures precise signal acquisition while blocking stray light from 200-1200 nm, enhancing detection sensitivity and providing a clean imaging background. The durable hard coating ensures reliability under varying environmental conditions, making it ideal for long-term use in demanding research settings.
Key Features
- Transmittance >90% for enhanced fluorescence signal detection.
- Dual bandpass design for simultaneous transmission of key wavelengths.
- Broad blocking range (200-1200 nm) with OD3 for reduced background noise.
- Durable hard coating for moisture and scratch resistance.
- High-grade Schott D263T glass for superior optical performance.
Applications
Fluorescence, Microscopy, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | Borofloat |
| Shape | Round |
| Size | Custom |
| Thickness | Custom |
| Transmittance | 90% |
| Filter Type | bandpass |
| Cwl | 615nm |
| Fwhm | 30nm |
| Coating | hard-coat |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | >90% |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
FAQ
Can I get custom sizes?
The filter is customizable with OEM, ODM, and OBM support.
What is the minimum order quantity?
Minimum order quantity details are not specified.
