1 / 6Optical Windows

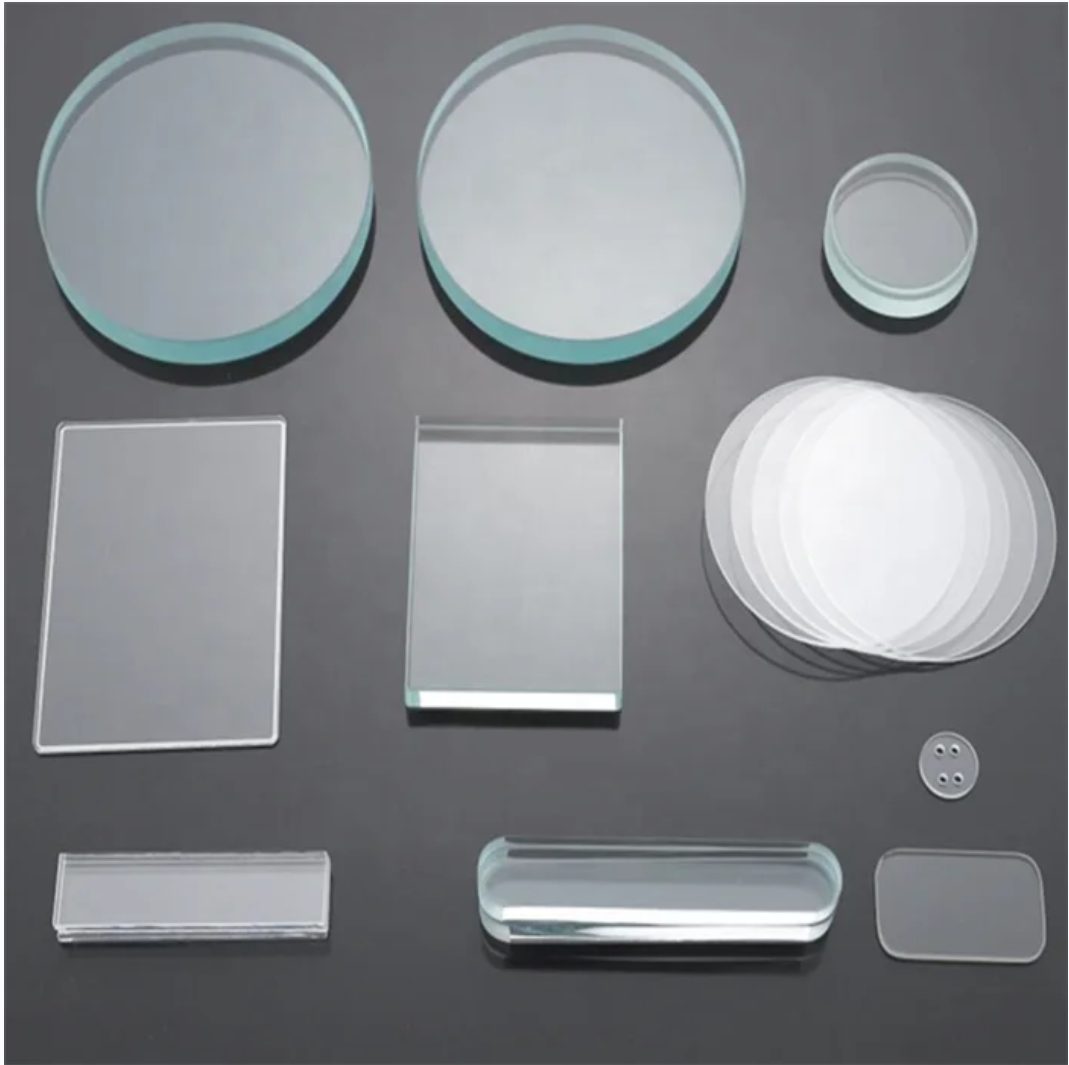

Custom Size Borosilicate Optical Window, AR Coated
High-temperature borosilicate glass lens with customizable thickness and excellent transmission for optical applications.
Core attributes
- Material
- Borosilicate
- Thickness
- 0.3–30 mm
- Coating
- ar
Product facts
Key attributes
- Material
- Borosilicate
- Thickness
- 0.3–30 mm
- Coating
- ar
Product description
This optical polished flat borosilicate glass lens is designed for high-temperature applications, providing excellent performance in the 400-700 nm wavelength range. With a transmission rate exceeding 90% and anti-reflective coatings, it is ideal for use in optical equipment requiring clarity and durability. The lens can be customized in thickness from 0.3 mm to 30 mm, ensuring versatility for various applications.
Key Features
- Transmission greater than 90% for optimal light passage
- Custom thickness options from 0.3 mm to 30 mm for tailored solutions
- AR coatings achieving over 99% transmission on both sides
- Surface quality rated at 40/20 for superior clarity
- Flatness of 1/4 Lambda @ 632.8 nm for precise imaging
Specification Summary
| Item | Value |
|---|---|
| Material | Borosilicate |
| Diameter | Custom |
| Thickness | 0.3 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Substrate | Borosilicate glass |
| Color | Clear Transparent |
| Transmission | T>90% |
| Bevel | 0.1-0.3mm X45 Degree |
| Flatness | 1/4Lambda @632.8nm |
FAQ
Can I get custom sizes for this lens?
Yes, the lens thickness can be customized from 0.3 mm to 30 mm.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexibility in procurement.
