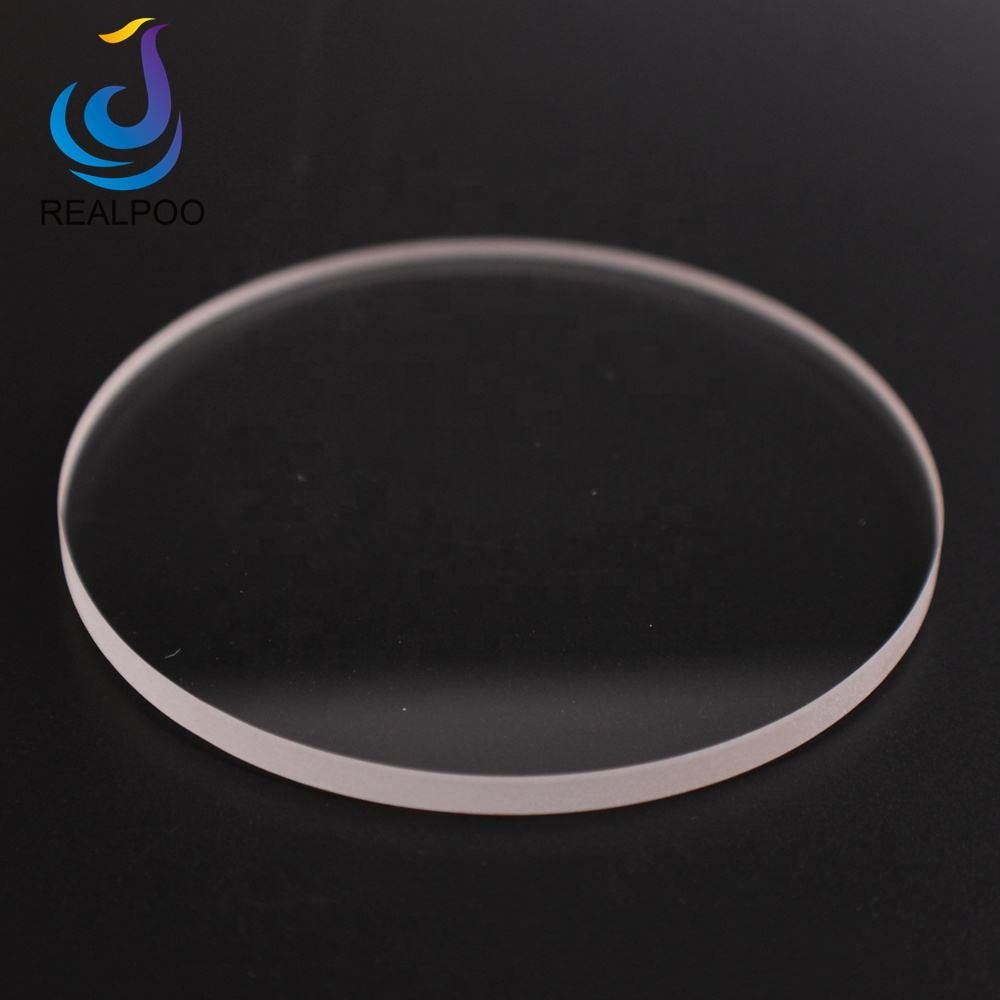

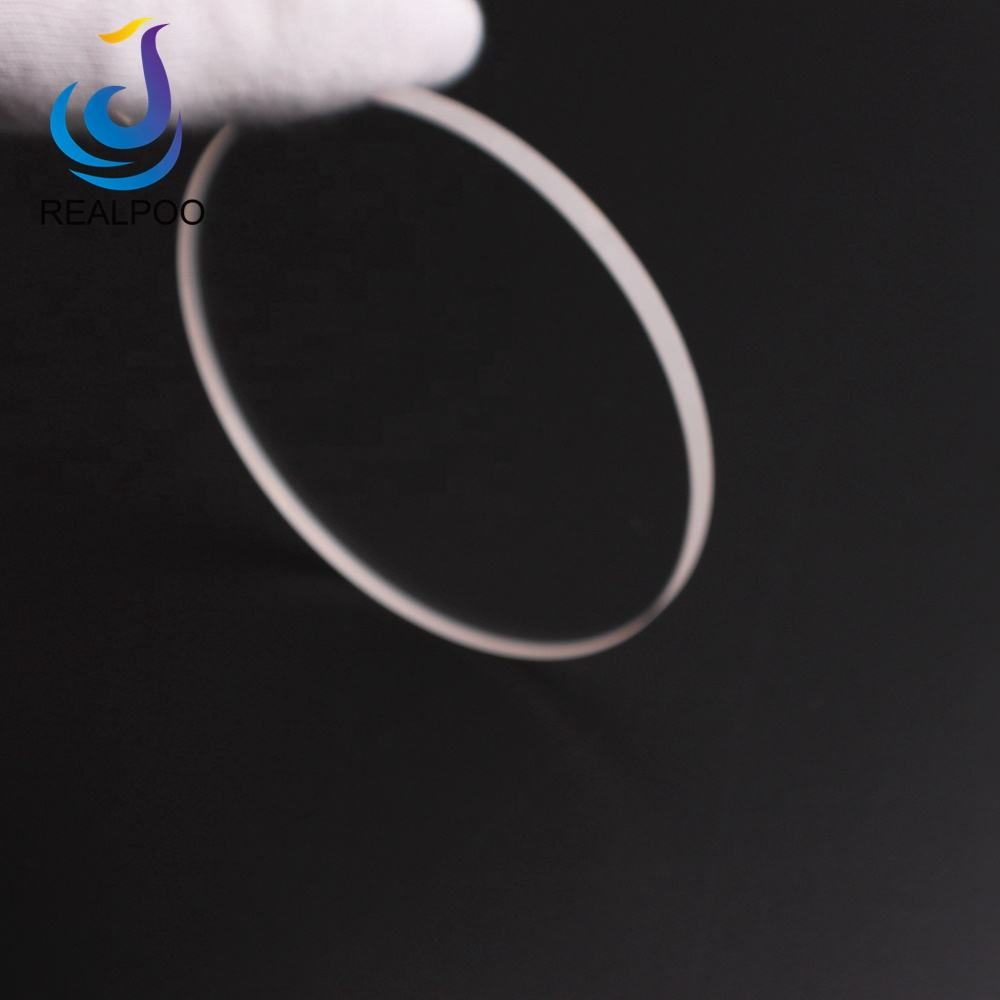

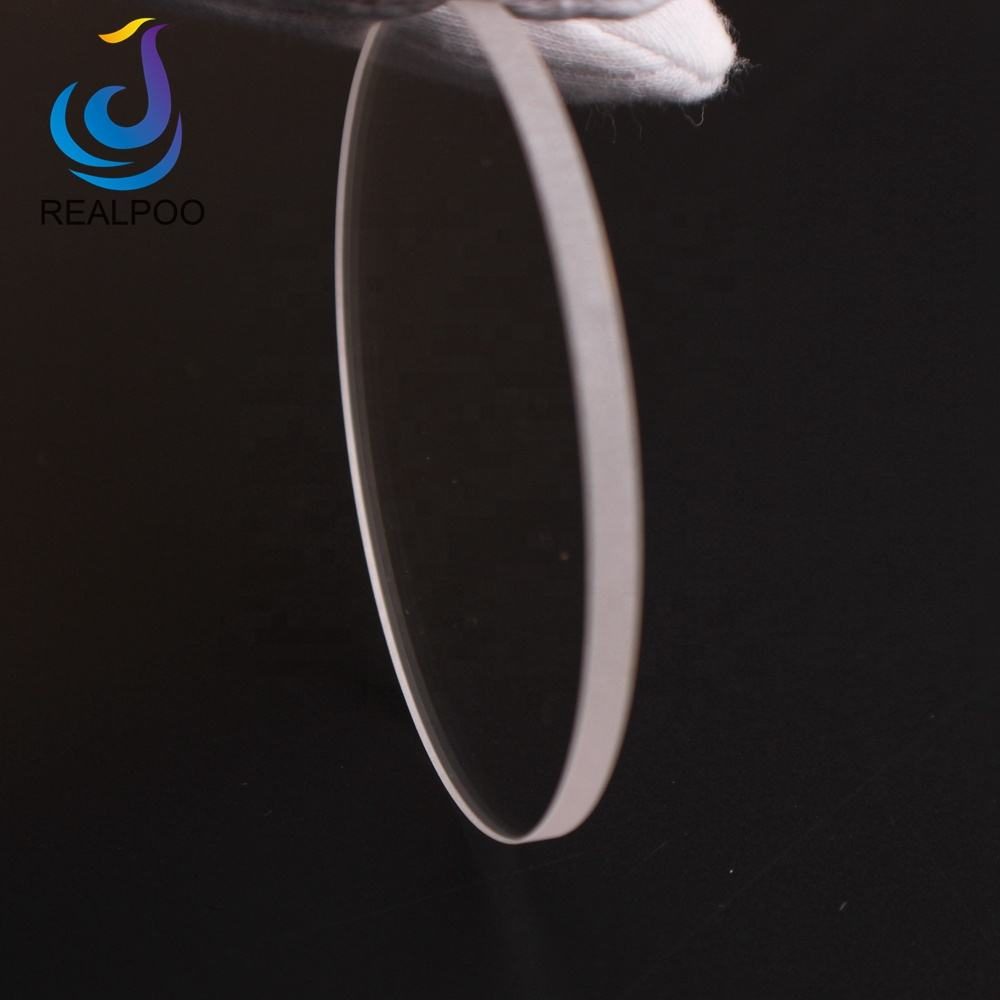

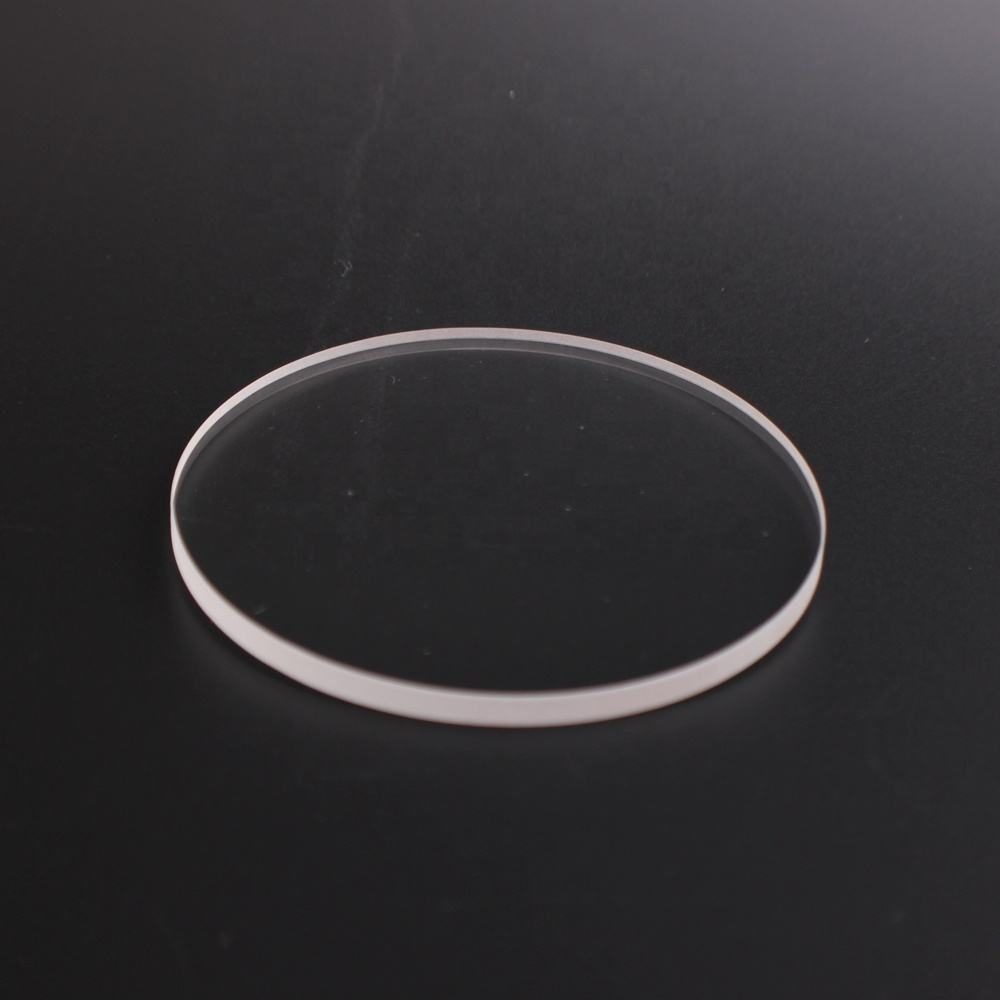

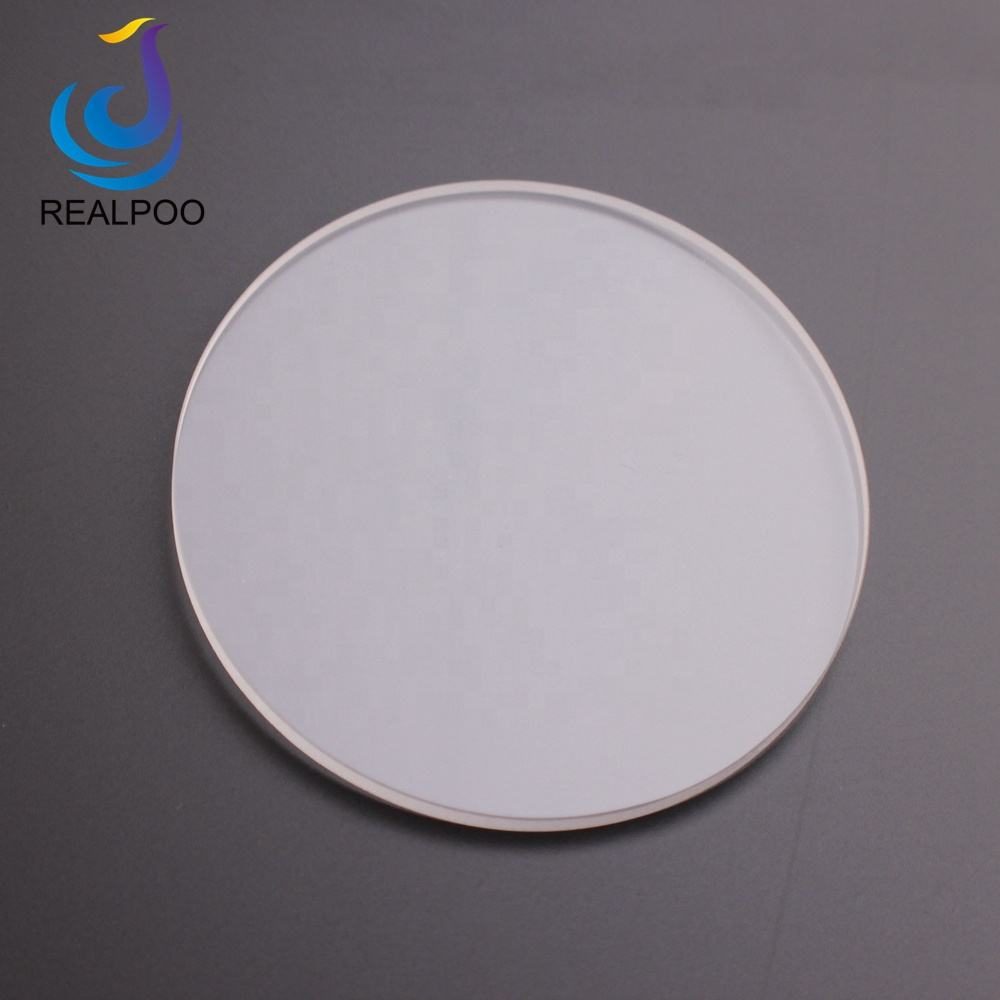

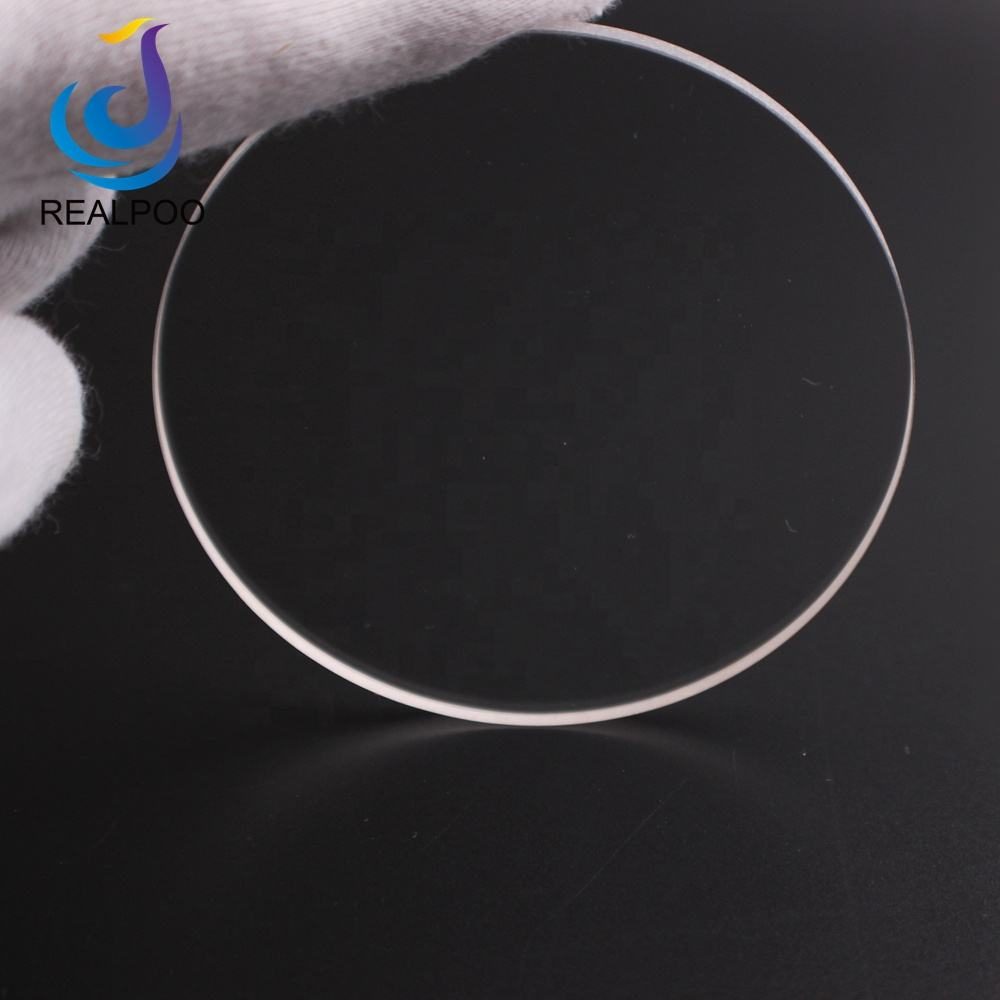

100x2.2 mm Borosilicate Round Optical Window

Product description

This round borosilicate optical window is designed to protect sensitive optical components while allowing light transmission. With a diameter of 100 mm and a thickness of 2.25 mm, it meets the needs of various applications in optical instruments. The surface quality rating of 60/40 ensures adequate clarity and performance for demanding environments, making it suitable for IR imaging, LIDAR, and laser applications.

Key Features

Diameter: 100 mm, providing a standard fit for many optical systems.
Thickness: 2.25 mm, ensuring durability and robustness.
Surface Quality: 60/40, offering reliable optical performance.
Customizable sizes available, including a variant of 100 mm diameter and 2.2 mm thickness.
Tolerance: Diameter +0.0, -0.1 mm; Thickness ±0.1 mm, ensuring precise fitting.

Available Sizes

Diameter x Thickness (mm)
100 x 2.2

Specification Summary

Item	Value
Material	Borosilicate
Shape	Round
Diameter	100 mm
Thickness	2.2 mm
Surface Quality	60/40
MOQ	—

Full Specifications

Parameter	Value
Type	Window
Customized Support	OEM, ODM, OBM
Warranty	1 year
Weight	0.2
Diameter Tolerance	+0.0, -0.1mm
Thickness Tolerance	±0.1mm
Chamfer	Protective Bevel

FAQ

Is custom sizing available?

Yes, customizable sizes are available, including a variant size of 100 mm diameter and 2.2 mm thickness.

What are the tolerances for diameter and thickness?

Diameter tolerance is +0.0, -0.1 mm, and thickness tolerance is ±0.1 mm.
