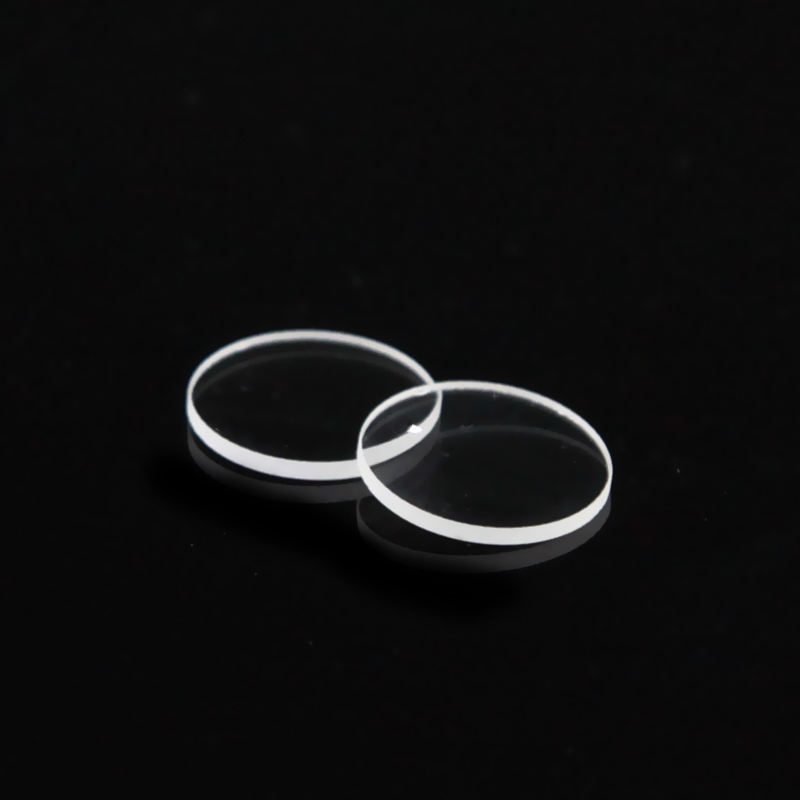

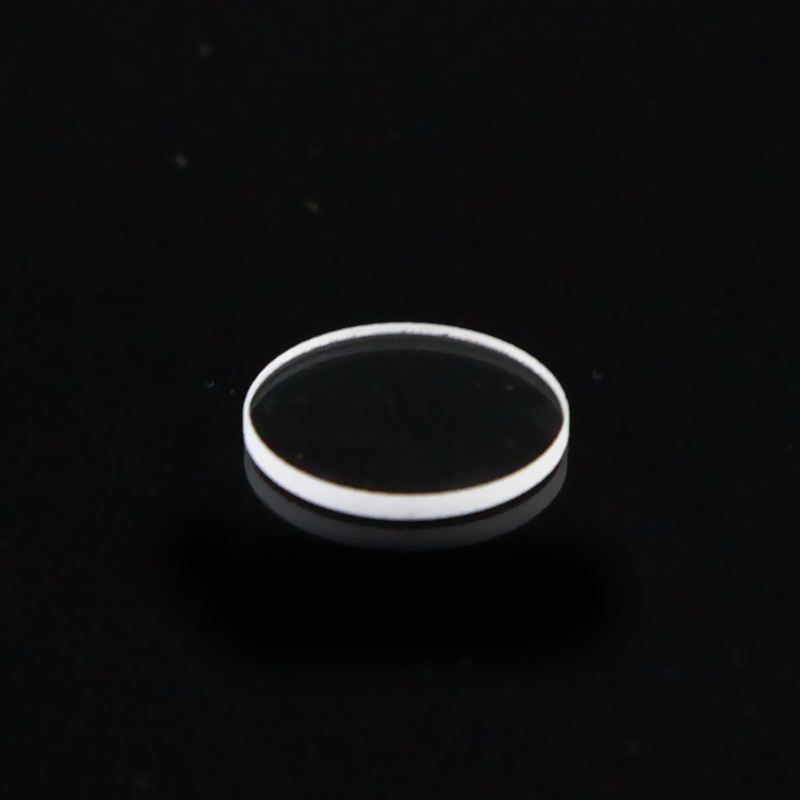

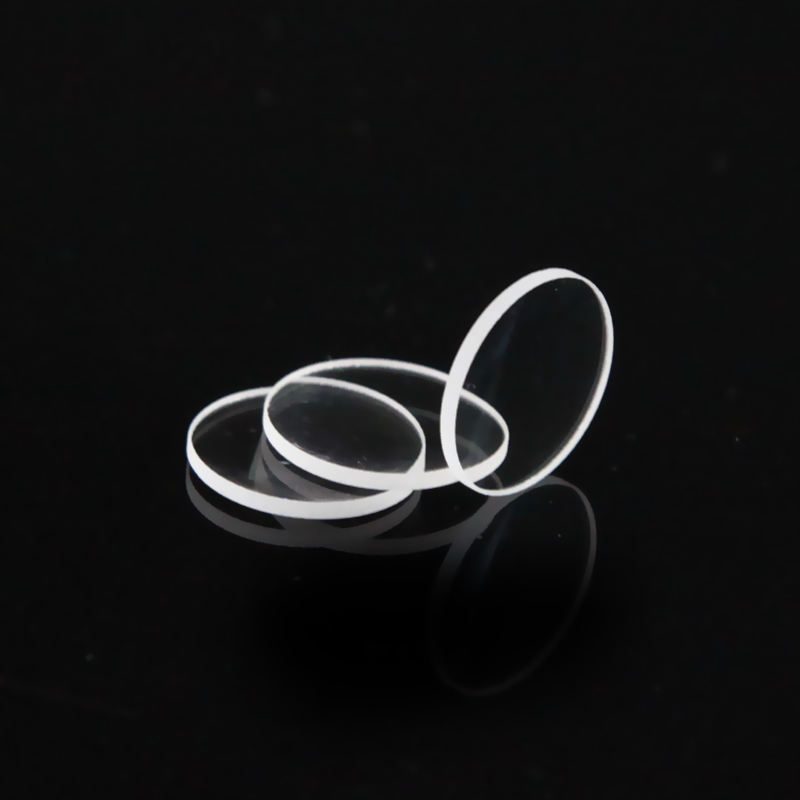

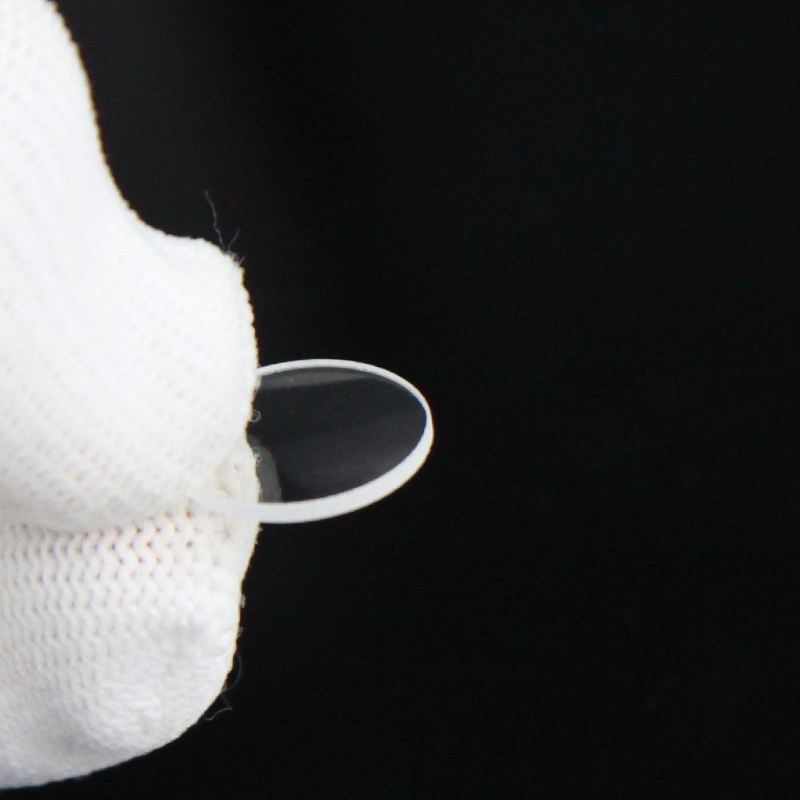

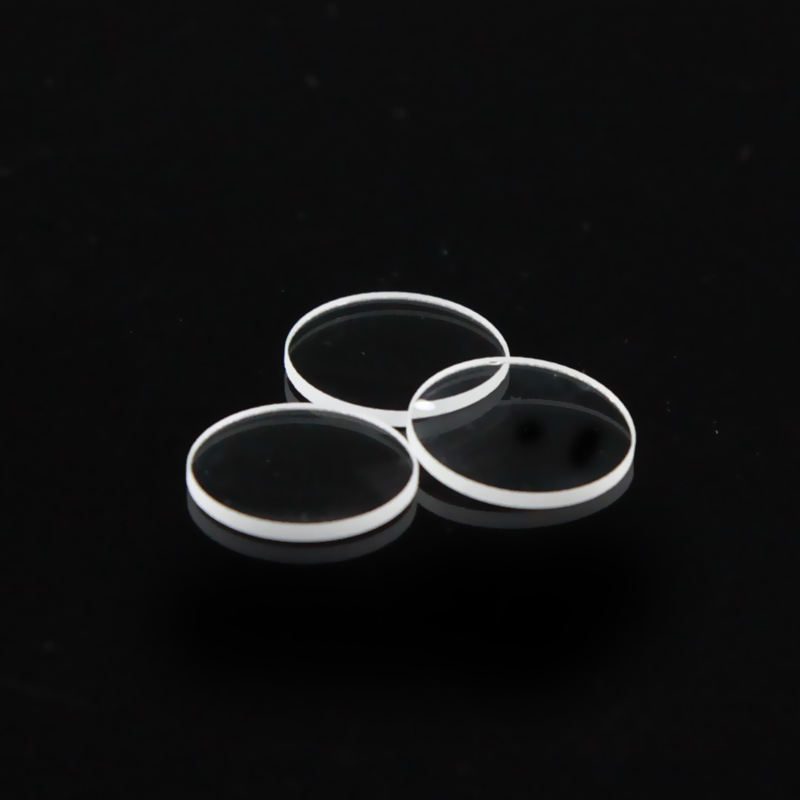

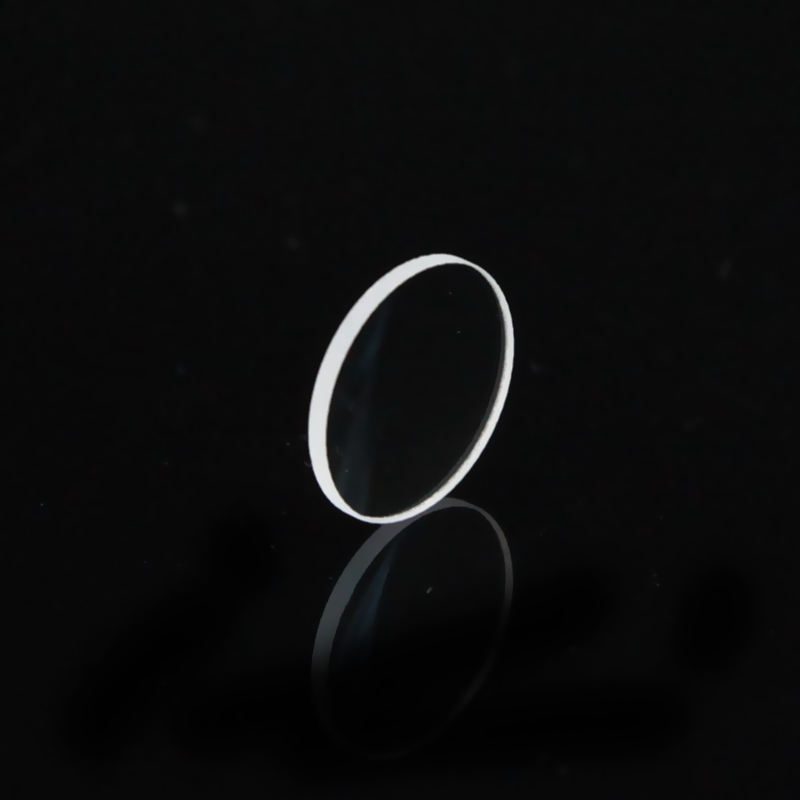

60x1.1 mm Borosilicate Round Optical Window, AR Coated

Product description

This round borosilicate glass optical window plate is designed for applications in the 0.7-1.7 μm wavelength range, providing excellent protection for sensitive optical equipment. With a thickness of 1.1 mm and a diameter of 60 mm, it ensures high durability and reliability. The window features anti-reflective coatings, enhancing transmittance and minimizing losses, making it ideal for LIDAR, IR imaging, and laser applications.

Key Features

Wavelength range: 0.7-1.7 μm for versatile application in IR and laser technologies.
Diameter: 60 mm with a tolerance of +/-0.1 mm ensuring precise fit.
Surface quality of 40/20 for reduced scattering and improved optical performance.
Customizable options available for OEM and ODM projects to meet specific needs.
Clear aperture of >=80% of diameter for optimal light transmission.

Available Sizes

Diameter x Thickness (mm)
60 x 1.1

Specification Summary

Item	Value
Material	Borosilicate
Shape	Round
Diameter	60 mm
Thickness	1.1 mm
Surface Quality	40/20
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)
MOQ	—

Full Specifications

Parameter	Value
Prism Type	window plate
Customized Support	OEM, ODM
Diameter Tolerance	+/-0.1
Surface Flatness	1/4@633nm
Clear Aperture	>=central 80% of diameter

FAQ

Can I get custom sizes?

Yes, custom sizes are available, including diameter and thickness adjustments.

What is the diameter tolerance?

The diameter tolerance is +/-0.1 mm, ensuring a precise fit for your application.
