1 / 6Lenses

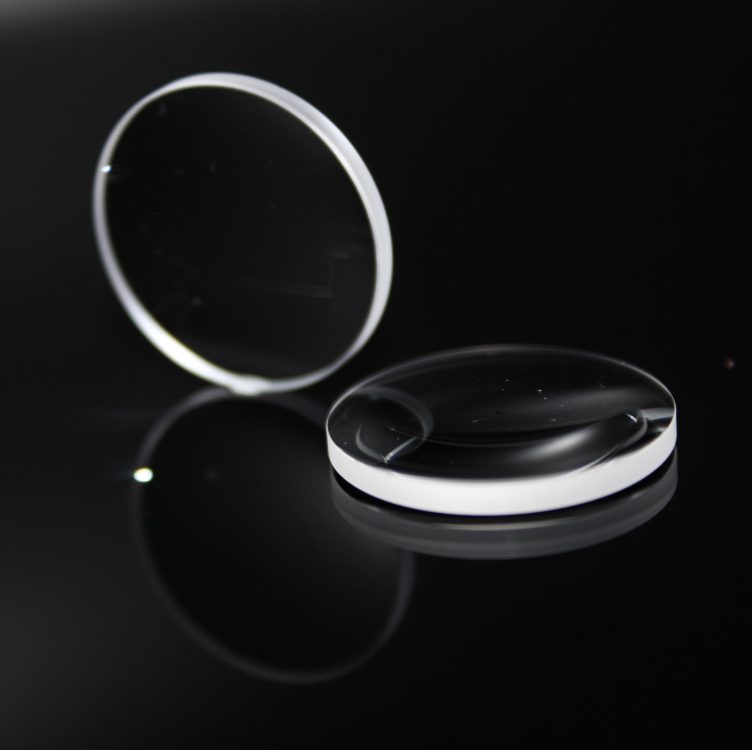

5 mm CaF2 Biconvex Lens, AR Coated
Biconvex CaF2 lens for medical and semiconductor applications, customizable from 5 mm to 400 mm with high surface quality.
Core attributes
- Material
- CaF2
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- CaF2
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product description
This biconvex lens made from calcium fluoride (CaF2) is designed for applications in the medical and semiconductor fields, particularly for wavelengths below 400 nm. Its high surface quality of 40/20 ensures minimal distortion, making it ideal for precision optical systems. The lens features anti-reflective coatings to enhance transmittance, while its customizable diameter range from 5 mm to 400 mm accommodates various design requirements, ensuring versatility in R&D and production environments.
Key Features
- Diameter range of 5 mm to 400 mm for versatile applications.
- Surface quality of 40/20 ensures high precision for optical performance.
- Customizable with OEM, ODM, and OBM support for tailored solutions.
- AR coatings enhance transmittance for improved efficiency.
- ISO9001 certification ensures reliability in manufacturing processes.
Applications
Medical, Semiconductor
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Shape | Biconvex |
| Diameter | 5 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR) |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 months |
| Weight | 0.5kg |
| Diameter Tolerance | 0/-0.05mm |
| Flatness | 30" |
| Certification | ISO9001 |
FAQ
What is the diameter tolerance for this lens?
The diameter tolerance is +/-0.05 mm.
Can I get custom sizes for this lens?
Yes, the lens is customizable with a diameter range from 5 mm to 400 mm.
