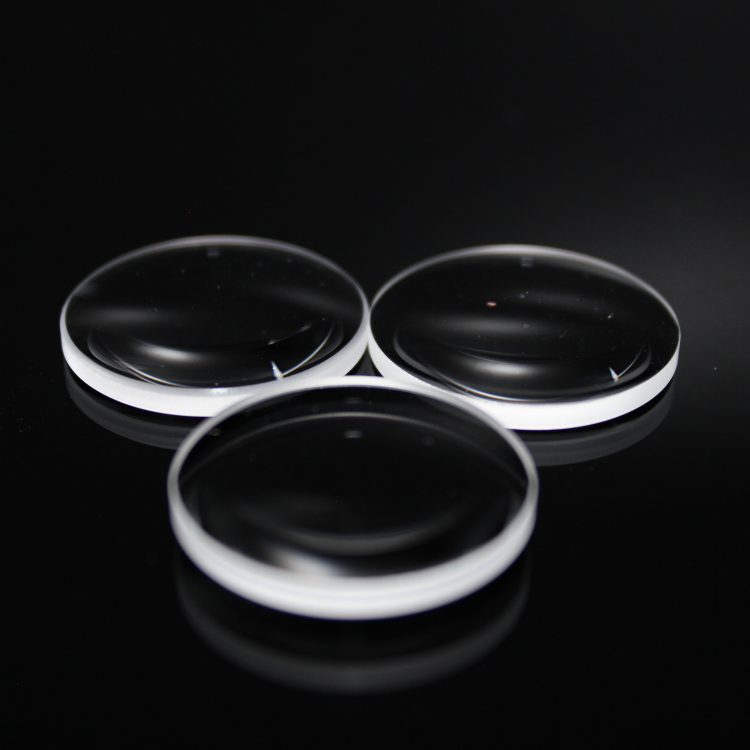

5 mm CaF2 Biconvex Lens, AR Coated
Biconvex CaF2 lens for UV applications, customizable sizes, high surface quality, and reliable performance.
Core attributes
- Material
- CaF2
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), high-reflective (HR), diamond-like carbon (DLC)

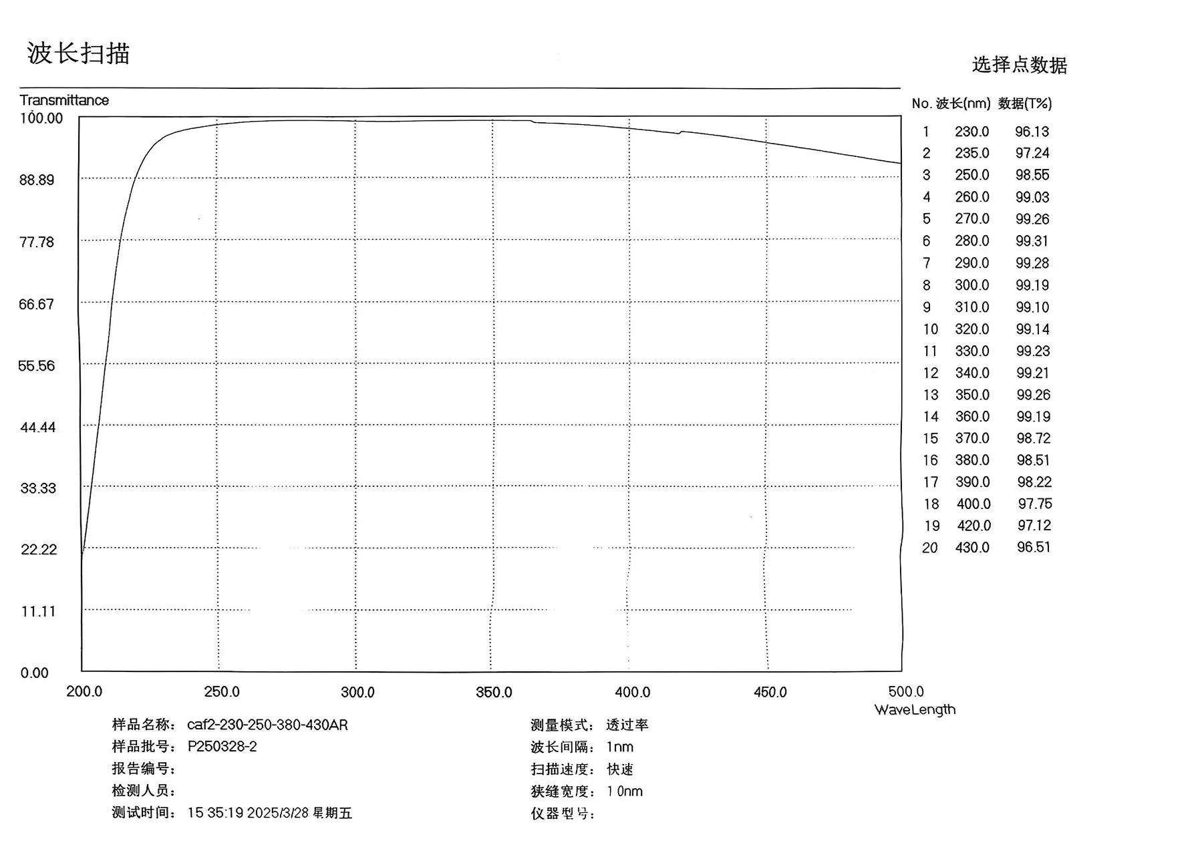

- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- CaF2
- Shape
- Biconvex
- Diameter
- 5 mm
- Surface Quality
- 40/20
- Coating
- anti-reflective (AR), high-reflective (HR), diamond-like carbon (DLC)
- Transmission bands
- UV (<400 nm)
Product description
This biconvex lens made from single crystal calcium fluoride (CaF2) is designed for applications requiring high transmittance in the UV spectrum, specifically below 400 nm. With a diameter range from 5.0 mm to 400.0 mm and a surface quality of 40/20, it provides excellent optical performance. Ideal for UV imaging, laser applications, and precision optics, this lens ensures reliable performance in demanding environments. Custom sizes and coatings are available to meet specific application needs.
Key Features
- Diameter range: 5.0 mm to 400.0 mm for versatile application fit.
- Surface quality of 40/20 ensures high optical performance.
- Customizable coatings including AR, HR, and DLC for tailored performance.
- Diameter tolerance of 0/-0.05 mm for precise integration.
- Manufactured under ISO9001 certification for reliable quality.
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Shape | Biconvex |
| Diameter | 5 mm |
| Surface Quality | 40/20 |
| Coating | anti-reflective (AR), high-reflective (HR), diamond-like carbon (DLC) |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 months |
| Weight | 0.5kg |
| Diameter Tolerance | 0/-0.05mm |
| Flatness | 30" |
| Certification | ISO9001 |
FAQ
What custom sizes are available?
The lens can be customized in diameter from 5 mm to 400 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
