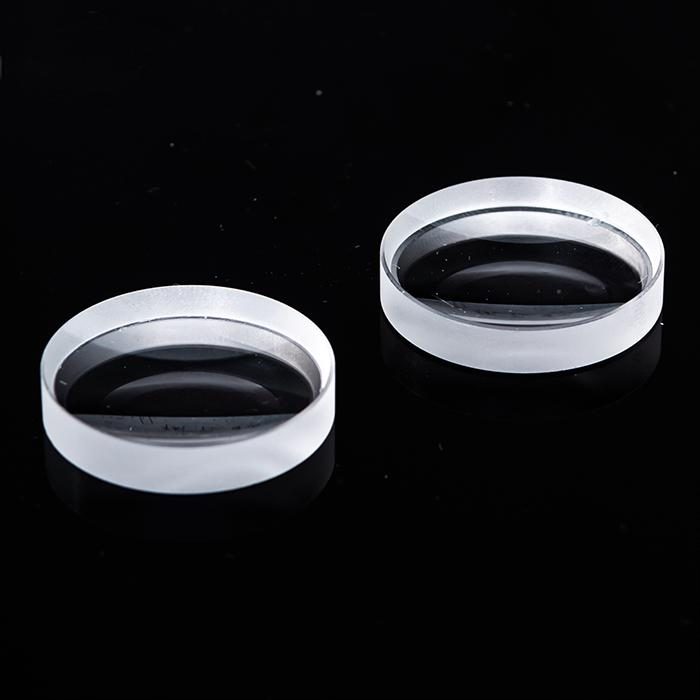

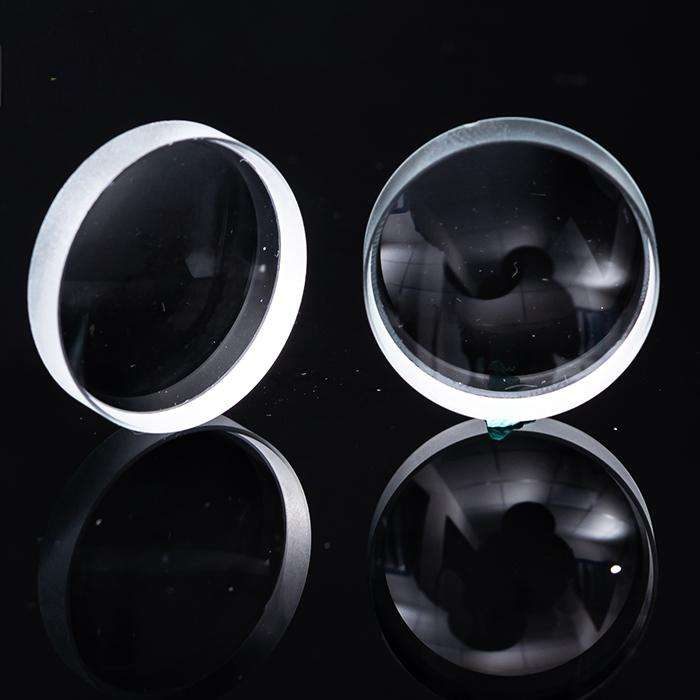

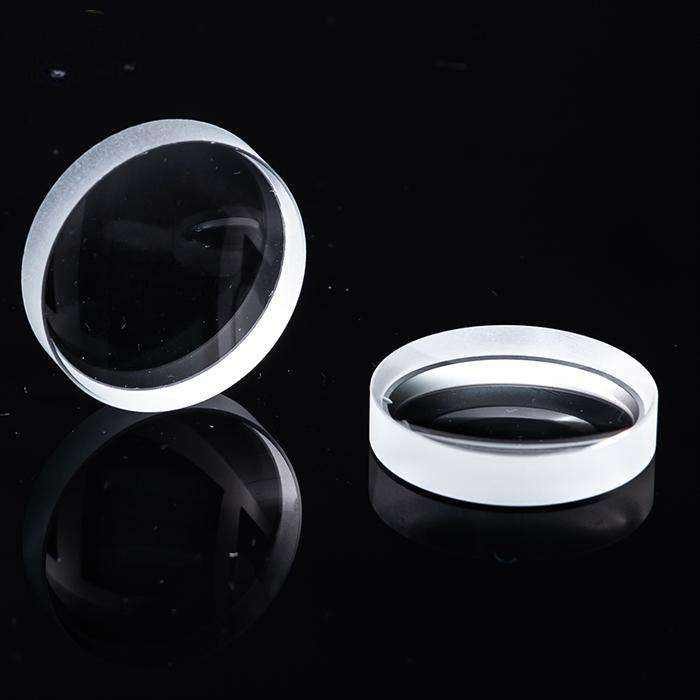

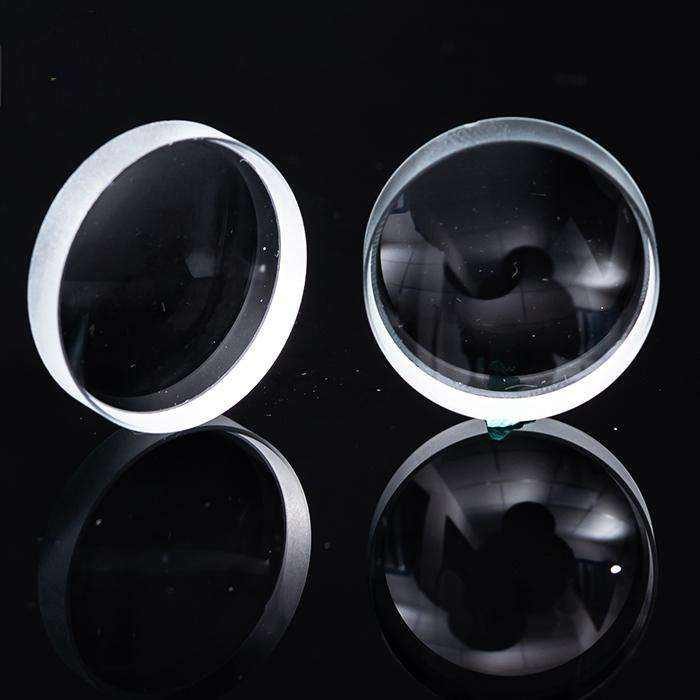

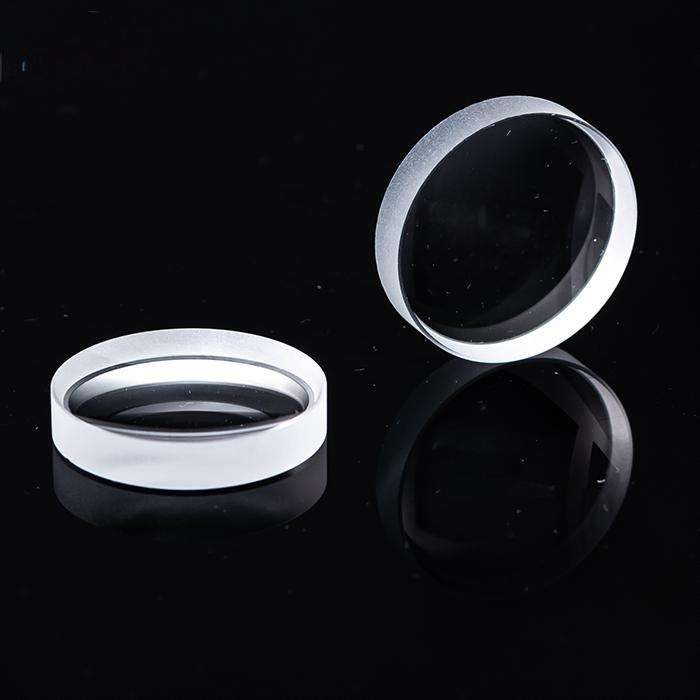

25.4x75 mm CaF2 Concave Lens
Discover our CaF2 plano concave lens, ideal for UV and visible applications with customizable sizes and reliable sourcing.
Core attributes
- Material
- CaF2
- Shape
- Concave
- Diameter
- 25.4 mm
- Focal Length
- 75 mm
- Thickness
- 2.5 mm
- Surface Quality
- 60/40
- Coating
- uncoated, anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- CaF2
- Shape
- Concave
- Diameter
- 25.4 mm
- Focal Length
- 75 mm
- Thickness
- 2.5 mm
- Surface Quality
- 60/40
- Coating
- uncoated, anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm), UV (<400 nm)
Product description
This plano concave lens, made from CaF2, is ideal for applications requiring high transmittance in the visible spectrum (400-700 nm) and UV range (<400 nm). With a focal length of 75 mm and a diameter of 25.4 mm, it offers precision optical performance for imaging and laser applications. The lens is available in both uncoated and anti-reflective (AR) coated options, ensuring adaptability to various optical setups. Its customizable dimensions and reliable sourcing from Jiangsu make it suitable for both prototype and production needs.
Key Features
- Diameter: 25.4 mm for compatibility with standard optical systems.
- Focal length of 75 mm enables effective light focusing for imaging applications.
- Surface quality of 60/40 ensures reliable performance in demanding environments.
- Customizable sizes available, supporting OEM and ODM requests.
- Lightweight design at 0.5 kg (1.10 lb) facilitates easy integration into systems.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 25.4 x 75 |
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Shape | Concave |
| Diameter | 25.4 mm |
| Focal Length | 75 mm |
| Thickness | 2.5 mm |
| Surface Quality | 60/40 |
| Coating | uncoated, anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens |
| Customized Support | OEM, ODM |
| Warranty | 3months |
| Weight | 0.5KG(1.10lb) |
| Name | plano concave lens |
| Diameter Tolerance | 0.01mm |
| Wavelength | 632.8nm |
FAQ
What are the available custom sizes?
The lens is available in a range of sizes from 5 mm to 400 mm, including the specified 25.4 mm diameter.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified, allowing for flexible procurement options.
