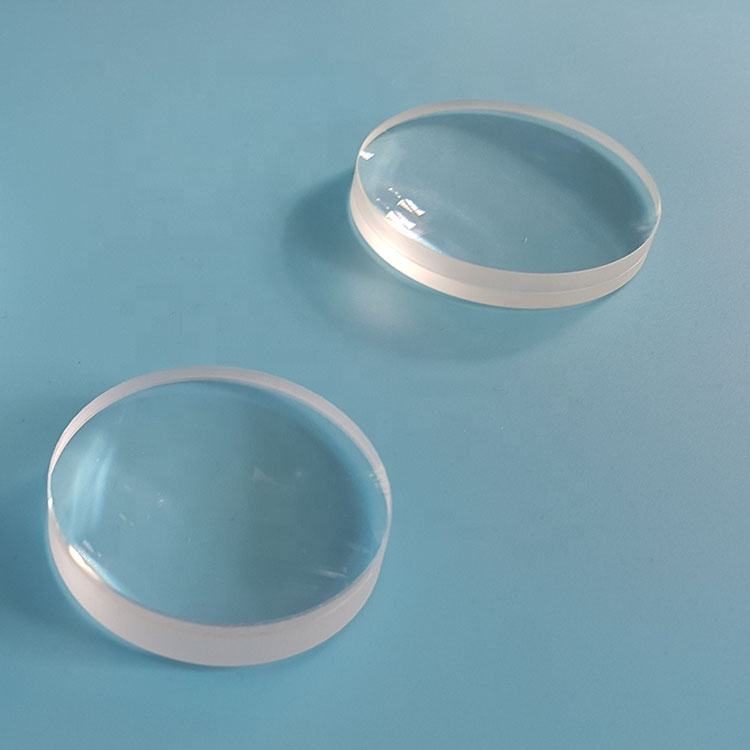

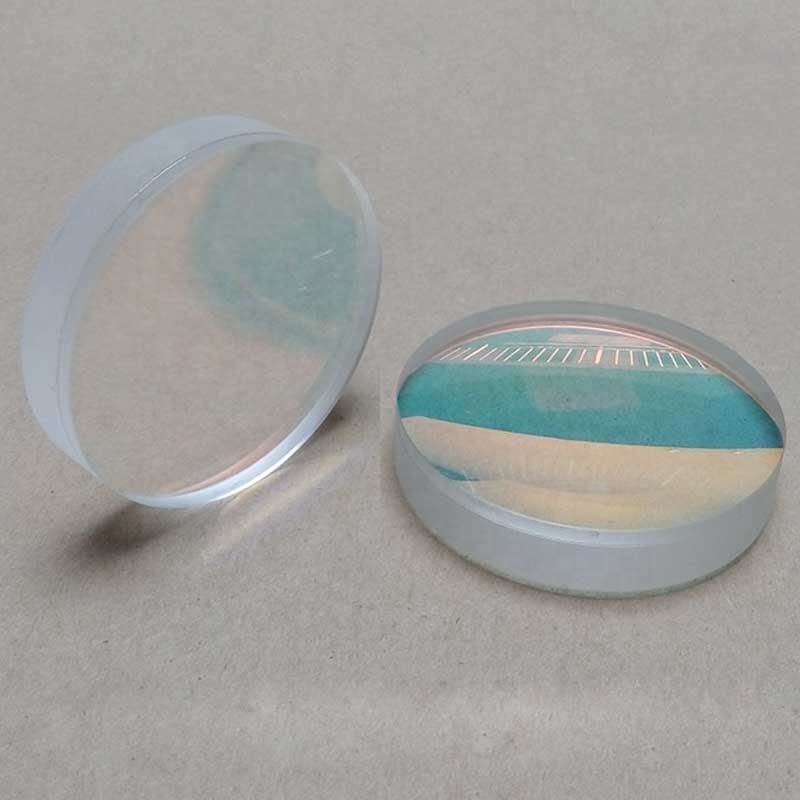

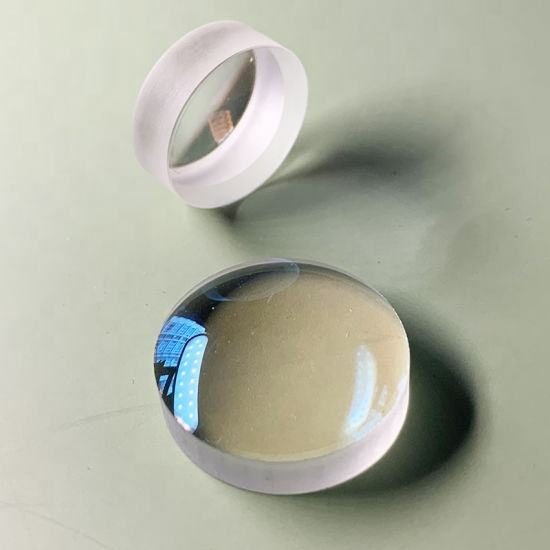

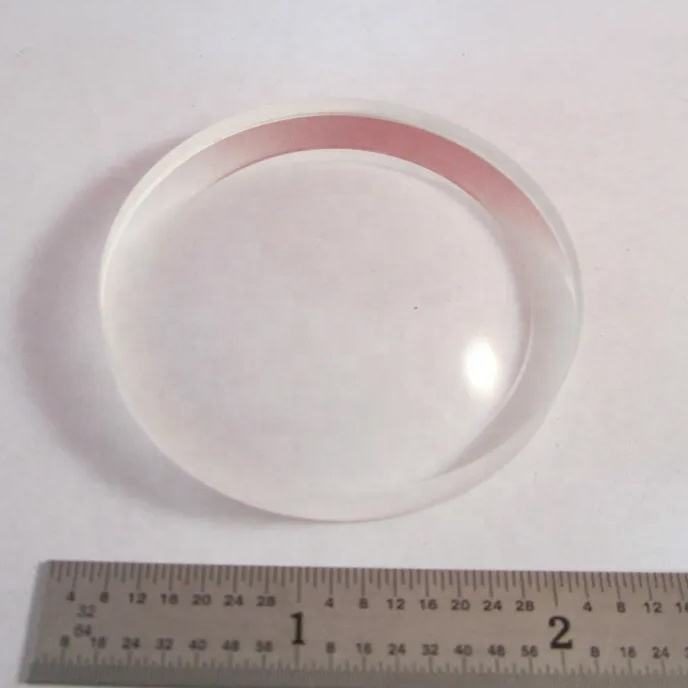

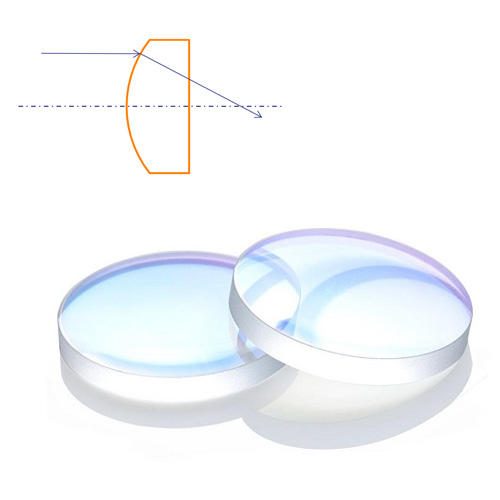

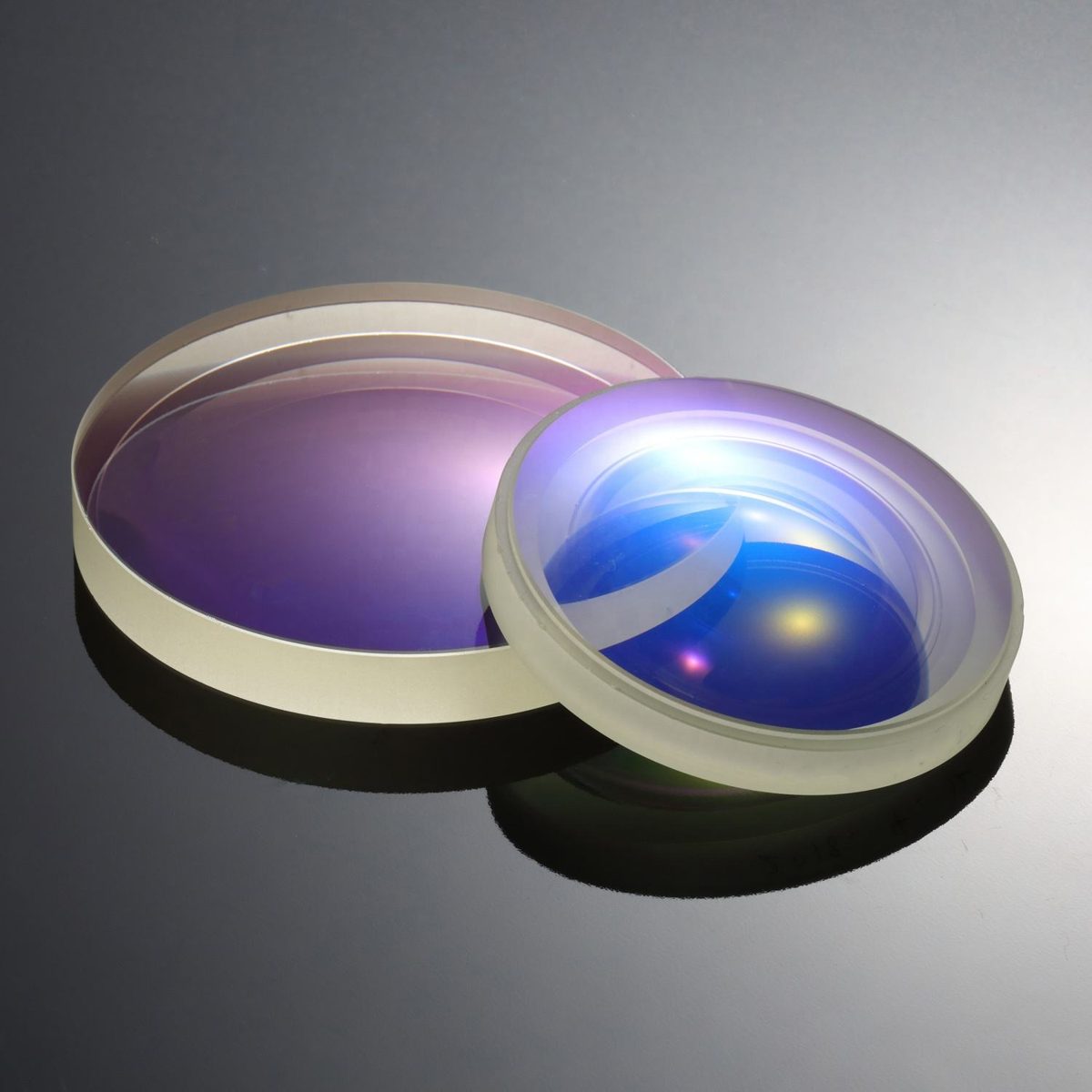

5 mm CaF2 Concave Lens, AR Coated

Product description

The CaF2 concave lens is designed for applications in thermal imaging, LIDAR, and general imaging across the UV to visible spectrum (400-700 nm). With high transmission and low dispersion characteristics, it provides superior imaging performance compared to conventional optical glasses. This lens is ideal for environments requiring high laser power damage thresholds, making it suitable for excimer laser applications. Custom sizes and coatings are available to meet specific project needs.

Key Features

High transmission from 180 nm to 8.0 microns for versatile applications.
Clear aperture greater than 90% ensures minimal light loss.
Surface quality of 60/40 for reliable optical performance.
Centration tolerance of less than 3 arcmin for precise alignment.
Custom OEM/ODM options available for tailored solutions.

Applications

Thermal Imaging, Lidar, Imaging

Specification Summary

Item	Value
Material	CaF2
Shape	Concave
Diameter	5 mm
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated, mgf2
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Convex Lenses, Concave Lens
Customized Support	OEM, ODM, Upon request
Warranty	1 months
Weight	0.05
Clear Aperture	> 90%
Focal Length Tolerance	±2%
Flatness	L/2-L/8 @633nm
Centration	< 3 arcmin
Bevel	<0.3mmX45°

FAQ

What is the minimum order quantity (MOQ) for these lenses?

The minimum order quantity is not specified, allowing for flexible purchasing.

Can I get custom sizes for the CaF2 concave lens?

Yes, custom sizes and coatings are available upon request.
