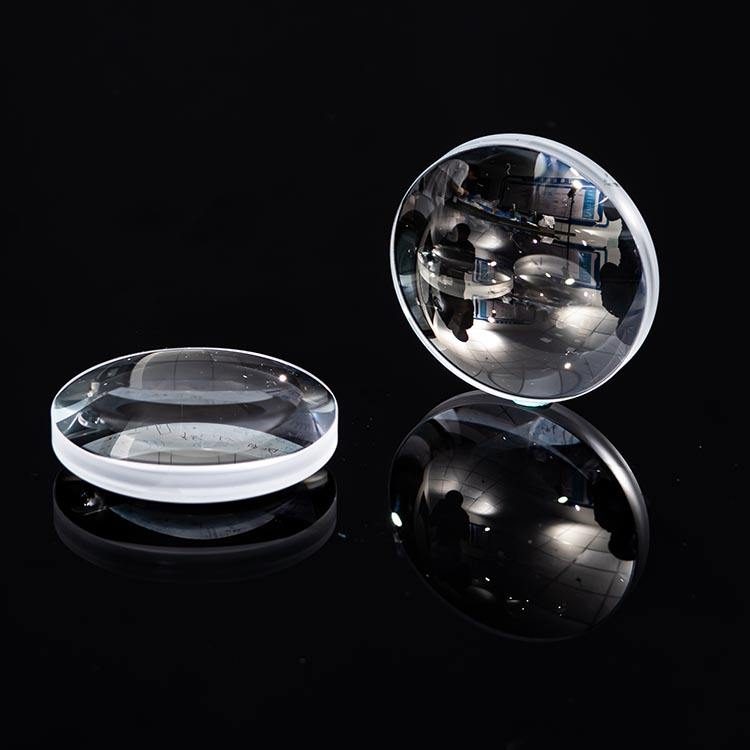

15x60 mm CaF2 Convex Lens
Convex lens made of CaF2 for thermal imaging, with 15 mm diameter and 60 mm focal length. Custom sizes available.
Core attributes
- Material
- CaF2
- Shape
- Convex
- Diameter
- 15 mm
- Focal Length
- 60 mm
- Surface Quality
- 60/40
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- CaF2
- Shape
- Convex
- Diameter
- 15 mm
- Focal Length
- 60 mm
- Surface Quality
- 60/40
- Transmission bands
- VIS (400-700 nm)
Product description
This convex lens made from calcium fluoride (CaF2) is ideal for thermal imaging and general imaging applications within the 400-700 nm wavelength range. With a diameter of 15 mm and a focal length of 60 mm, it offers excellent optical performance for various optical instruments. The lens features a surface quality of 60/40 and a flatness of PV0.25, ensuring clarity and precision in imaging tasks. Its robust design and reliable manufacturing from Jiangsu make it suitable for demanding applications.
Key Features
- Diameter of 15 mm ensures compatibility with standard optical systems.
- Focal length of 60 mm provides versatility for various imaging applications.
- Surface quality of 60/40 enhances image clarity and reduces distortion.
- Flatness of PV0.25 supports high-precision applications.
- Custom support available for OEM and ODM projects.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 15 x 60 |
Applications
Thermal Imaging, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Shape | Convex |
| Diameter | 15 mm |
| Focal Length | 60 mm |
| Surface Quality | 60/40 |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Weight | 0.5kg(1.10lb) |
| Surface Flatness | PV0.25 |
| Parallel | 1' |
| Diameter Tolerance | 0/-0.05mm |
| Use | Optical Instrumetns |
| Certification | ISO9001 |
FAQ

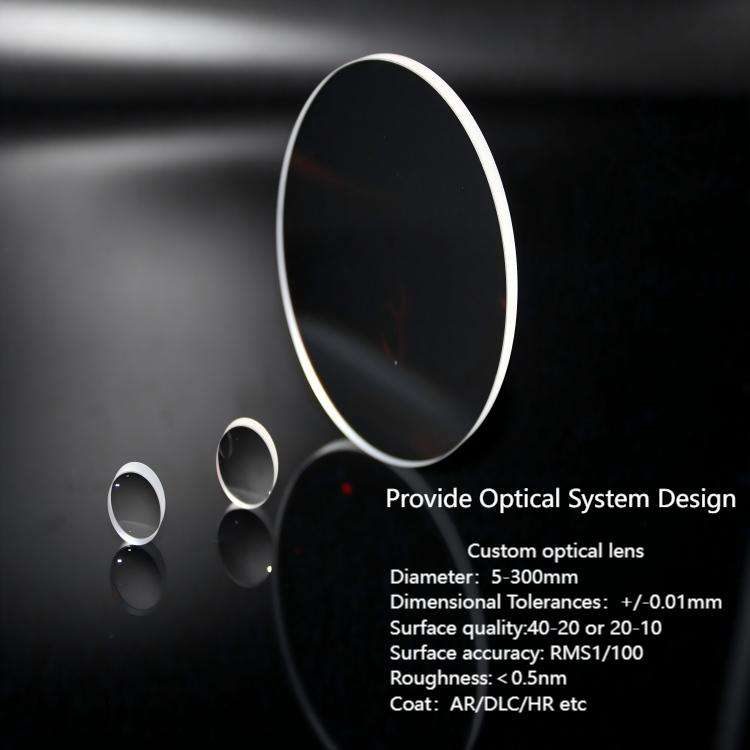

Can I get custom sizes for this lens?
Yes, custom sizes are available through OEM and ODM support.
What is the diameter tolerance for this lens?
The diameter tolerance is ±0.05 mm.
