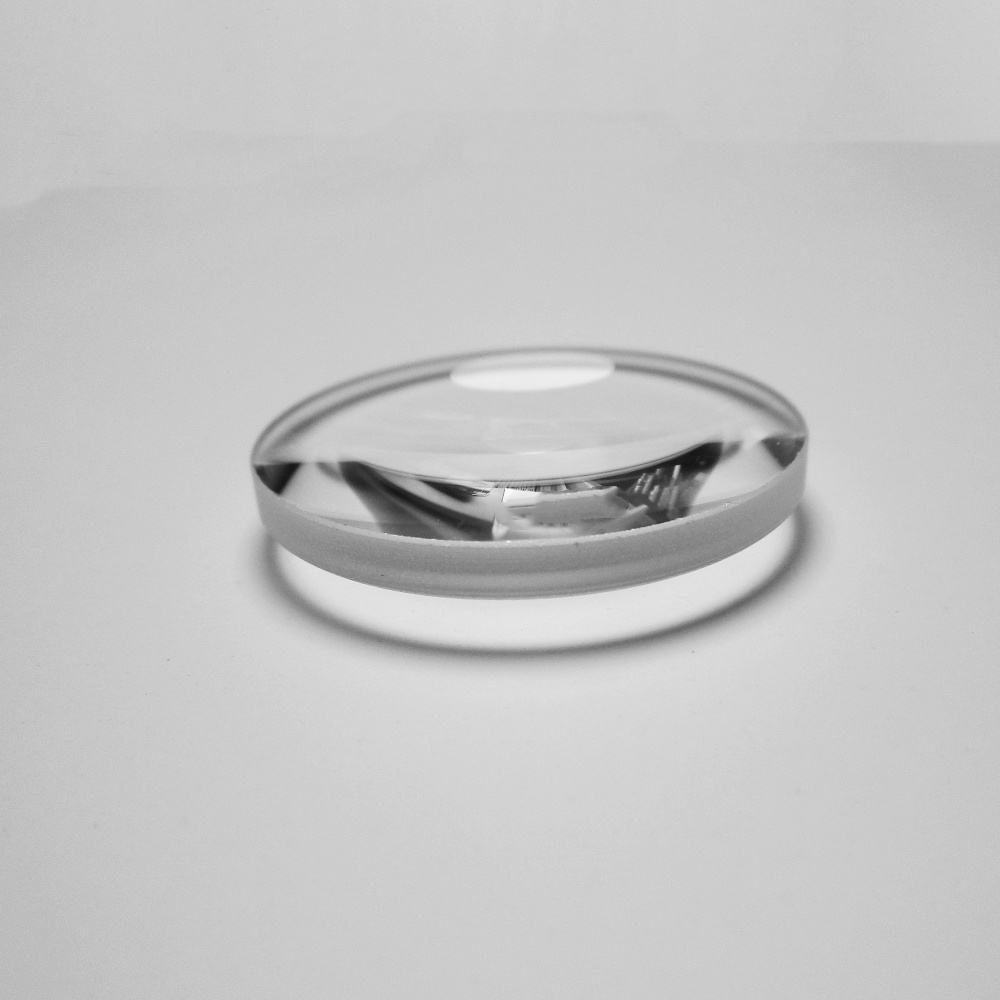

100 mm CaF2 Optical Window, AR Coated
Explore CaF₂ plano convex lenses for thermal imaging and medical applications with customizable options and high precision.
Core attributes
- Material
- CaF2
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product facts
Key attributes
- Material
- CaF2
- Diameter range
- 100 mm
- Coating
- ar, uncoated
Product description

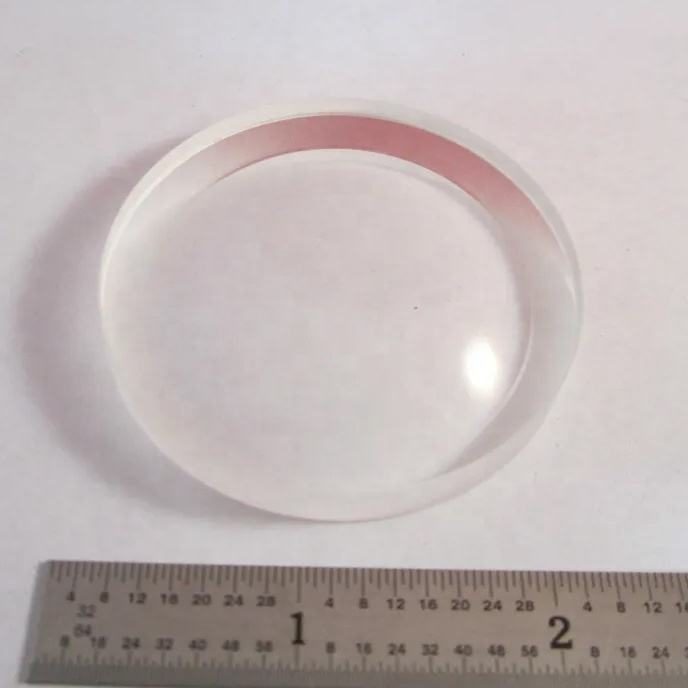

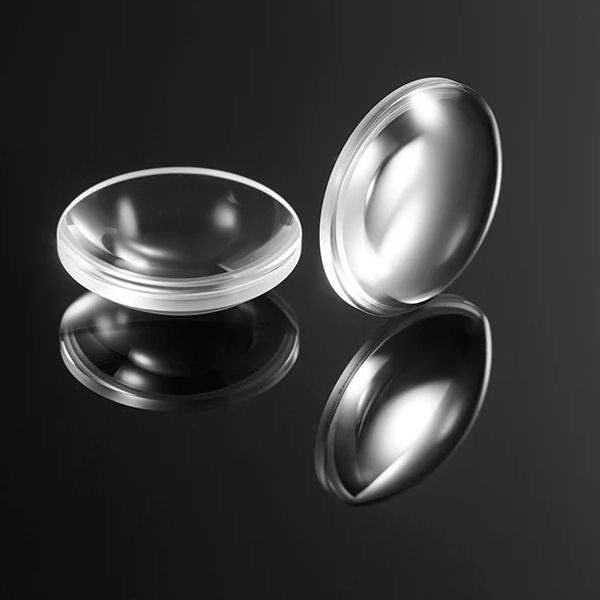

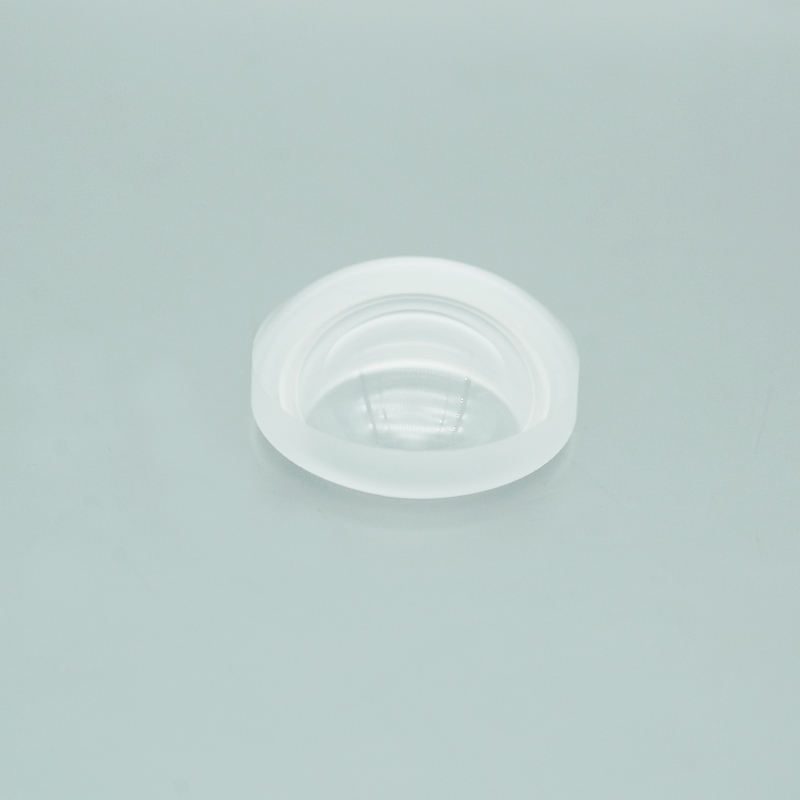

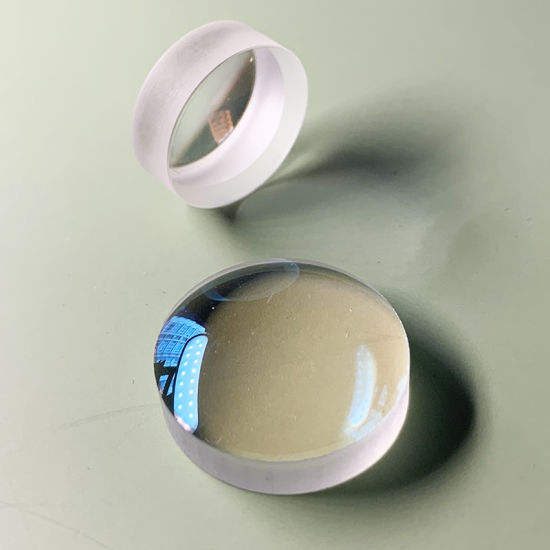

Calcium Fluoride (CaF₂) plano convex lenses are designed for thermal imaging and medical applications, providing exceptional performance across multiple bands including 0.7-1.7 μm, 3-5 μm, and 8-14 μm. With a surface quality of 60/40 and a clear aperture of ≥90%, these lenses ensure reliable imaging and high transmittance. Their robust construction and customizable options make them suitable for demanding environments.
Key Features
- Broadband performance from 0.7-14 μm, ideal for thermal imaging and medical applications.
- Surface quality of 60/40 ensures high clarity and reliability in imaging.
- Dimension tolerance of ±0.2 mm for precision in various applications.
- Custom coatings available, enhancing performance for specific wavelength ranges.
- Weight of only 0.003 kg, facilitating easy integration into systems.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Diameter | 100 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR), uncoated |

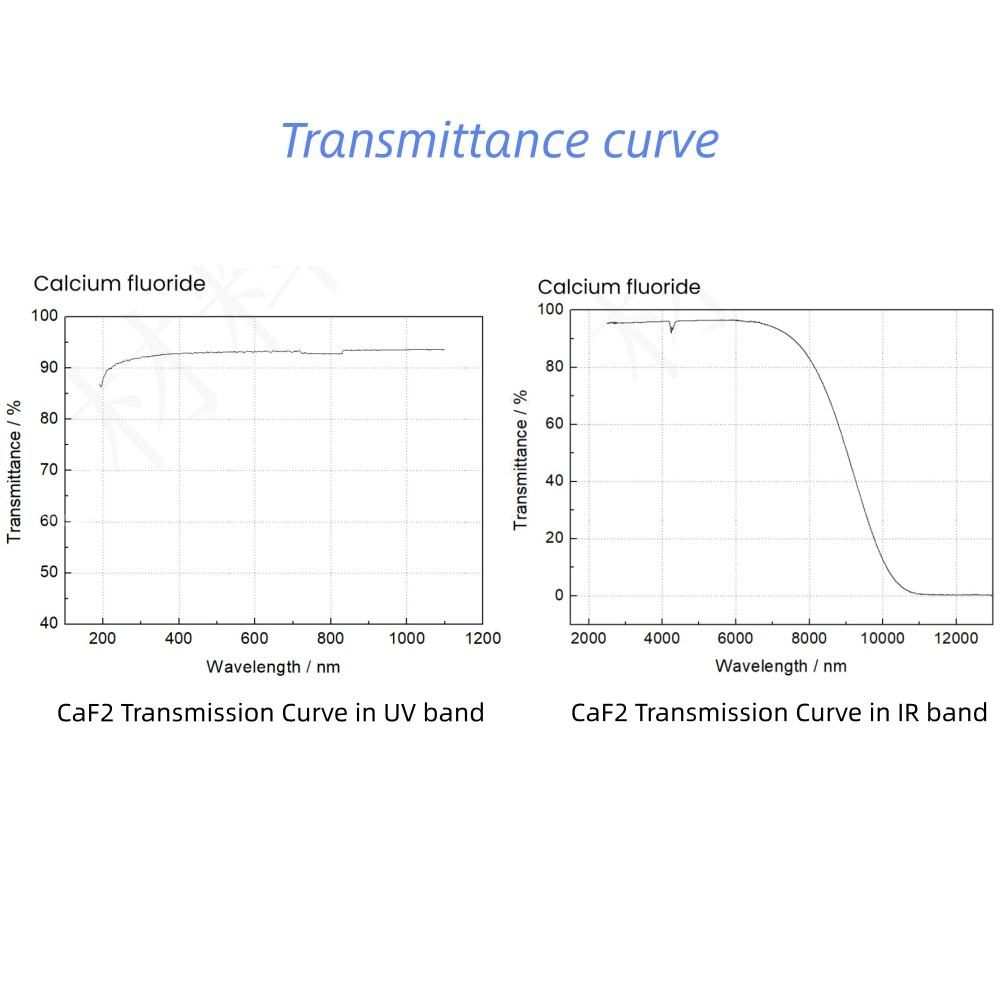

| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.003 |
| Dimension Tolerance | ±0.2mm |
| Parallelsim | <3 arcmin |
| Clear Aperture | ≥90% |
| Focal Length Tolerance | ±2% |
FAQ
Can I get custom sizes?
Yes, custom sizes are available to meet specific application requirements.
What are the tolerances for dimensions?
The dimension tolerance is ±0.2 mm, ensuring precision in lens manufacturing.
