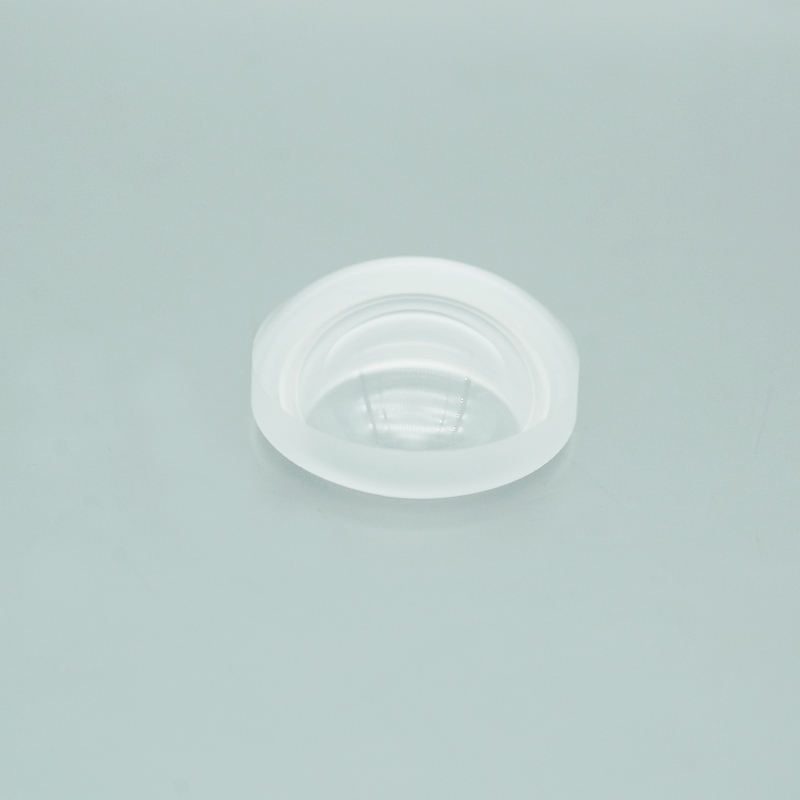

100 mm CaF2 Optical Window, AR Coated

Product description

The Plano Convex Lens made from CaF2 is designed for high transmittance applications, ensuring clear and distortion-free light transmission. With a diameter of 100 mm and a surface quality rating of 60/40, this lens is suitable for precise optical measurements. Its customizable options and various coatings, including AR and uncoated, make it adaptable for diverse applications in IR imaging, LIDAR, and medical devices.

Key Features

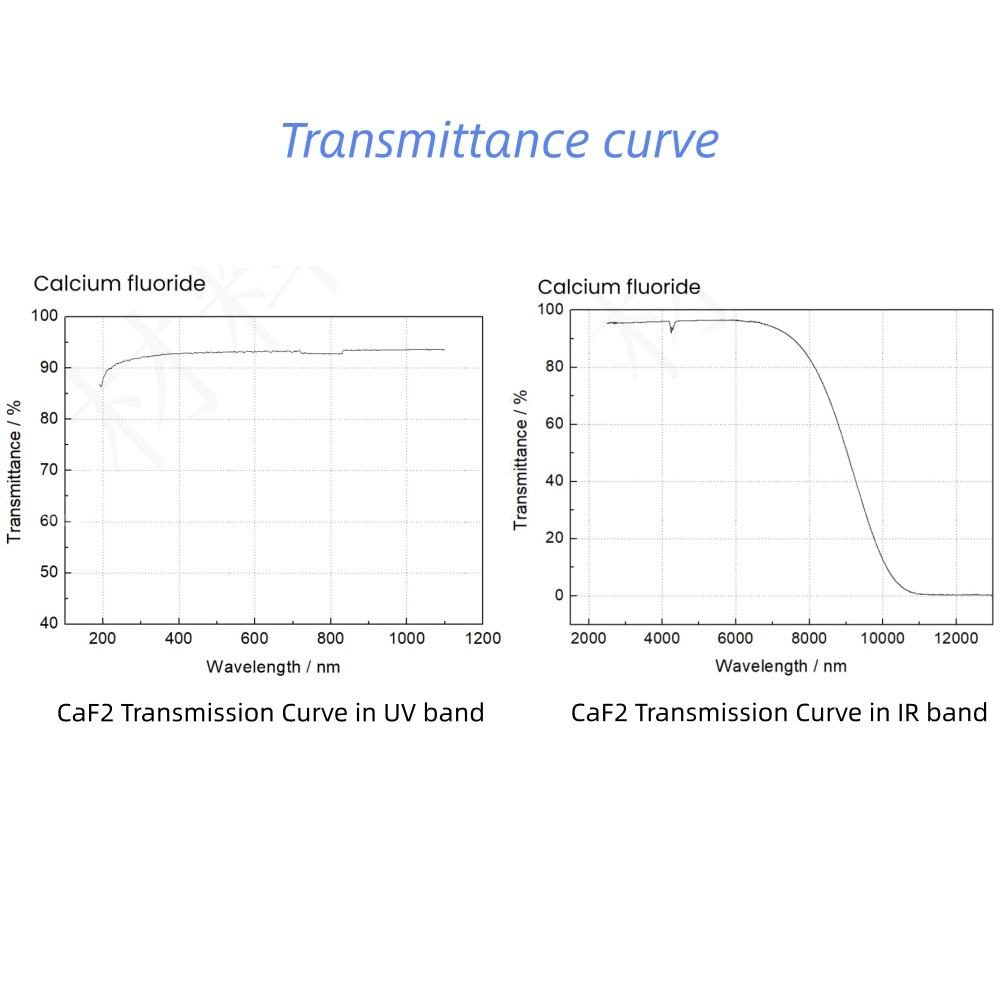

High transmittance for clear optical performance, enhancing measurement accuracy.
Customizable sizes available to meet specific optical equipment requirements.
Precision dimension tolerance of ±0.2mm ensures high accuracy.
Excellent parallelism of ≤3 arcmin for stable performance in critical applications.
Clear aperture of ≥90% maximizes light throughput.

Specification Summary

Item	Value
Material	CaF2
Diameter	100 mm
Thickness	Custom
Surface Quality	60/40
Coating	anti-reflective (AR), uncoated
MOQ	—

Full Specifications

Parameter	Value
Type	Plano Convex Lens
Customized Support	OEM, ODM, OBM
Weight	0.003
Dimension Tolerance	±0.2mm
Parallelsim	<3 arcmin
Clear Aperture	≥90%
Focal Length Tolerance	±2%

FAQ

Can I get custom sizes for this lens?

Yes, customizable sizes are available to fit various optical equipment needs.

What is the dimension tolerance for this lens?

The dimension tolerance is ±0.2mm, ensuring high accuracy in optical applications.
