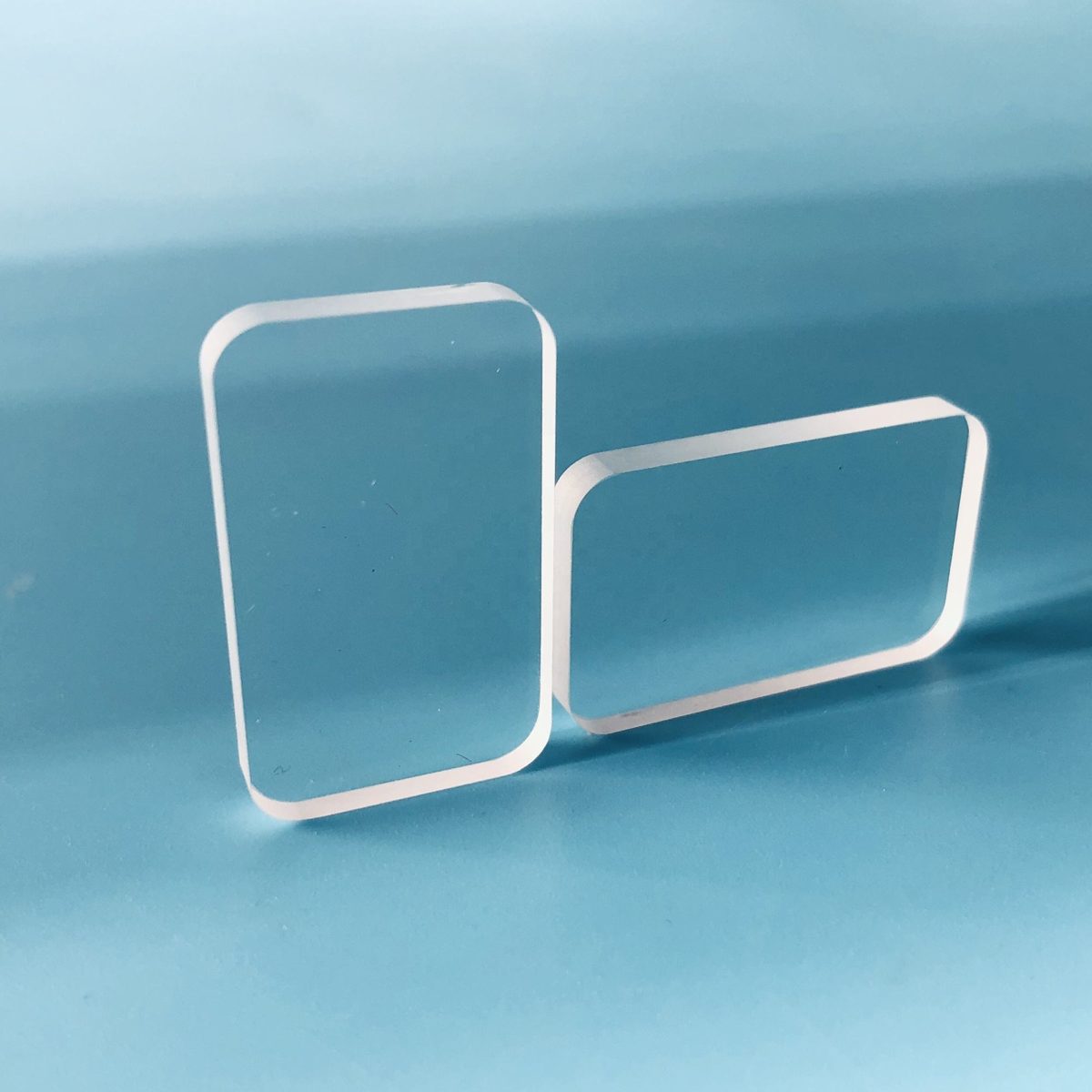

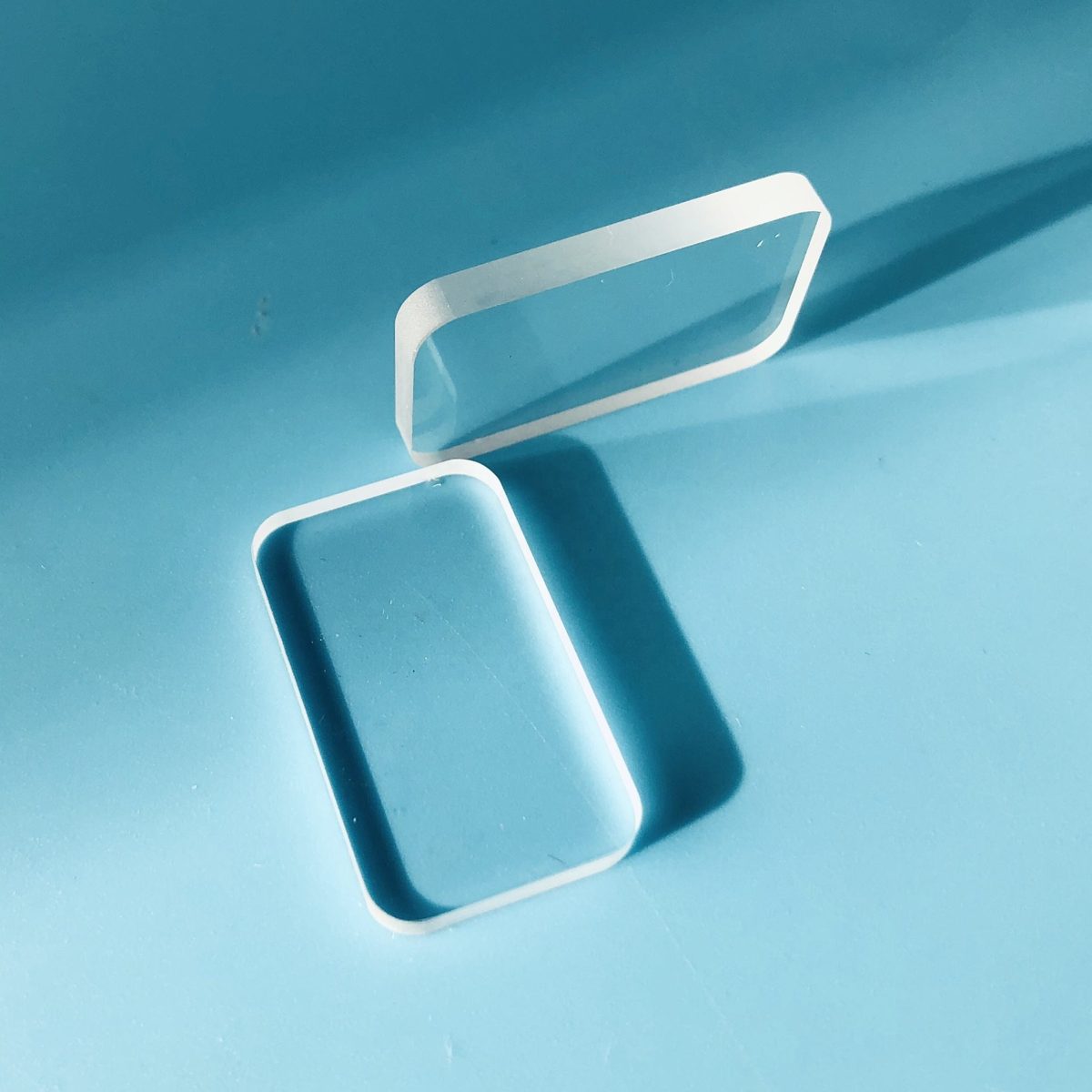

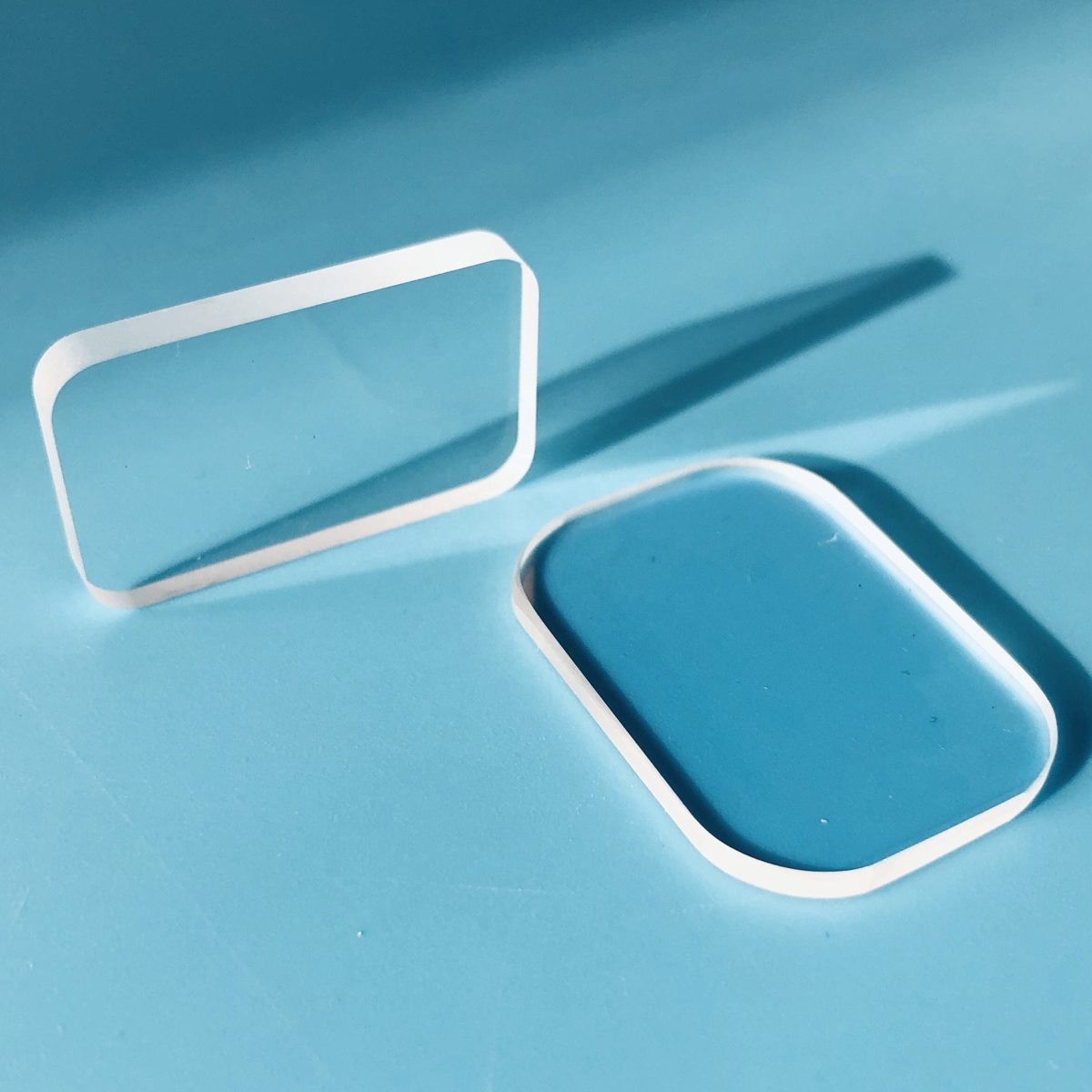

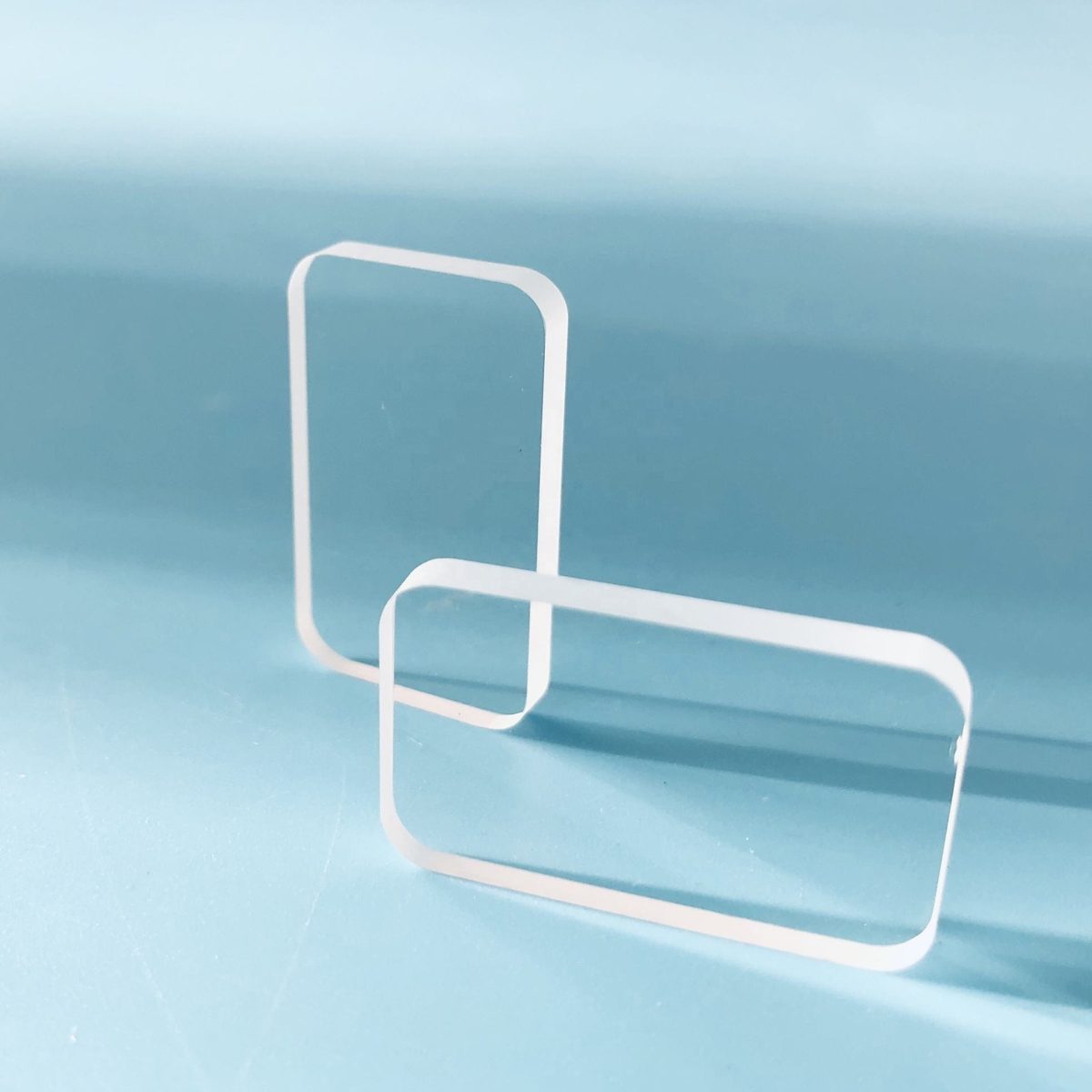

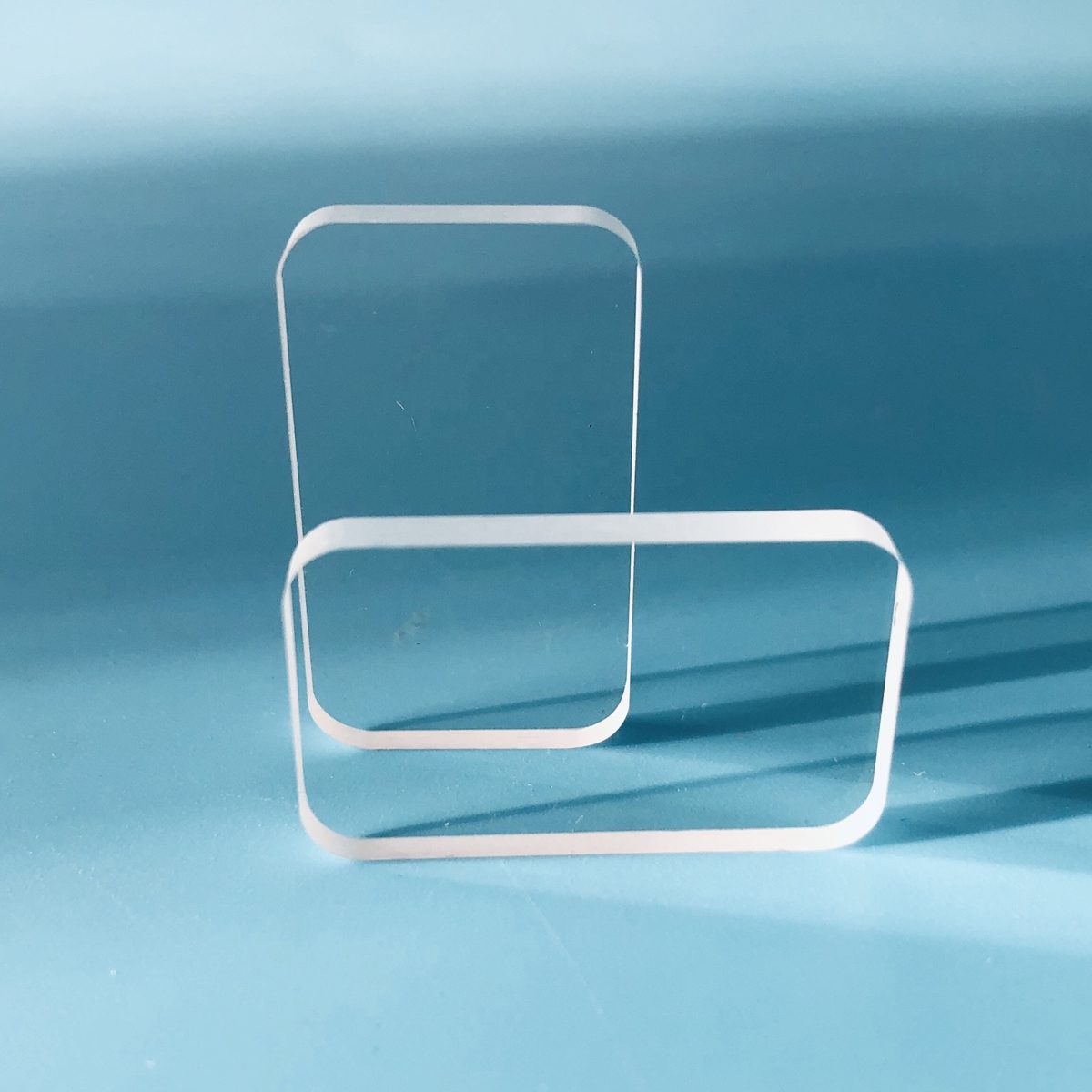

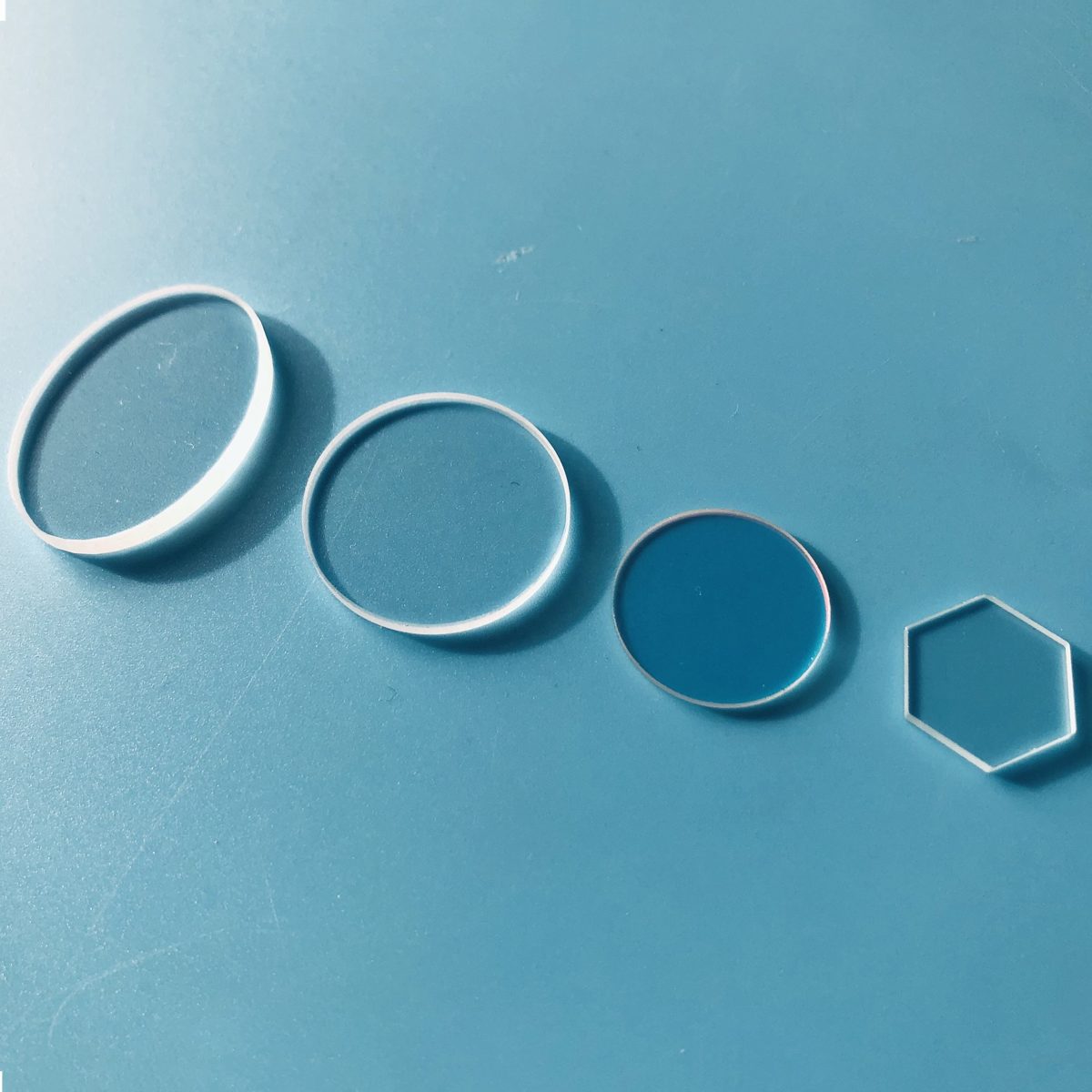

2 mm CaF2 Optical Window
Explore our uncoated CaF2 windows, ideal for thermal imaging and medical applications, with customizable sizes and high optical quality.
Core attributes
- Material
- CaF2
- Diameter range
- 2–200 mm
- Coating
- uncoated
Product facts
Key attributes
- Material
- CaF2
- Diameter range
- 2–200 mm
- Coating
- uncoated
Product description
The uncoated CaF2 window is designed for applications in thermal imaging and medical devices, providing excellent optical performance across a wide spectral range from 130 nm to 9 μm. With a diameter range of 2.0 mm to 200.0 mm and a surface quality of 60/40, this window is ideal for various optical applications requiring low absorption and isotropic properties. Its clear aperture exceeds 80%, ensuring optimal light transmission for critical applications.
Key Features
- Diameter range: 2.0 mm to 200.0 mm for versatile application fit.
- Surface quality of 60/40 ensures reliable optical performance.
- Clear aperture greater than 80% maximizes light transmission.
- Standard chamfers facilitate easy integration into optical systems.
- OEM customization support available for tailored solutions.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | CaF2 |
| Diameter | 2 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | uncoated |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | 3 months |
| Customized Support | OEM |
| Diameter Tolerance | +/-0.1mm |
| Clear Aperture | > 80% |
| Chamfer | Standard chamfers |
| Flatness | L/2 |
FAQ
What is the diameter tolerance for the CaF2 window?
The diameter tolerance is +/-0.1 mm.
Is custom sizing available for this product?
Yes, OEM customization support is available.
