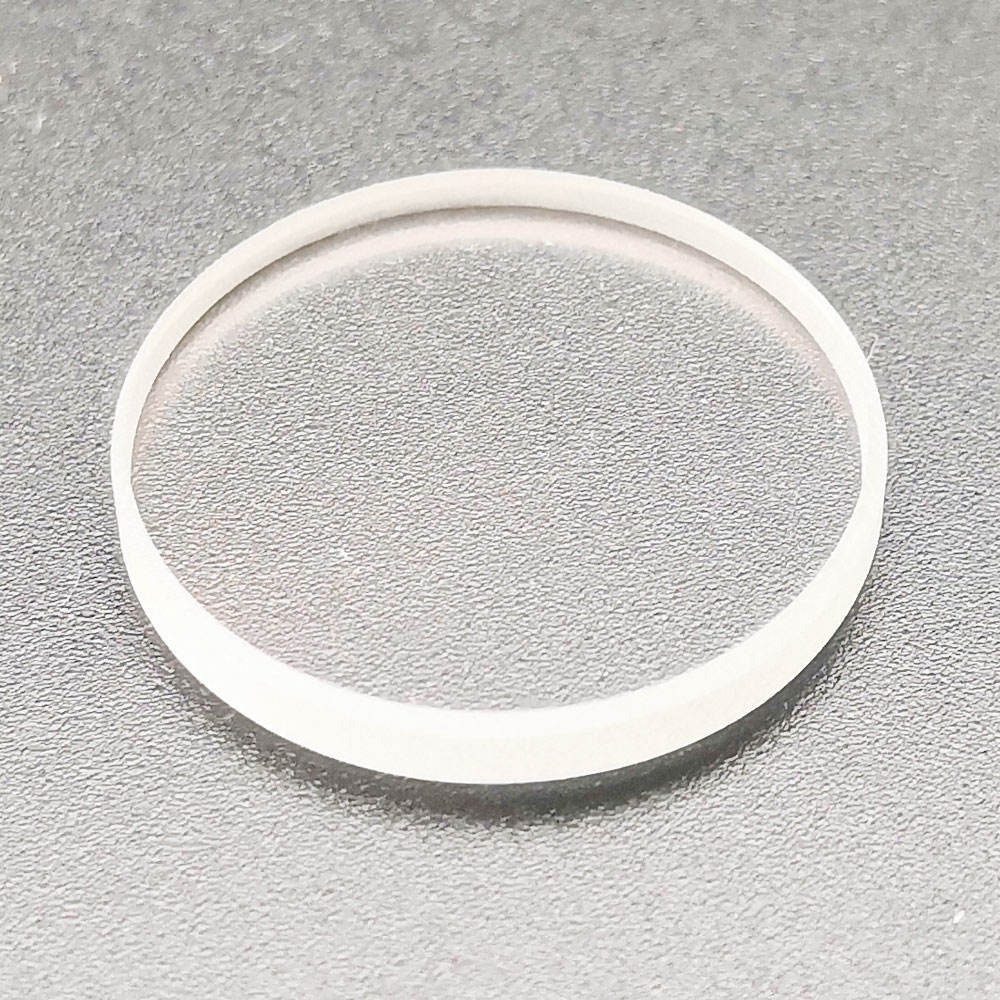

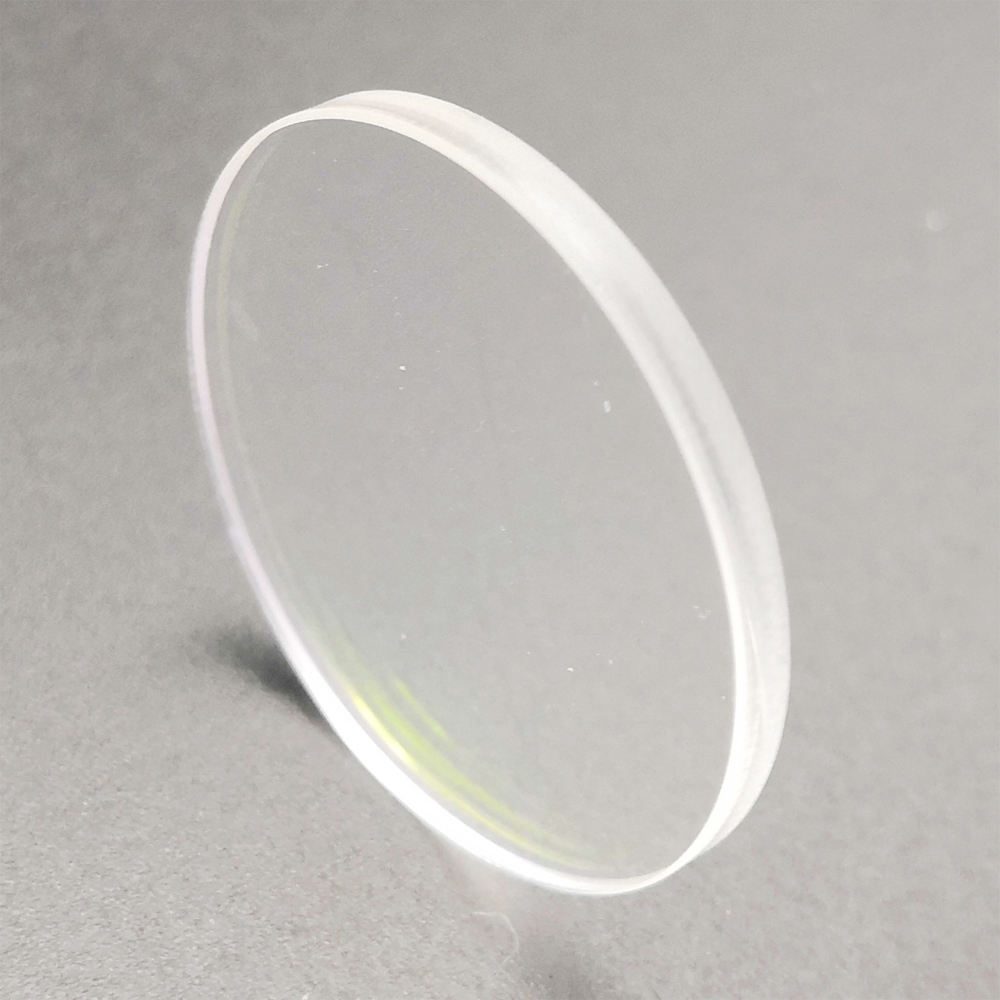

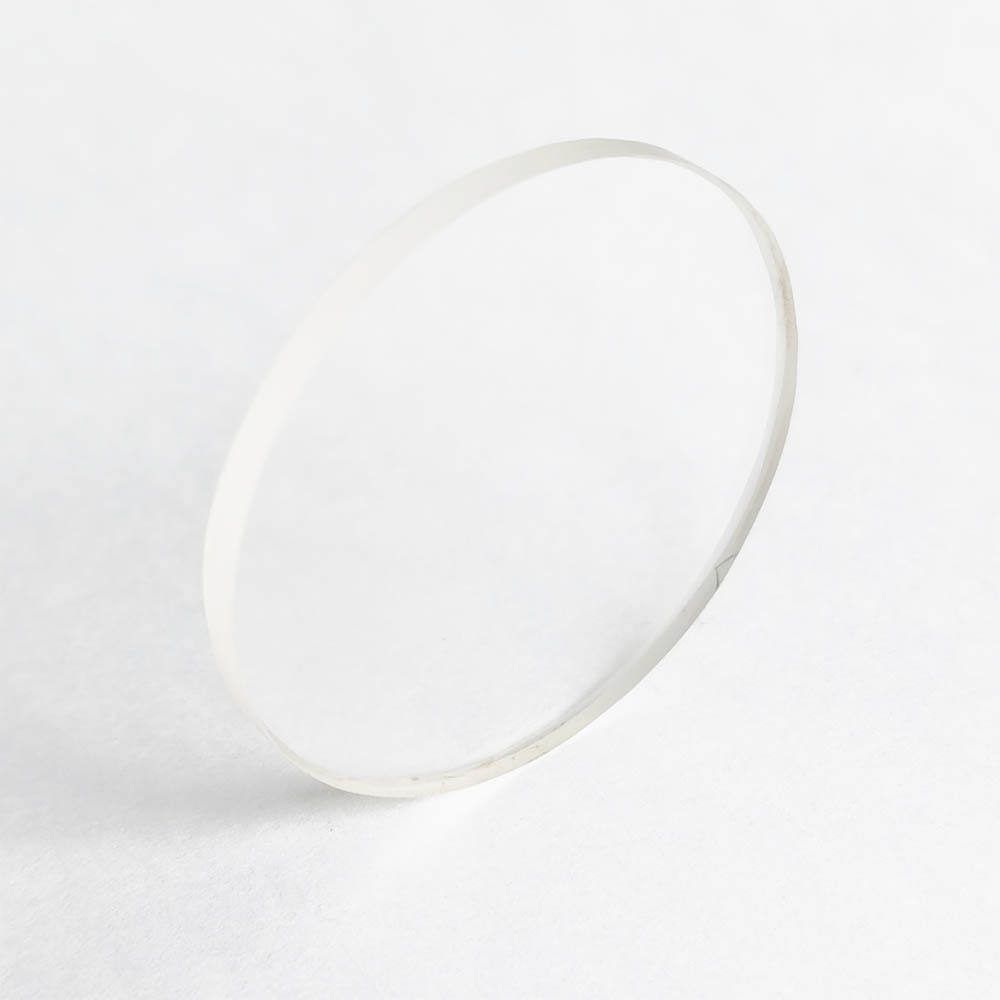

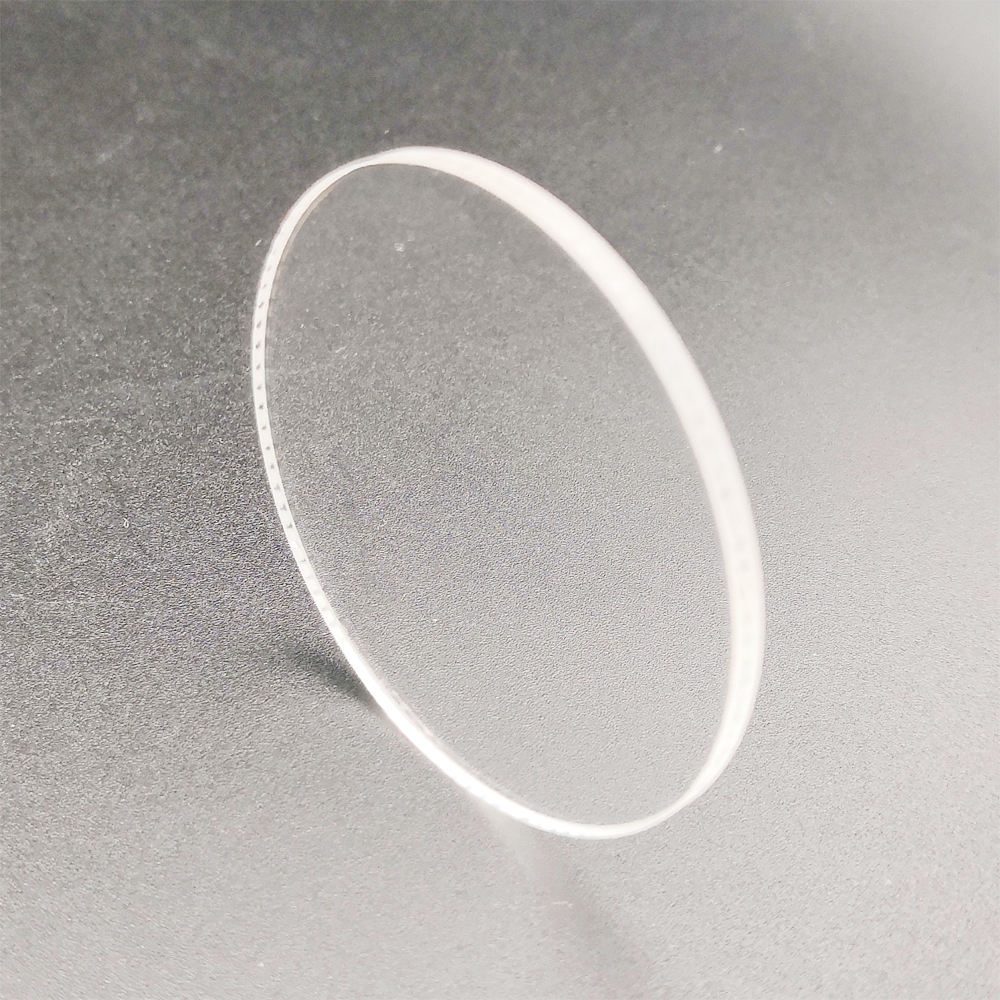

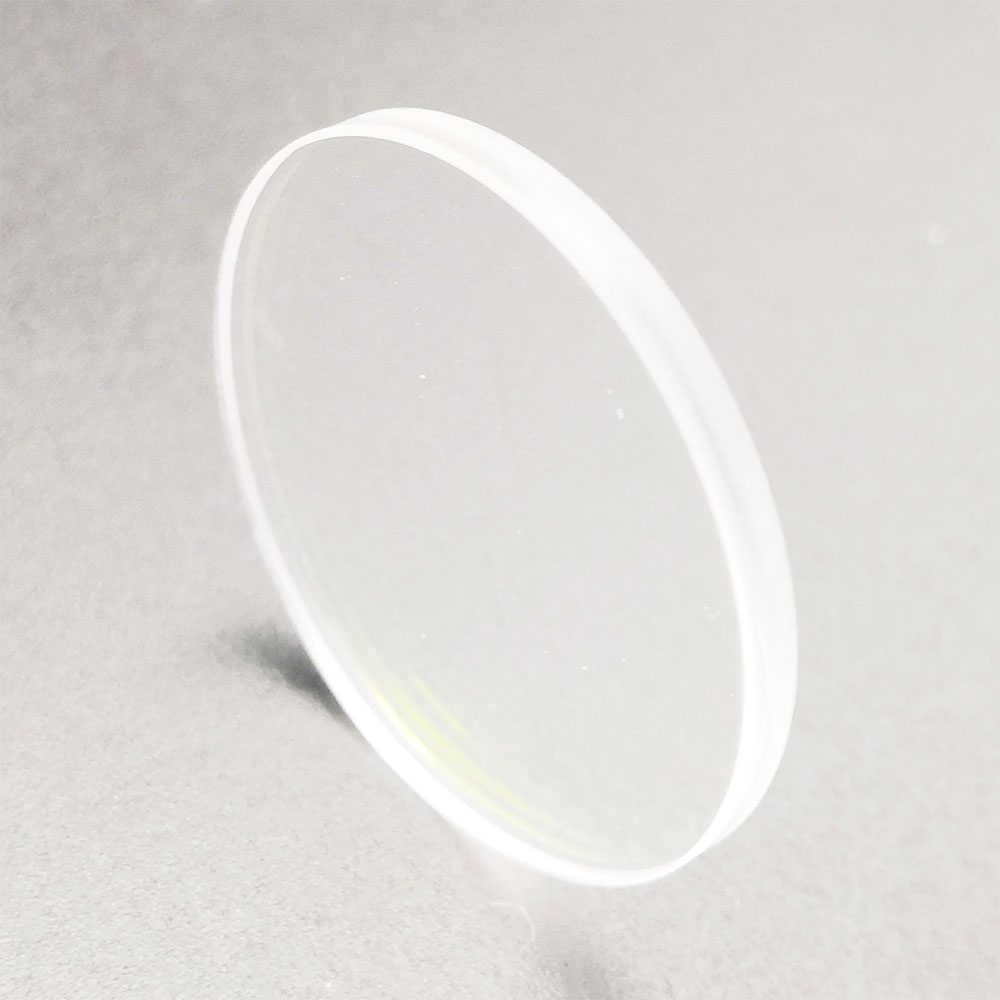

5x0.5 mm CaF2 Optical Window, AR Coated

Product description

Calcium fluoride (CaF2) windows are ideal for thermal imaging and spectroscopy applications, offering high transmittance from 0.18 to 8.0 microns. With a surface quality of 60/40 and a clear aperture greater than 90%, these windows ensure optimal performance in UV and IR environments. Their robust design, including low absorption and high damage threshold, makes them suitable for demanding applications, including excimer lasers and cryogenic systems.

Key Features

Transmittance >92% across 0.18-8 μm enhances imaging quality.
Custom sizes available, including variants like 177.5 mm diameter and 25.2 mm thickness.
Surface quality of 60/40 ensures reliable optical performance.
Parallelism < 3 arcmin for precise alignment in optical setups.
Broadband AR coating option increases transmission in specified ranges.

Available Sizes

Diameter x Thickness (mm)
177.5 x 25.2

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	CaF2
Diameter	5 mm
Thickness	0.5 mm
Surface Quality	60/40
Transmittance	92%
Coating	anti-reflective (AR), uncoated, high-reflective (HR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	1 months
Flatness	L/2, L/4, L/8, L/10
Transmittance	>92% @180nm-8um
Parallelism	< 3 arcmin
Clear Aperture	>90%
Bevel	<0.5mmx45°

FAQ

Can custom sizes be ordered?

Yes, custom sizes are available, including specific variants like 177.5 mm diameter.

What are the tolerances for thickness?

Thickness options range from 0.5 mm to 50.0 mm, allowing for various tolerances.
